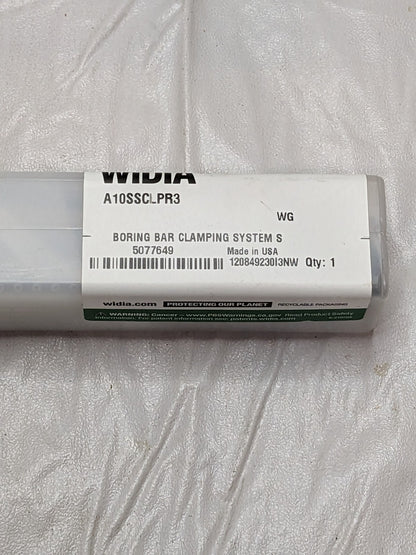

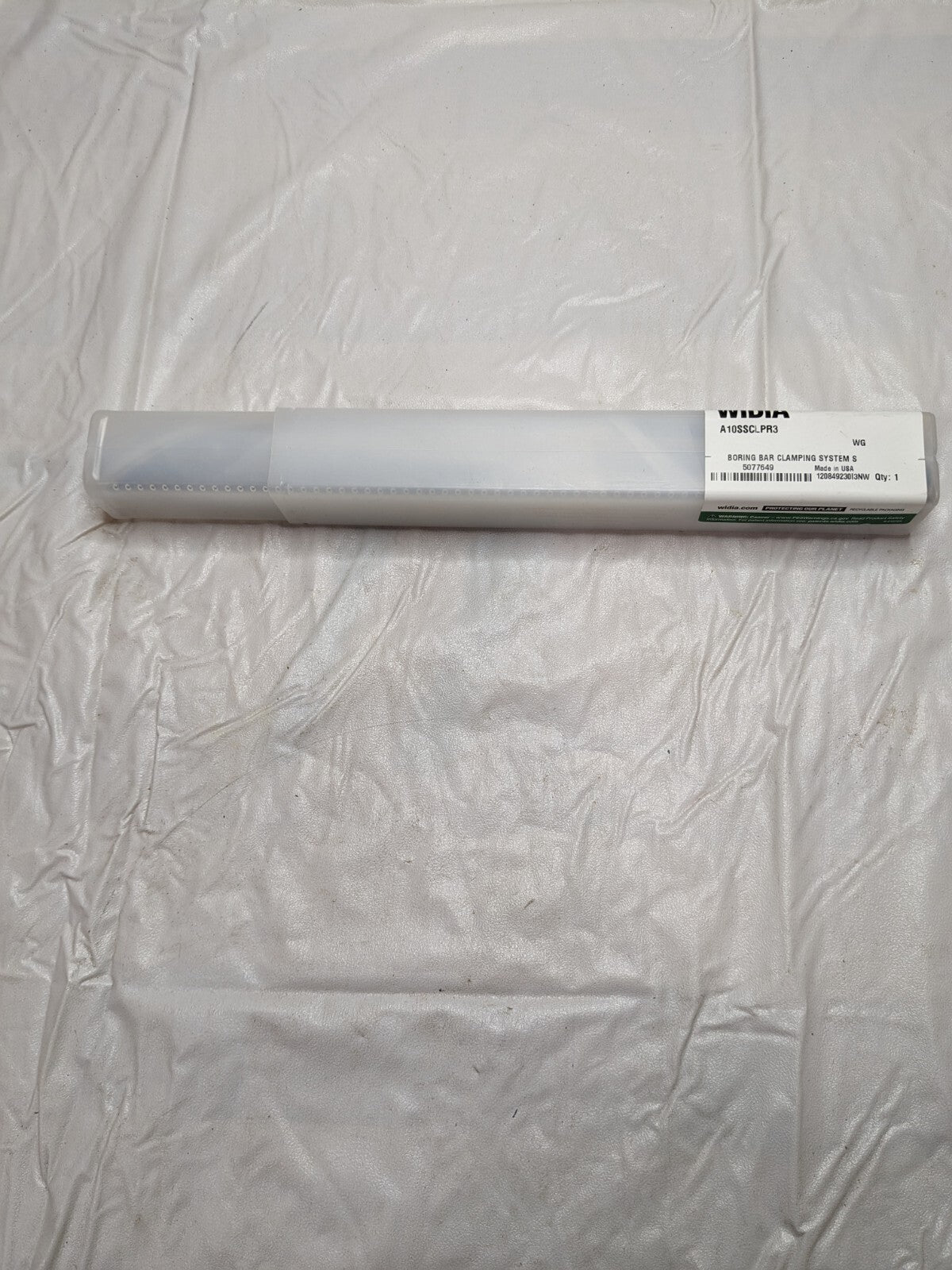

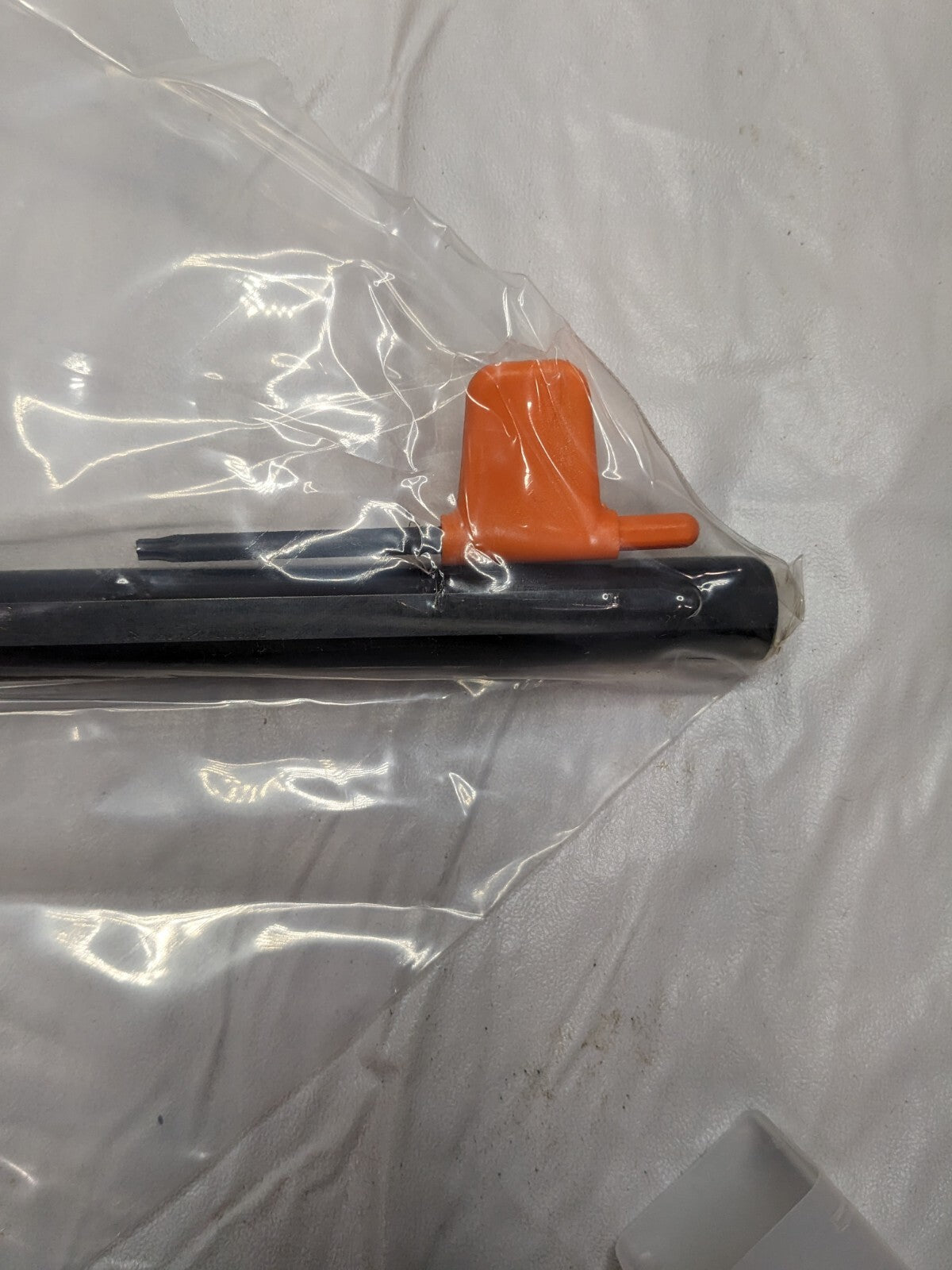

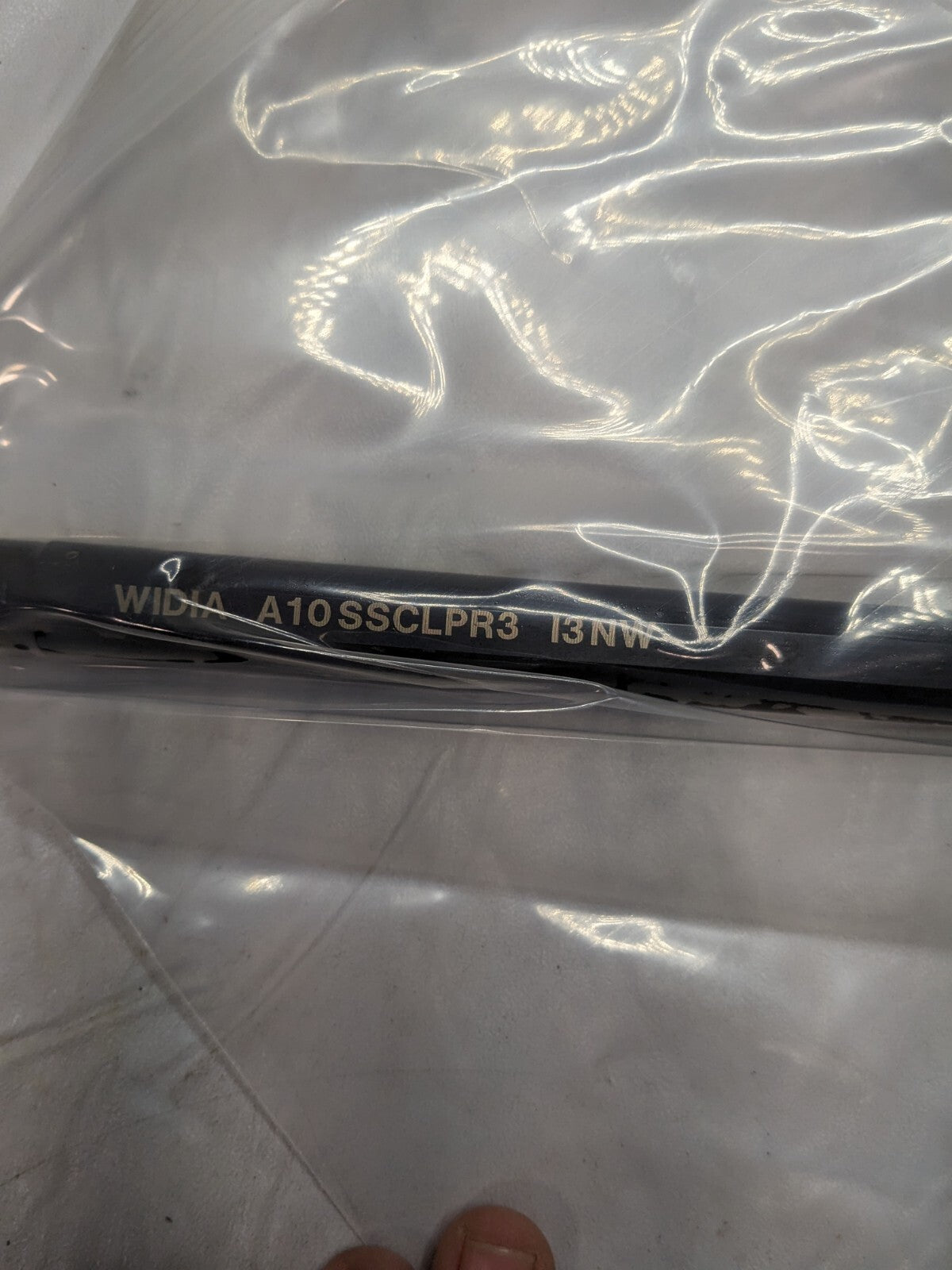

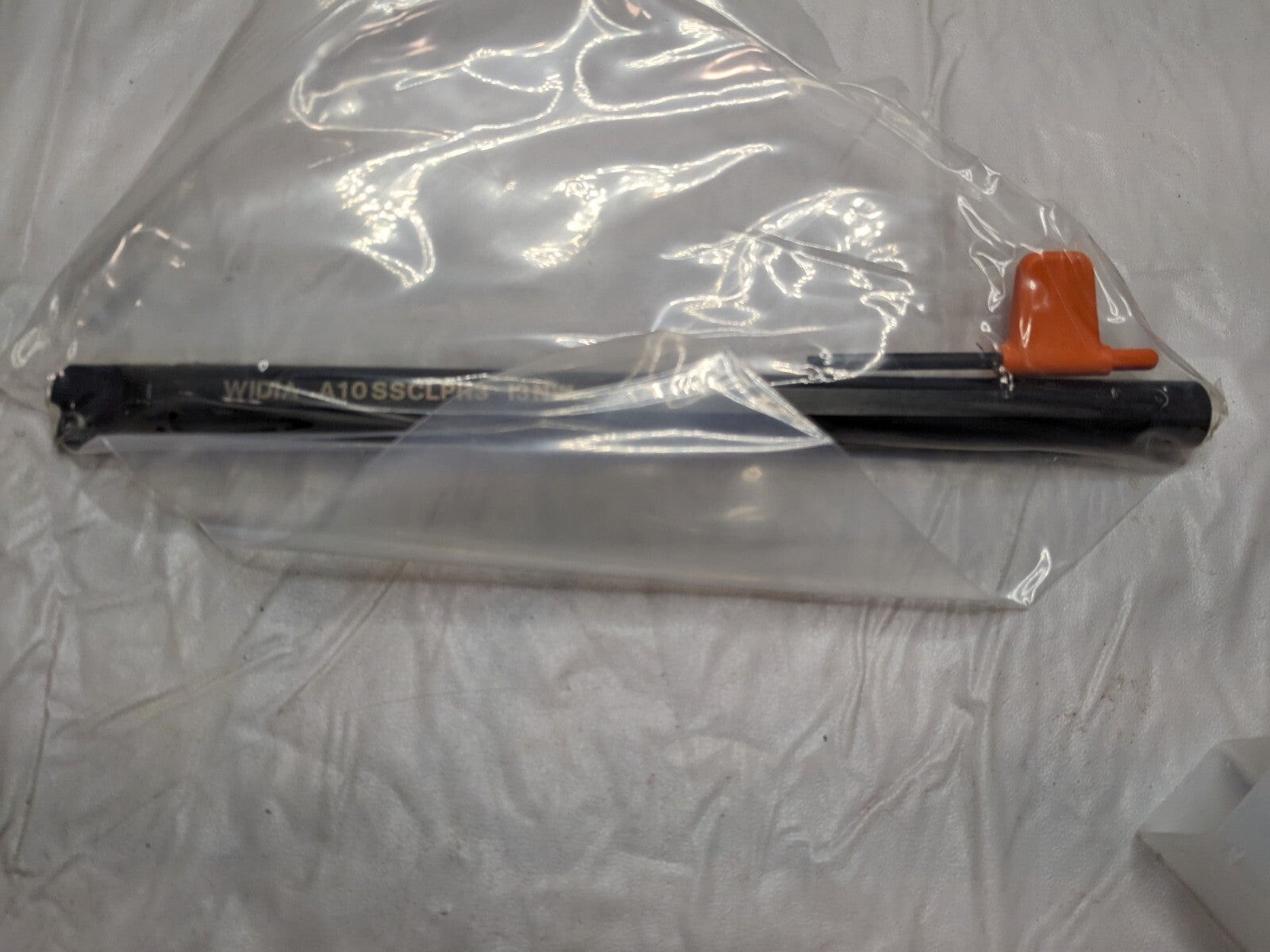

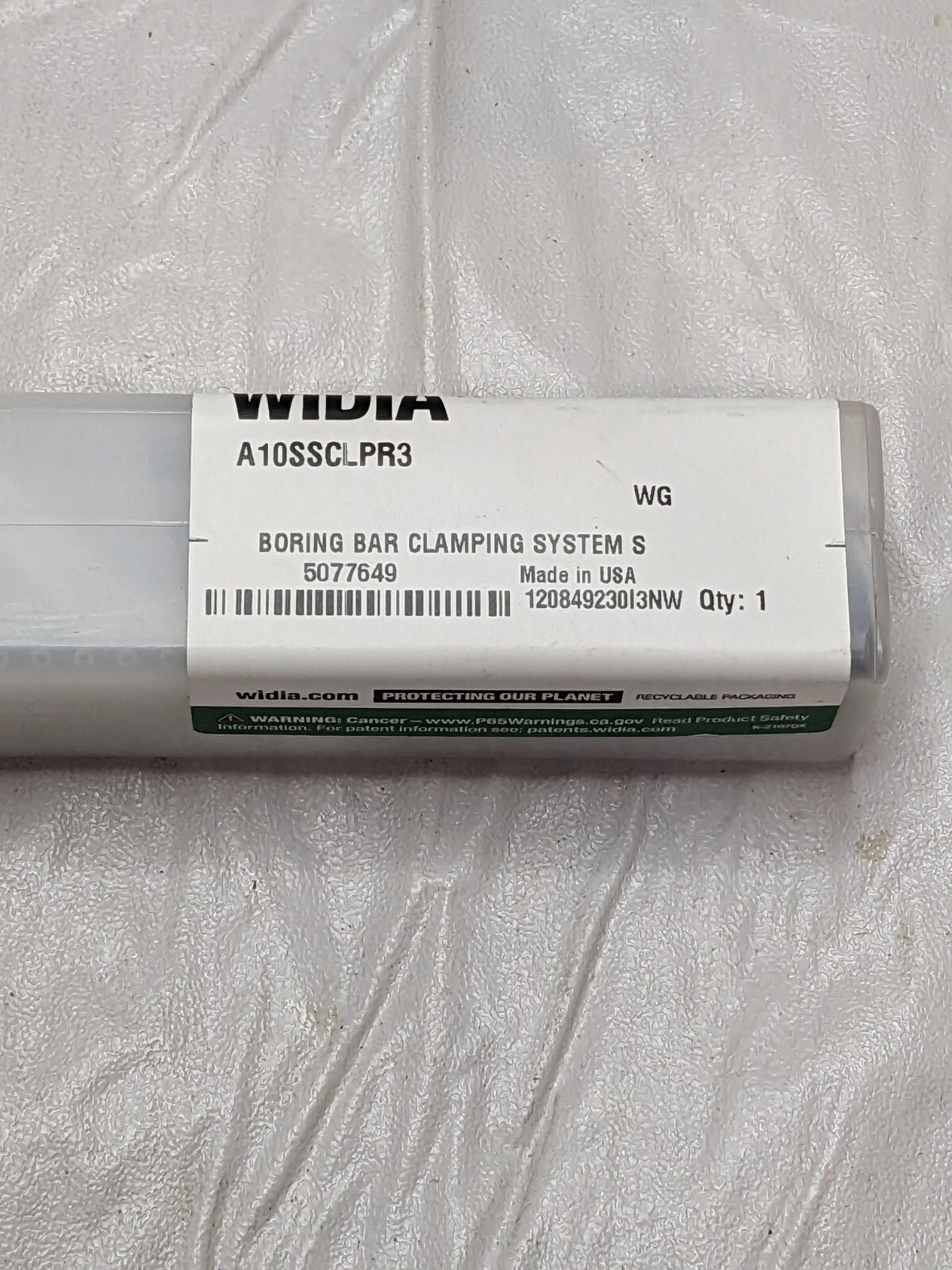

WIDIA Indexable Boring Bar: A10SSCLPR3, 0.77″ Min Bore Dia 5077649

Widia
Indexable Boring Bar

MSRP: $125.00

• Minimum Bore Diameter (Decimal Inch) 0.7700
• Maximum Bore Depth (Decimal Inch) 1.8750
• Toolholder Style SCLPR
• Tool Material Steel
• Hand of Holder Right Hand
• Shank Diameter (Inch) 5/8
• Overall Length (Decimal Inch) 10.0000
• Overall Length (Inch) 10
• Compatible Insert Size Code CPMT3252
• Insert Holding Method Screw
• Compatible Insert Shape Diamond
• Insert Included No
• Rake Positive
• Cutting Direction Right Hand
• Rake Angle -2.00
• Lead Angle -5
• Series A-SCLP
• Insert Inscribed Circle (Inch) 3/8
• Compatible Insert Thickness (Decimal Inch) 0.1563
• Compatible Insert Thickness (mm) 3.97
• Multi-use Tool Yes
• Cutting Tool Application Boring
• Back of Bar to Cutting Edge (Decimal Inch) 0.7185
• Center to Cutting Edge (Decimal Inch) 0.4060
• Primary Workpiece Material Universal
• Multi-Use Application Boring
• Number of Inserts Used on Toolholder 1
• UNSPSC Code 23241601
• Insert Thickness (Decimal Inch) 0.1563
• Insert Thickness (Inch) 5/32
• Coolant Hole Diameter (Decimal Inch) 0.1560
• Manufacturers Catalog Number A10SSCLPR3
• Radial Rake 0
• Coolant Through Yes

This item is new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
