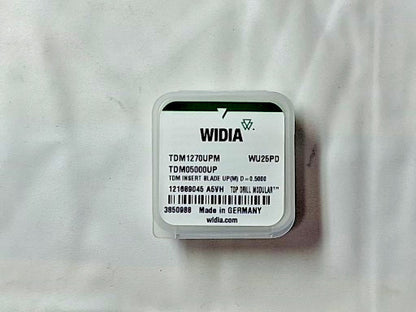

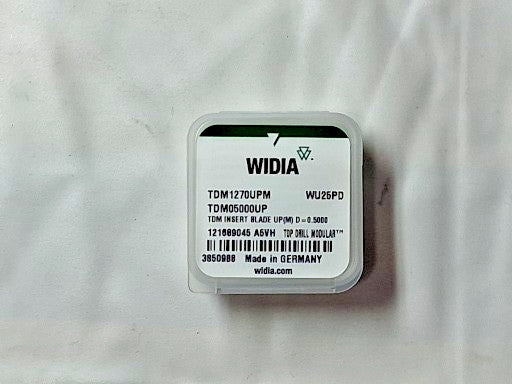

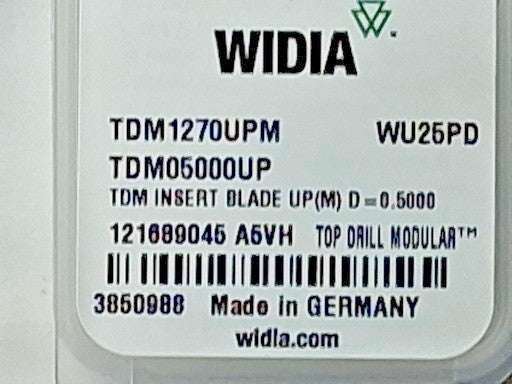

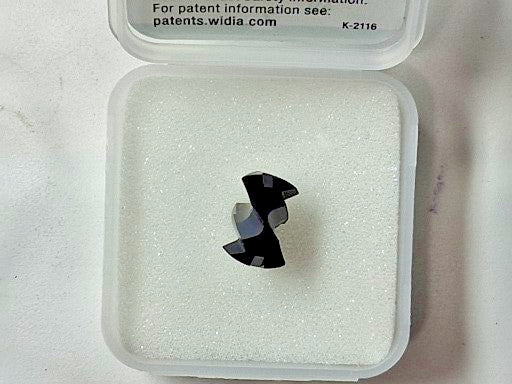

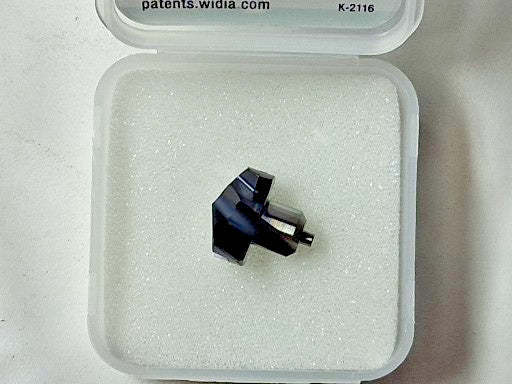

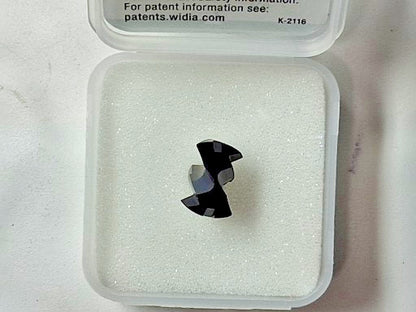

Widia Carbide Replaceable Drill Tip TDM05000UP WU25PD 3850988

Widia
Carbide Replaceable Drill Tip

MSRP: $100

• Cutting Diameter (Inch) 1/2
• Cutting Diameter (Decimal Inch) 0.5000
• Cutting Diameter (mm) 12.70
• Tip Material Solid Carbide
• Manufacturer Grade WU25PD
• Material Grade Submicron
• Series TDM1
• Coating Process PVD
• Insert Geometry UP
• Insert Seat Size W19
• Functional Length (Decimal Inch) 0.2500
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Height (Decimal Inch) 0.25
• Height (mm) 13.62
• Overall Length/Projection (Decimal Inch) 0.2500
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number TDM05000UP
• Coolant Through Yes
• Flute Length (mm) 6.00
• Point Type Standard
• Spiral Type Regular Spiral
• Height (Inch) 1/4
• Style TDM1
• Applications Drilling; Drilling - Through Coolant; Tool Dimensions: 2flute/2margin/coolant; Drilling: Inclined Exit
• UNSPSC Code 23242105
• Coating/Finish TiN; TiAlN
• Included Angle Degree 140
• Number Of Flutes 2

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
