Widia 4" OAL Steel QSMI Indexable Boring Bar 1950453
Widia 4" OAL Steel QSMI Indexable Boring Bar 1950453
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Widia
MSRP: $60.00
Model: 1950453
Description:
Toolholder Style QSMI
Series Q
Minimum Bore Diameter (Decimal Inch) 0.4210
Hand of Holder Right Hand
Maximum Bore Depth (Decimal Inch) 1.5000
Overall Length (Inch) 4
Overall Length (Decimal Inch) 4.0000
Shank Diameter (Inch) 3/8
Shank Diameter (Decimal Inch) 0.3750
Insert Compatibility CPC.
Through Coolant Yes
Multi-Use Tool Yes
Multi-Use Application Boring; Grooving; Threading
Insert Holding Method Screw
Rake Neutral
Lead Angle 5
Center to Cutting Edge (Decimal Inch) 0.2180
Insert Thickness (Decimal Inch) 0.0750
Insert Inscribed Circle (Decimal Inch) 0.2500
Rake Angle 0
Coolant Hole Diameter (Decimal Inch) 0.0930
Complete Insert Compatibility CPCA 210.5 CG5; CPCA 210.5 CG6; CPCA 210.5 CM1; CPCA 211 CG5; CPCA 211 CG6; CPCA 211 CM1; CPCM 210.5 CG5; CPCM 210.5 CG6; CPCM 210.5 CM1; CPCM 211 CG5; CPCM 211 CG6; CPCM 211 CM1
Toolholder Material Steel

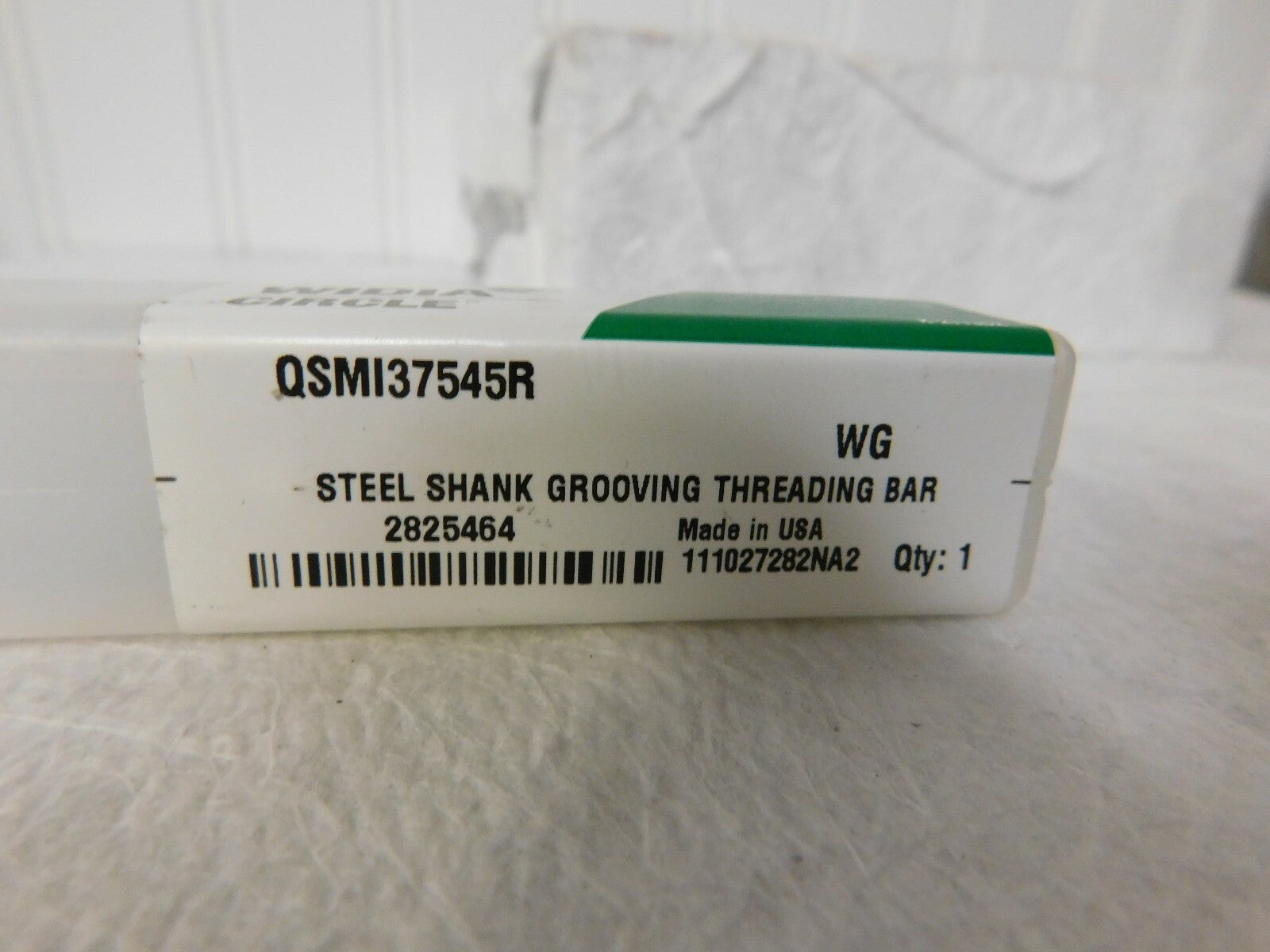

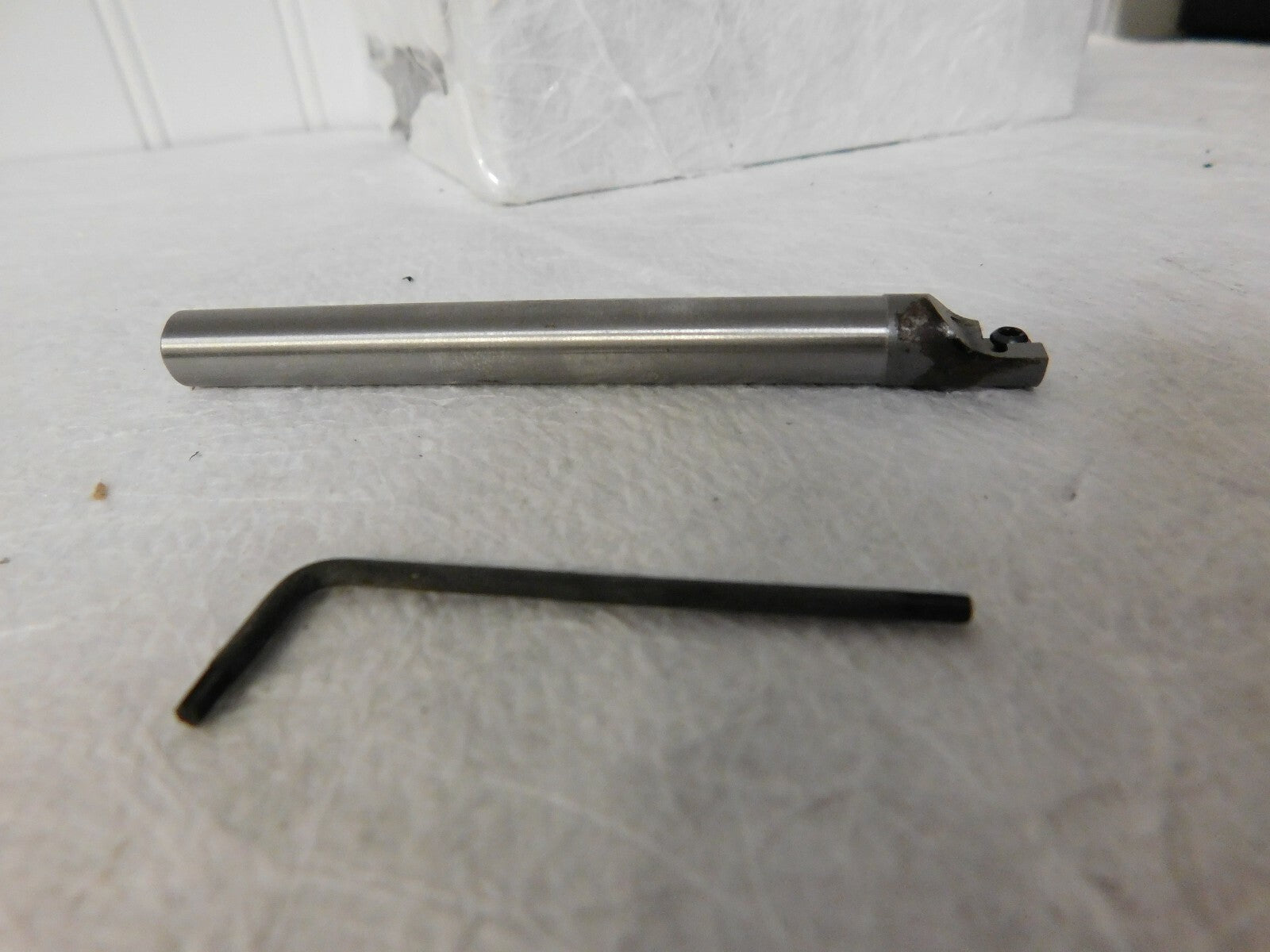

This listing is for One Boring Bar that is in the picture as well as described. Please ask any questions prior to buying!
This item is new and has grease staining as seen in pics
Florida customer's are required to pay a 7% sales tax.
Cristy Sept 30 20
CM 3073
XX 30
