Walter-Valenite External RH Indexable Grooving Toolholder 25mm MAX D 5950359
Walter-Valenite External RH Indexable Grooving Toolholder 25mm MAX D 5950359
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Walter Valenite
MSRP: $120.00
Model: 5950359
Description:
Internal or External External
Toolholder Type NonFace Grooving
Hand of Holder Right Hand
Maximum Depth of Cut (Decimal Inch) 0.9843
Maximum Depth of Cut (mm) 25.00
Minimum Groove Width (Decimal Inch) 0.1575
Minimum Groove Width (mm) 4.00
Maximum Groove Width (mm) 4.00
Maximum Groove Width (Decimal Inch) 0.1575
Overall Length (mm) 156.00
Overall Length (Decimal Inch) 6.1417
Toolholder Style G1111
Insert Compatibility GX24-3E4..; GX24-3F4..
Shank Height (mm) 25.00
Shank Height (Decimal Inch) 0.9843
Shank Width/Diameter (mm) 25.00
Shank Width/Diameter (Decimal Inch) 0.9843
Through Coolant Non Coolant Through
Multi-Use Tool Yes
Multi-Use Application Threading
Insert Holding Method Clamp
Back of Bar to Cutting Edge (mm) 26.10
Back of Bar to Cutting Edge (Decimal Inch) 1.0276
Head Length (mm) 46.00
Head Length (Decimal Inch) 1.8110
Full Radius Insert No
Shank Length (mm) 110.00
Shank Length (Decimal Inch) 4.3307
Complete Insert Compatibility GX24-3E400N02-CF5; GX24-3E400N030-CE4; GX24-3E400N03-CE4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N080-UF4; GX24-3E400N08-UF4; GX24-3E400N200-RD4

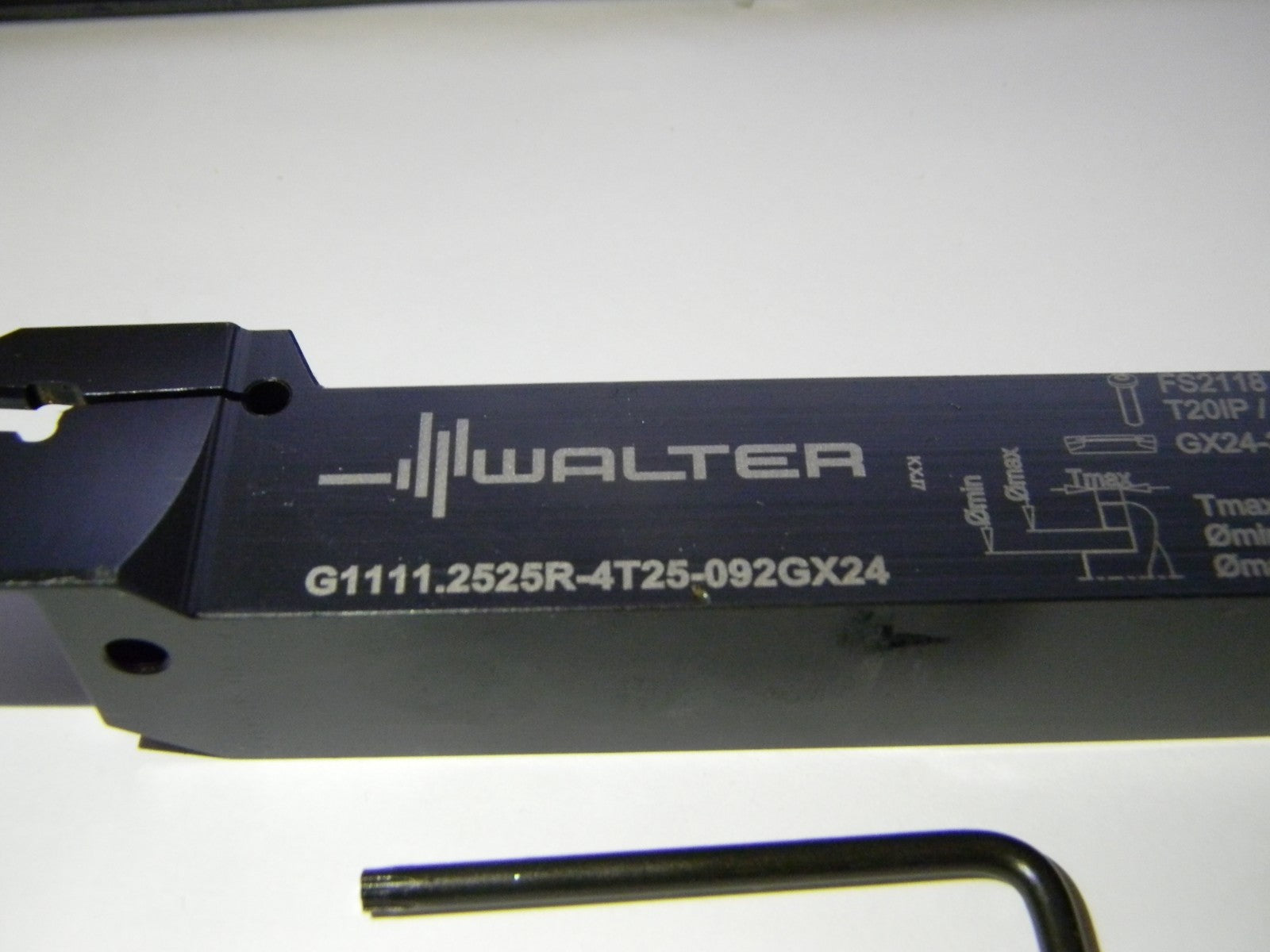

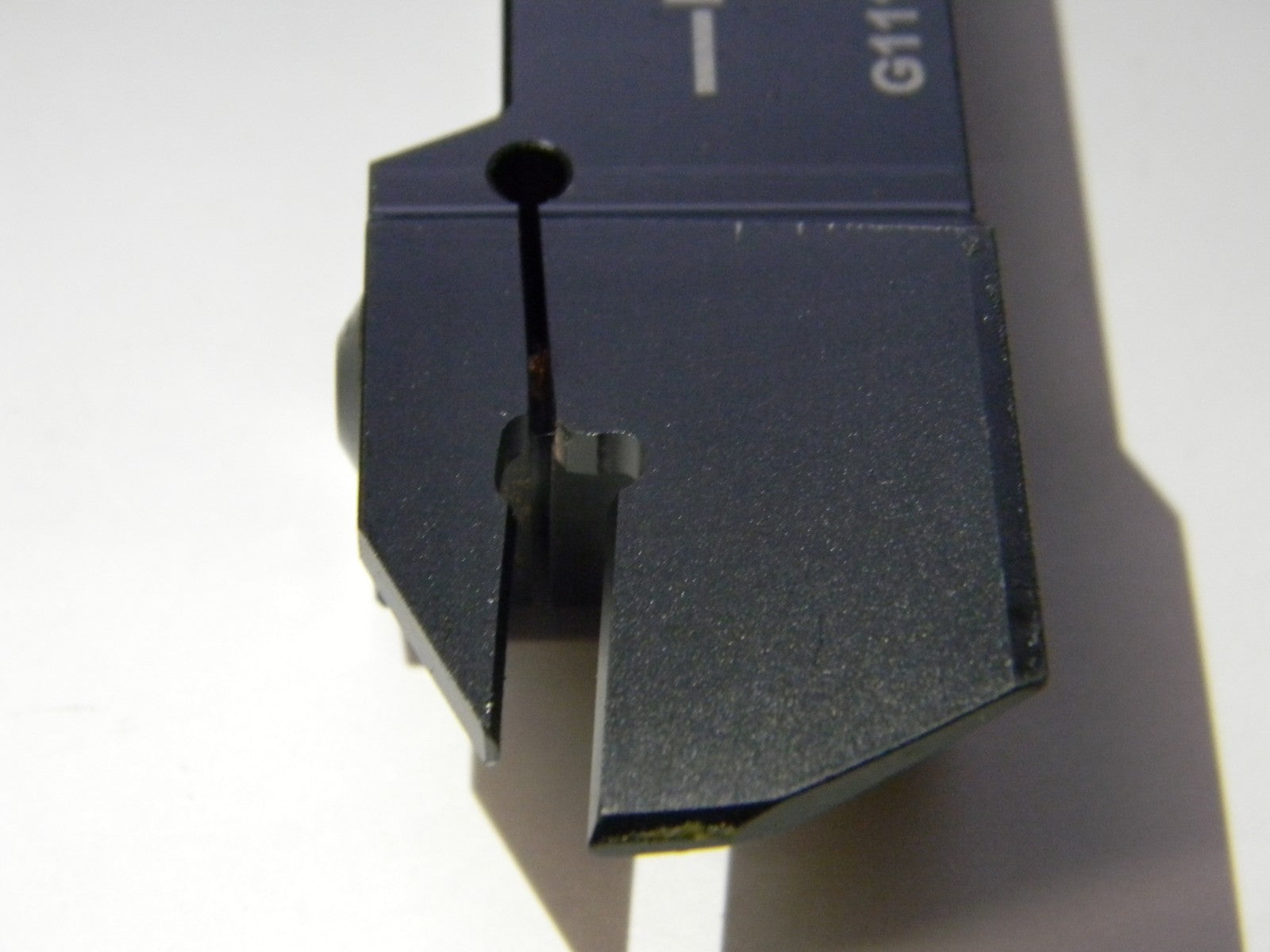

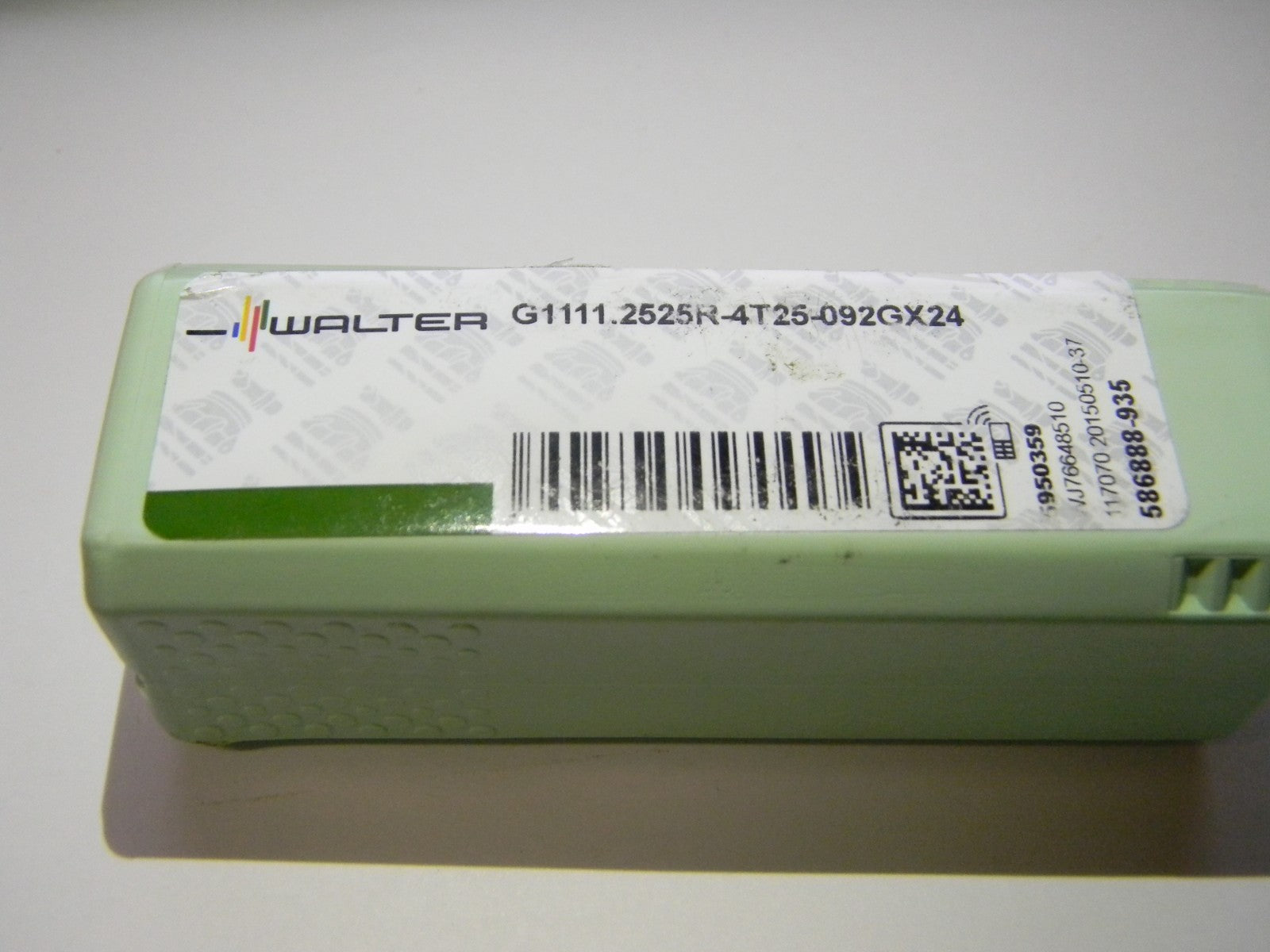

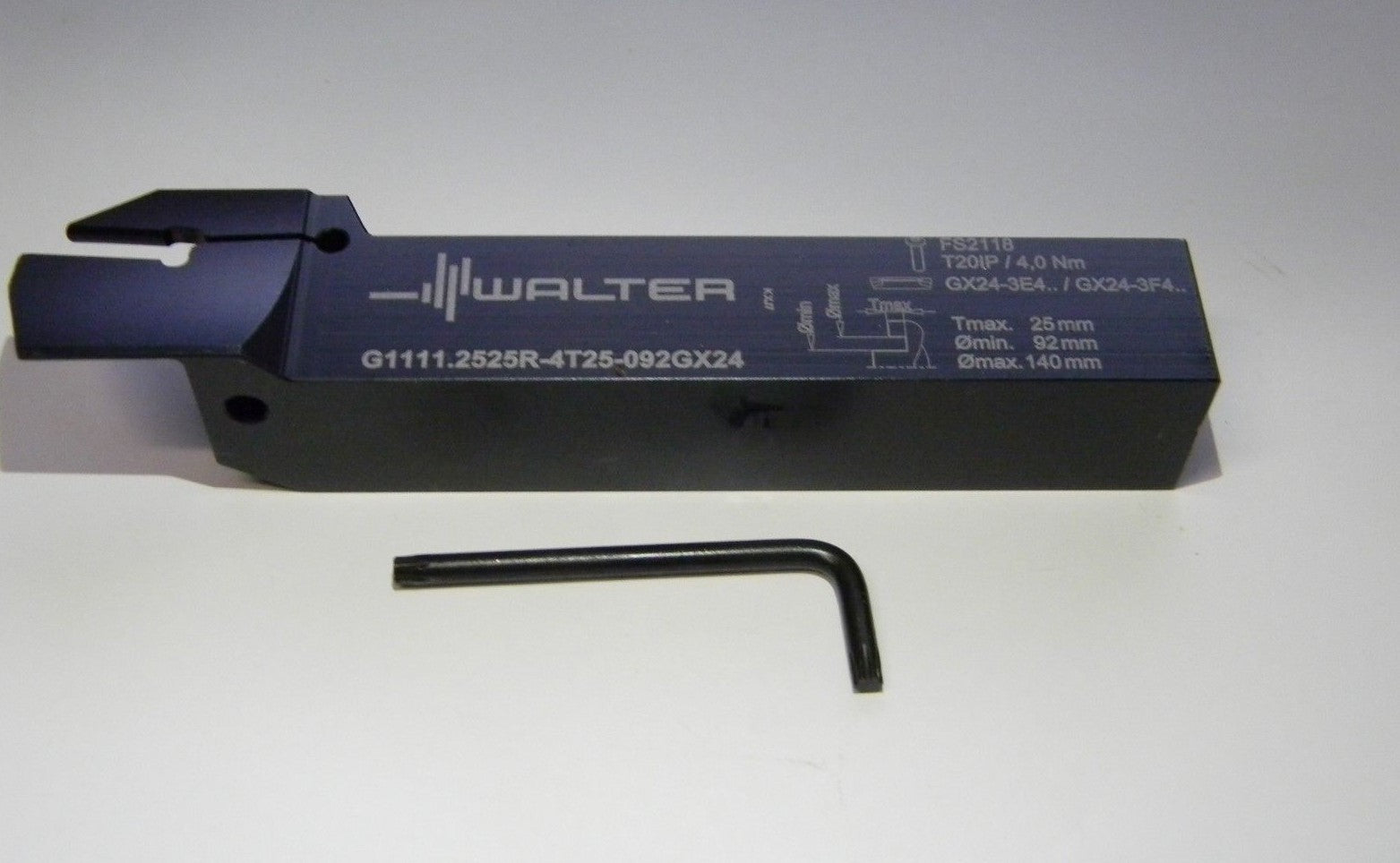

This listing is for One Toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
