Walter-Valenite DNMG432-MK5 Carbide Turning Insert QTY 6 6121585
Walter-Valenite DNMG432-MK5 Carbide Turning Insert QTY 6 6121585
Regular price
$56.60 USD
Regular price
$120.00 USD
Sale price
$56.60 USD
Shipping calculated at checkout.
Walter V
MSRP: $120.00
Model: 6121585
Description:
Insert Style DNMG
Insert Size 432
Material Carbide
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0313
Manufacturer's Grade WKK20S
Coating TiCN/Al2O3/TiCN
Material Grade K20/P10
Chip breaker MK5
Hole Diameter (Decimal Inch) 0.2020
ISO Number DNMG432
Rake Negative
Relief Angle 0
Coating Process CVD
Manufacturers Catalog Number DNMG150408-MK5
Primary Workpiece Material K
Secondary Workpiece Material P
Included Angle 55
Series Tiger-tec Silver
Maximum Depth of Cut (mm) 5.00
Maximum Depth of Cut (Decimal Inch) 0.1969
Insert Holding Method Pin & Clamp
Multi Use Application Turning
MultiUseTool Yes
Shape Diamond

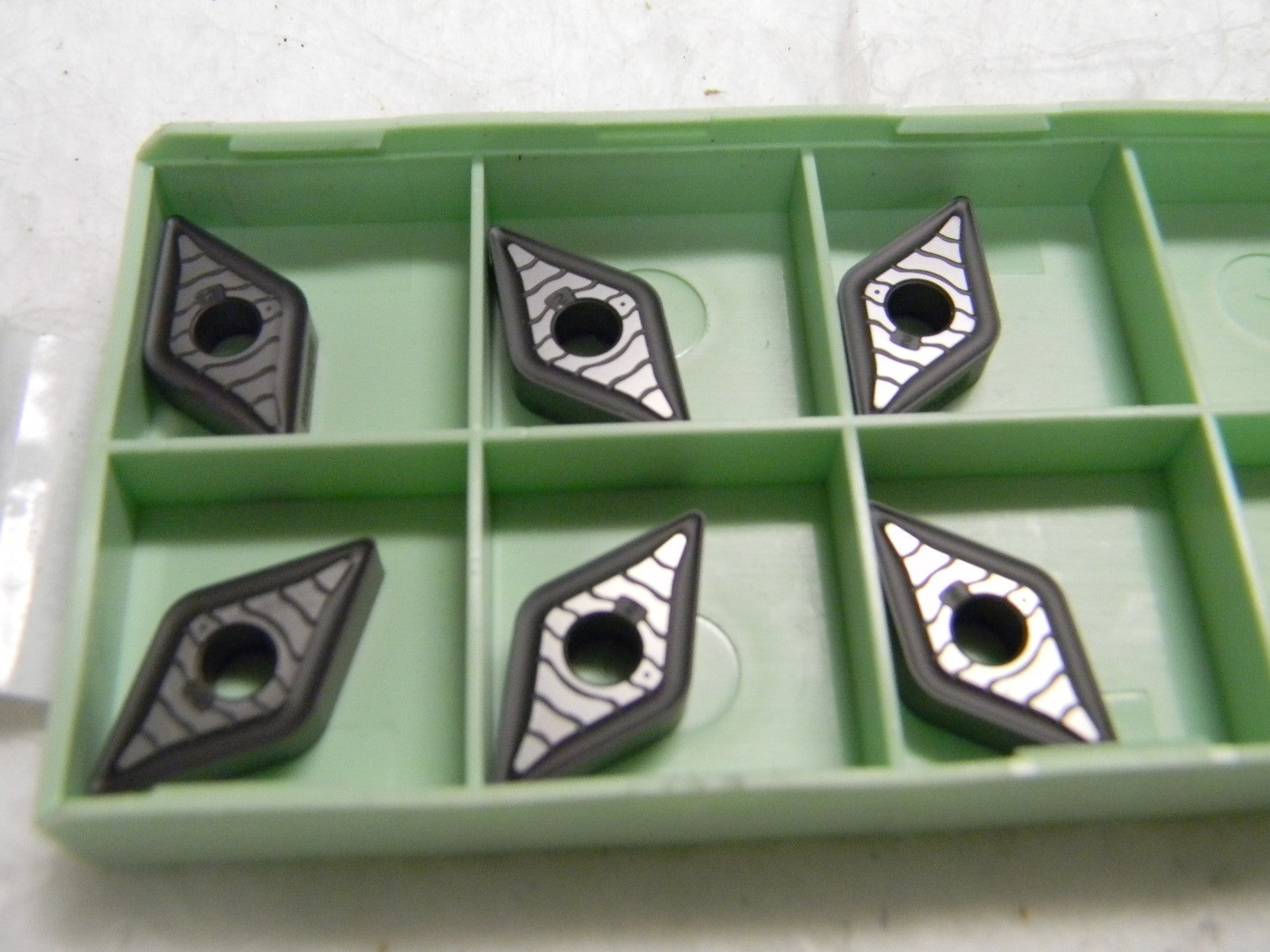

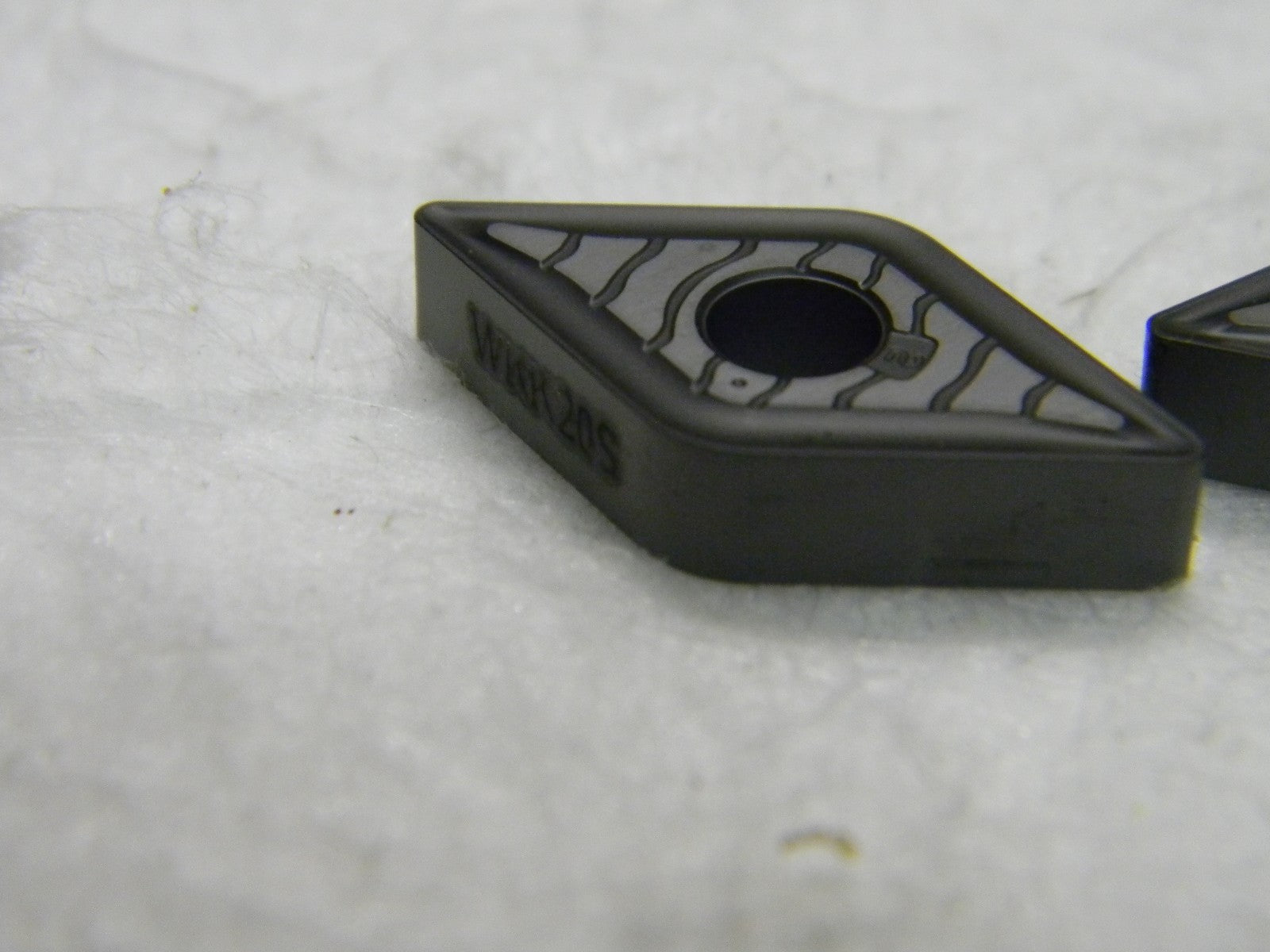

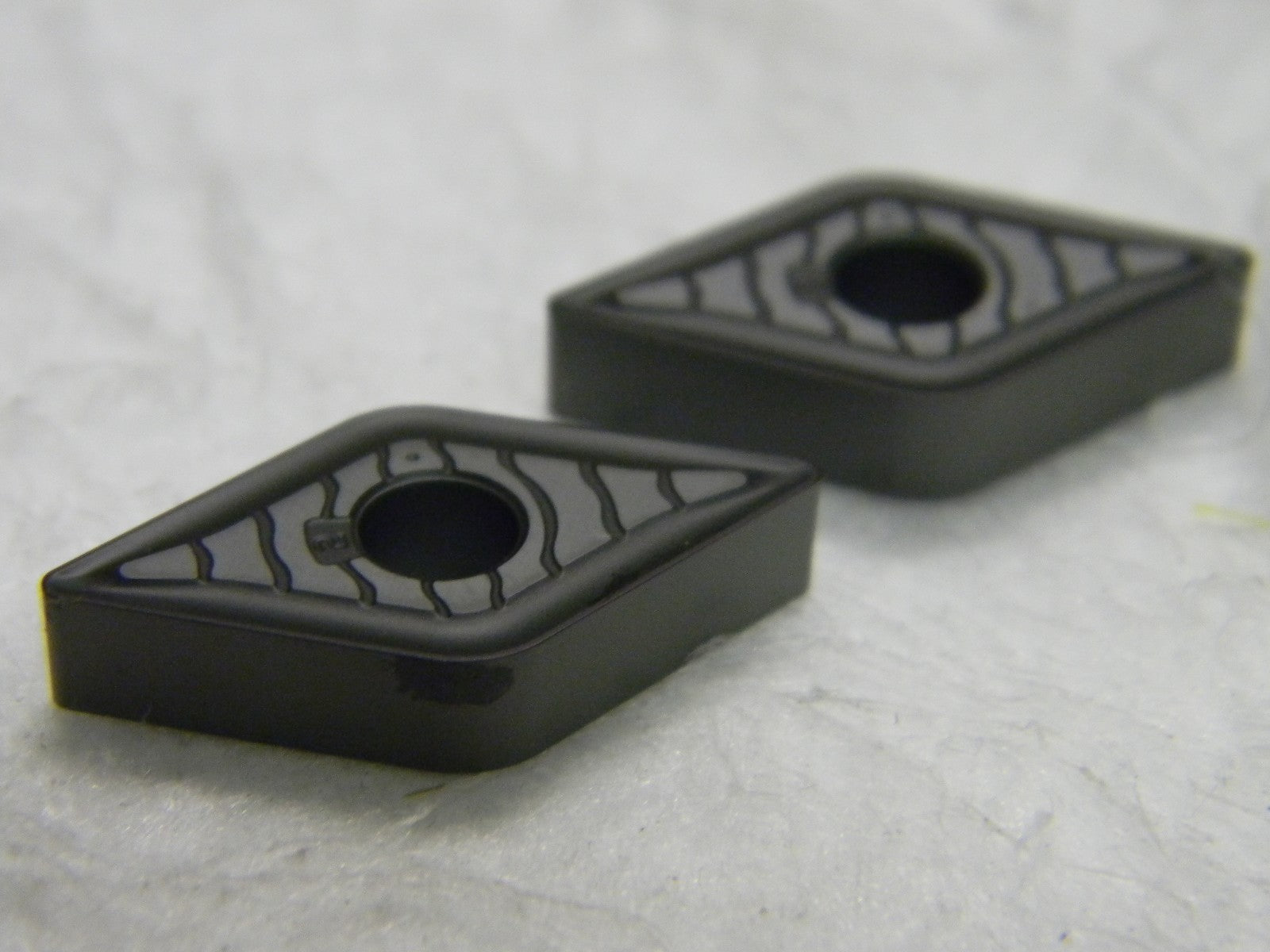

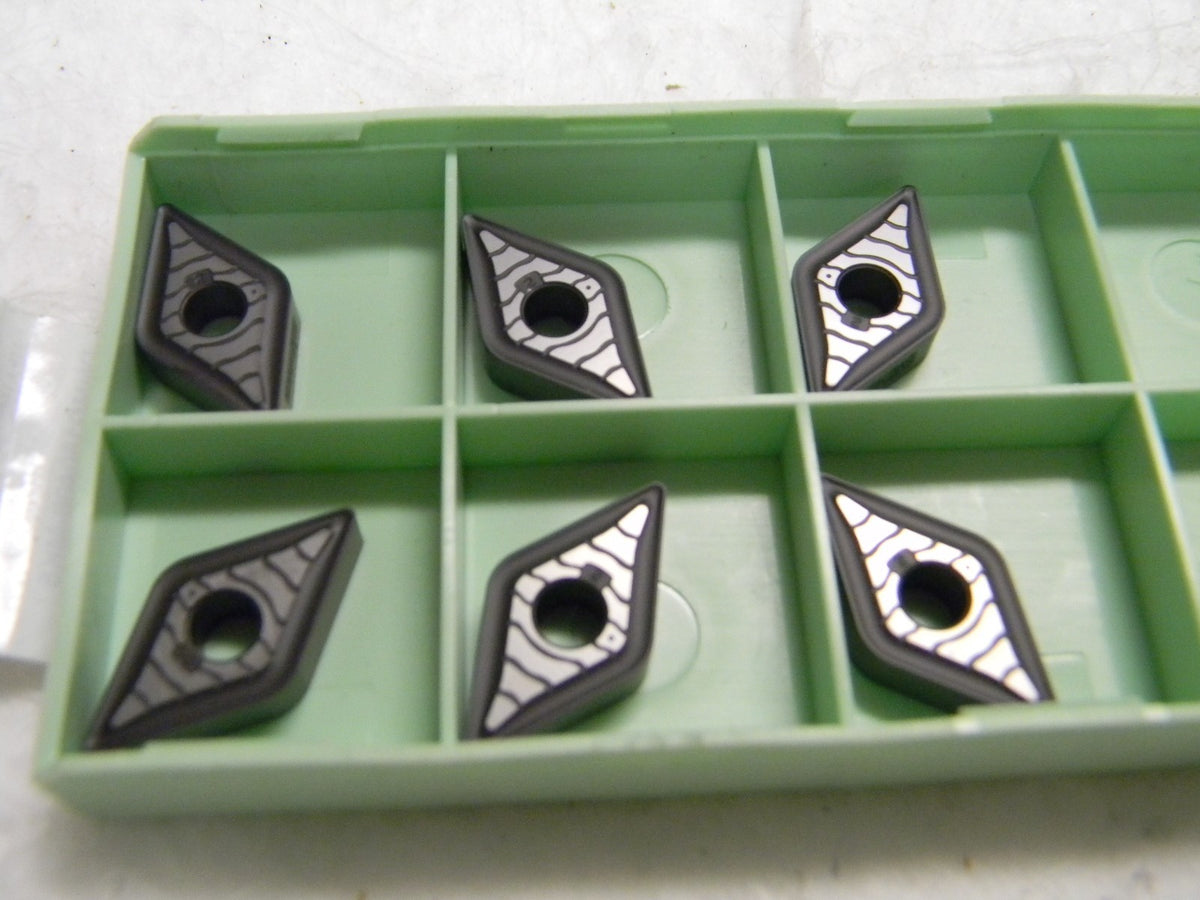

This listing is for One Pack of 6 Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
