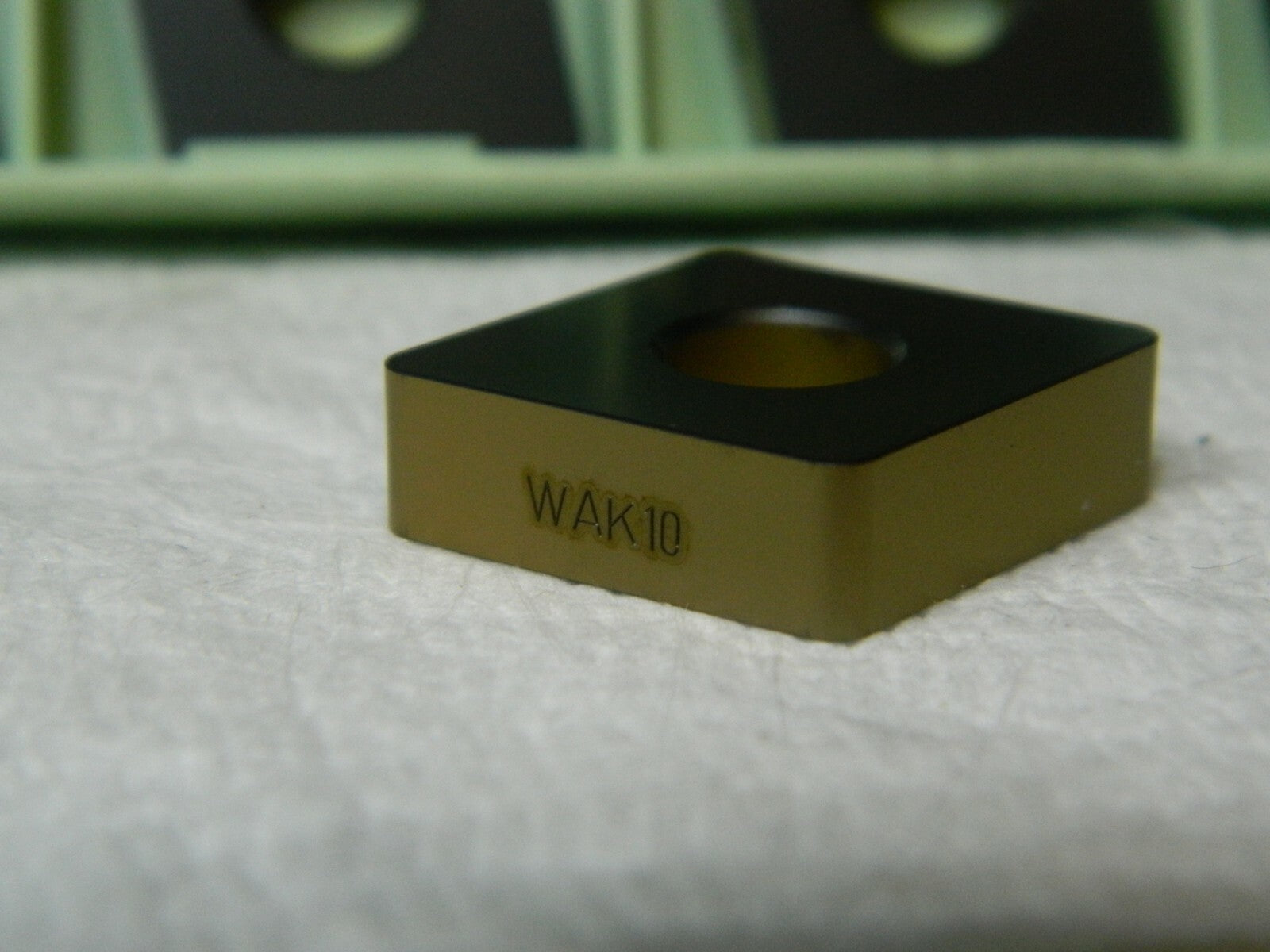

Walter Valenite CNMA644 WAK10 Carbide Insert TiCN/Al2O3/TiN Coating 5099121
Walter Valenite CNMA644 WAK10 Carbide Insert TiCN/Al2O3/TiN Coating 5099121
Regular price
$73.42 USD
Regular price
$150.00 USD
Sale price
$73.42 USD
Walter
MSRP: $150.00
Model: 5099121
Description:
Insert Style: CNMA
Insert Size: 644
Material: Carbide
Inscribed Circle (Decimal Inch) : 0.75
Inscribed Circle (Inch) : 3/4
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.25
Corner Radius (Inch) : 1/16
Corner Radius (Decimal Inch) : 0.0625
Manufacturer's Grade: WAK10
Coating: TiCN/Al2O3/TiN
Material Grade: K10/H30
Chip breaker: T02020
Length (mm): 19.3
Length (Decimal Inch): 0.76

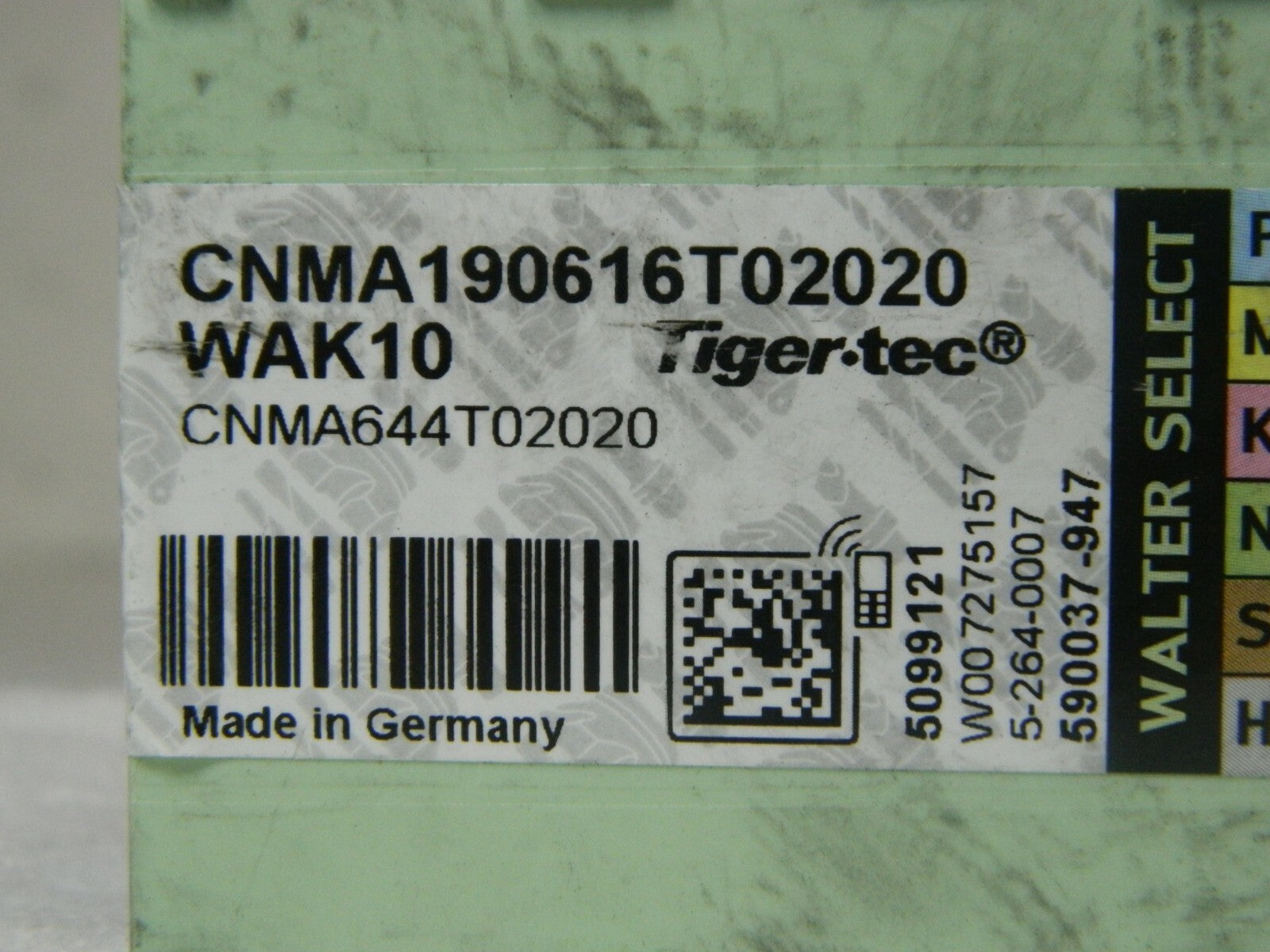

ISO Number: CNMA190616T02020
Rake: Negative
Relief Angle: 0
Coating Process: CVD
Manufacturers Catalog Number: CNMA644T02020
Primary Workpiece Material: K
Secondary Workpiece Material: H
Included Angle: 80
Series: Tiger-tec
Maximum Depth of Cut (mm): 8
Maximum Depth of Cut (Decimal Inch): 0.315
Insert Holding Method: Pin & Clamp
Multi Use Application: Turning
MultiUseTool: Yes
Shape: Diamond

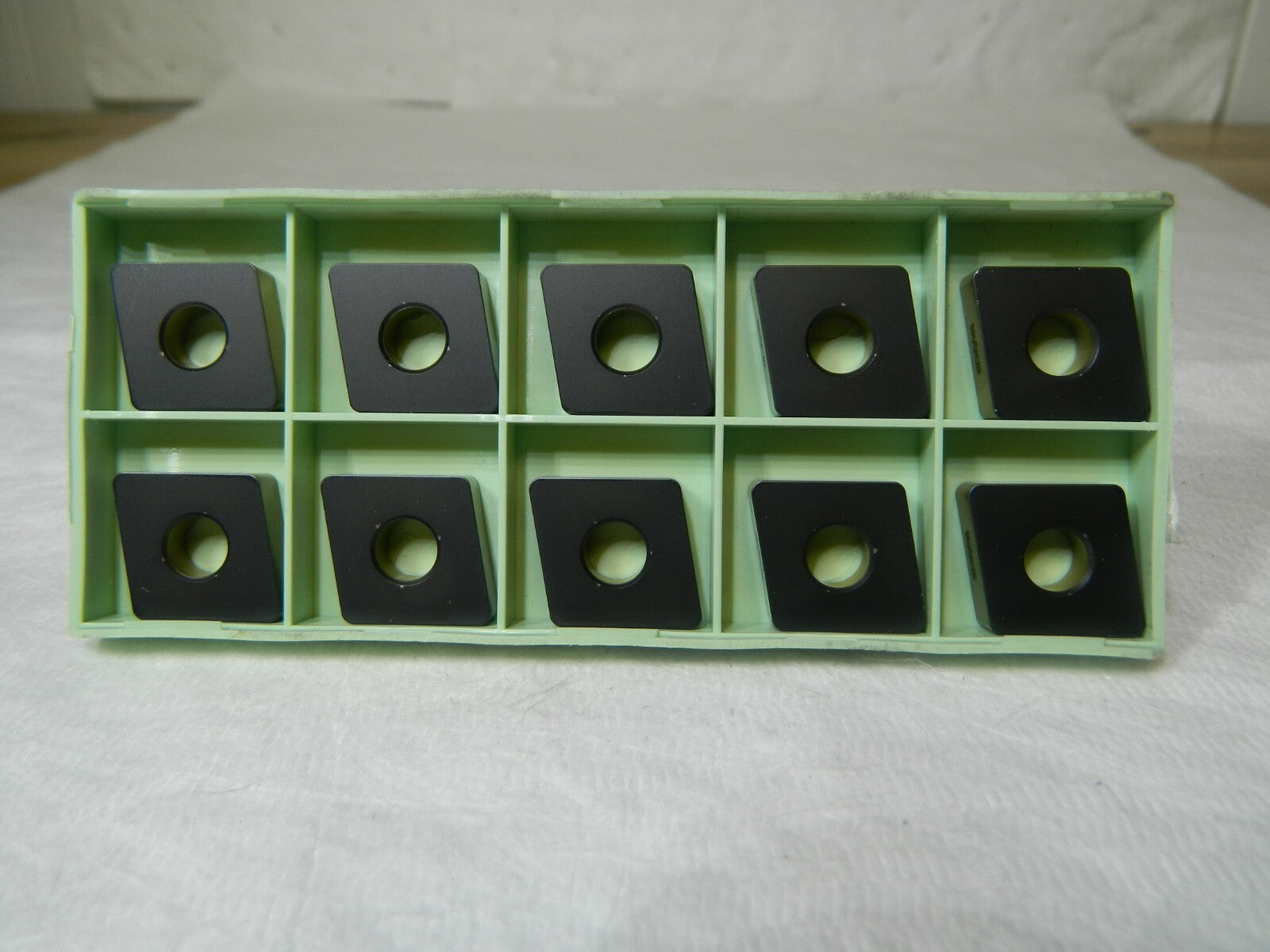

This listing is for One lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
