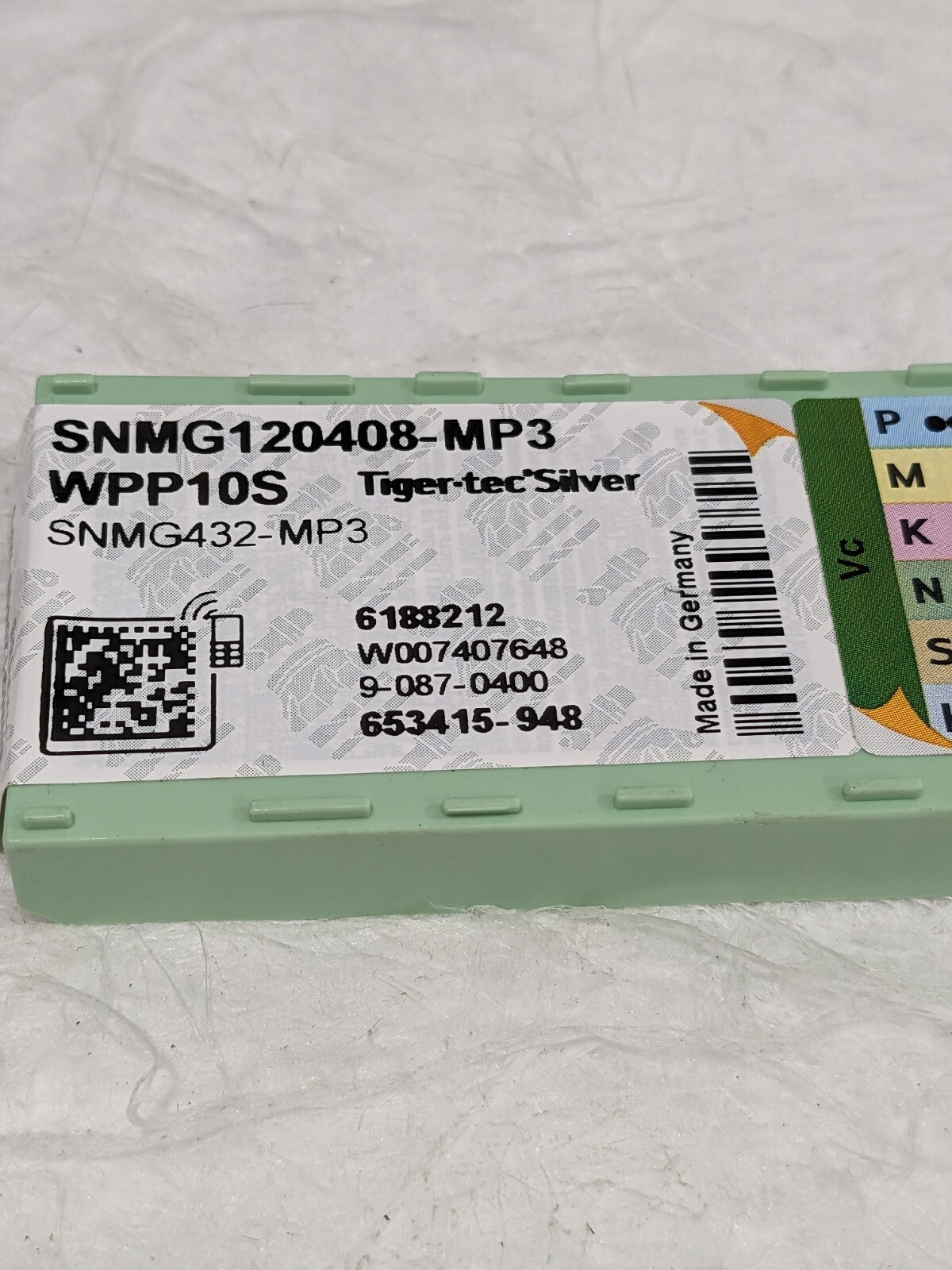

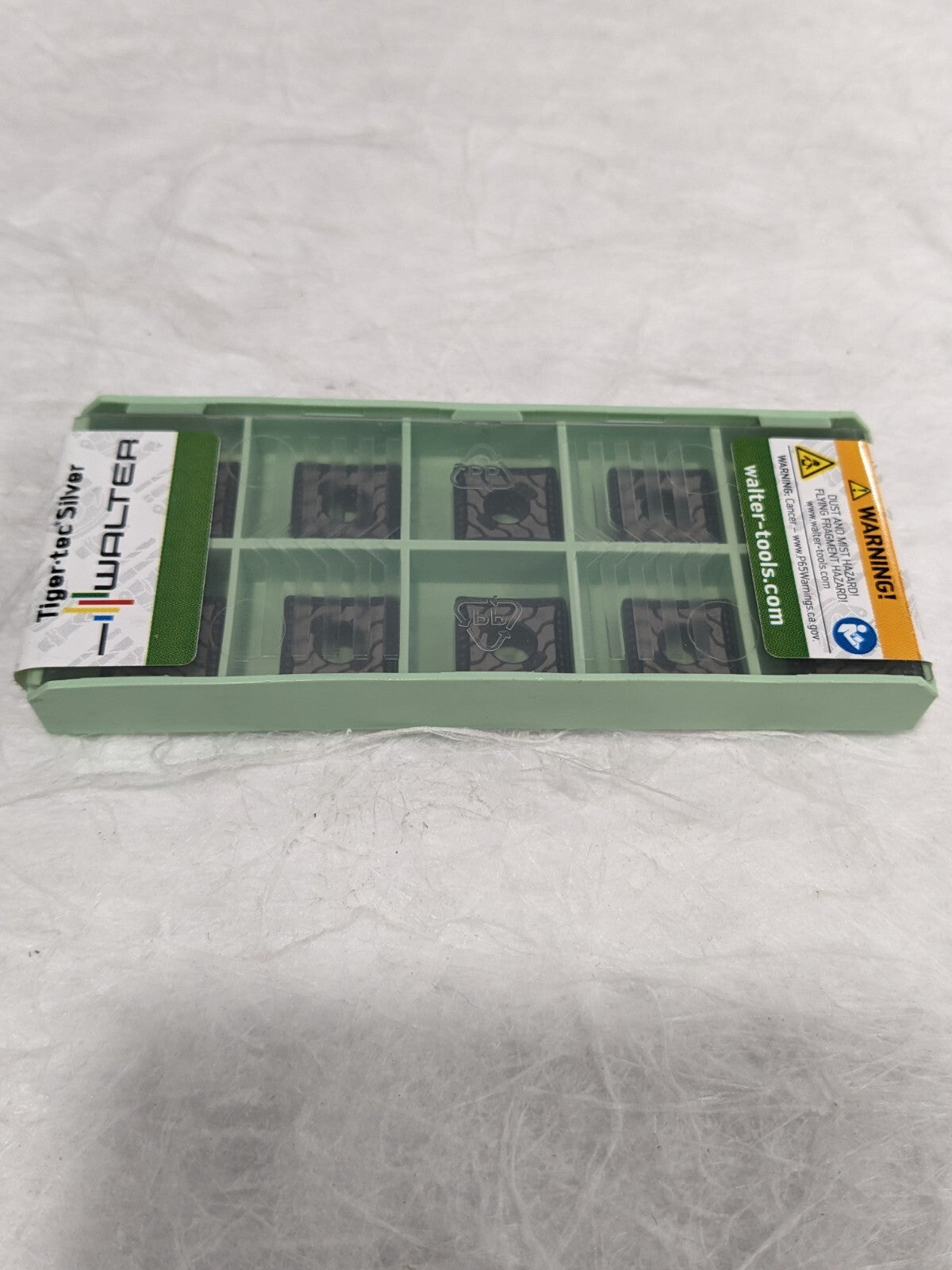

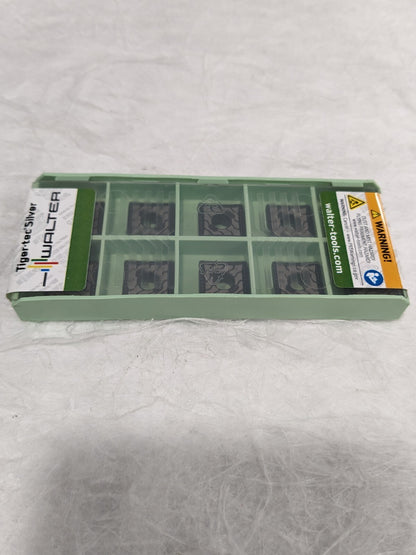

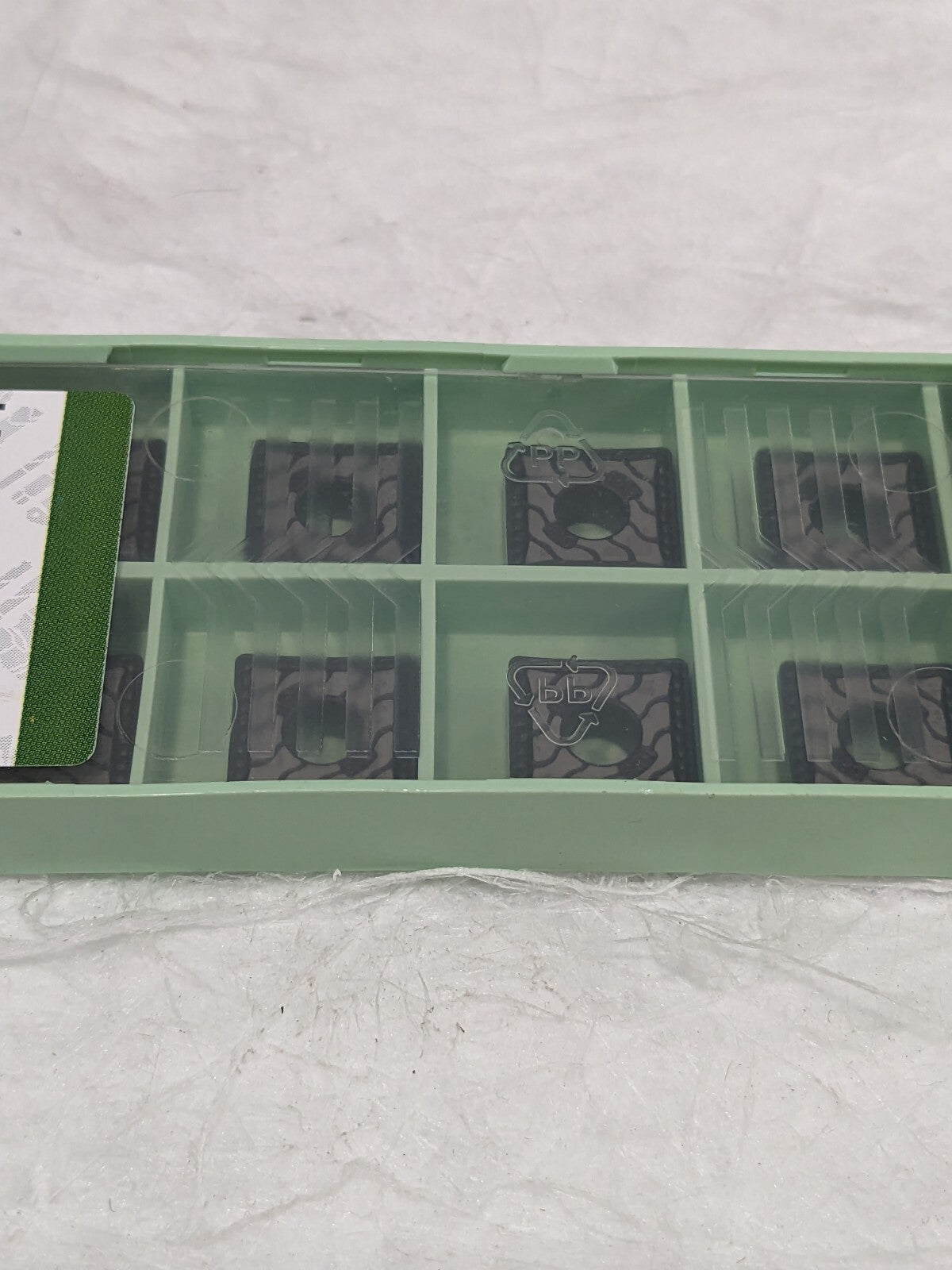

Walter Turning Insert: SNMG432-MP3 WPP10S Qty 10 6188212

Walter
1 Lot of 10 Inserts

MSRP: $80.00

• Insert Style SNMG
• Insert Size Code 432
• Insert Shape Square
• Included Angle 90
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade WPP10S
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Shape Code S
• Corner Radius (Inch) 1/32
• Maximum Depth of Cut (mm) 3.20
• Maximum Depth of Cut (Decimal Inch) 0.1260
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series Tiger-tec
• Coating Process CVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Negative
• Insert Length (Inch) 1/2
• Insert Length (Decimal Inch) 0.5000
• Insert Length (mm) 12.70
• Primary Workpiece Material Code P
• Secondary Workpiece Material Code K
• Iso Code SNMG120408-MP3
• Standards ISO; ANSI
• Manufacturers Catalog Number SNMG432-MP3
• Material Grade K20; P10

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.
