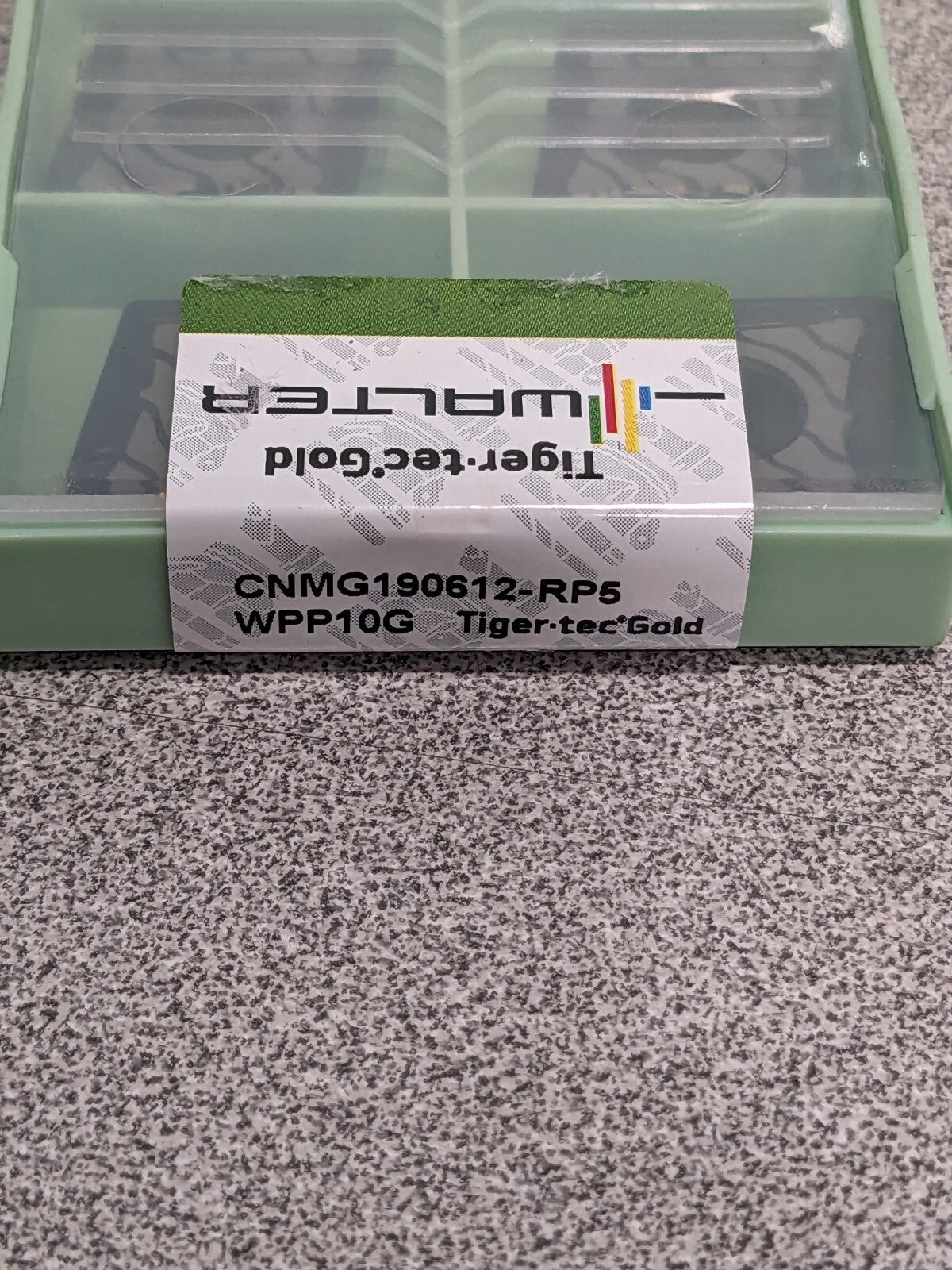

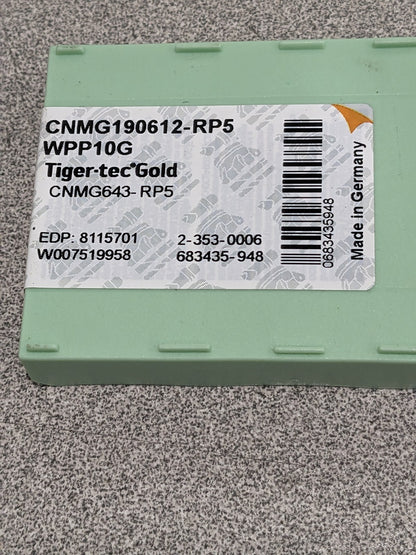

WALTER Turning Insert: CNMG643-RP5 WPP10G, Solid Carbide Qty 10 8115701

Walter
1 Lot of 10 Inserts

MSRP: $280.00

• Insert Style CNMG
• Insert Size Code 643
• Insert Shape Diamond 80°
• Included Angle 80 degree
• Inscribed Circle (Decimal Inch) 0.7500
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade WPP10G
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0 °
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.2500
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.3120
• Maximum Depth of Cut (Decimal Inch) 0.7620
• Inscribed Circle (Inch) 3/4
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 1/4
• Clearance Code N
• Tolerance Code M
• Series CNMG-RP5
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 0.7616
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code CNMG190612-RP5 WPP10G
• Standards ISO; ANSI
• Manufacturers Catalog Number 8115701
• Material Grade P10
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Lead Angle 80 degree
• Coating Classification CVD
• Chip Breaker RP5
• Rake Angle 17
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number CNMG643-RP5 WPP10G
• Width (Decimal Inch - 4 Decimals) 0.7616 in
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring

These items are new and in the original sealed package. SOLD AS IS.

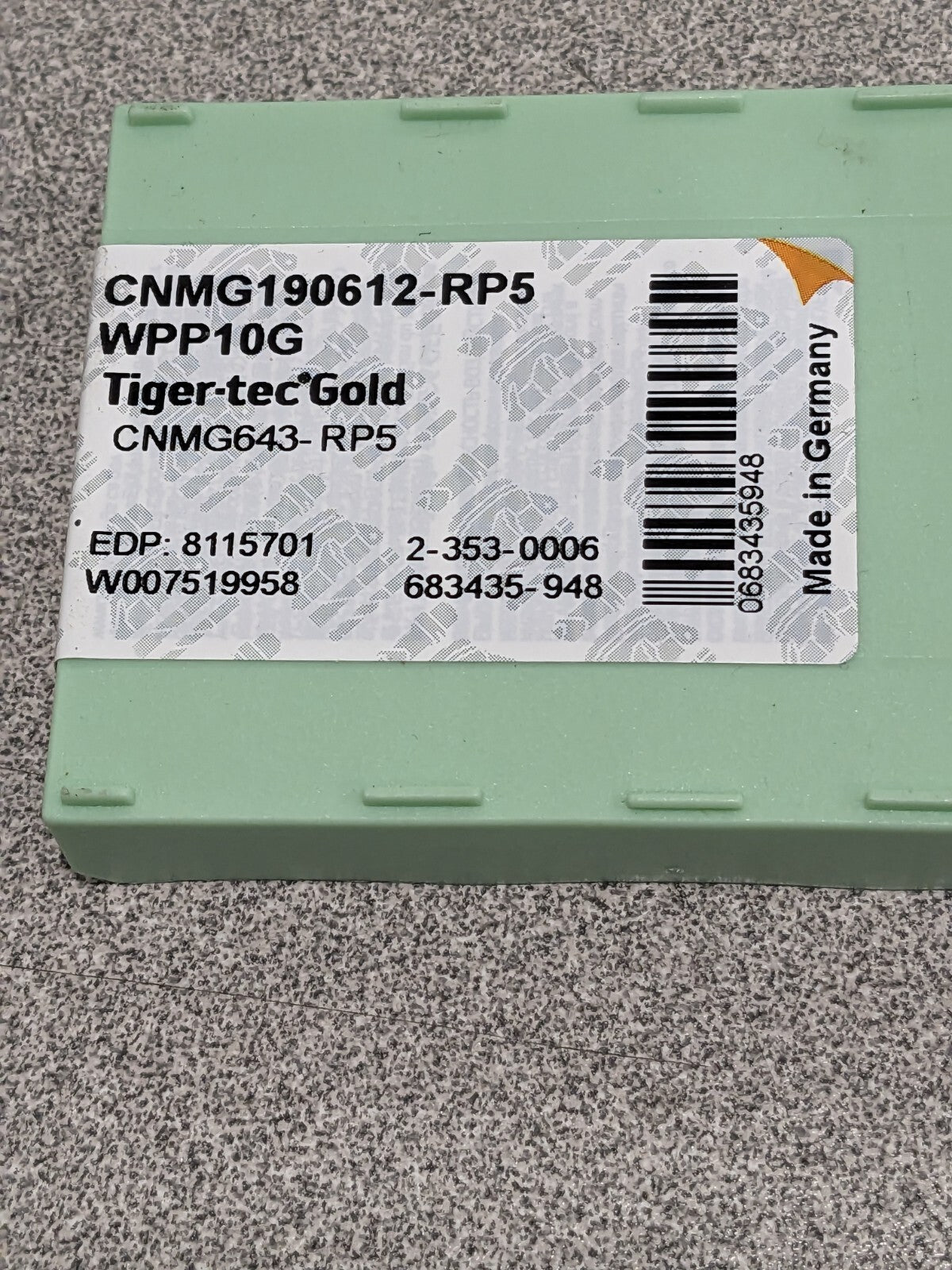

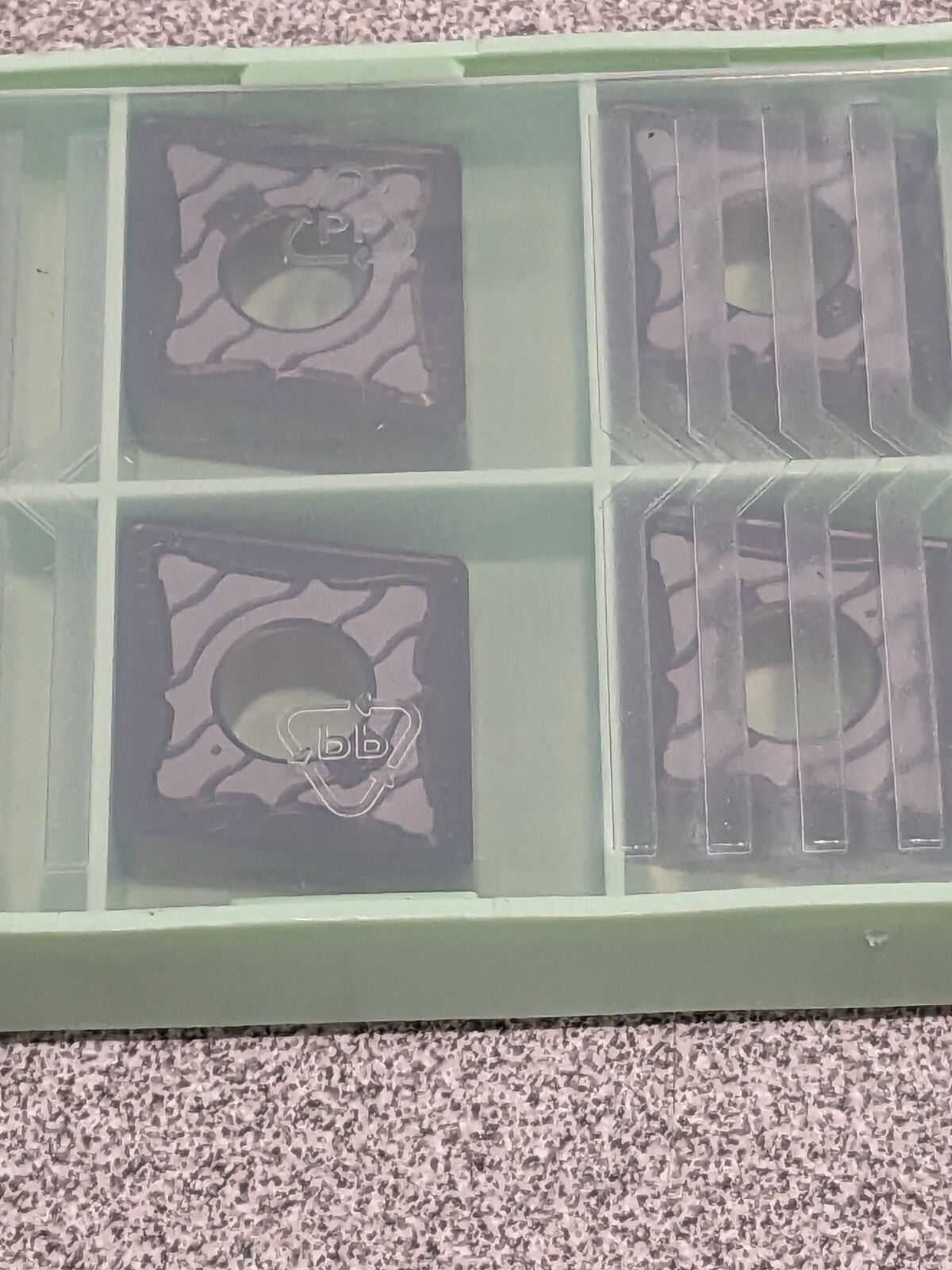

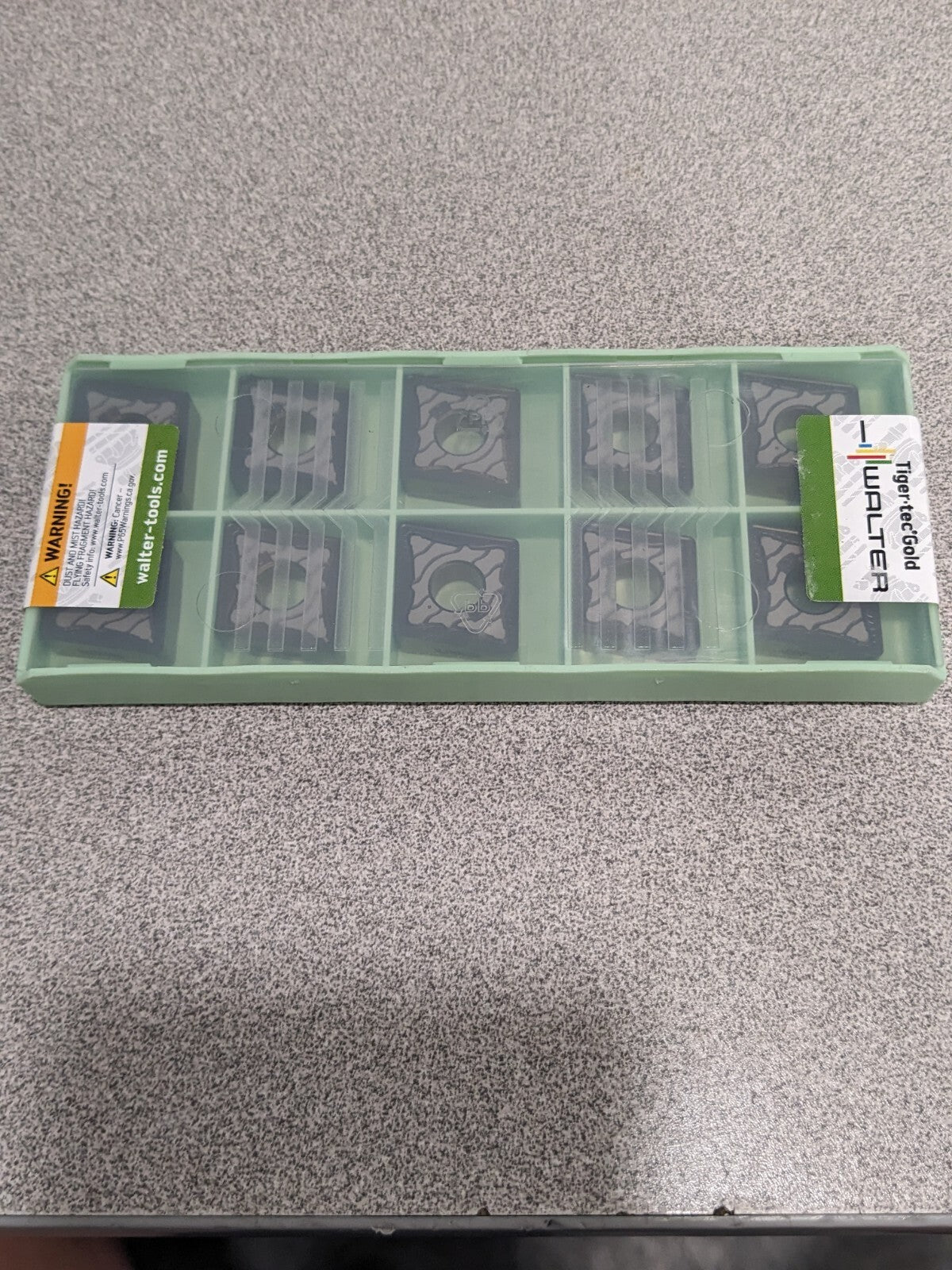

Please review photos, comes as shown.
