Walter-Titex Solid Carbide Taper Length Drill Bit 3.4mm 140° Spiral FL 5093090
Walter-Titex Solid Carbide Taper Length Drill Bit 3.4mm 140° Spiral FL 5093090
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Walter
MSRP: $100.00
Model: 5093090
Description:
Drill Bit Size (mm) 3.40
Drill Bit Size (Decimal Inch) 0.1339
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Tinal
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Through Coolant Yes
Point Type Alpha 4
Flute Length (Decimal Inch) 2.1260
Flute Length (mm) 54.00
Overall Length (mm) 92.00
Overall Length (Decimal Inch) 3.6221
Spiral Type Regular Spiral
Shank Diameter (mm) 6.00
Shank Diameter (Decimal Inch) 0.2362
Flute Length x Diameter Ratio 12xD
Shank Length (mm) 36
Shank Length (Decimal Inch) 1.4173
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) m7
Web Thinning Web-Thinned
Specification Number DIN 6535HA
Material Grade K30F
Series/List A6585TFT

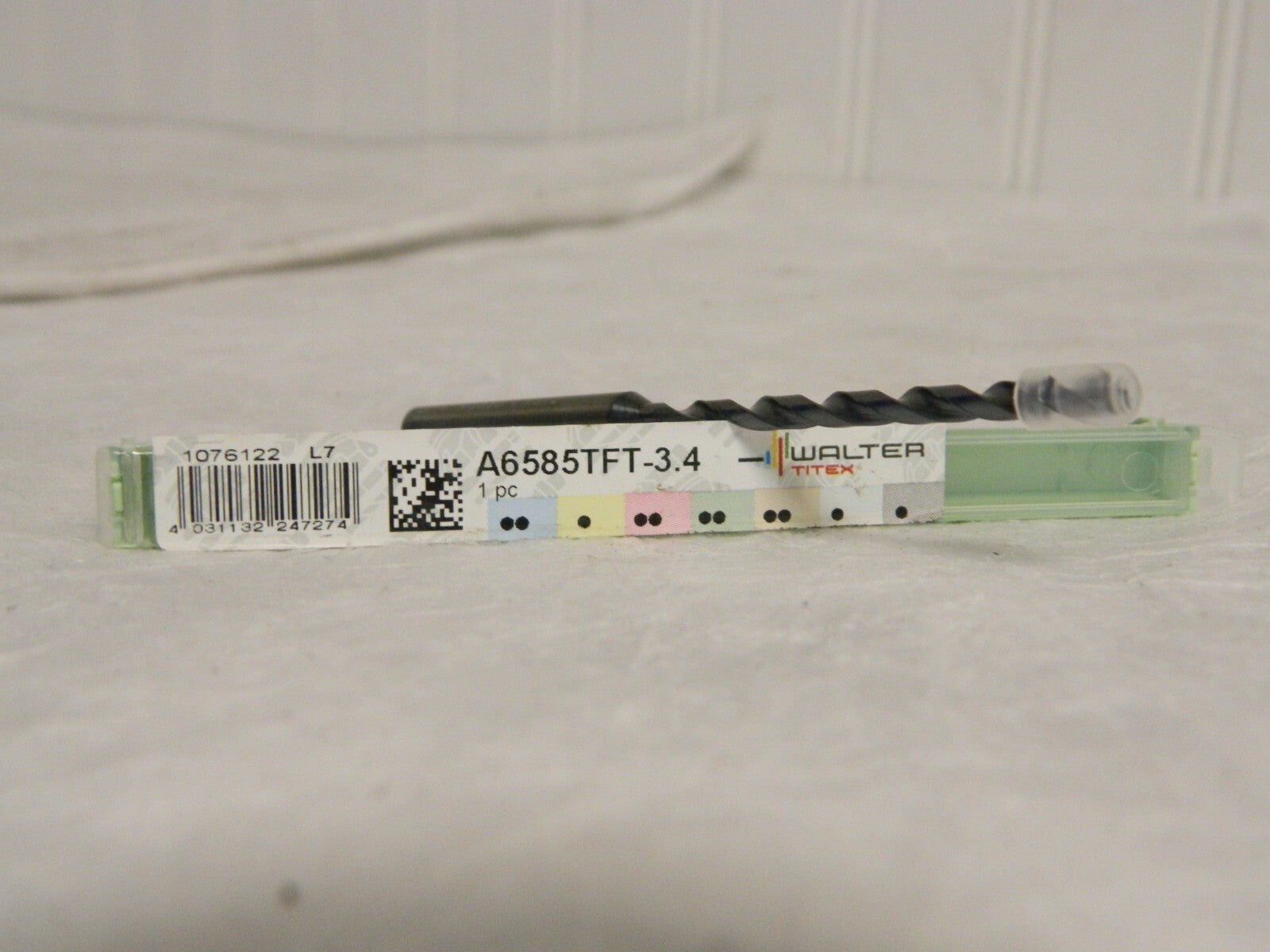

This listing is for One Drill Bit that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
