Walter Titex SC Jobber Length Drill Bit: 0.625" Dia, 140 ° A3379XPL-5.8 5957000

Walter Titex
Solid Carbide Jobber Length Drill Bit

MSRP: $100.00

• Drill Bit Size (Decimal Inch): 0.6250
• Drill Bit Size (Inch): 5/8
• Drill Bit Material: Solid Carbide
• Cutting Direction: Right Hand
• Drill Bit Finish/Coating: AlCrN
• Drill Point Angle (Degrees): 140
• Spiral Type: Regular
• Flute Type: Spiral
• Point Type: X-treme
• Coolant Through: No
• Shank Type: Straight-Cylindrical
• Number of Flutes: 2
• Shank Diameter (Decimal Inch): 0.6299
• Overall Length (mm): 133.00
• Overall Length (Decimal Inch): 5.2362
• Flute Length (mm): 83.00
• Flute Length (Decimal Inch): 3.2677
• Flute By Diameter Ratio: 5xD
• Shank Diameter (mm): 16.00
• Maximum Drilling Depth (Decimal Inch): 2.4803
• Maximum Drilling Depth (mm): 63.00
• Shank Length (mm): 48.00
• Shank Length (Decimal Inch): 1.8898
• Drill Bit Diameter Tolerance: m7
• Web Thinning: Web-Thinned
• Web Configuration: Tapered
• Drill Bit Size Range (Decimal Inch): 0.5000 - 0.6500
• Material Grade: K30F
• Specification Designation: DIN

This item is new and in great condition. SOLD AS IS.

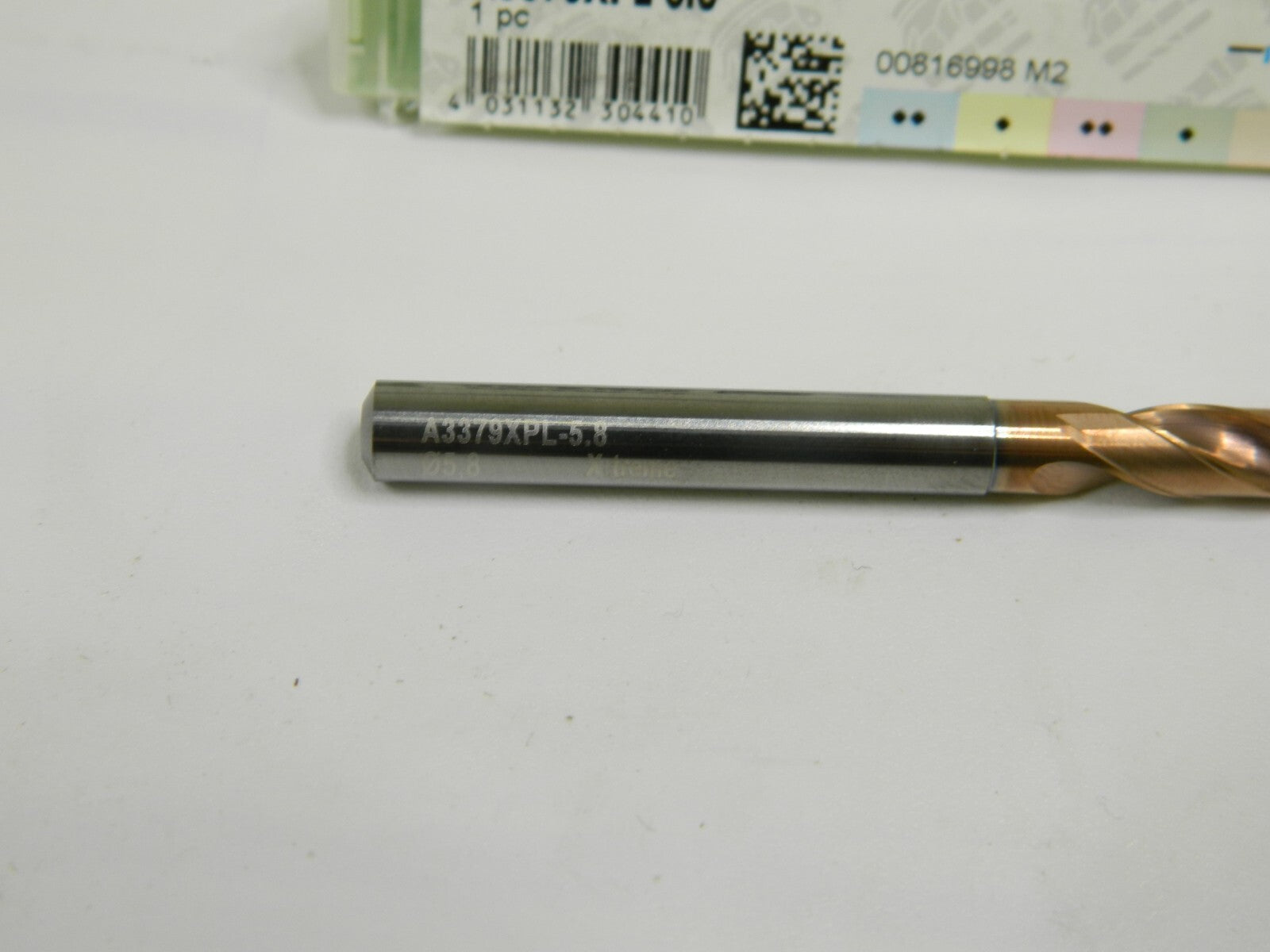

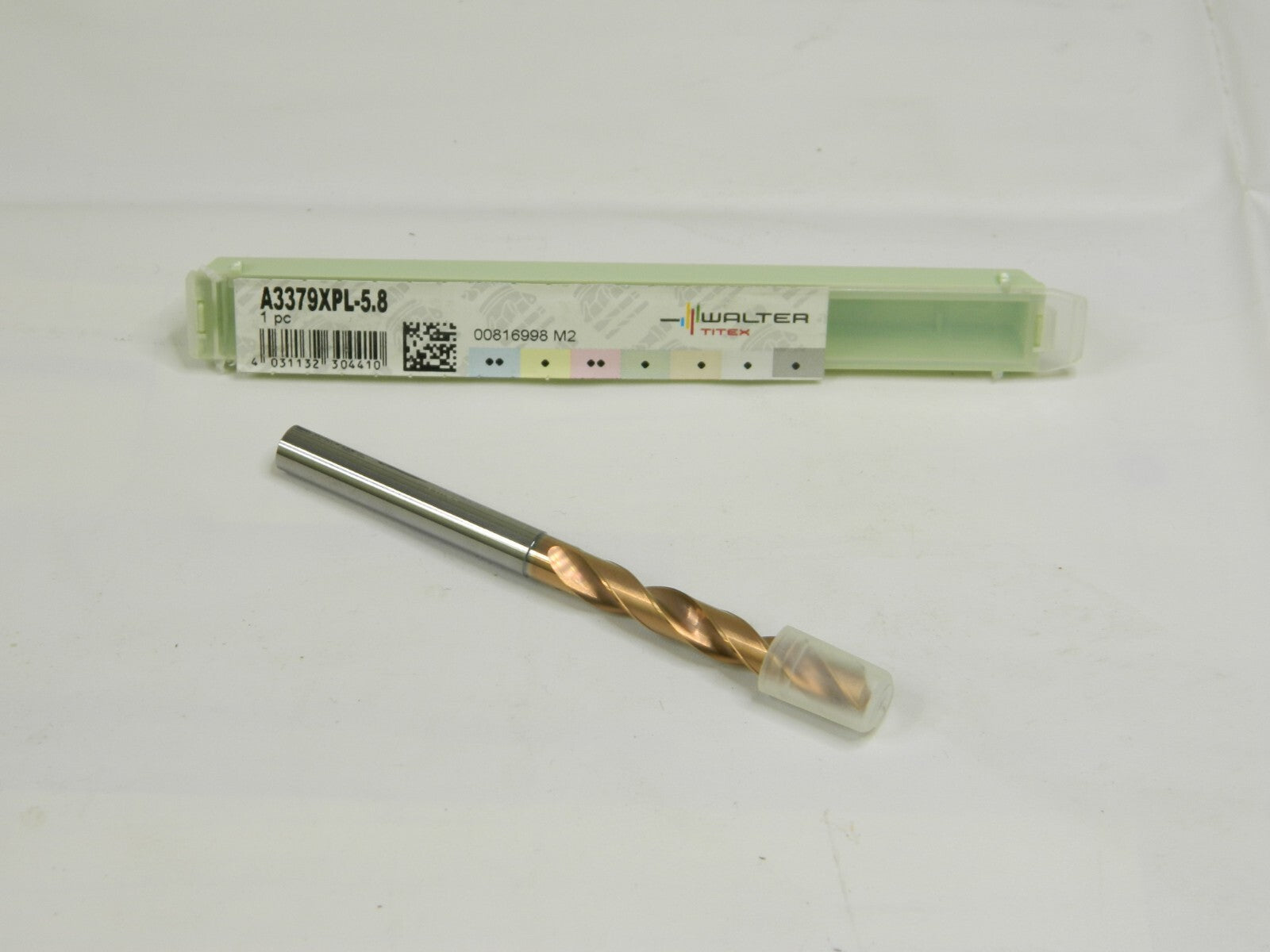

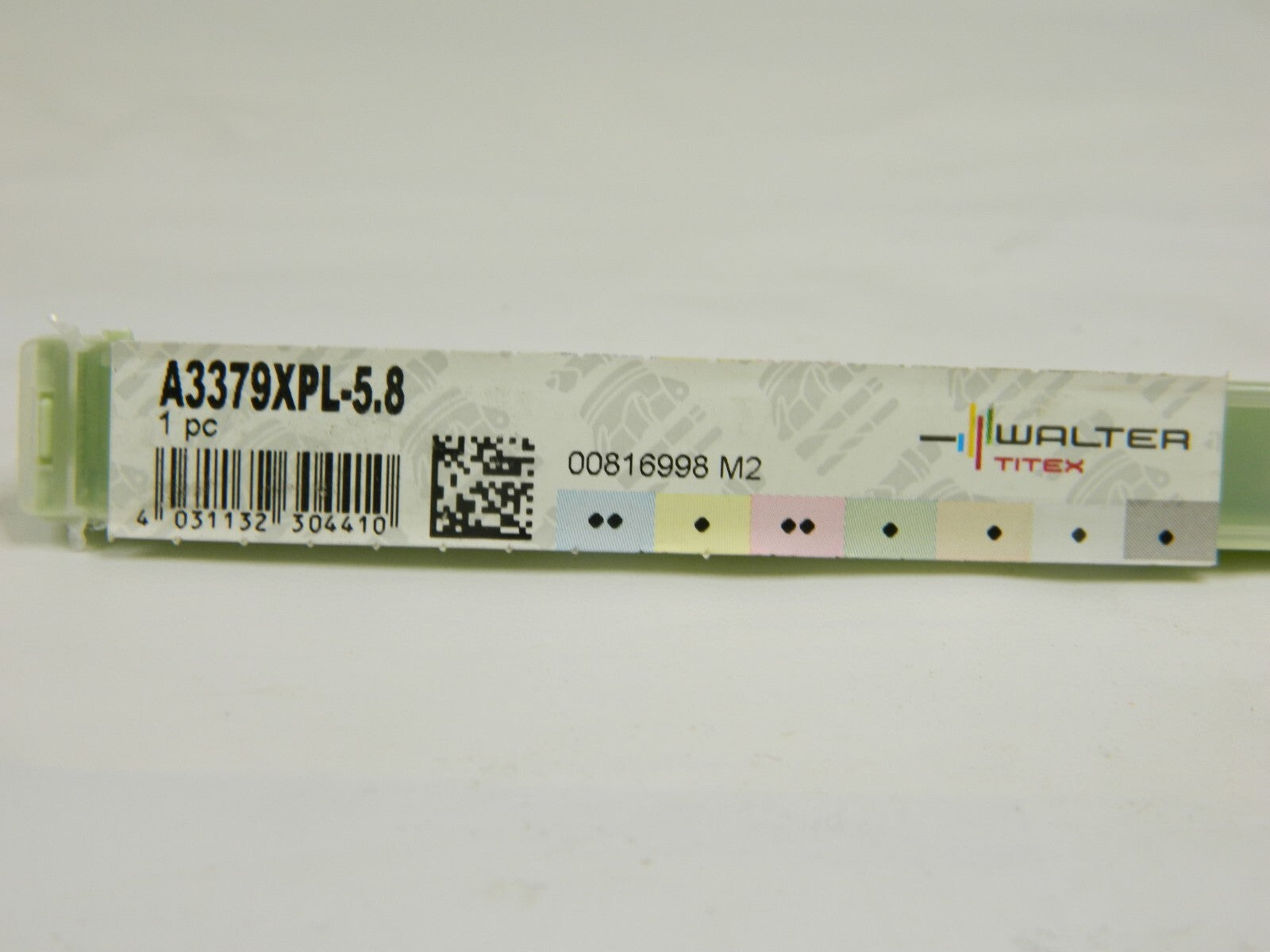

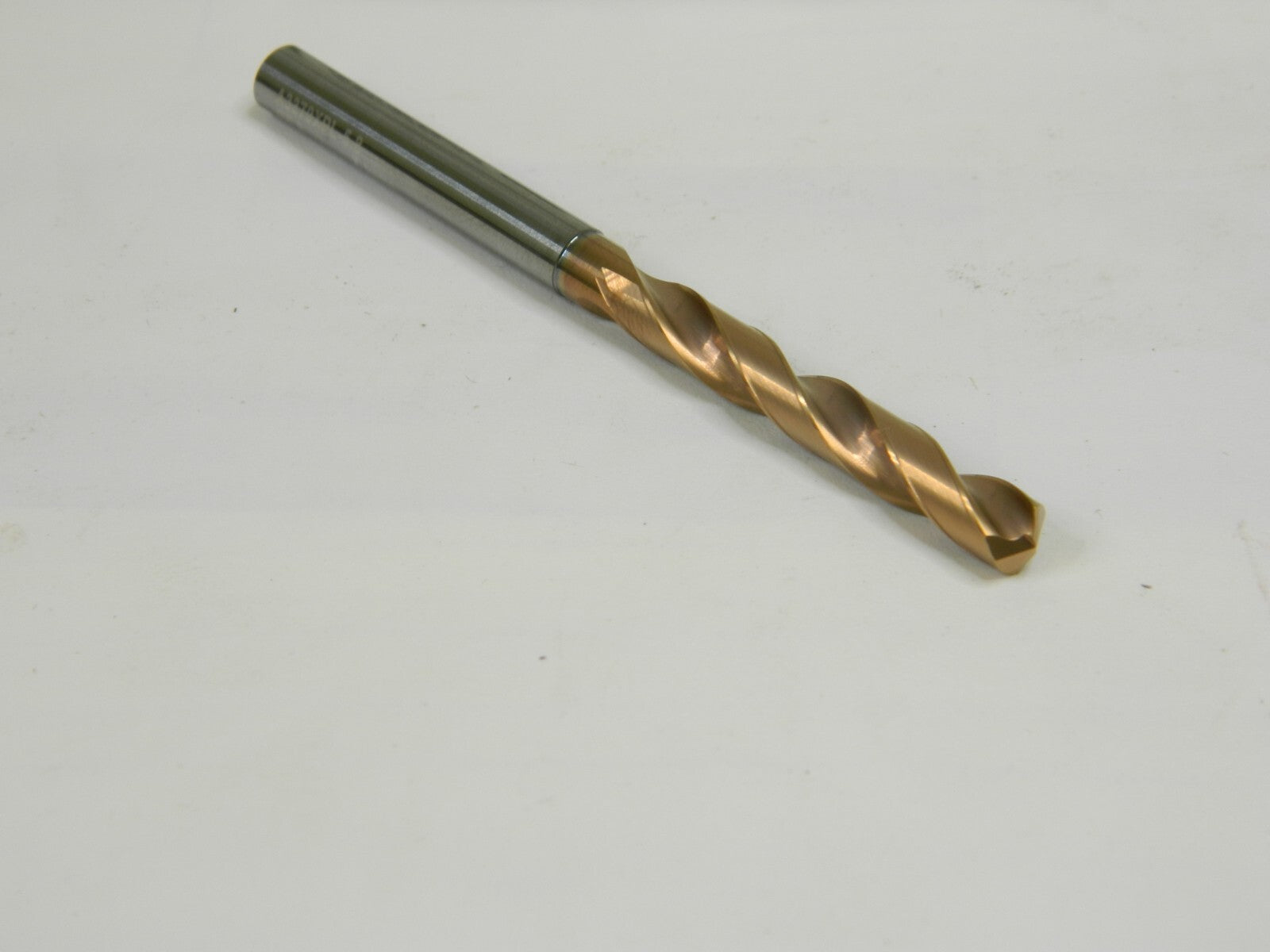

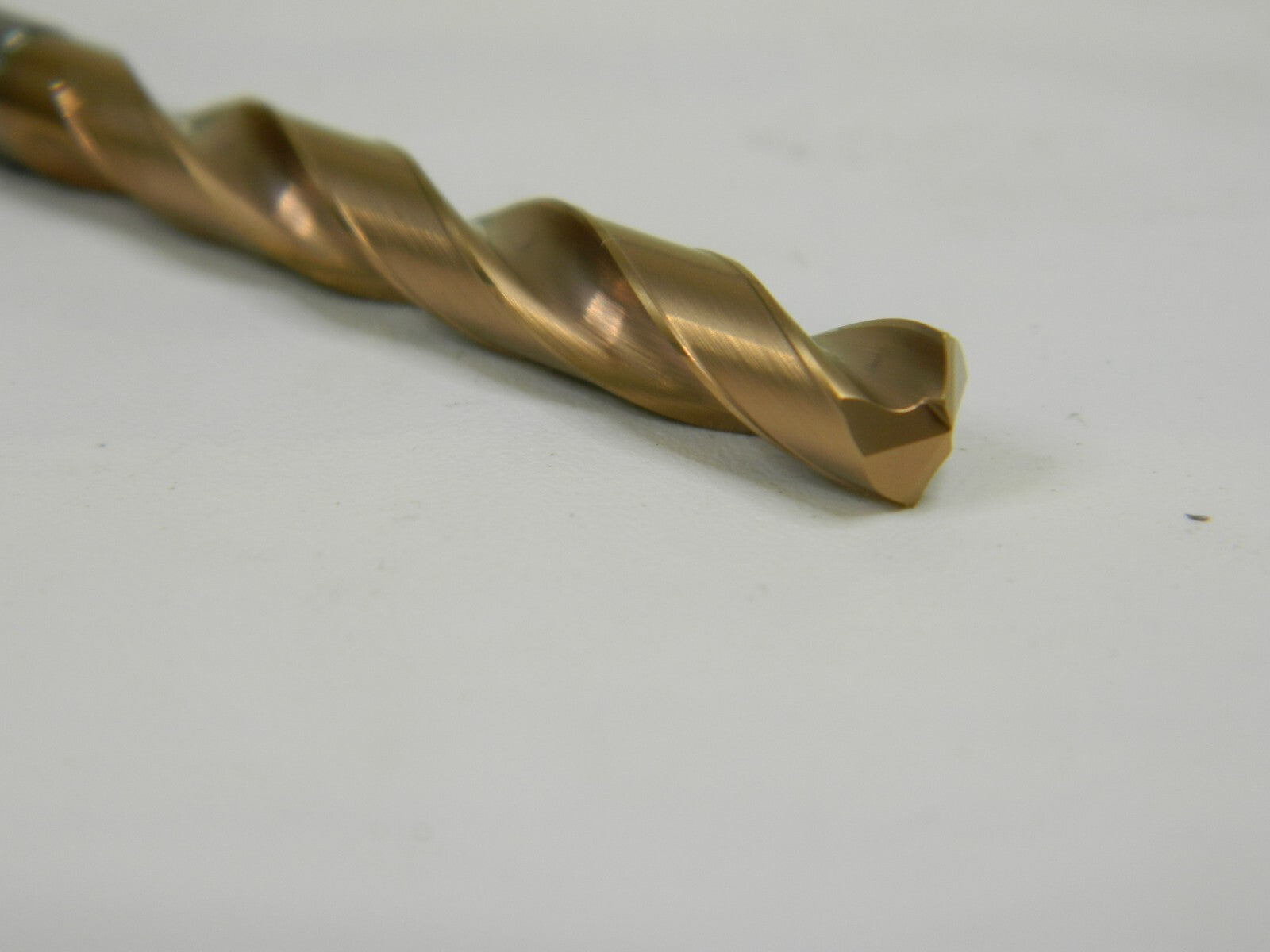

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
