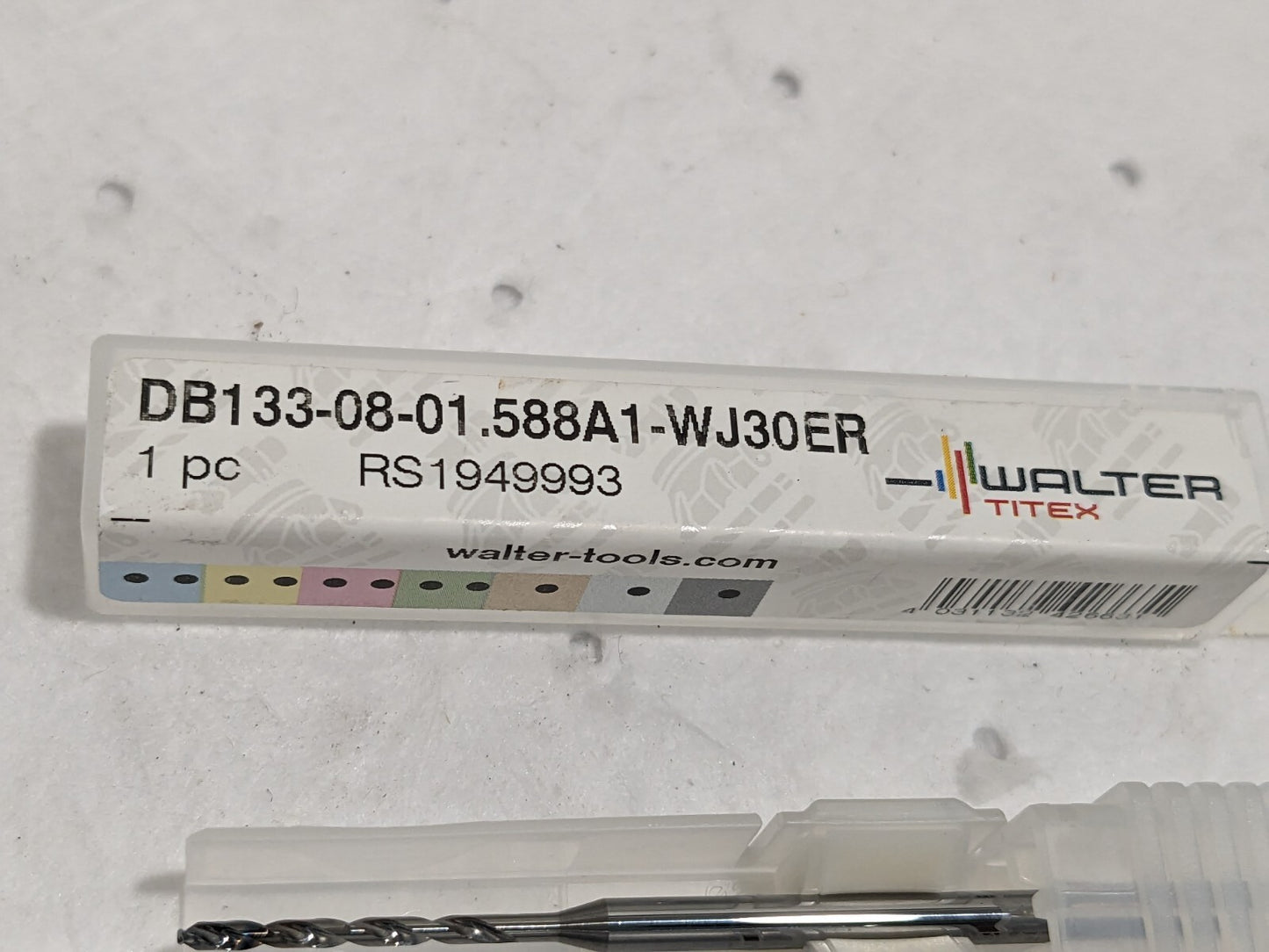

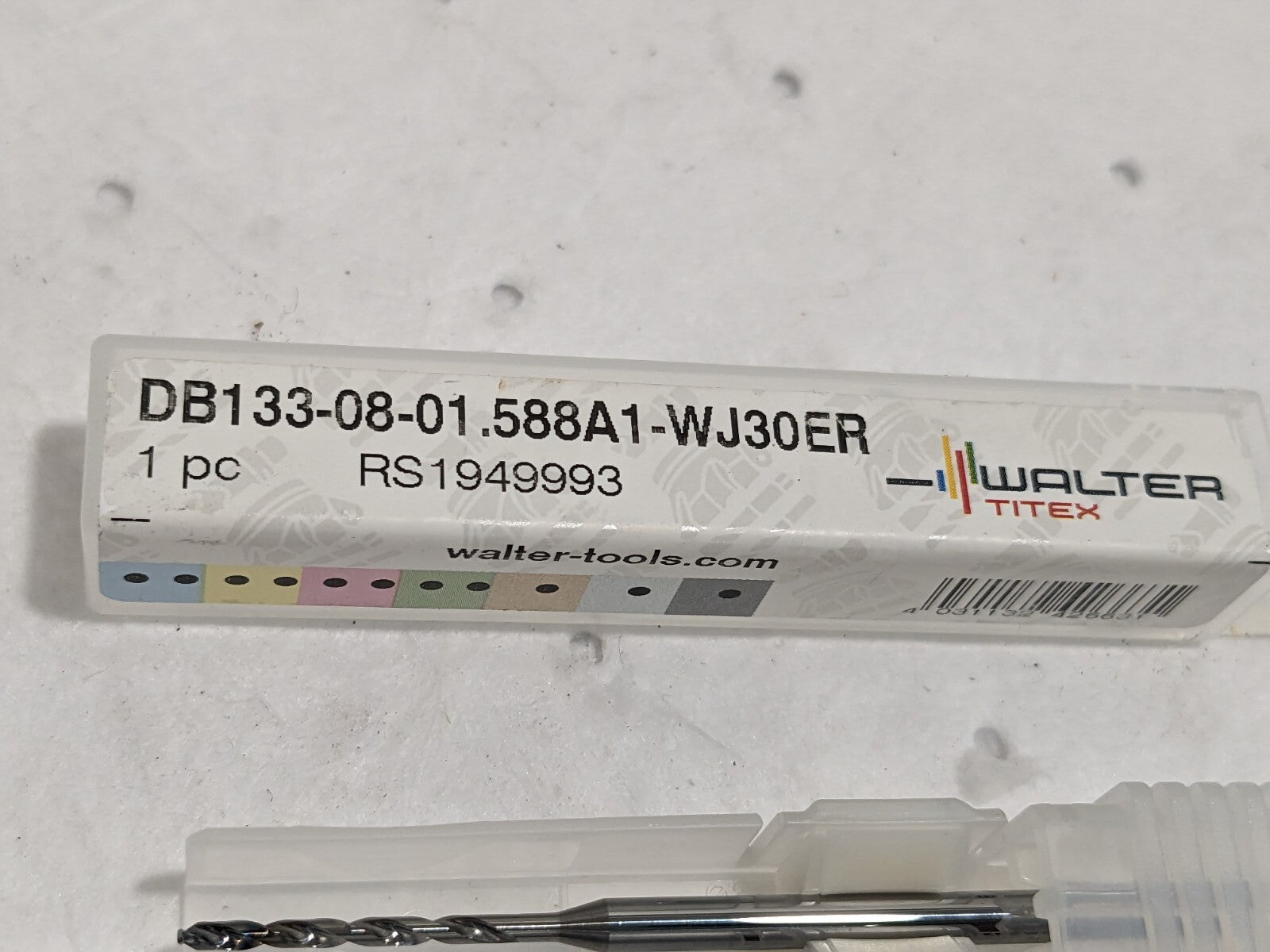

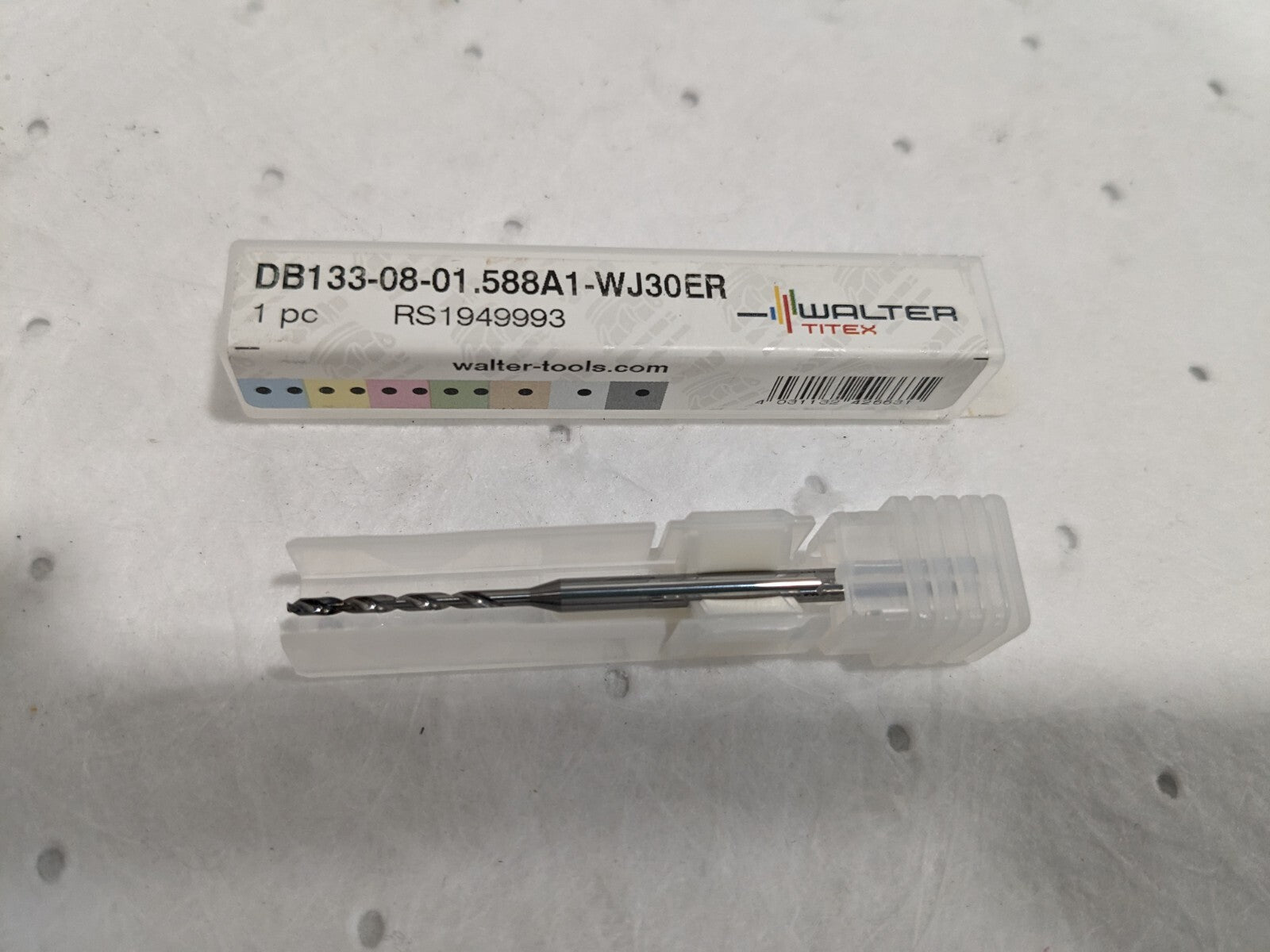

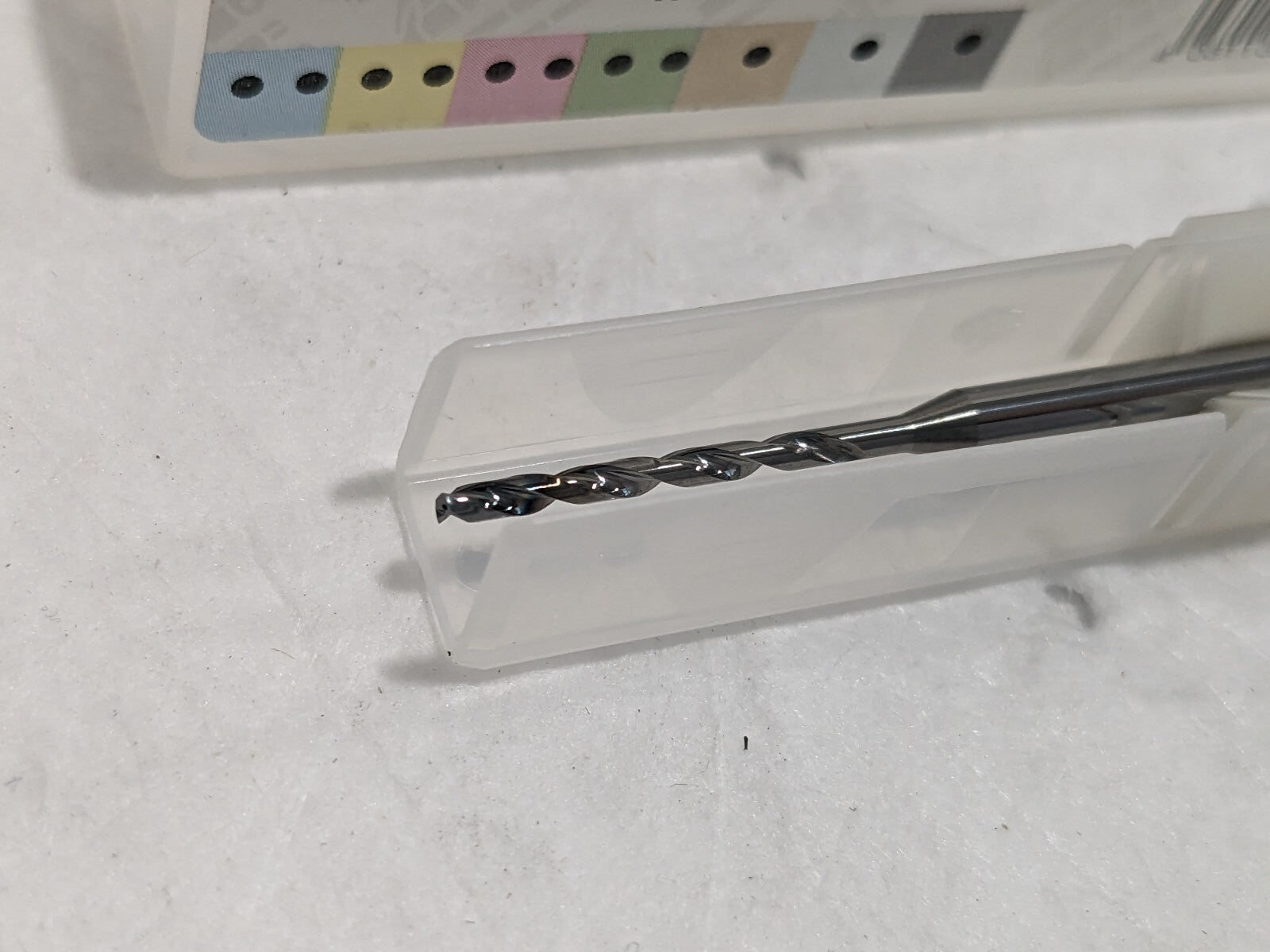

WALTER-TITEX Micro Drill Bit: 1/16" Solid Carbide 140 deg 7577887

WALTER-TITEX Micro Drill Bit: 1/16" Solid Carbide 140 deg 7577887

MSRP: $150

• Drill Bit Size (Inch) 1/16
• Drill Bit Size (Decimal Inch) 0.0625
• Tool Material Solid Carbide
• Flute Length (Decimal Inch) 0.7090
• Flute Length (mm) 18.00
• Coating/Finish AlCrN
• Coolant Through Yes
• Drill Point Angle 140
• Cutting Direction Right Hand
• Maximum Drilling Depth (mm) 15.00
• Series DB133-08-A1
• Overall Length (Decimal Inch) 2.3620
• Shank Type Straight-Cylindrical
• Tool Application Through Hole Drilling; Blind Hole; Stack Drilling
• Drill Bit Diameter Tolerance m7
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M; N
• Secondary Workpiece Material Glass; Graphite; Titanium; Nickel; Cobalt; Titanium Alloy; Iron Alloy
• Secondary Workpiece Material Code S; H; O
• Standards DIN 6535 HA
• Shank Diameter (Decimal Inch) 0.1180
• Shank Diameter (mm) 3.00
• Shank Length (mm) 37.00
• Flute By Diameter Ratio 8xD
• UNSPSC Code 23241600

(Description).

Please review photos, comes as shown.
