Walter-Titex Carbide Taper Length Drill Bit Through Coolant 12.3mm A6589DPP-12.3
Walter-Titex Carbide Taper Length Drill Bit Through Coolant 12.3mm A6589DPP-12.3
Regular price
$221.79 USD
Regular price
$445.00 USD
Sale price
$221.79 USD
Walter-Titex
MSRP: $445
Model: A6589DPP-12.3
Description:
Drill Bit Size (mm) 12.30
Drill Bit Size (Decimal Inch) 0.4843
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Double Point Coating
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Through Coolant Yes
Point Type X-treme D
Flute Length (Decimal Inch) 7.1654
Flute Length (mm) 182.00
Overall Length (mm) 230.00
Overall Length (Decimal Inch) 9.0551
Spiral Type Regular Spiral
Shank Diameter (mm) 14.00
Shank Diameter (Decimal Inch) 0.5512
Flute Length x Diameter Ratio 12xD
Maximum Drilling Depth (mm) 168.00
Maximum Drilling Depth (Decimal Inch) 6.6142
Shank Length (mm) 45
Shank Length (Decimal Inch) 1.7717
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) m7
Web Thinning Web-Thinned
Specification Number DIN 6535HA
Material Grade K30F
Series/List A6589DPP

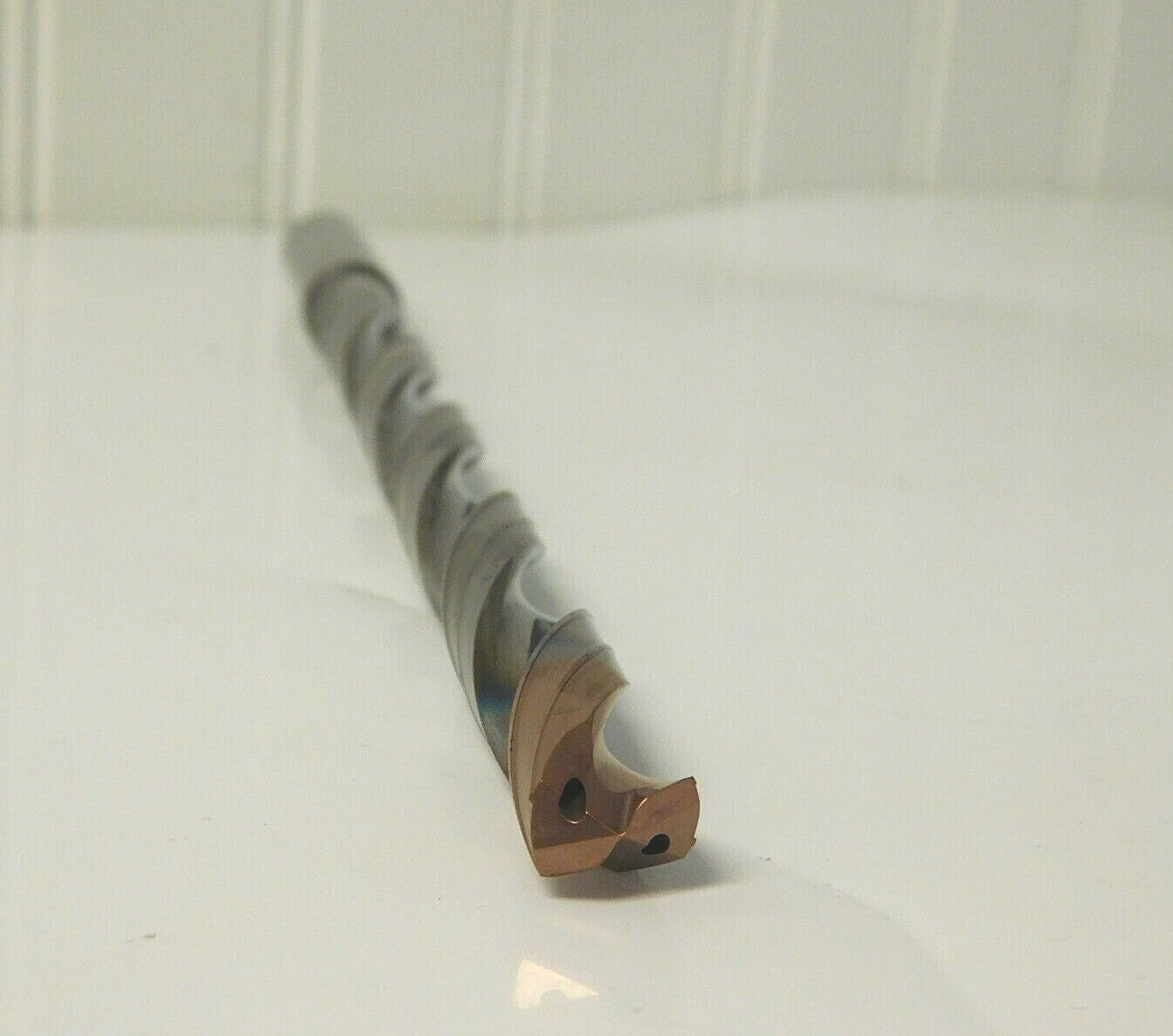

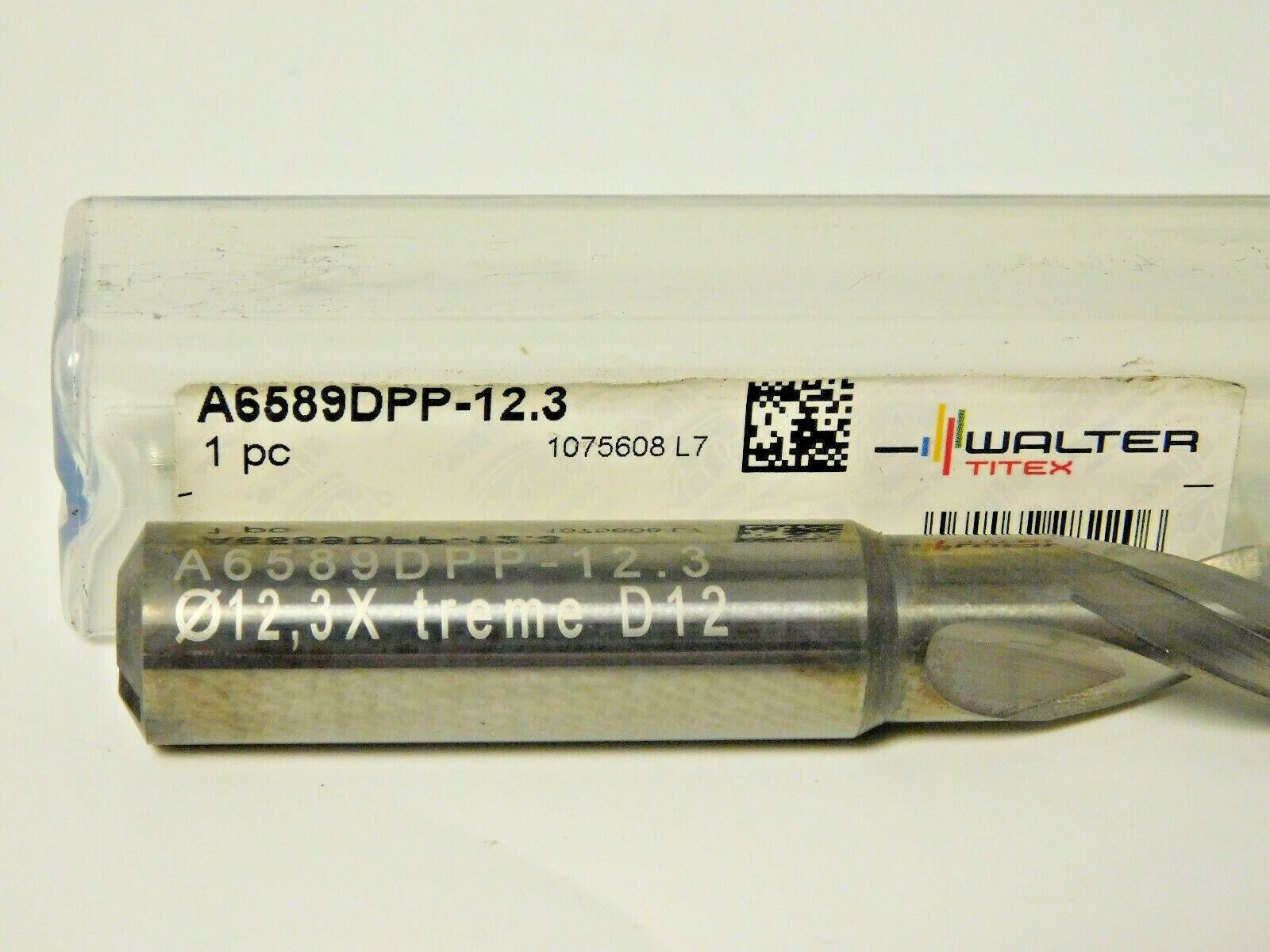

This listing is for One Taper Length Drill Bit that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
