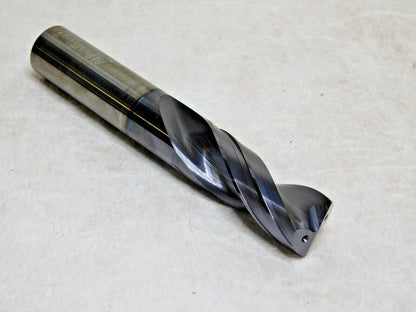

Walter-Titex Carbide Pilot Drill Coolant-Through 20mm 180° A7191TFT-20
Walter-Titex Carbide Pilot Drill Coolant-Through 20mm 180° A7191TFT-20
Regular price
$259.17 USD
Regular price
$520.00 USD
Sale price
$259.17 USD
Walter-Titex
MSRP: $520
Model: A7191TFT-20
Description:
Drill Bit Size (Decimal Inch) 0.7874
Drill Bit Size (mm) 20.00
Drill Point Angle 180
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Tinal
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Flute Length (mm) 70.00
Flute Length (Decimal Inch) 2.7559
Overall Length (mm) 131.00
Overall Length (Decimal Inch) 5.1575
Flute Length x Diameter Ratio 3xD
Point Type Point Cutting
Shank Diameter (mm) 20.00
Shank Diameter (Decimal Inch) 0.7874
Specification Designation DIN
Maximum Drilling Depth (mm) 50.00
Maximum Drilling Depth (Decimal Inch) 1.9685
Spiral Type Regular Spiral
Shank Length (mm) 55.00
Shank Length (Decimal Inch) 2.1654
Threaded Shank No
Number of Flutes 2
Drill Point Length (mm) 0.60
Drill Point Length (Decimal Inch) 0.0236
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) p7
Drill Tip Finish/Coating None
Specification Number DIN 6535HA
Web Thinning Web-Thinned
Material Grade K30F
Series/List A7191TFT
Length Type Regular
This listing is for One Pilot Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
