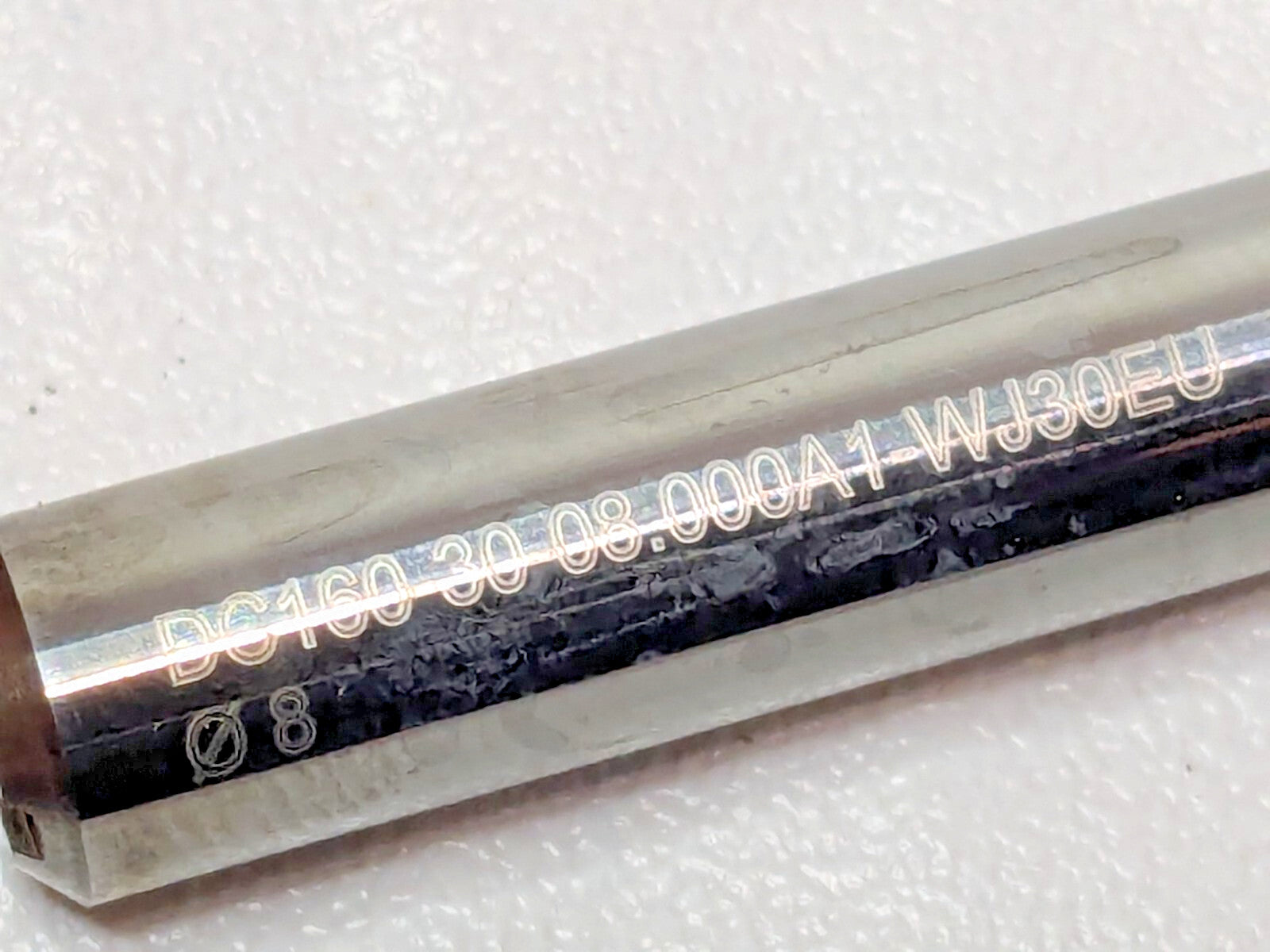

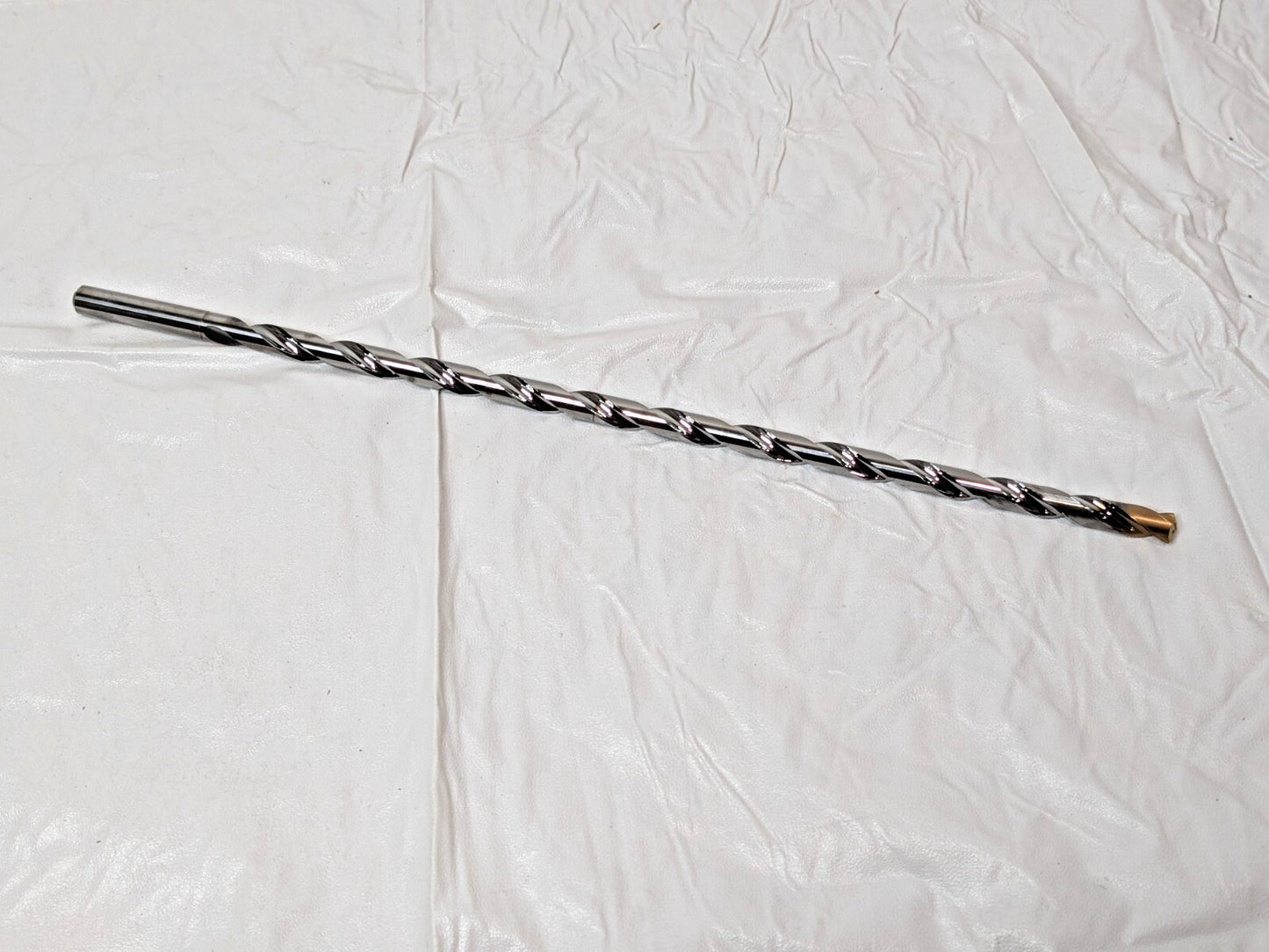

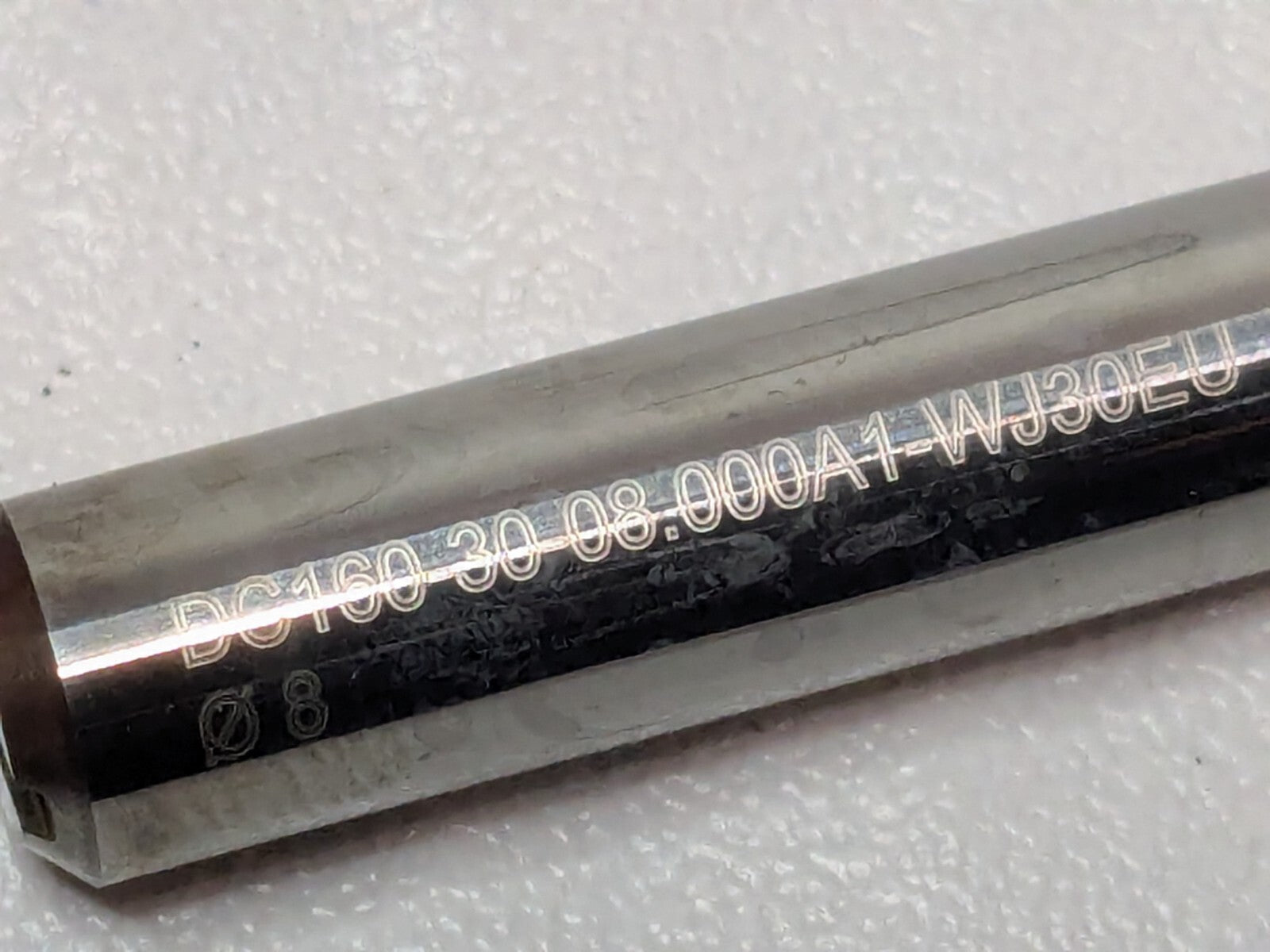

Walter-Titex Carbide Long Drill Coolant-Through DC160-30-08.000A1-WJ30EU 7684396

Walter-Titex
Carbide Long Drill

MSRP: $650

• Item Long Drill Bit
• Coolant Fed Coolant Through
• Cutting Direction Right Hand
• Decimal Equivalent 0.315
• Depth X Dia. Ratio 30xd

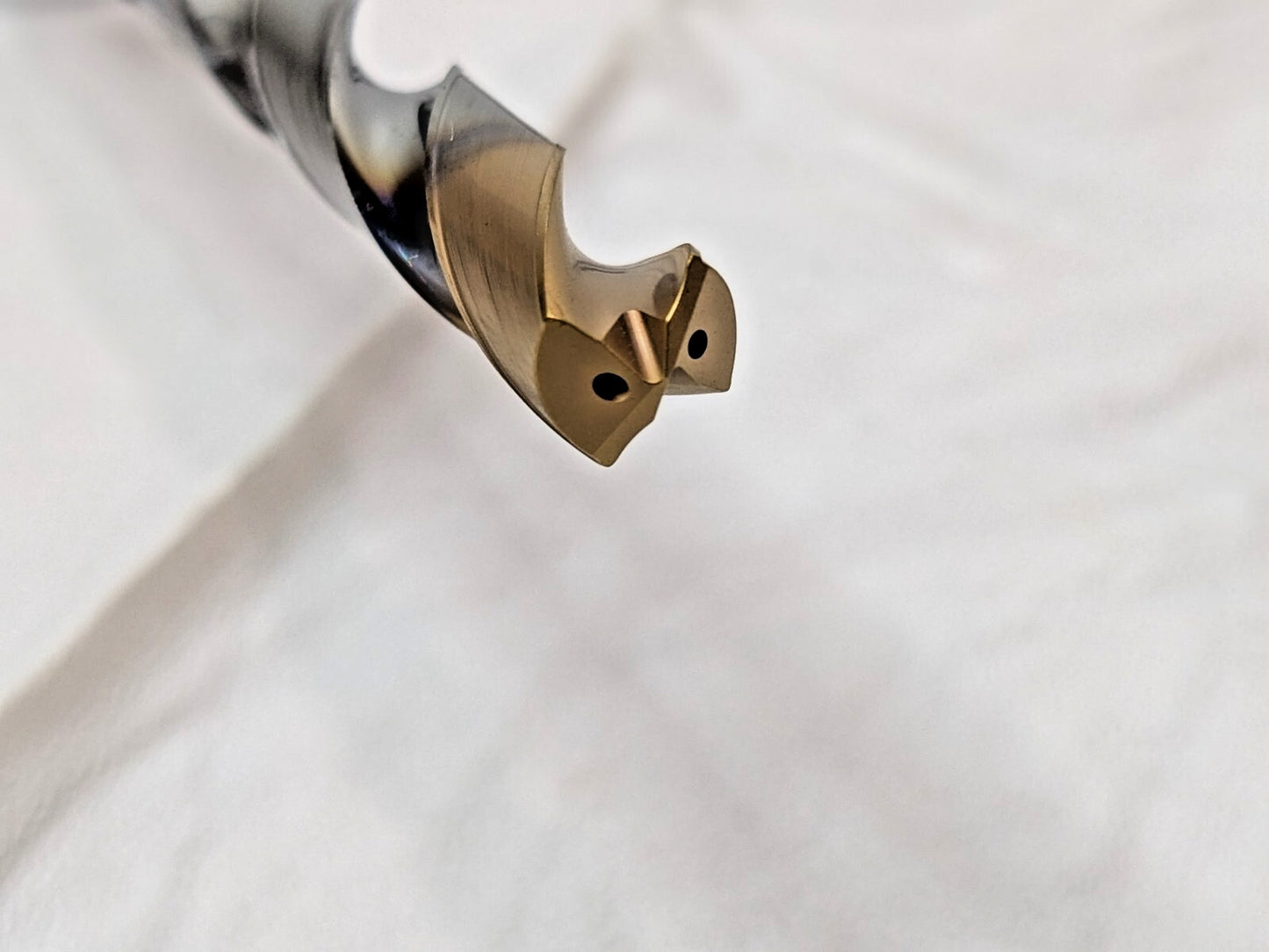

• Drill Bit Point Angle 140°
• Drill Bit Point Type Conventional Point
• Drill Bit Size 8 mm
• Drill Diameter Tolerance H7
• Drill Length Class Extra Long
• Drill Point Length 1.46 mm
• Finish TiSiAlCrN, AlTiN
• Flute Length 256 mm
• Flute Type Spiral
• Grade Grade WJ30EU
• Material Carbide
• Max. Drilling Depth 244 mm

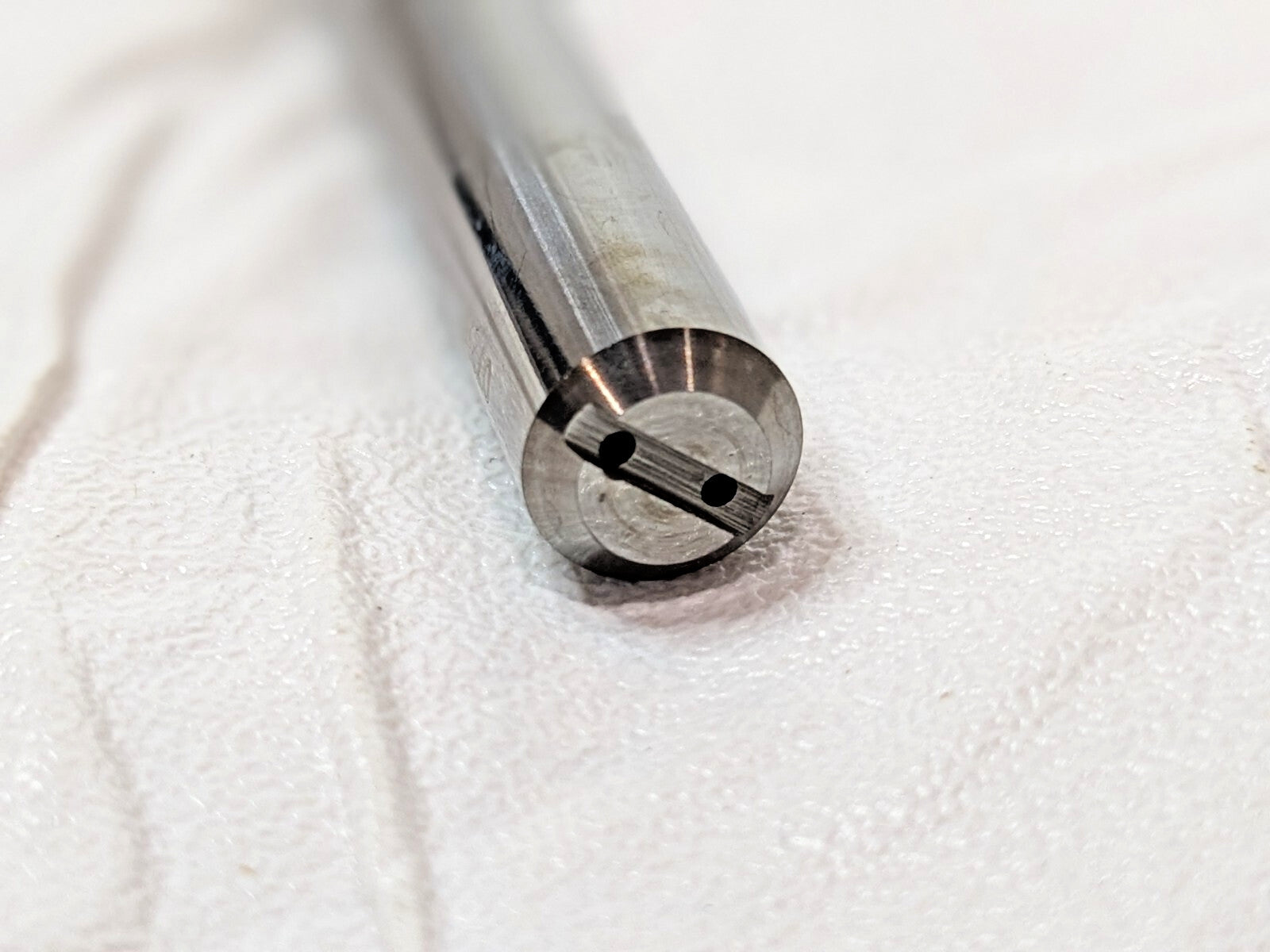

• Number Of Coolant Holes 2
• Number Of Flutes 2
• Overall Length 294 mm
• Primary Material Application Aluminium, Brass, Bronze, Cast Iron, Copper, Steel, Super Alloy, Titanium
• Secondary Material Application Graphite, Hard Material, Plastic And Synthetic Materials, Stainless Steel
• Shank Dia. 8 mm
• Shank Length 36 mm
• Shank Type Straight
• Sheeter Drill No
• Spiral Direction Right Hand
• System Of Measurement Metric
• Web Thinning Web Thinned
• Depth:dia. Ratio 30xD
• Finish - Machining TiSiAlCrN/AlTiN
• Material - Machining Carbide
• Material Grade - Machining Grade WJ30EU
• Maximum Drilling Depth 244 mm
• Measurement System Metric
• Primary Material Application Iso Code K, N, P, S
• Secondary Material Application Iso Code H, M, O
• Shank Type - Machining Straight
• Standards TP-NORM 69X

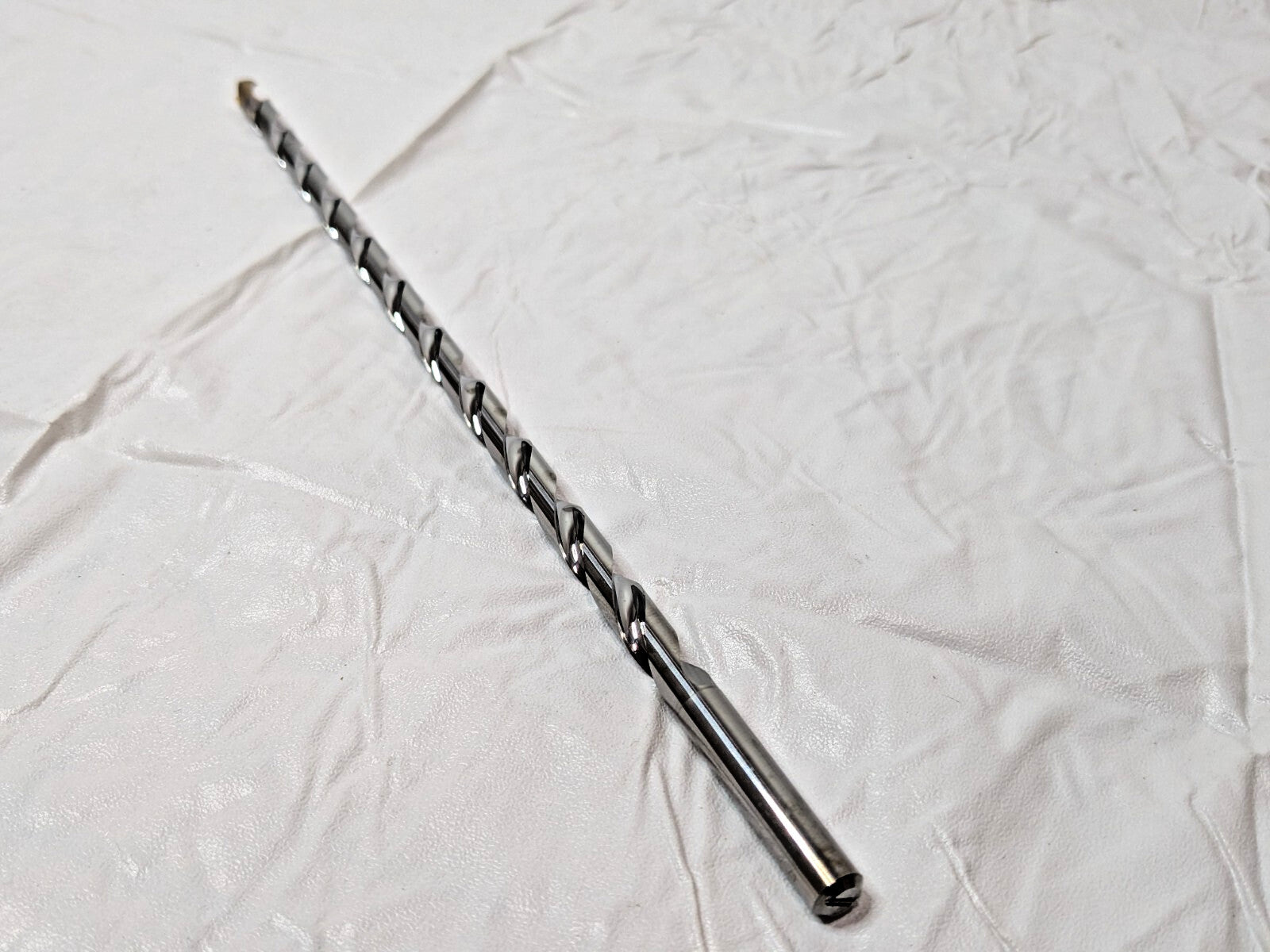

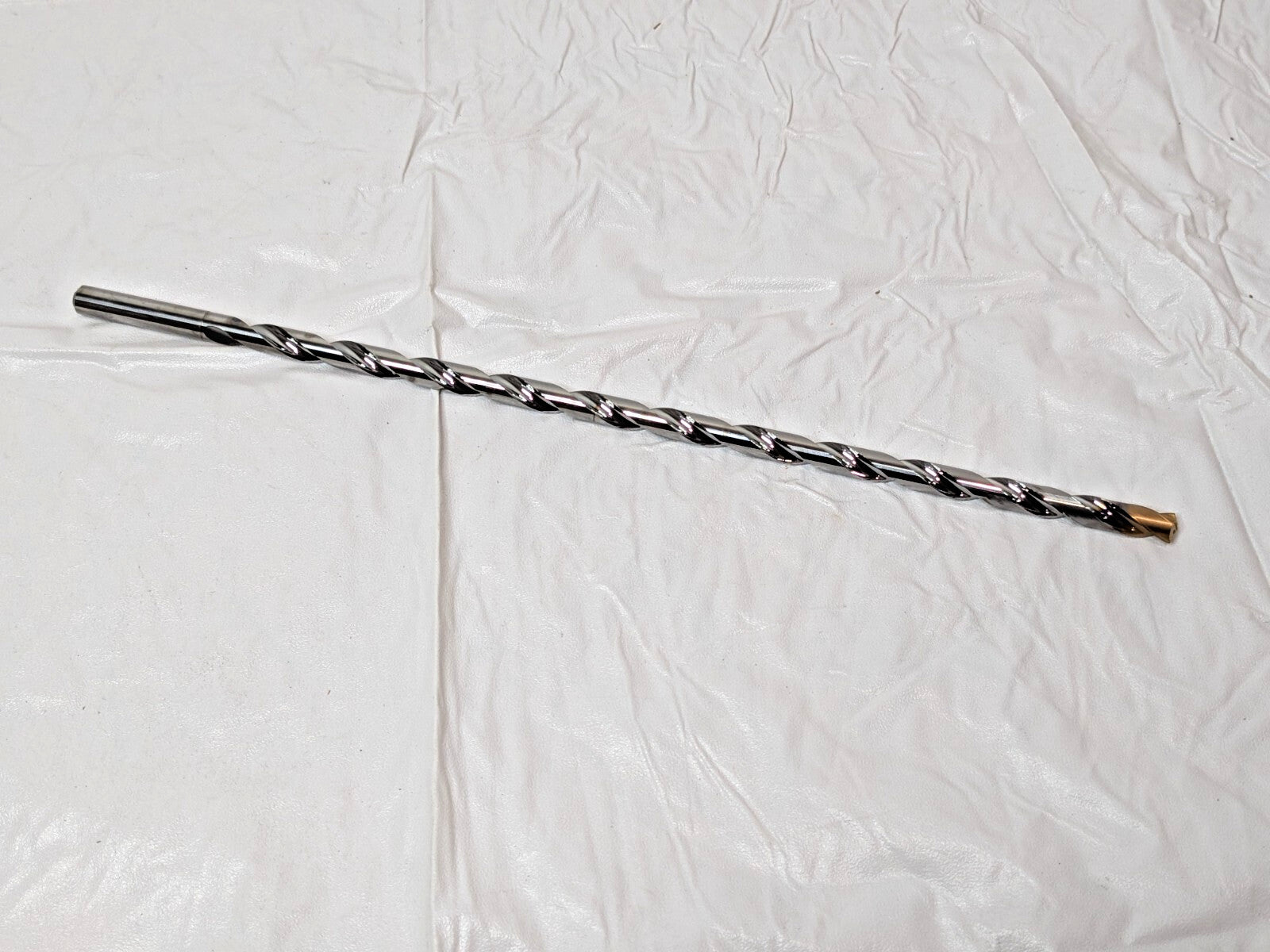

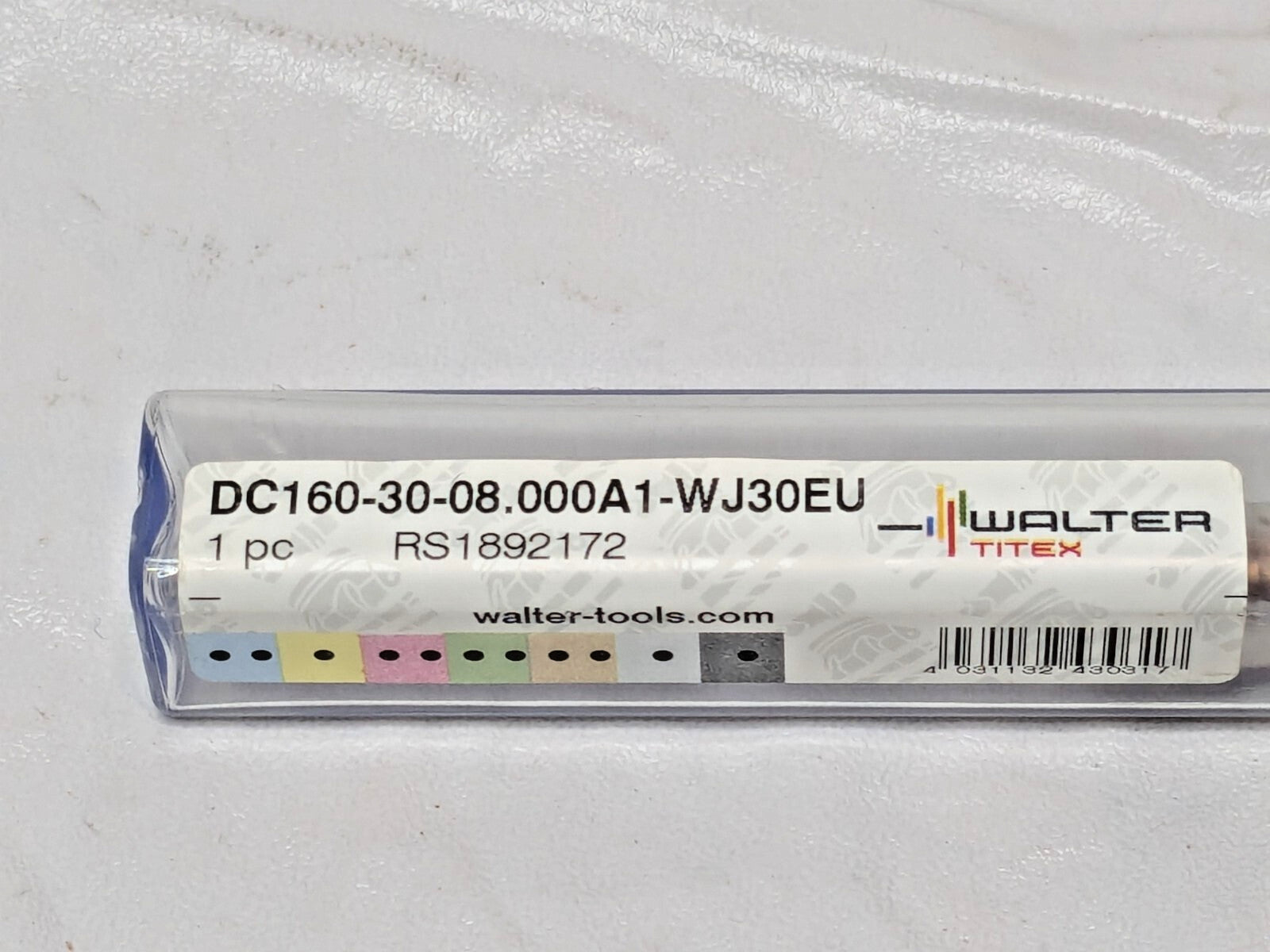

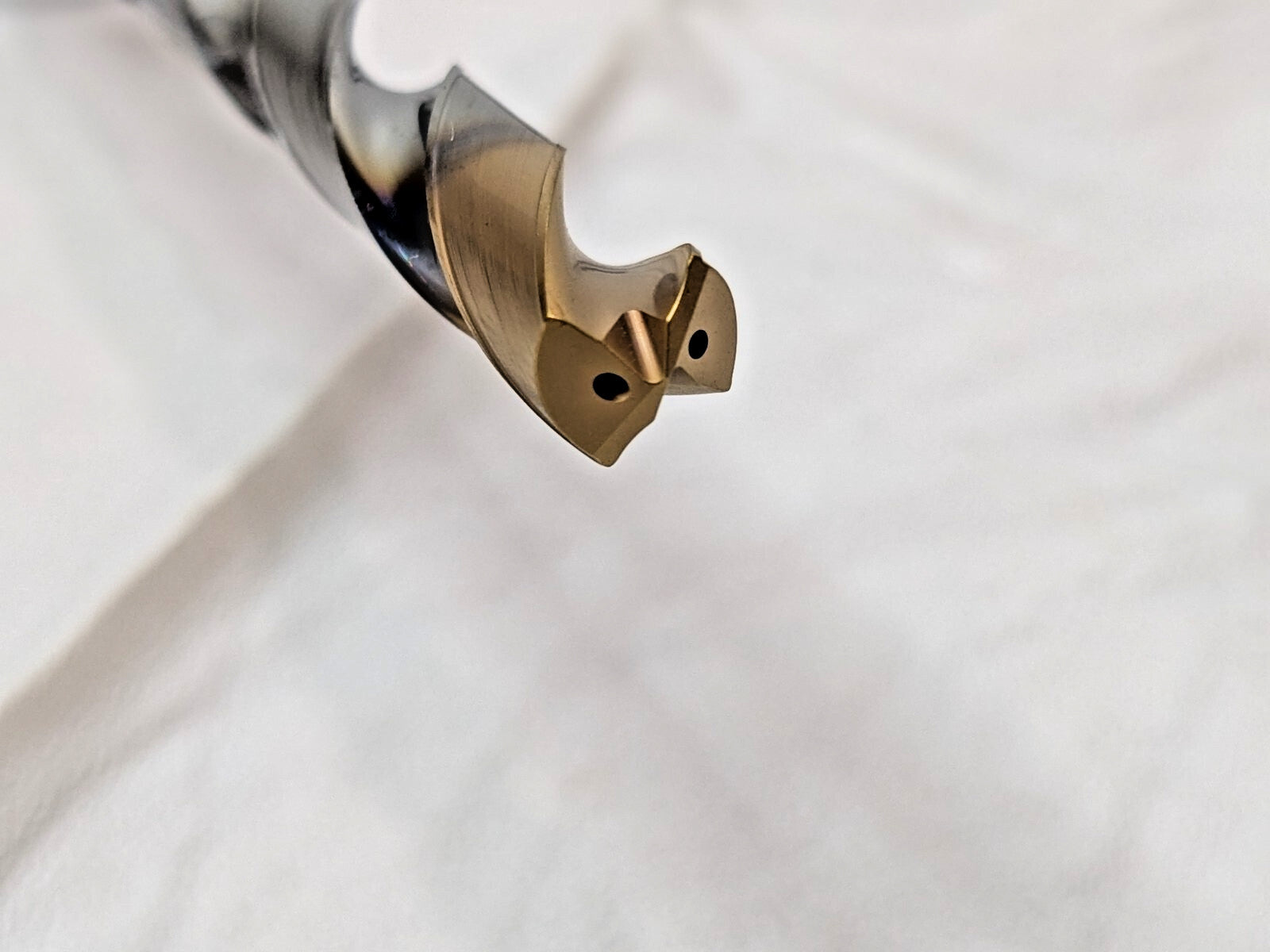

Please review photos, comes as shown.
