Walter-Titex 7.2mm 118° Point Spiral Flute Taper Length Drill Bit QTY 5 5061700
Walter-Titex 7.2mm 118° Point Spiral Flute Taper Length Drill Bit QTY 5 5061700
Regular price
$29.90 USD
Regular price
$60.00 USD
Sale price
$29.90 USD
Walter
MSRP: $60.00
Model: 5061700
Description:
Drill Bit Size (mm) 7.20
Drill Bit Size (Decimal Inch) 0.2835
Drill Point Angle 118
Drill Bit Material High Speed Steel
Drill Bit Finish/Coating Oxide
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Through Coolant No
Point Type Conical
Flute Length (Decimal Inch) 4.0158
Flute Length (mm) 102.00
Overall Length (mm) 156.00
Overall Length (Decimal Inch) 6.1417
Spiral Type Regular Spiral
Shank Diameter (mm) 7.20
Shank Diameter (Decimal Inch) 0.2835
Flute Length x Diameter Ratio 12xD
Maximum Drilling Depth (mm) 90.00
Maximum Drilling Depth (Decimal Inch) 3.5433
Shank Length (mm) 54
Shank Length (Decimal Inch) 2.1260
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) h8
Web Thinning Web-Thinned
Specification Number DIN 340
Material Grade M2
Series/List A1511

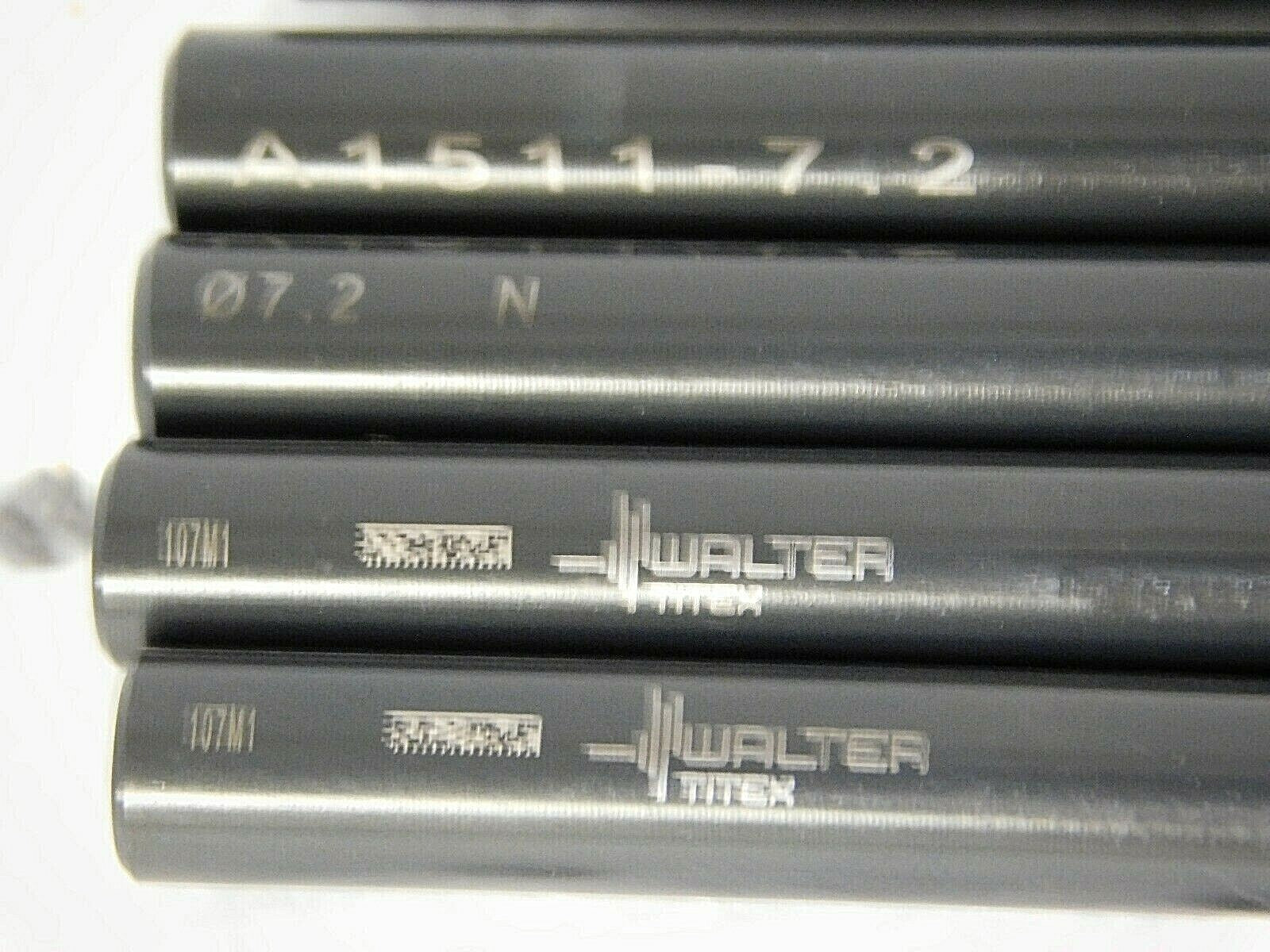

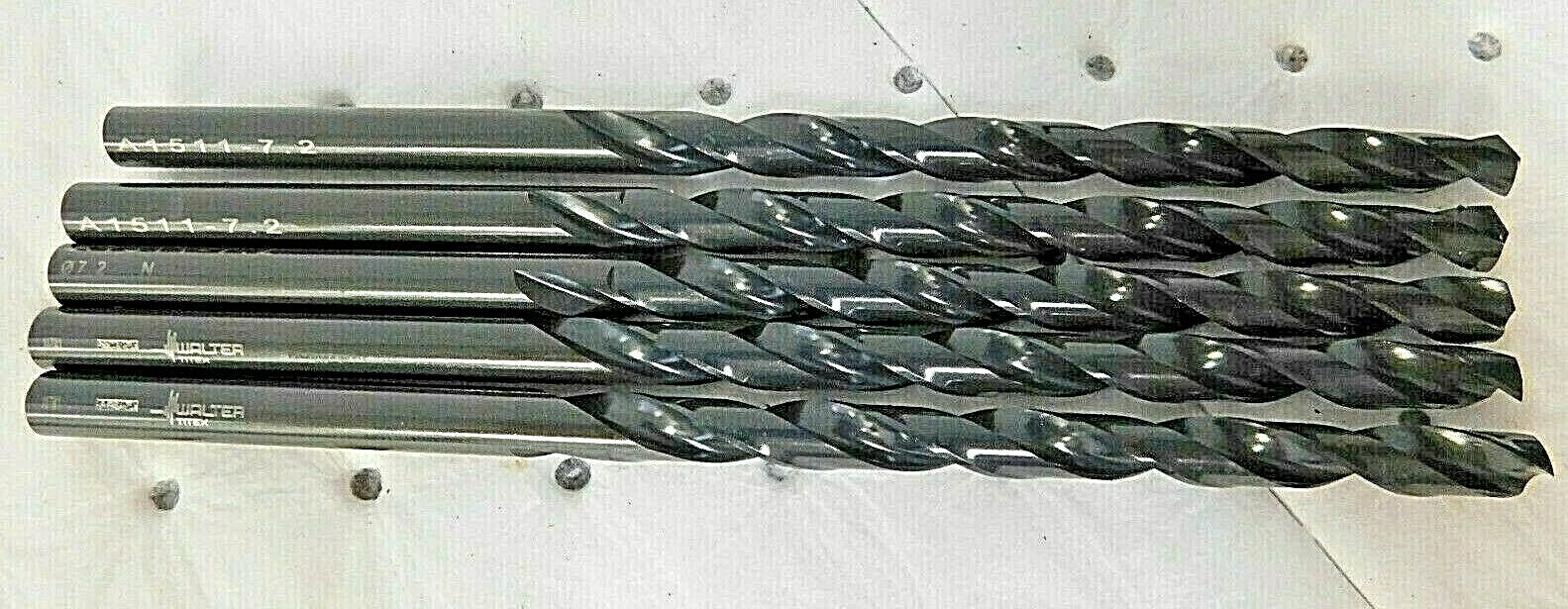

This listing is for One Pack of 5 drill bits that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
