Walter-Titex 6.5mm 130° Point Cobalt Jobber Drill 5066428
Walter-Titex 6.5mm 130° Point Cobalt Jobber Drill 5066428
Regular price
$29.90 USD
Regular price
$60.00 USD
Sale price
$29.90 USD
Brand: WALTER TITEX
MSRP: $80.00
Model: 5066428
Description:
Drill Bit Size (mm) 6.50
Drill Bit Size (Decimal Inch) 0.2559
Drill Point Angle 130
Drill Bit Material Cobalt
Drill Bit Finish/Coating TiN
Flute Type Parabolic
Cutting Direction Right Hand
Shank Type Whistle Notch
Coolant Through Coolant Through
Flute Length (mm) 53.00
Flute Length (Decimal Inch) 2.0866
Overall Length (mm) 91.00
Overall Length (Decimal Inch) 3.5827
Flute Length x Diameter Ratio 5xD
Point Type Mega Jet
Shank Diameter (mm) 8.00
Shank Diameter (Decimal Inch) 0.3150
Maximum Drilling Depth (Decimal Inch) 1.6142
Maximum Drilling Depth (mm) 41.00
Shank Length (mm) 36.00
Shank Length (Decimal Inch) 1.4173
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) h8
Number of Flutes 2
Web Thinning Web-Thinned
Specification Number DIN 1835E; DIN 6535HE
Material Grade M35
Series/List A6292TIN

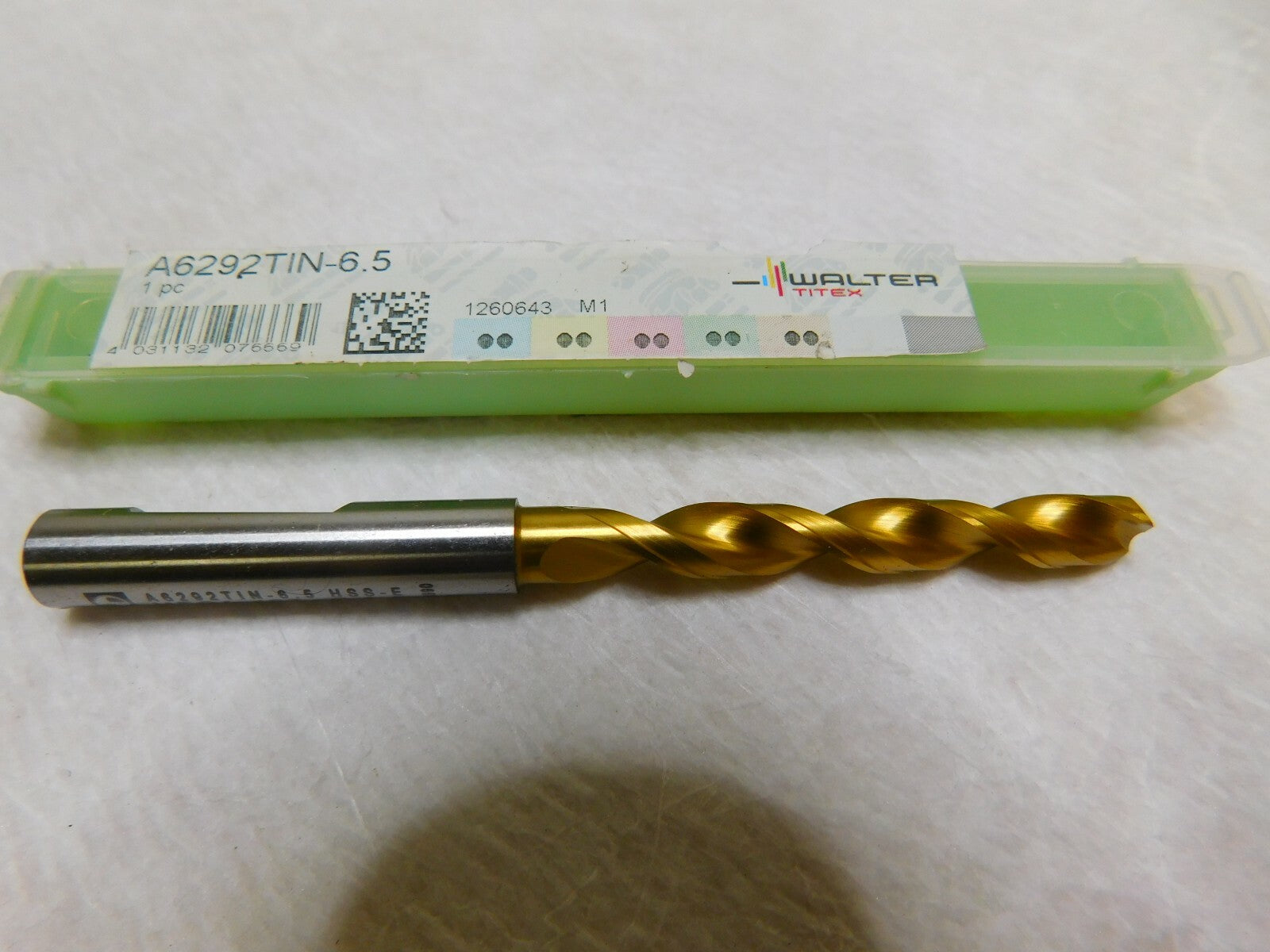

This listing is for One DRILL BIT that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
