Walter-Titex 6.2mm 118° Spiral Fl SC Screw Machine Drill Bit QTY 3 5057591

Walter-Titex 6.2mm 118° Spiral Fl SC Screw Machine Drill Bit QTY 3 5057591

$30.00 USD
$60.00 USD $30.00 USD
Sale Sold out
Shipping calculated at checkout.

Walter-Titex 6.2mm 118° Spiral Fl SC Screw Machine Drill Bit QTY 3 5057591
Item Description

Walter

MSRP: $60.00

Model: 5057591

Description:


Drill Bit Size (Decimal Inch) 0.2441
Drill Bit Size (mm) 6.20
Drill Point Angle 118
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Bright
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Flute Length (mm) 31.00
Flute Length (Decimal Inch) 1.2205
Overall Length (mm) 70.00
Overall Length (Decimal Inch) 2.7559
Flute Length x Diameter Ratio 3xD
Point Type Form V+A
Shank Diameter (mm) 6.20
Shank Diameter (Decimal Inch) 0.2441
Specification Designation DIN
Maximum Drilling Depth (mm) 20.00
Maximum Drilling Depth (Decimal Inch) 0.7874
Spiral Type Regular Spiral
Shank Length (mm) 39.00
Shank Length (Decimal Inch) 1.5354
Threaded Shank No
Number of Flutes 2
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) h7
Drill Tip Finish/Coating None
Specification Number DIN 6539
Web Thinning Web-Thinned
Material Grade K30F
Series/List A1163
Length Type Regular

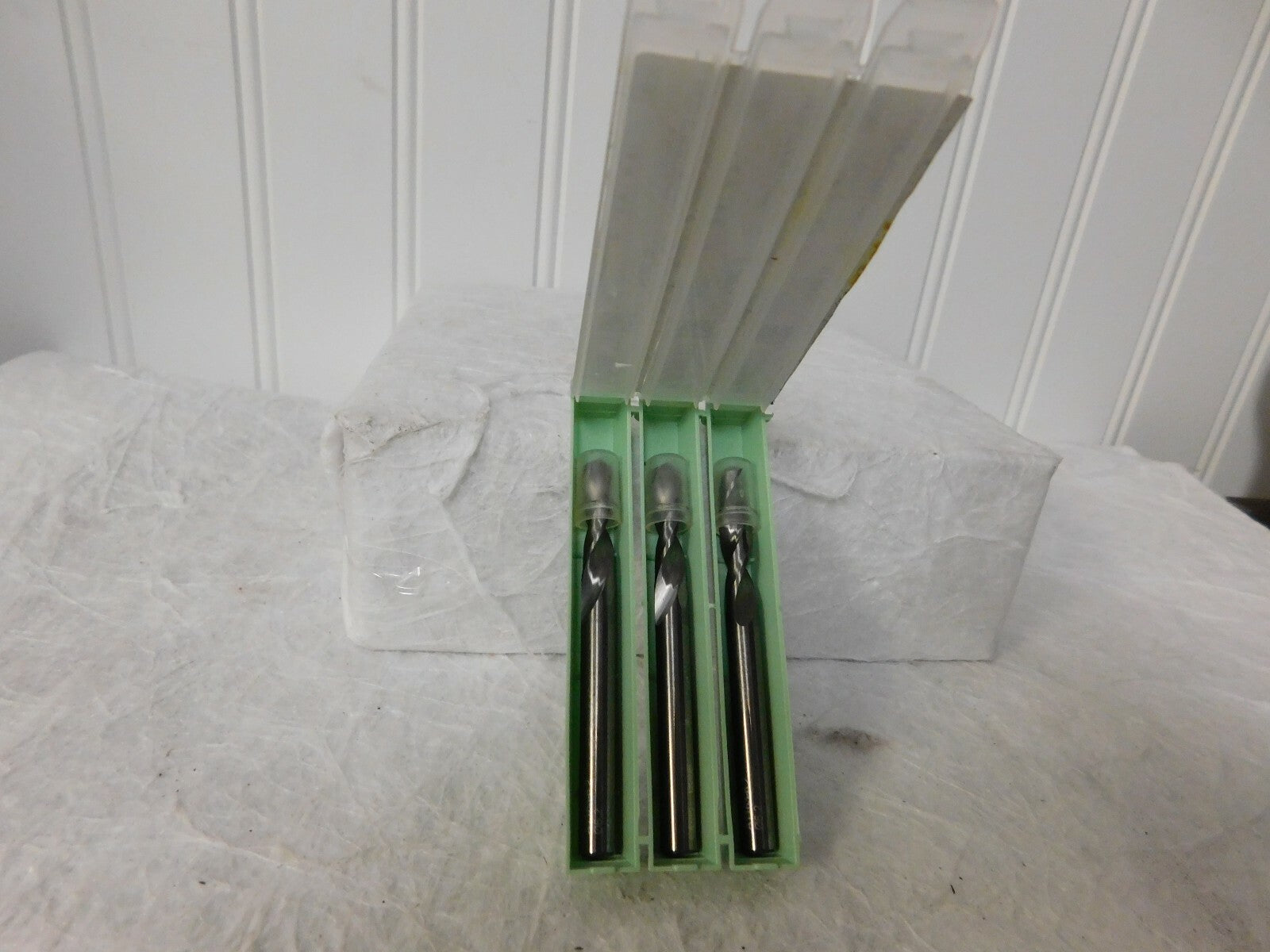

This listing is for One Lot of 3  that is in the picture as well as described. Please ask any questions prior to buying!


Florida customer's are required to pay a 7% sales tax.
