Walter-Titex 5mm 140° Solid Carbide Jobber Drill. 5834669

BRAND Walter
Item

• specs
•

• Drill Bit Size (mm) 5.00
• Drill Bit Size (Decimal Inch) 0.1969
• Drill Point Angle 140
• Drill Bit Material Solid Carbide
• Drill Bit Finish/Coating Double Coating
• Flute Type Spiral
• Cutting Direction Right Hand
• Shank Type Straight
• Coolant Through Coolant Through
• Flute Length (mm) 57.00
• Flute Length (Decimal Inch) 2.2441
• Overall Length (mm) 97.00
• Overall Length (Decimal Inch) 3.8189
• Flute Length x Diameter Ratio 8xD
• Point Type X-treme D
• Shank Diameter (mm) 6.00
• Shank Diameter (Decimal Inch) 0.2362
• Maximum Drilling Depth (Decimal Inch) 1.8898
• Maximum Drilling Depth (mm) 48.00
• Spiral Type Regular Spiral
• Shank Length (mm) 36.00
• Shank Length (Decimal Inch) 1.4173
• Specification Designation DIN
• Web Configuration Tapered
• Drill Bit Diameter Tolerance (mm) m7
• Web Thinning Web-Thinned
• Specification Number DIN 6535HA
• Material Grade K30F
• Series/List A6489DPP

(Description).

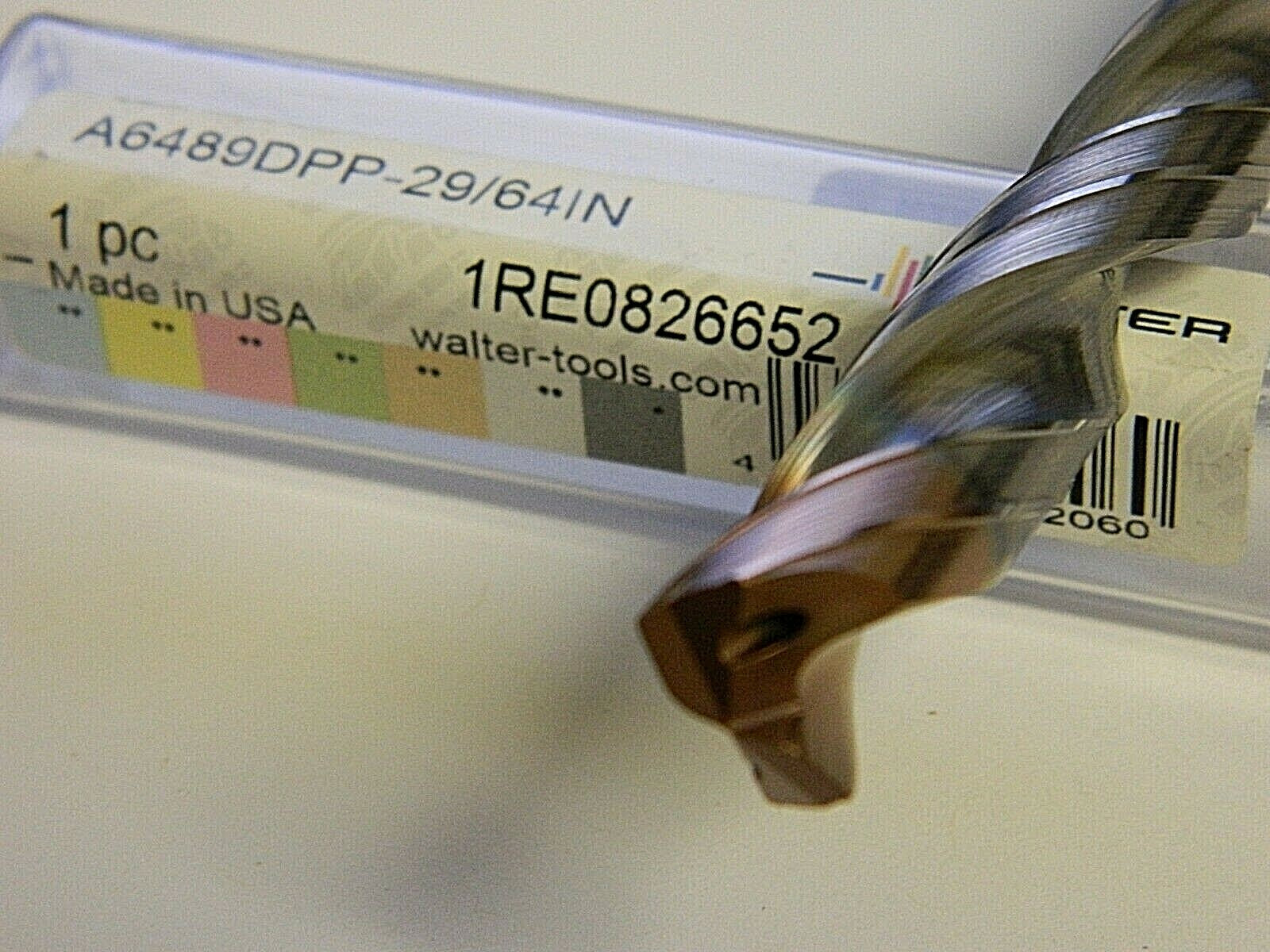

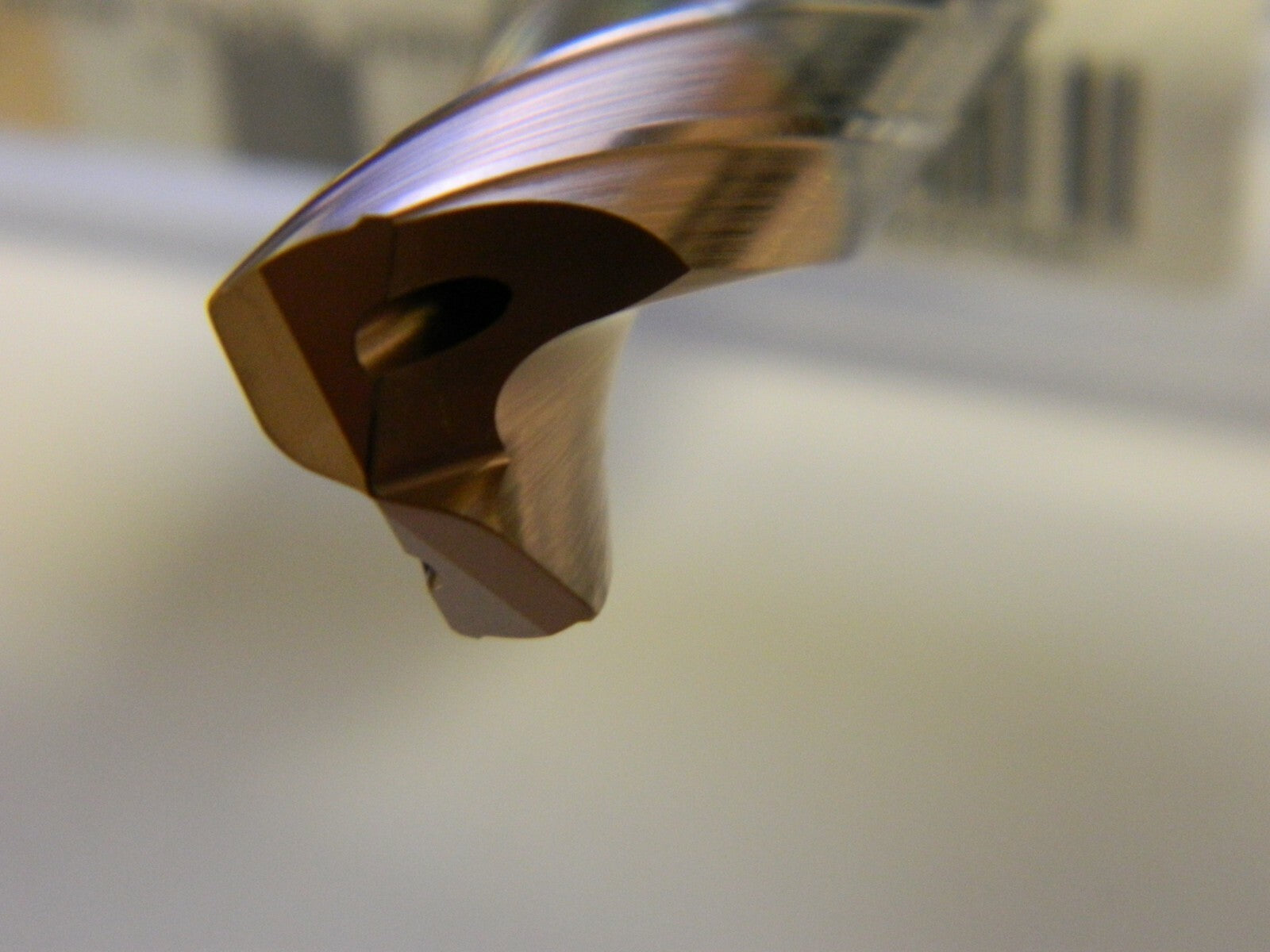

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
