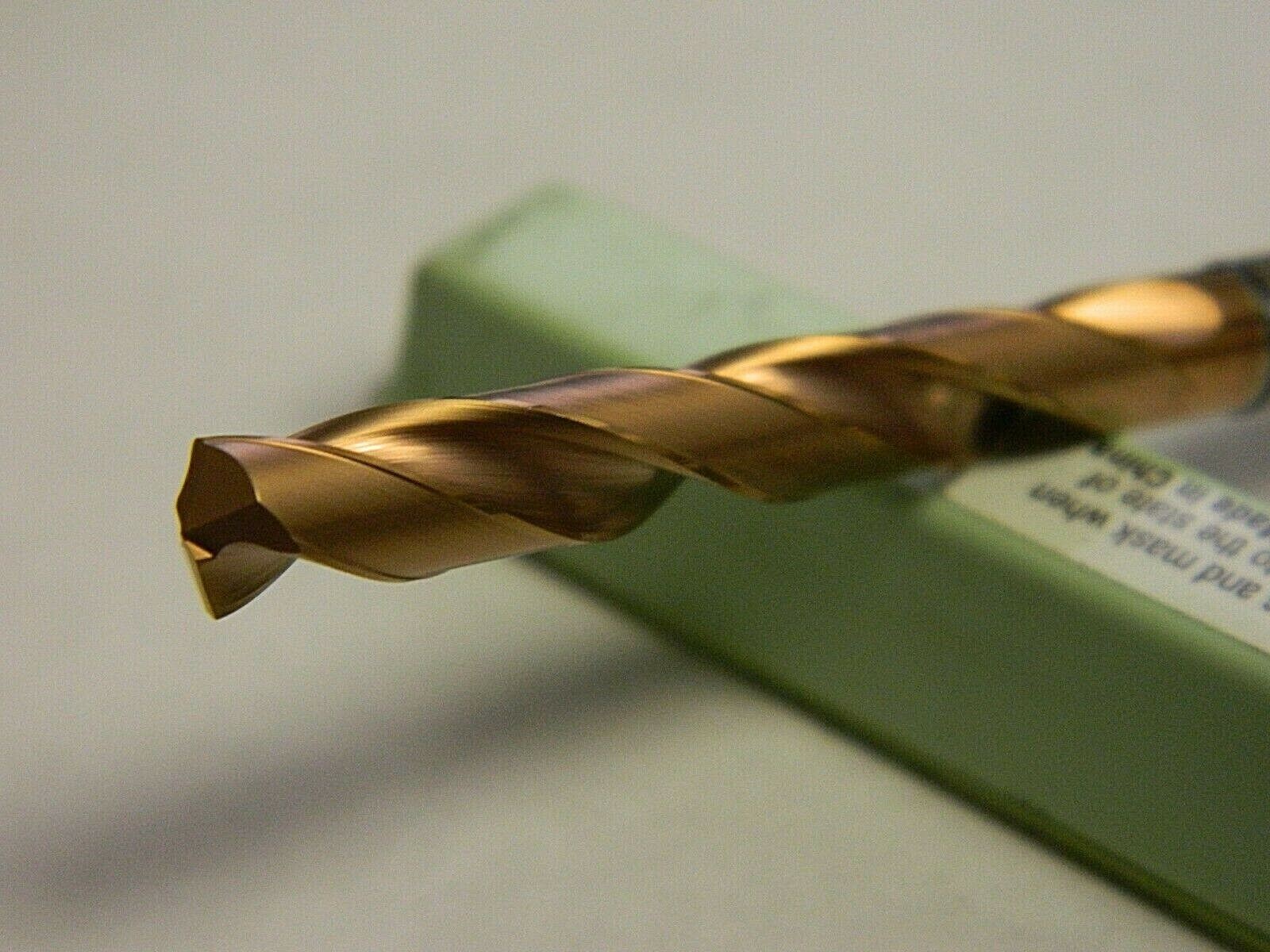

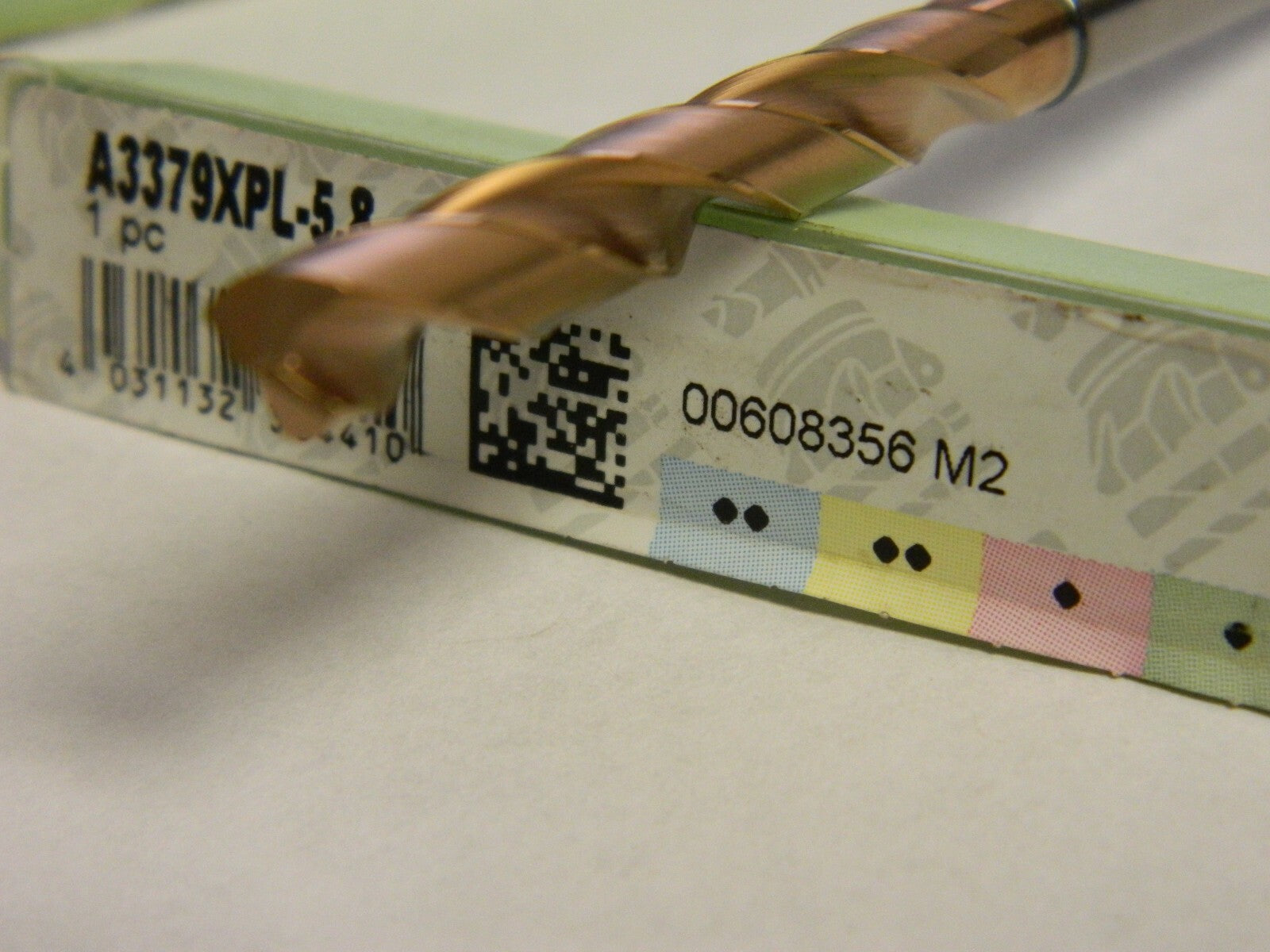

Walter-Titex 5.8mm 140° Solid Carbide Jobber Drill QTY 2 5956881
Walter-Titex 5.8mm 140° Solid Carbide Jobber Drill QTY 2 5956881
Regular price
$69.78 USD
Regular price
$140.00 USD
Sale price
$69.78 USD
MSRP: $140.00
Model: 5956881
Description:
Drill Bit Size (mm) 5.80
Drill Bit Size (Decimal Inch) 0.2283
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating AlCrN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 44.00
Flute Length (Decimal Inch) 1.7323
Overall Length (mm) 82.00
Overall Length (Decimal Inch) 3.2284
Flute Length x Diameter Ratio 5xD
Point Type X-treme
Shank Diameter (mm) 6.00
Shank Diameter (Decimal Inch) 0.2362
Maximum Drilling Depth (Decimal Inch) 1.3780
Maximum Drilling Depth (mm) 35.00
Spiral Type Regular Spiral
Shank Length (mm) 36.00
Shank Length (Decimal Inch) 1.4173
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) m7
Number of Flutes 2
Web Thinning Web-Thinned
Material Grade K30F
Series/List A3379XPL
This listing is for One Lot of 2 that is in the picture as well as described. Please ask any questions prior to buying!
