WALTER-TITEX 2pk Screw Machine Length Drill Bits 5/16"Dia Carbide 6968795

WALTER-TITEX 2pk Screw Machine Length Drill Bits 5/16"Dia Carbide 6968795

MSRP: $140

• Drill Bit Size (Inch) 5/16
• Drill Bit Size (mm) 7.94
• Drill Bit Size (Decimal Inch) 0.3125
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish TiNAl
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Drill Point Angle 140
• Coolant Through Yes
• Primary Workpiece Material Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; Steel
• Point Type Standard
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.3150
• Drill Tip Finish/Coating TiNAl
• Overall Length (mm) 79.00
• Overall Length (Decimal Inch) 3.1100
• Shank Diameter (mm) 8.00
• Series DC150-03-A1
• Proprietary Coating/Finish TiNAl
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 1.1420
• Maximum Drilling Depth (mm) 29.00
• Shank Length (Decimal Inch) 1.4200
• Shank Length (mm) 36.00
• Drill Point Length (mm) 1.45
• Drill Point Length (Decimal Inch) 0.0570
• Flute By Diameter Ratio 3xD
• Tool Performance Universal
• Drill Bit Diameter Tolerance m7
• Standards ISO; DIN
• Flute Length (Decimal Inch) 1.6140
• Flute Length (mm) 41.00
• Drill Bit Size Range (Decimal Inch) 0.3000 to 0.3500
• Drill Bit Size Range (mm) 6.50 - 8.00
• UNSPSC Code 23241635

This listing features a set of two Walter-Tex screw machine length drill bits with a diameter of 5/16". Made from high-quality carbide material, these drill bits are perfect for metalworking applications. The brand Walter is known for producing reliable and efficient drilling equipment, and this set is no exception. With a unit type of unit and manufactured in China, these drill bits are a great addition to any metalworking collection. Ideal for use in screw machines, these drill bits are a must-have for anyone in the metalworking industry. Don't miss out on the opportunity to add this set to your collection.

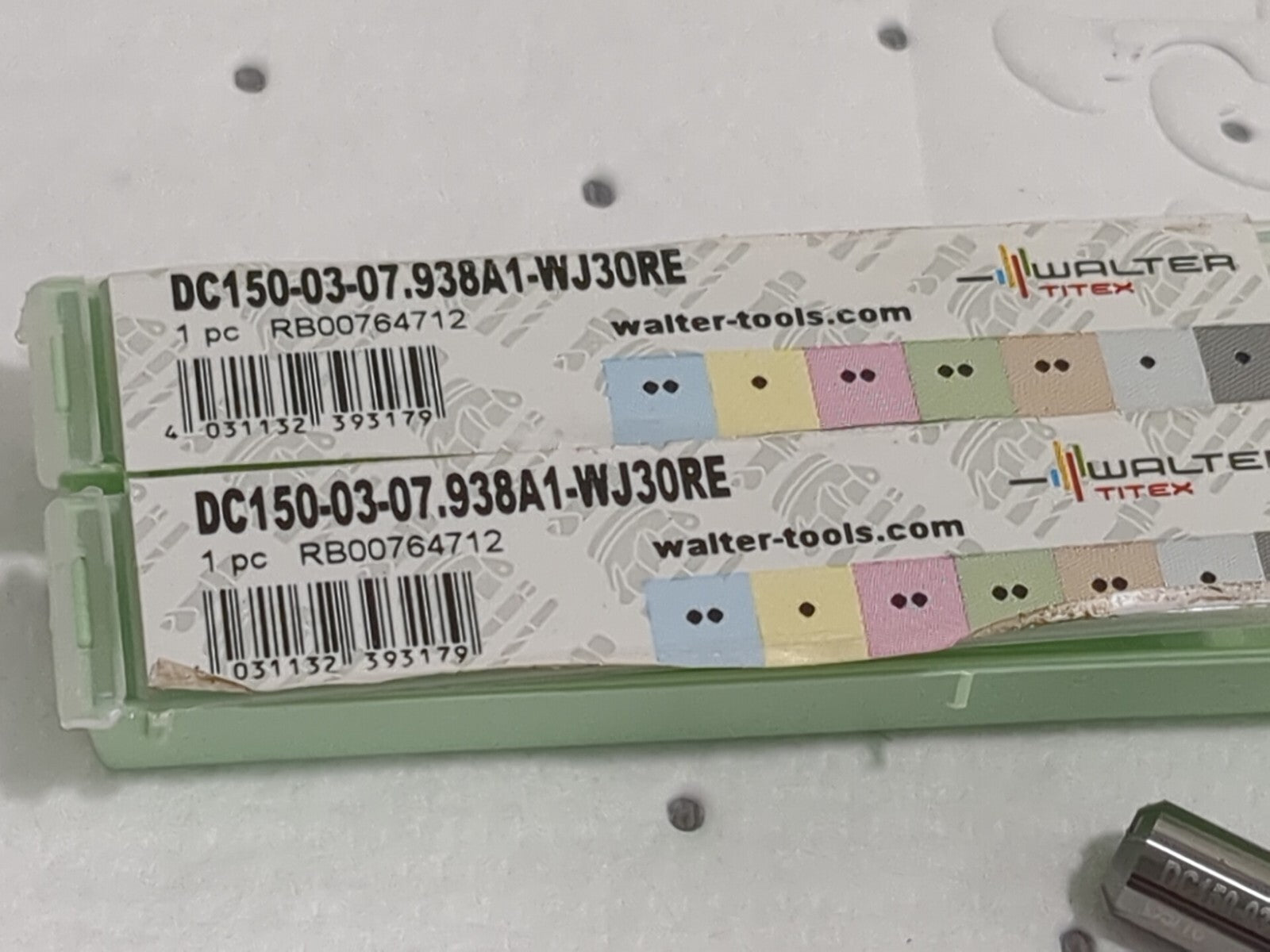

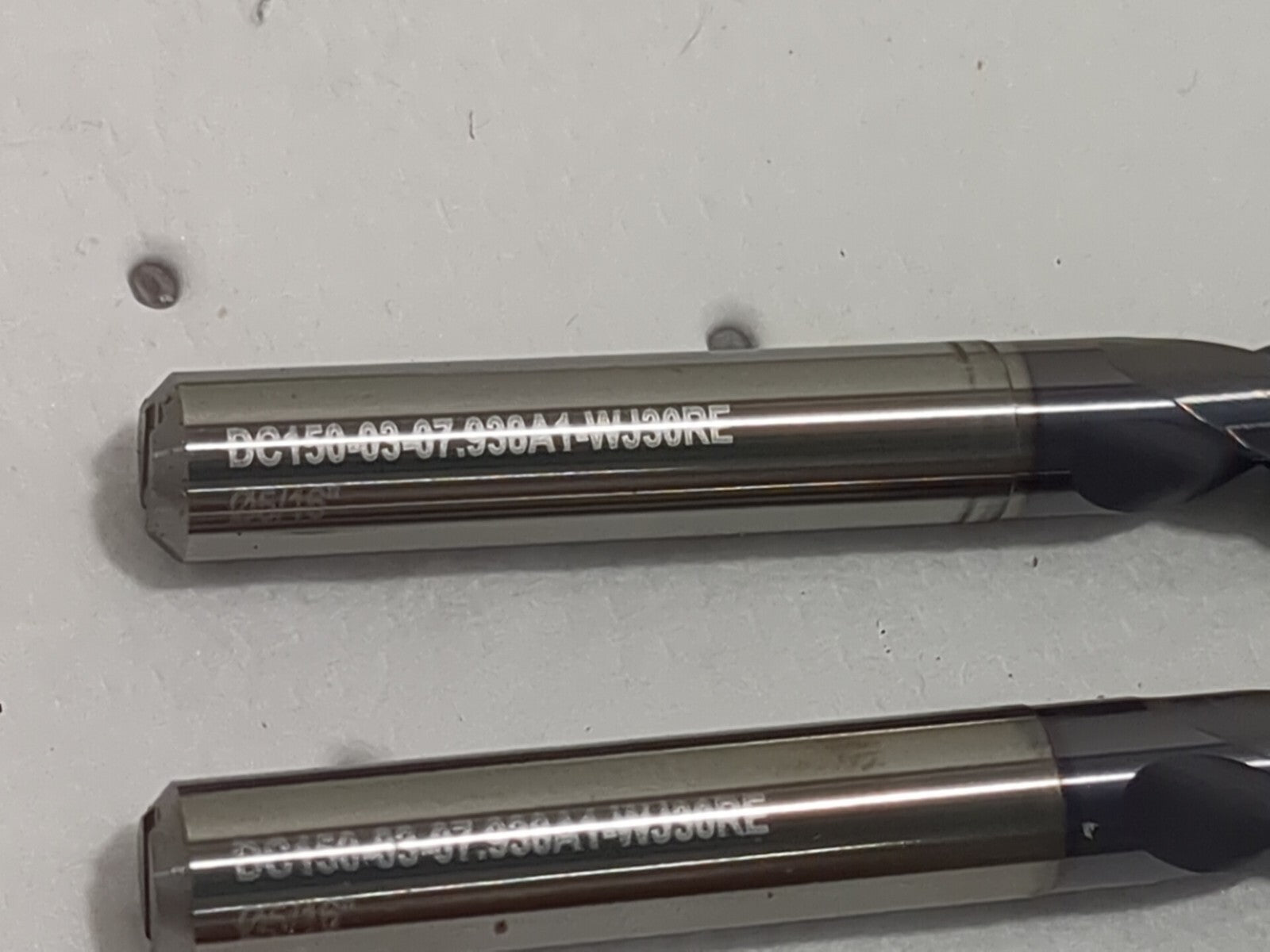

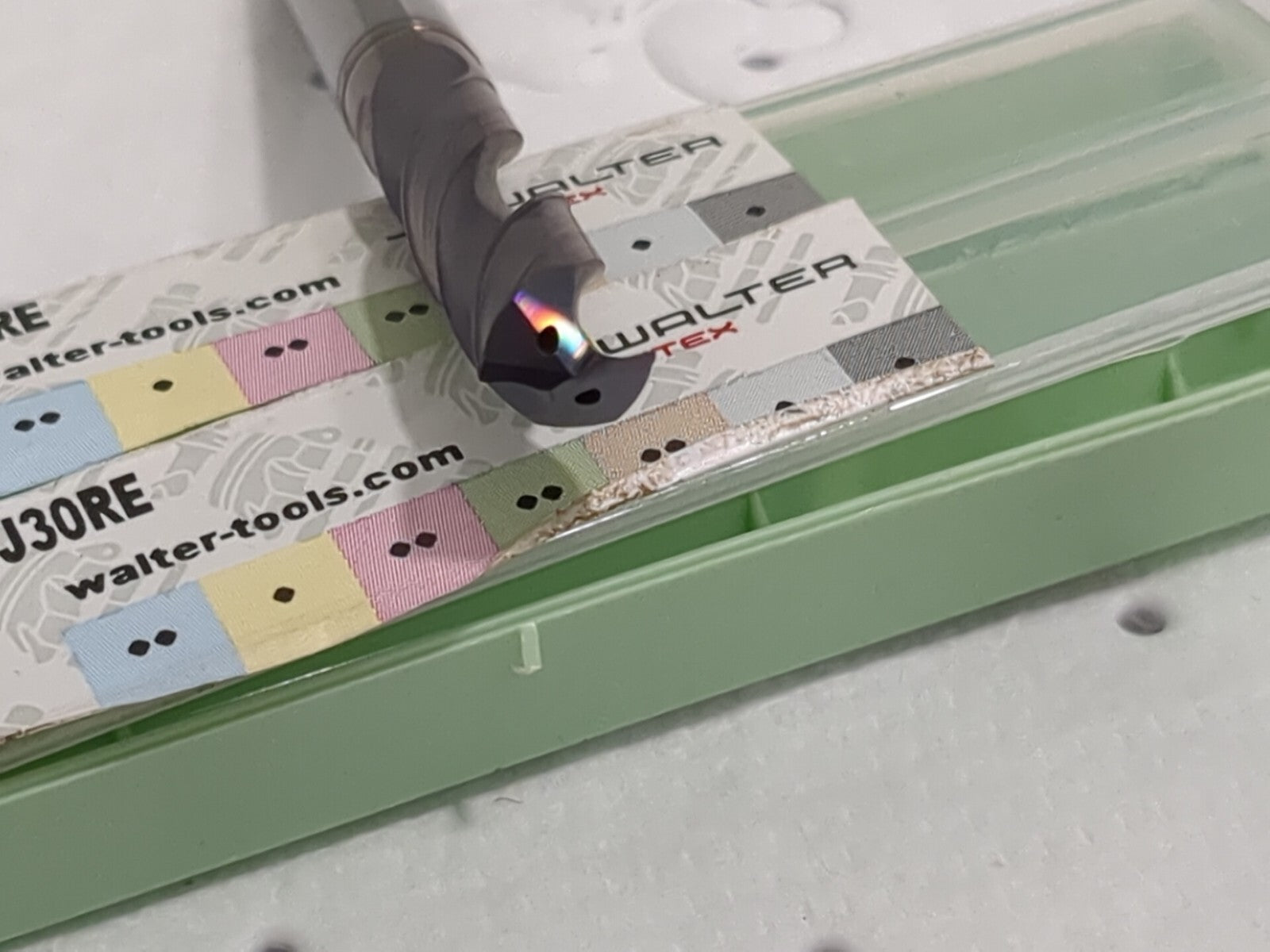

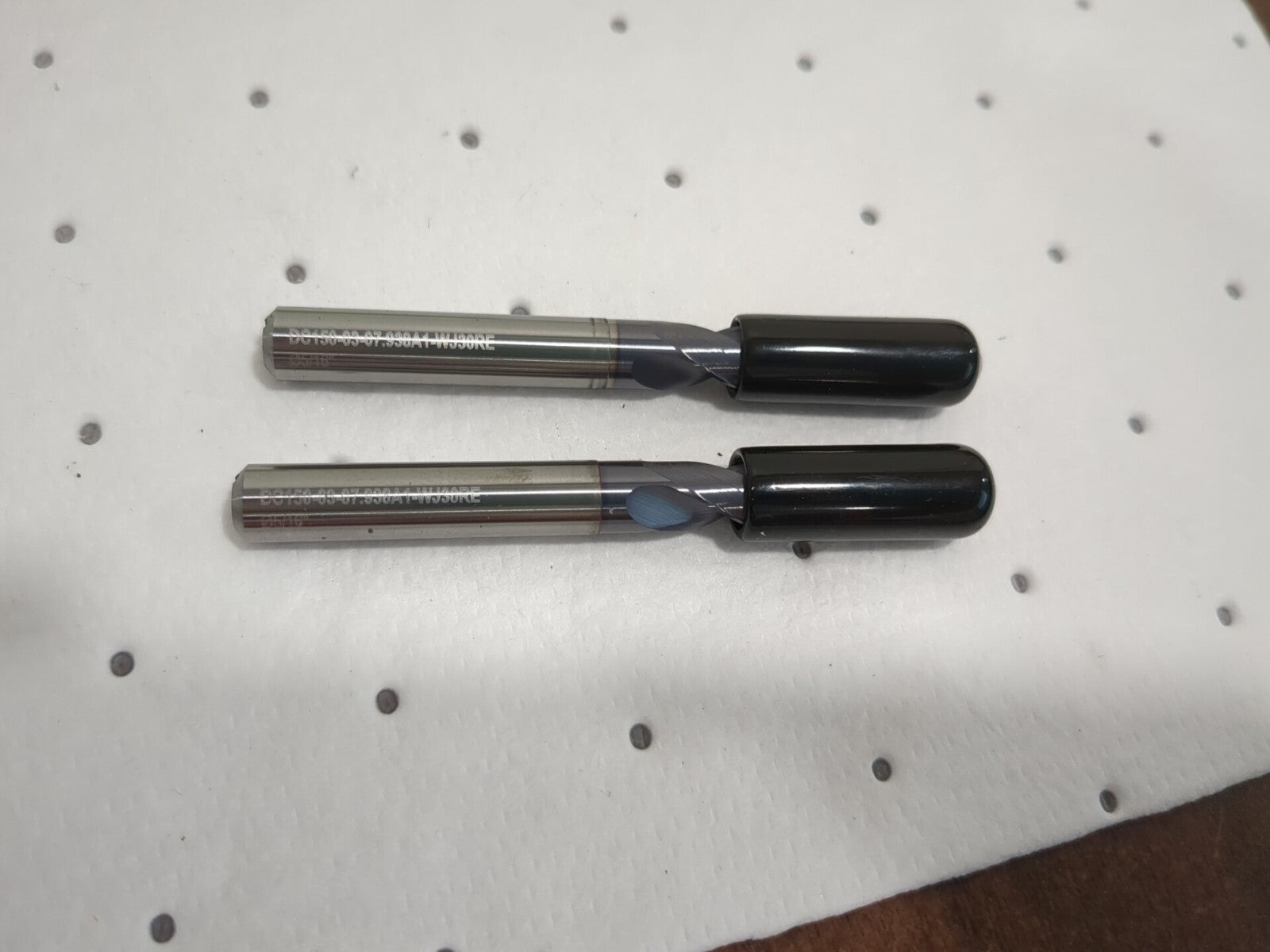

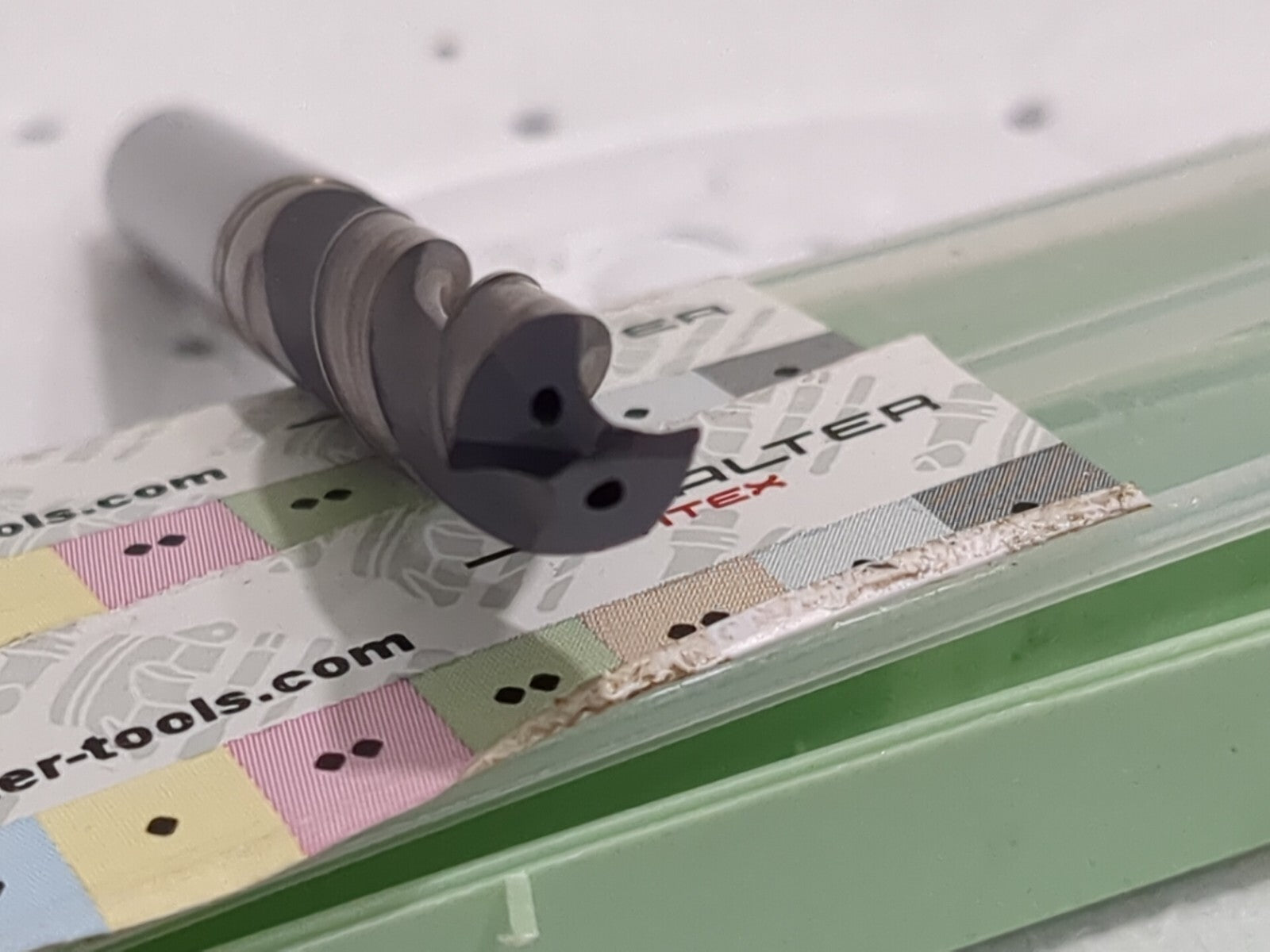

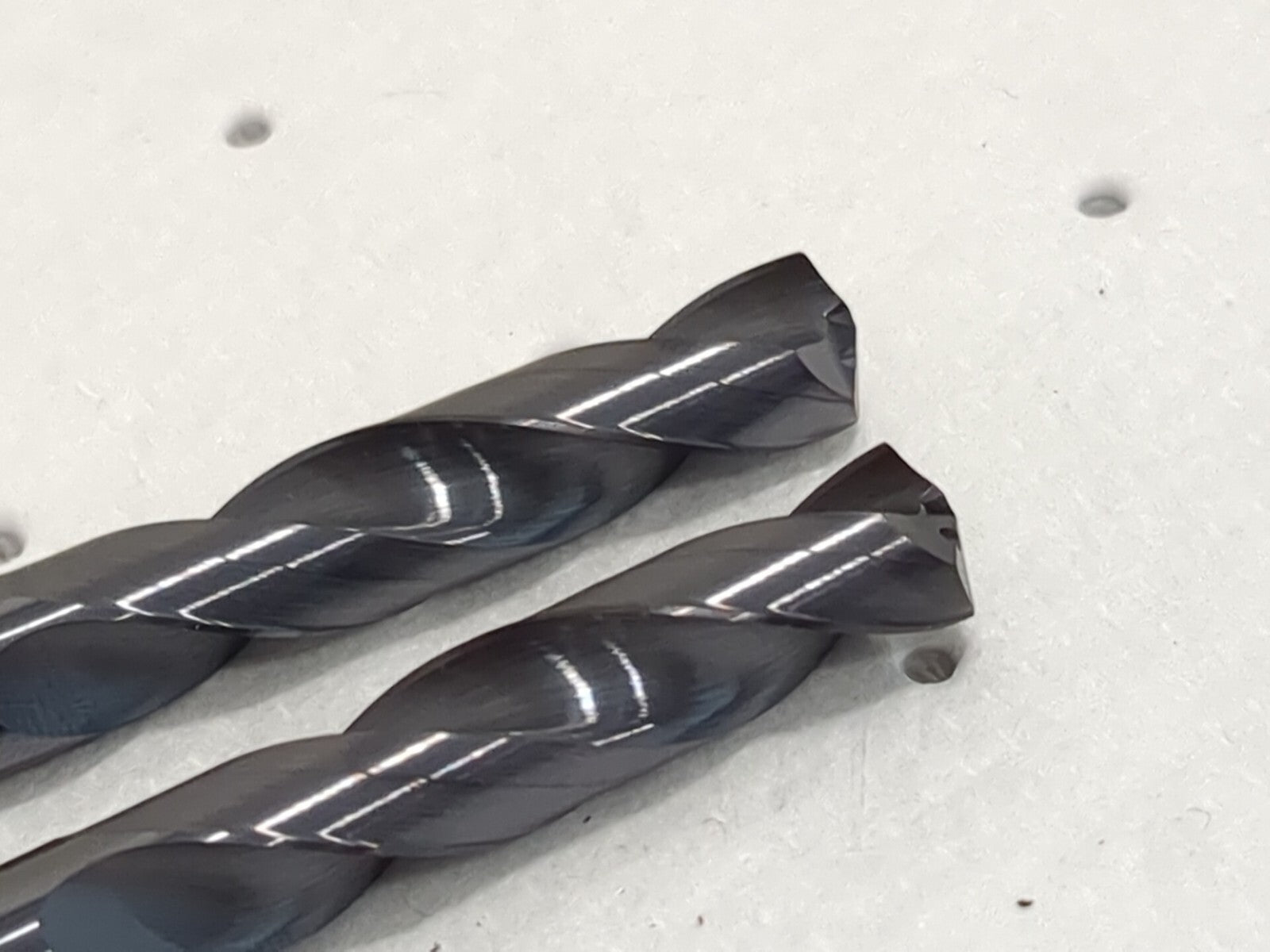

Please review photos, comes as shown.
