Walter SNMG543 RP5 Grade WPP30S Carbide Turning Insert QTY 10 6300554
Walter SNMG543 RP5 Grade WPP30S Carbide Turning Insert QTY 10 6300554
Regular price
$117.48 USD
Regular price
$240.00 USD
Sale price
$117.48 USD
Walter
MSRP: $240.00
Model: 6300554
Description:
Insert Style SNMG
Insert Size 543
Material Carbide
Length (mm) 15.88
Length (Decimal Inch) 0.6250
Inscribed Circle (Decimal Inch) 0.6250
Inscribed Circle (Inch) 5/8
Thickness (Inch) 1/4
Thickness (Decimal Inch) 0.2500
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade WPP30S
Coating TiCN/Al2O3/TiN
Material Grade P30
Chip Breaker RP5
ISO Number SNMG150612-RP5
Rake Negative
Relief Angle 0
Coating Process CVD
Manufacturers Catalog Number SNMG443-RP5
Primary Workpiece Material P
Secondary Workpiece Material None
Included Angle 90
Series Tiger-tec
Maximum Depth of Cut (mm) 8.00
Maximum Depth of Cut (Decimal Inch) 0.3150
Insert Holding Method Pin & Clamp
Multi Use Application Turning
MultiUseTool Yes
Shape Square

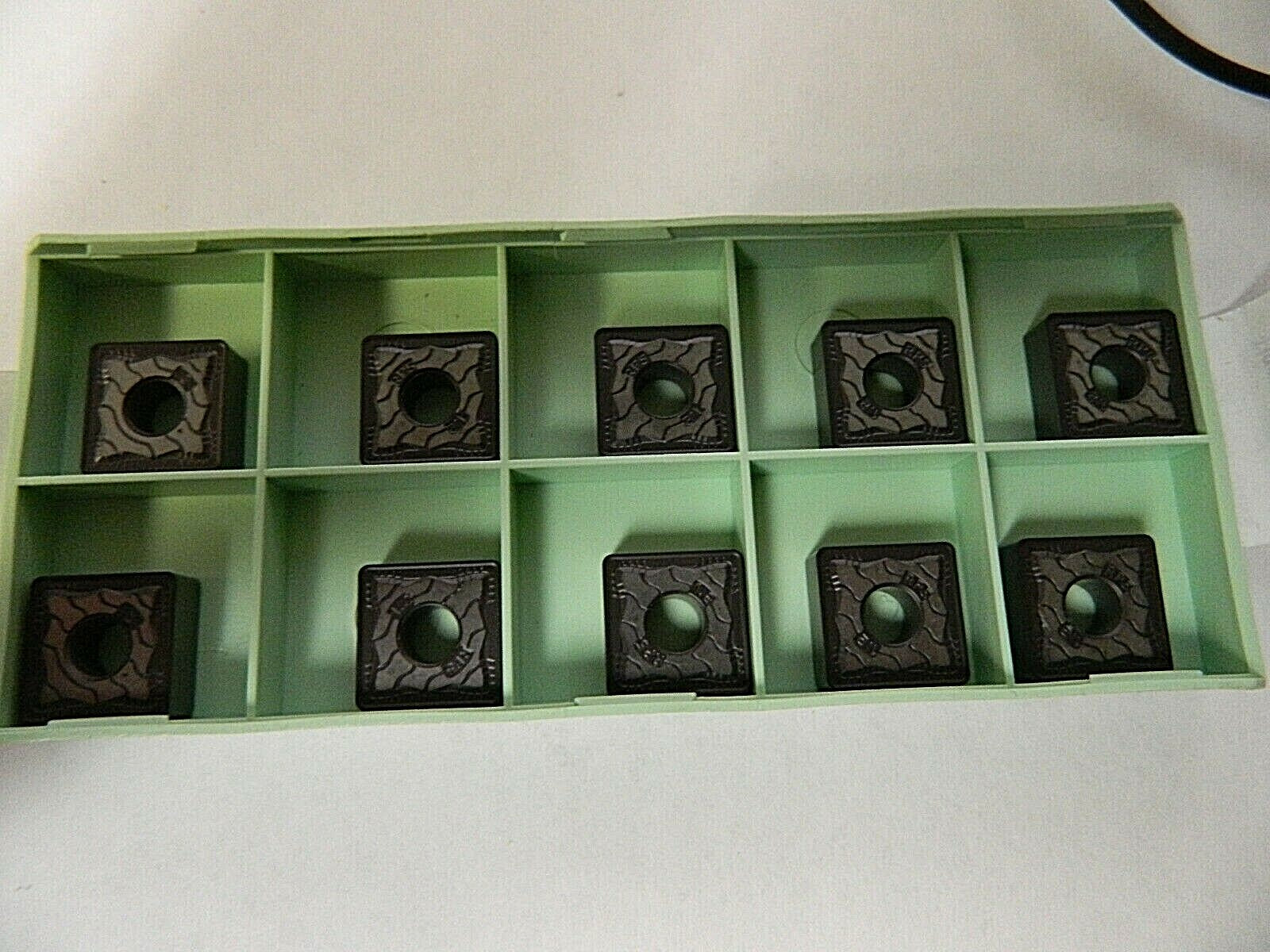

This listing is for One Pack of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
