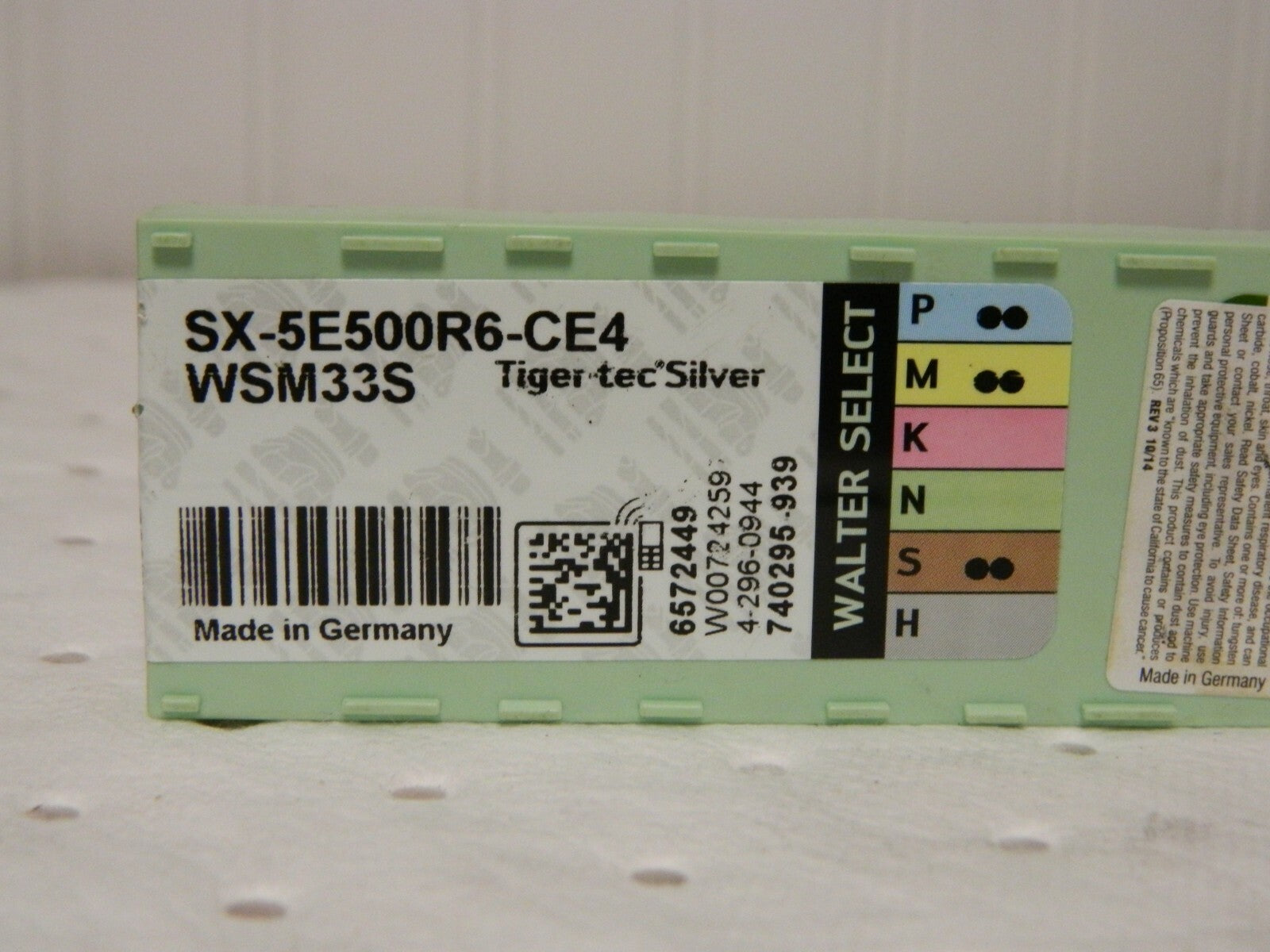

Walter Single Grooving Insert SX-5E500R6-CE4 WSM33S Carbide Qty10 6572449
Walter Single Grooving Insert SX-5E500R6-CE4 WSM33S Carbide Qty10 6572449
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Walter
MSRP: $120.00
Model: 6572449
Description:
Insert Style: SX
Insert Size: 5
Material: Carbide
Cutting Width: 5.00 mm
Cutting Width: 0.197"
Maximum Depth of Cut: 80.00 mm
Maximum Depth of Cut: 3.15"
Manufacturer's Grade: WSM33S
Coating: Al2O3/TiN
Cutting Direction: Right Hand
Insert Hand: Right Hand
Cutting Height: 5.05 mm
Cutting Height: 0.199"
Lead Angle: 84º
Chipbreaker: CE4
Multi-Use Tool (Yes/No): Yes
Corner Radius: 0.40 mm
Corner Radius: 0.016"
Coating Process: PVD
Overall Length: 12.70 mm
Overall Length: 1/2"
Overall Length: 0.5"
Series: SX
Rake: Positive
Overall Width: 5.00 mm
Overall Width: 0.197"

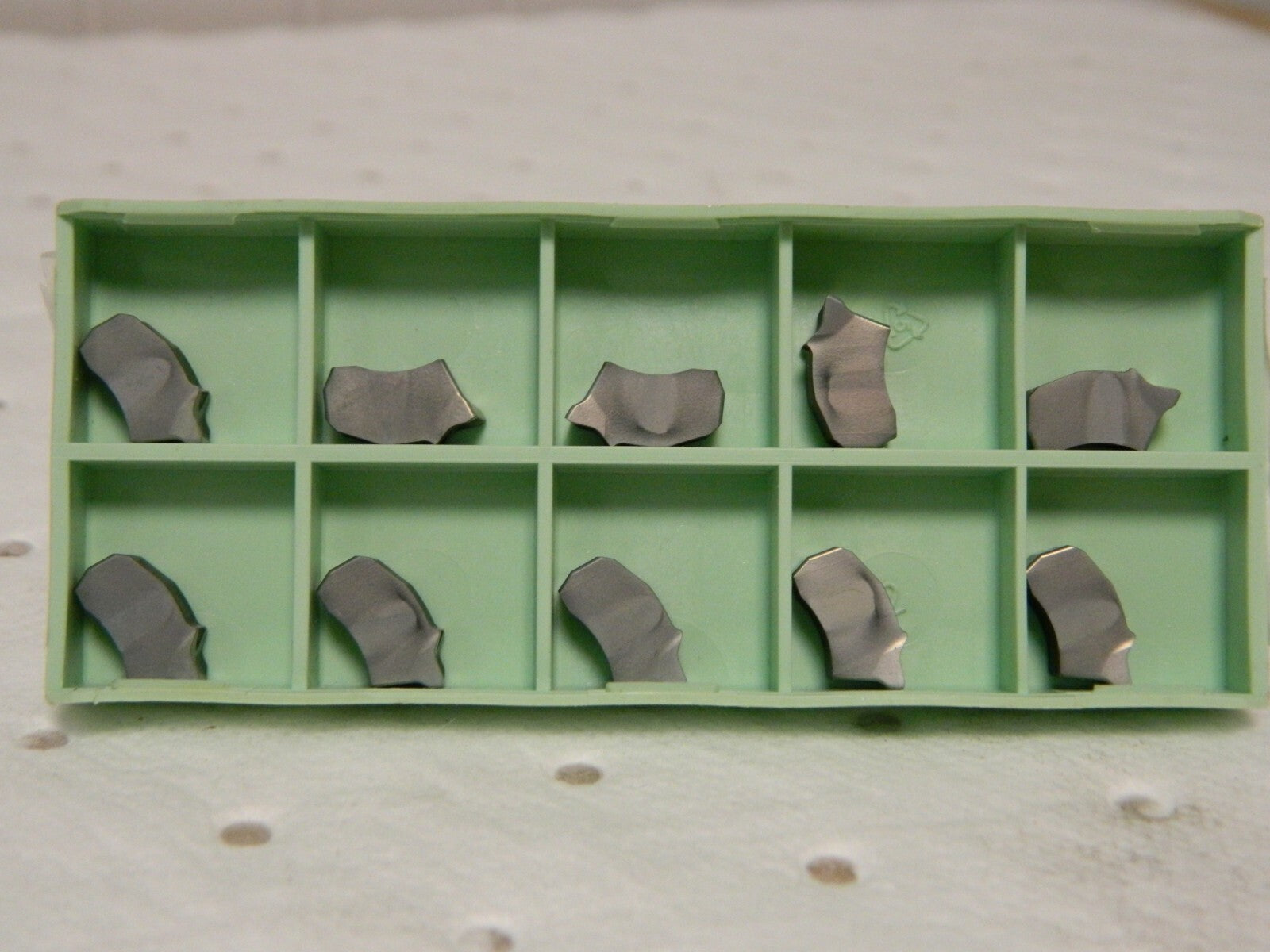

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
