Walter-Prototyp Carbide Corner Radius End Mill MD265-25.0A3L300B-WJ30UU

Walter-Prototyp
Corner Radius End Mill

MSRP: $930.00

• Mill Diameter (mm): 25.00
• Number Of Flutes: 3
• Length of Cut (mm): 31.25
• Single Or Double End: Single
• End Mill Material: Solid Carbide
• Chipbreaker: Yes
• Coating/Finish: Bright/Uncoated
• Centercutting: Yes
• Flute Direction: Right Hand
• Corner Radius (Decimal Inch): 0.1181
• Helix Angle: 30.00
• Cutting Direction: Right Hand
• Corner Radius (mm): 3.00
• Overall Length (mm): 130.00
• Coolant Through: Yes
• Length Of Cut (Decimal Inch - 4 Decimals): 1.2303
• Flute Type: Helical
• Extended Reach: No
• Shank Type: Cylindrical
• Material Removal Type: Roughing
• Shank Diameter (mm): 25.00
• Reach Length (Decimal Inch): 2.9134
• Reach Length (mm): 74.00
• Shank Diameter Tolerance: h5
• Primary Workpiece Material: Non-Ferrous Metal
• UNSPSC Code: 23241614
• Primary Workpiece Material Code: N
• Series: MD265-A-3-R-C-IC
• Proprietary Coating Designation: WJ30UU
• Manufacturers Catalog Number: MD265-25.0A3L300B-WJ30UU

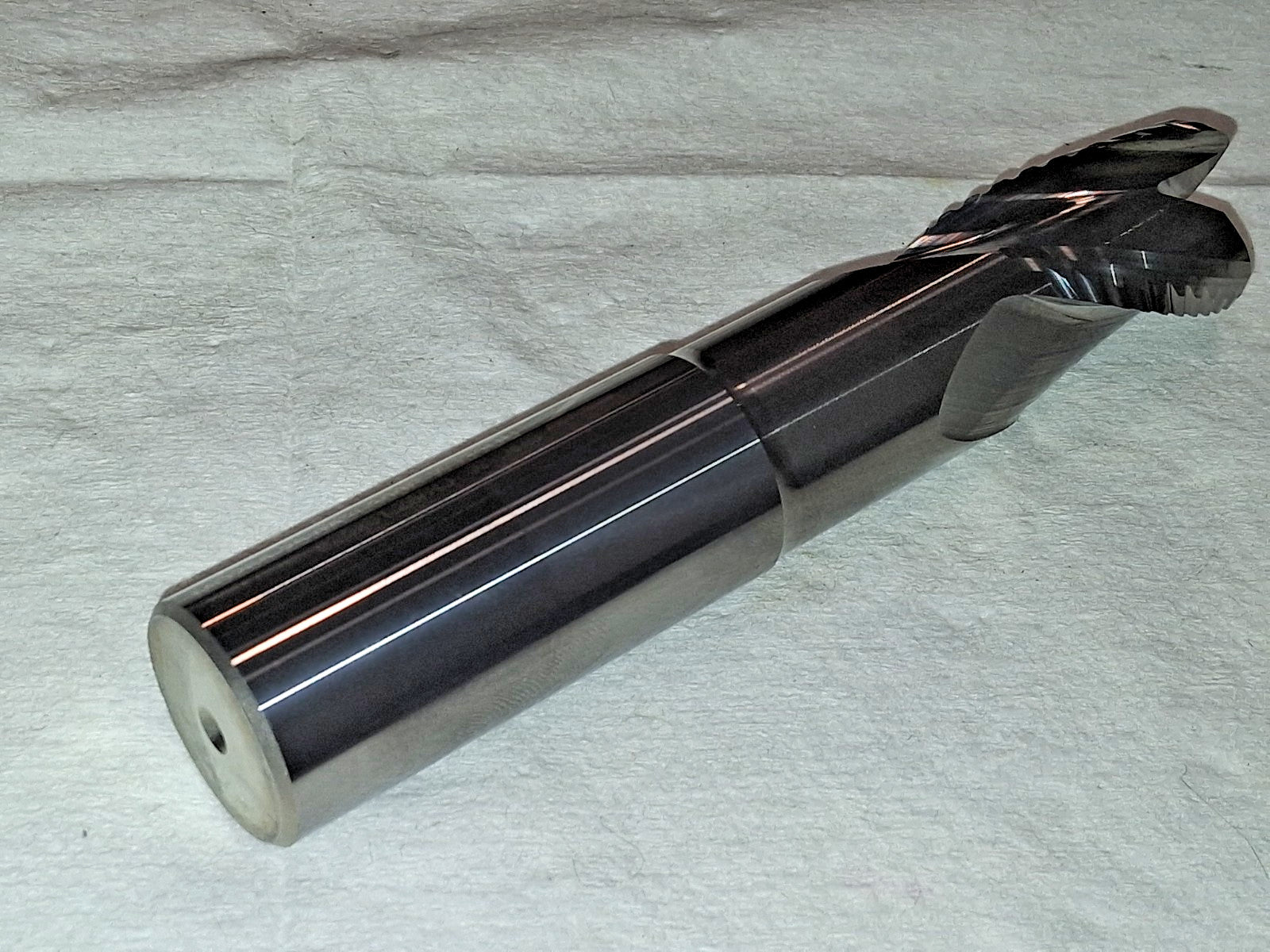

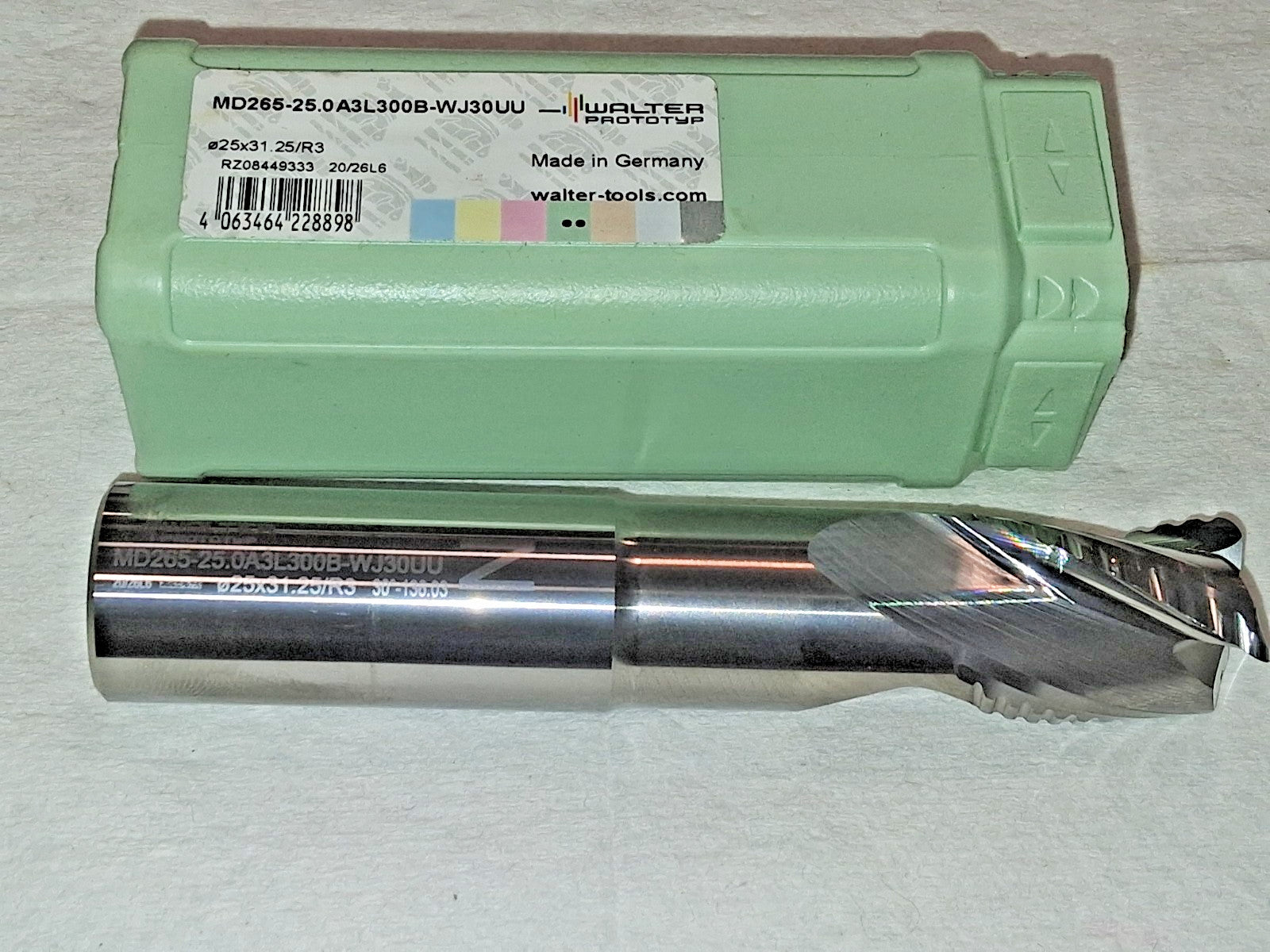

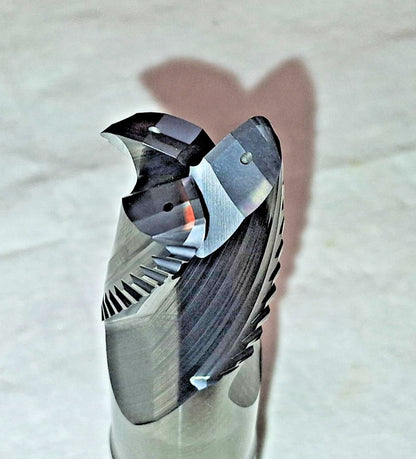

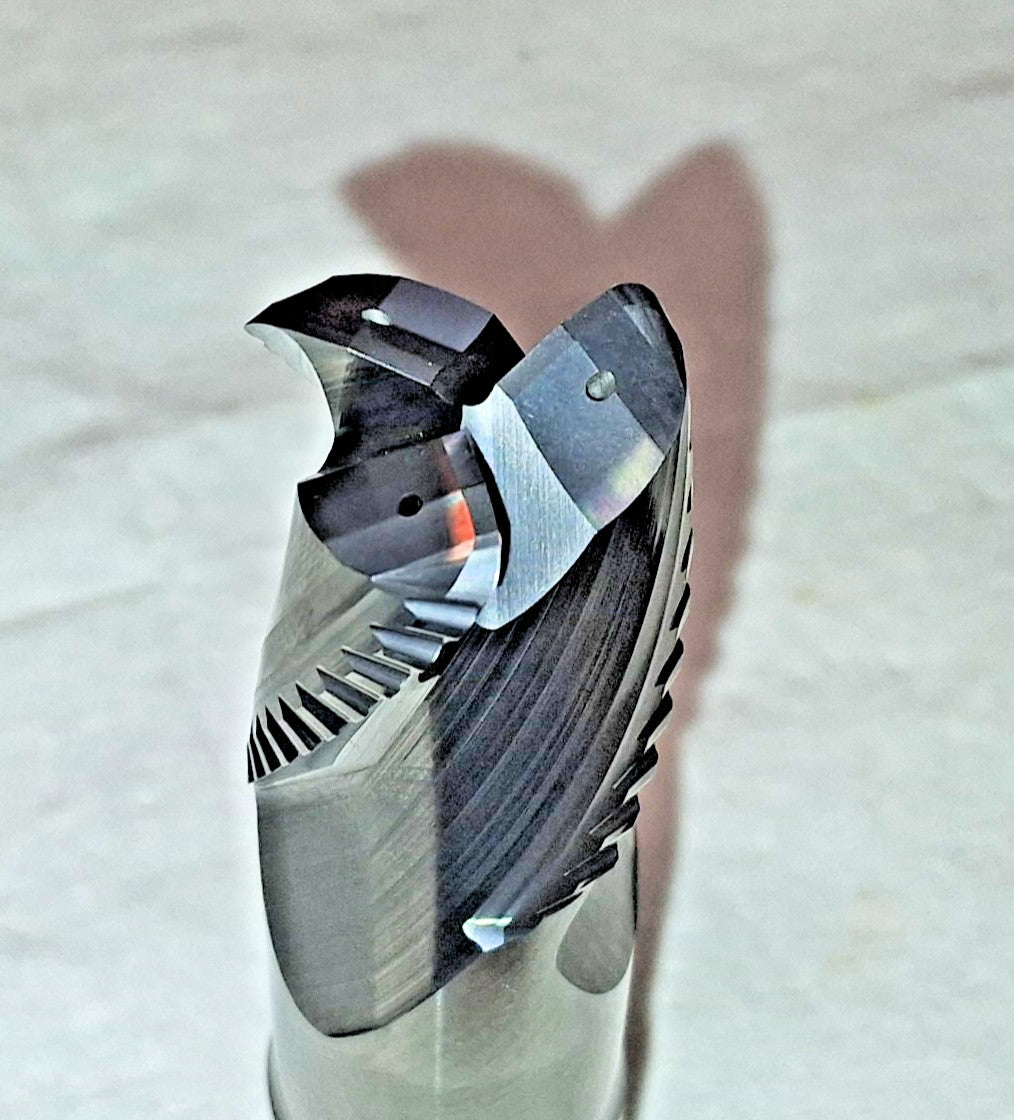

Please review photos, comes as shown.
