WALTER Milling Insert qty10 ADMT160608R-G56 WSM35S, WSM35S Solid Carbide 6159418

WALTER

 Milling Insert qty10 ADMT160608R-G56 WSM35S, WSM35S Solid Carbide 6159418
MSRP: $180

•

• Insert Style ADMT
• Insert Size Code 160608R
• Insert Size 160608
• Insert Material Solid Carbide
• Material Grade S35; M35
• Manufacturer Grade WSM35S
• Thickness Range (Decimal Inch) 0.2350 to 0.2500
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Length Range (Decimal Inch) 0.6500 to 0.7000
• Insert Hand Right Hand
• Relief Angle 15.00
• Series ADMT
• Coating Process PVD
• Number Of Cutting Edges 2
• Insert Shape Diamond
• Rake Positive
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code S; M
• Ansi Code ADMT160608R-G56 WSM35S
• Iso Code ADMT160608R-G56 WSM35S
• Standards ISO; ANSI
• Manufacturers Catalog Number ADMT160608R-G56
• Chip Breaker G56
• Shape Parallelogram
• Coating/Finish Coated
• Width (Decimal Inch - 4 Decimals) 0.4252
• Thickness (Decimal Inch - 4 Decimals) 0.2421
• Length (Decimal Inch - 4 Decimals) 0.6890

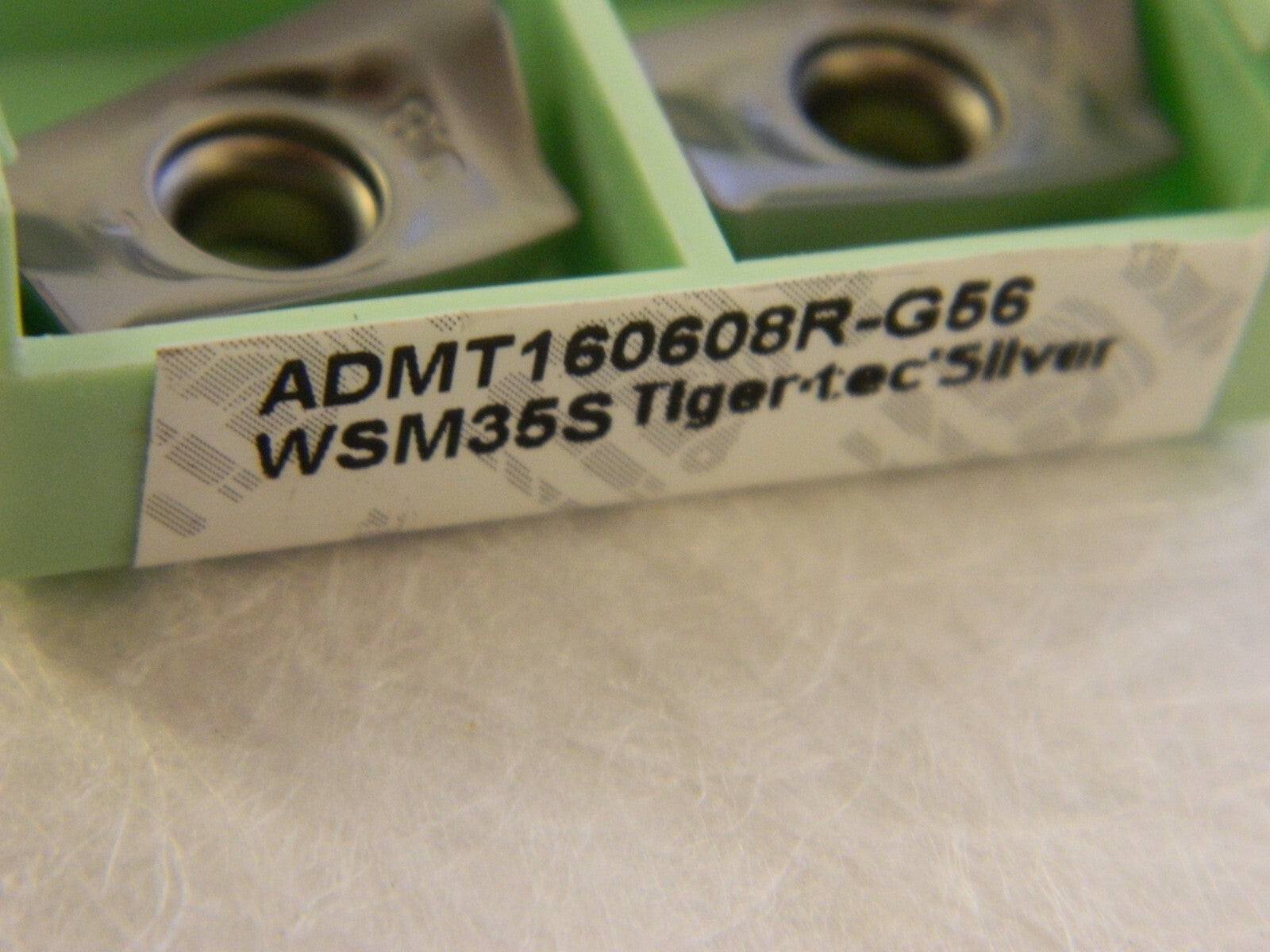

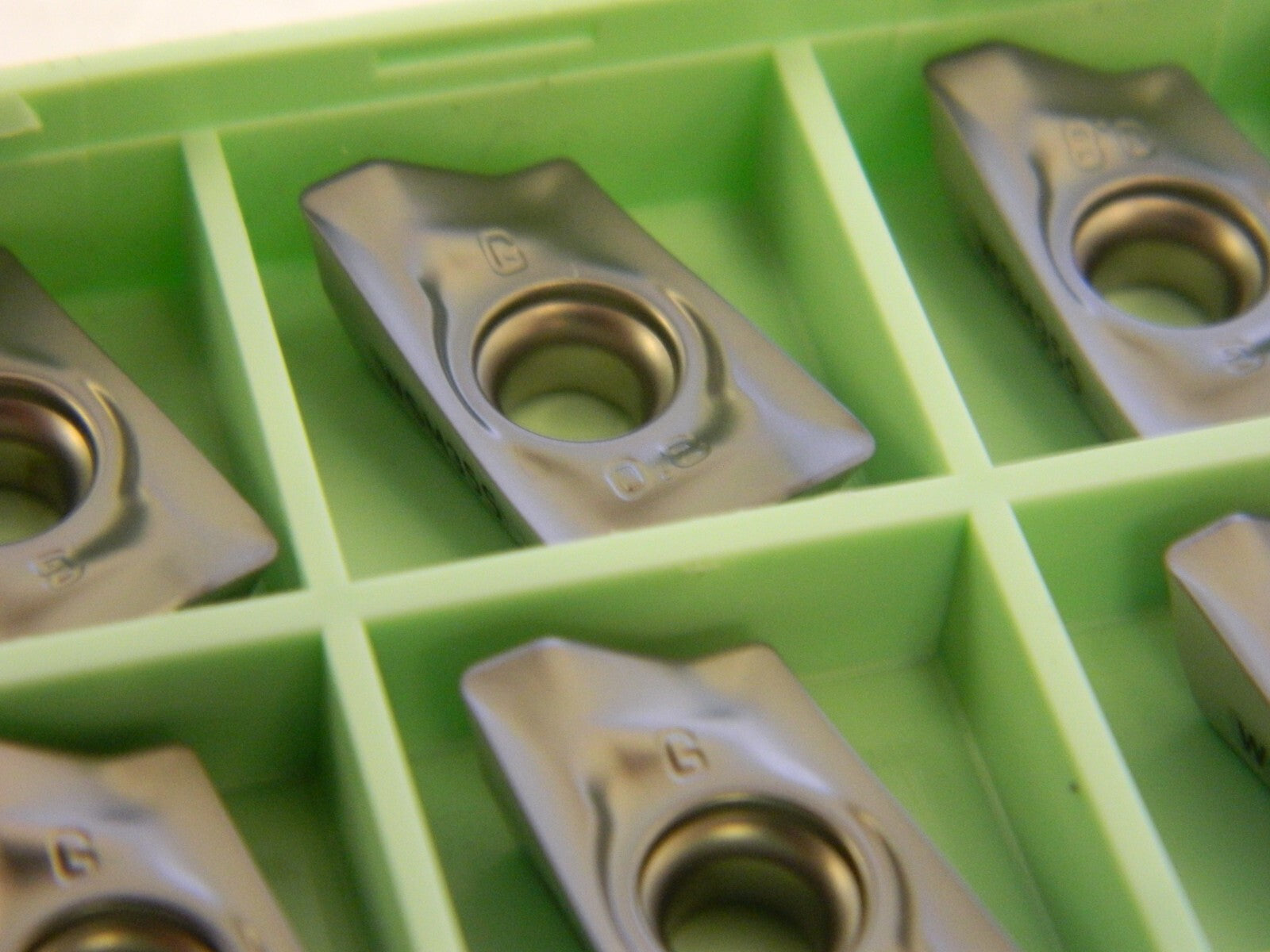

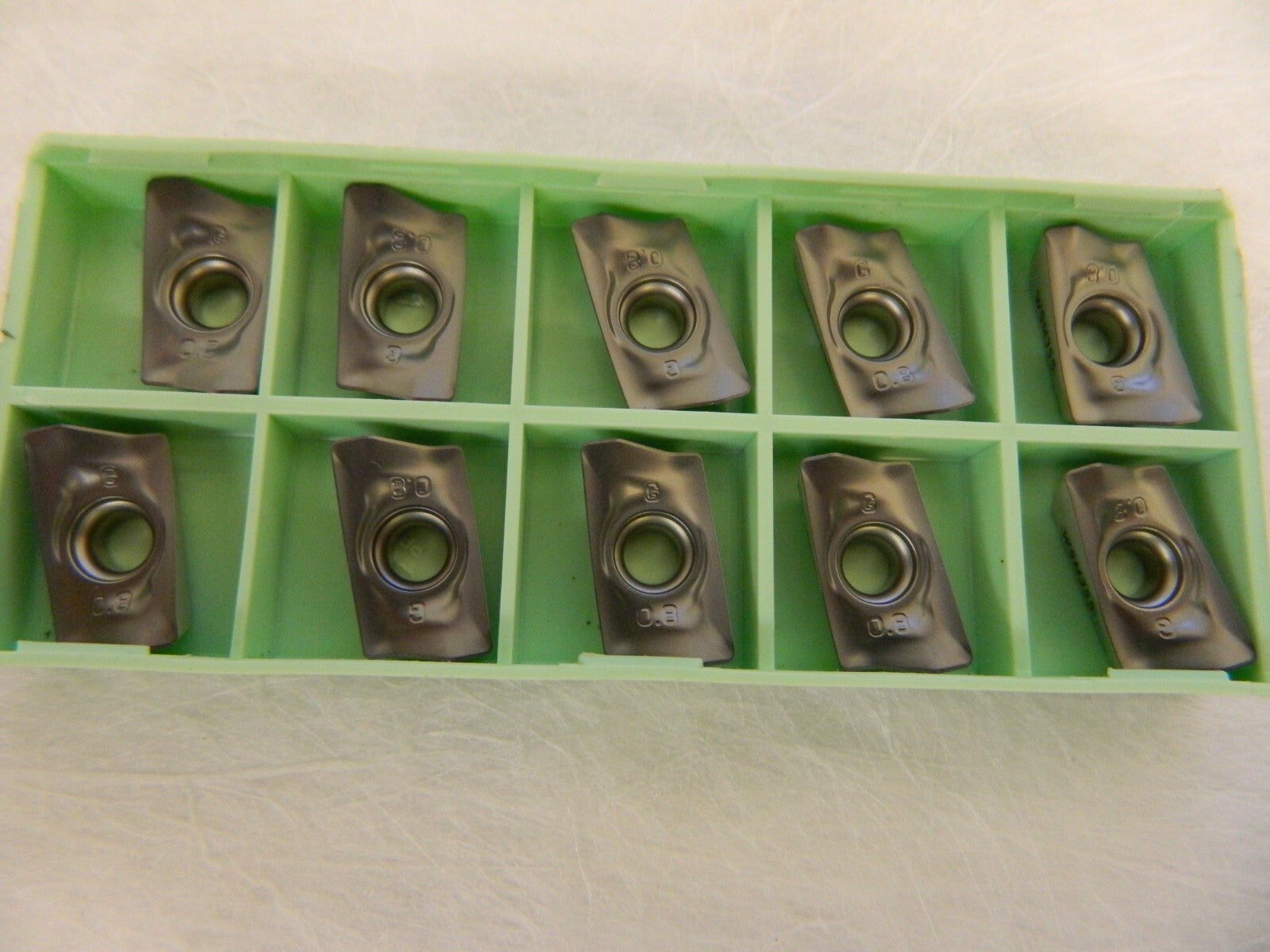

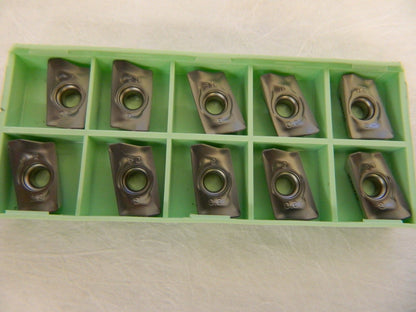

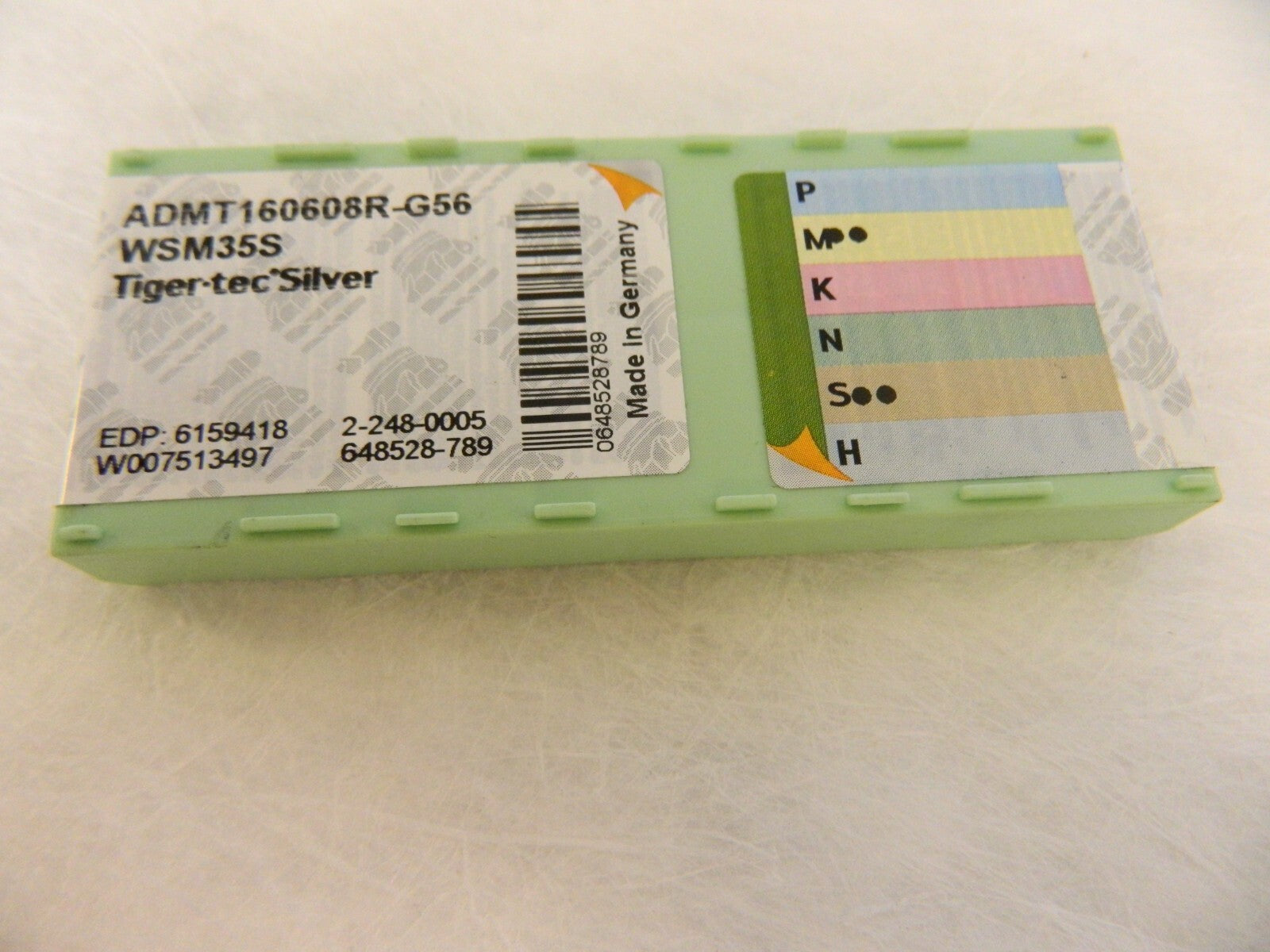

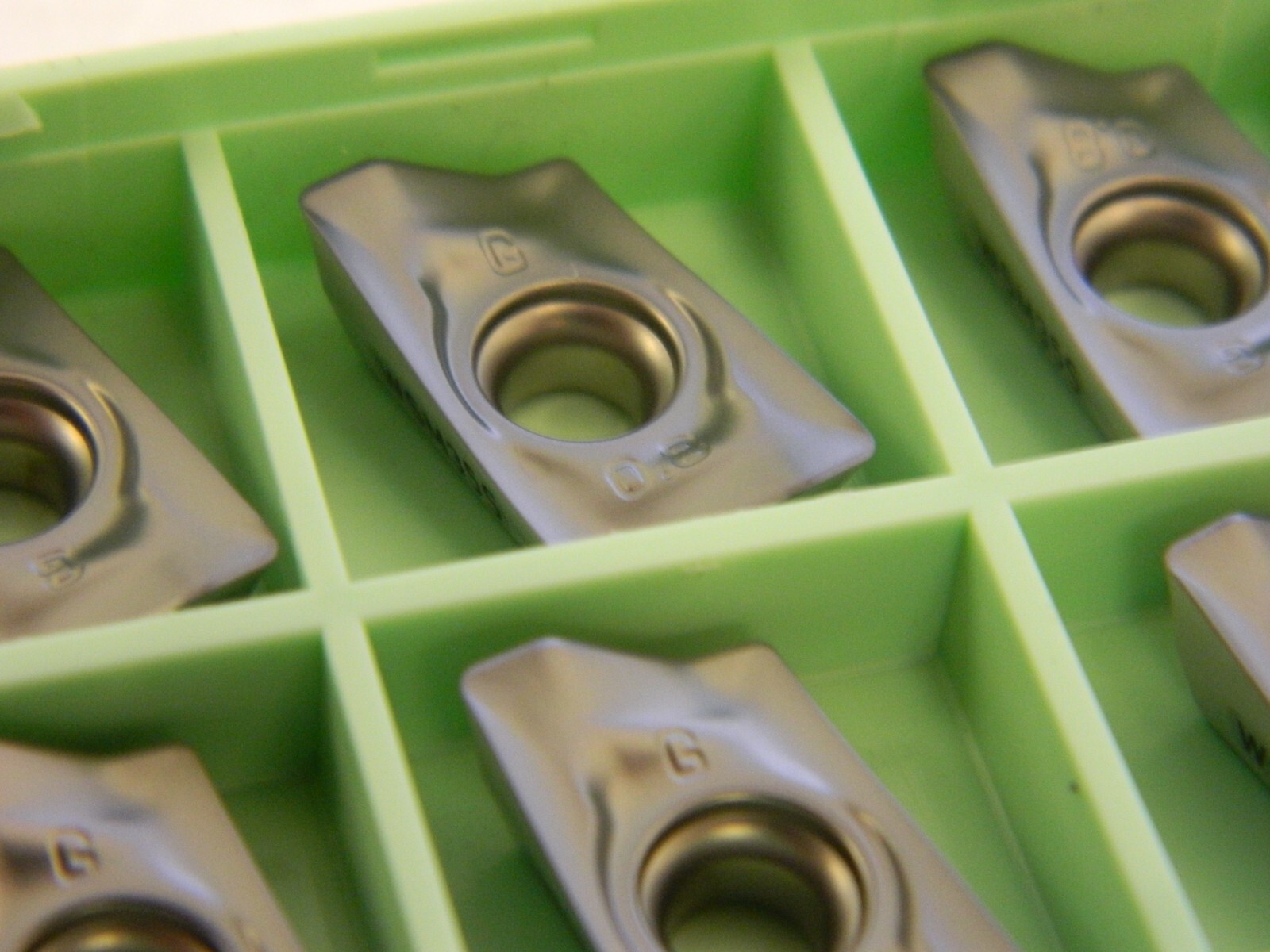

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
