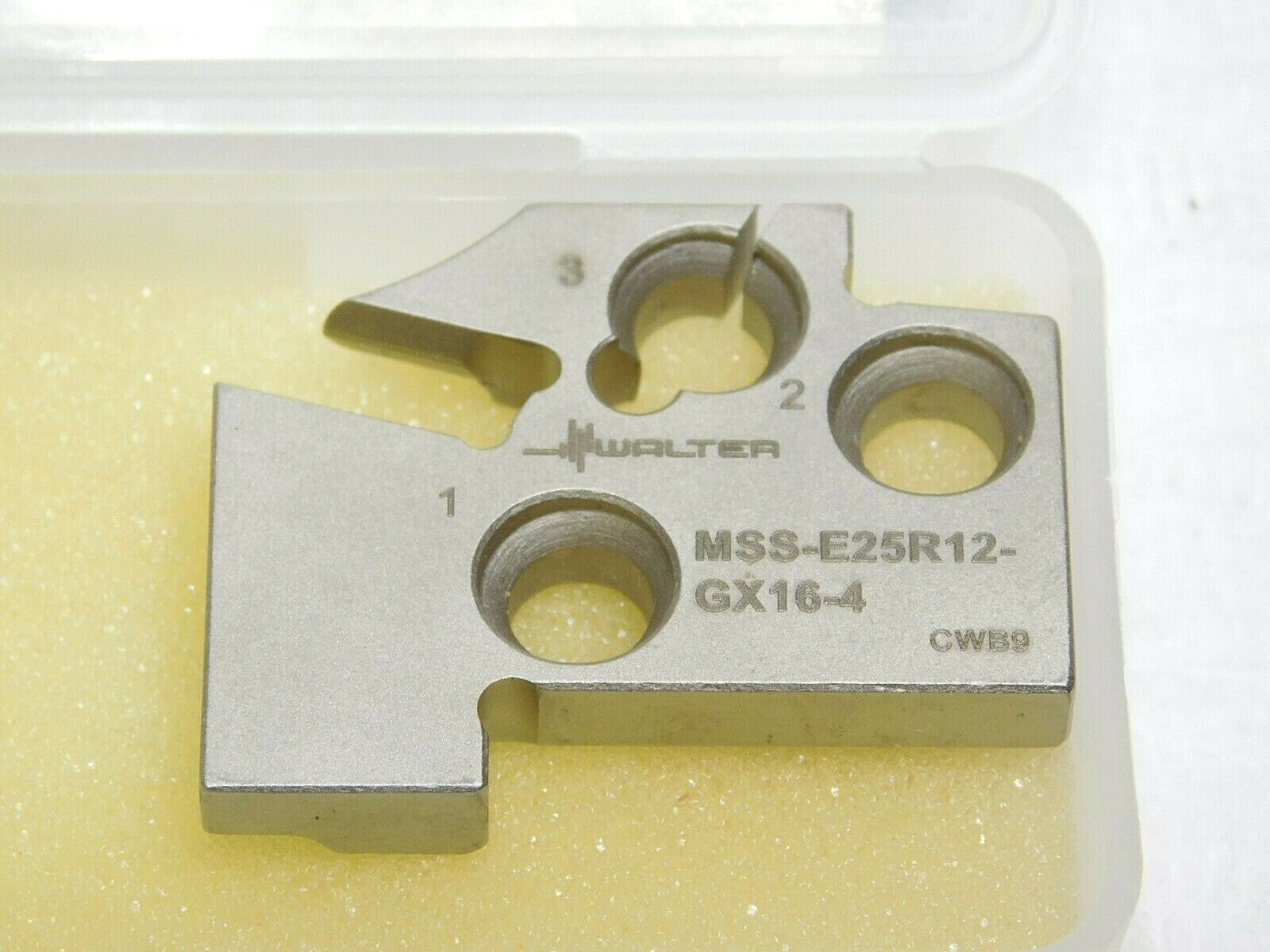

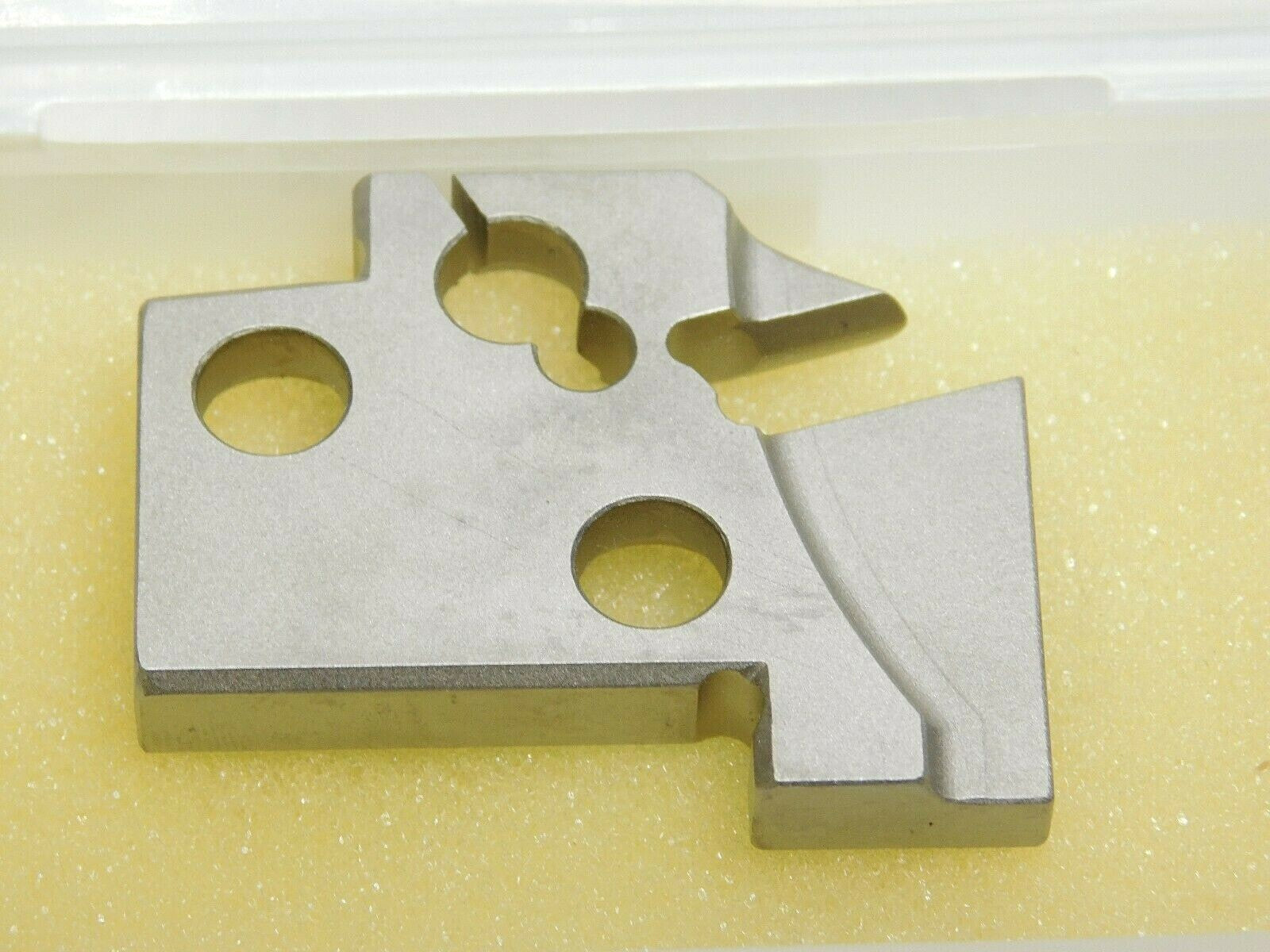

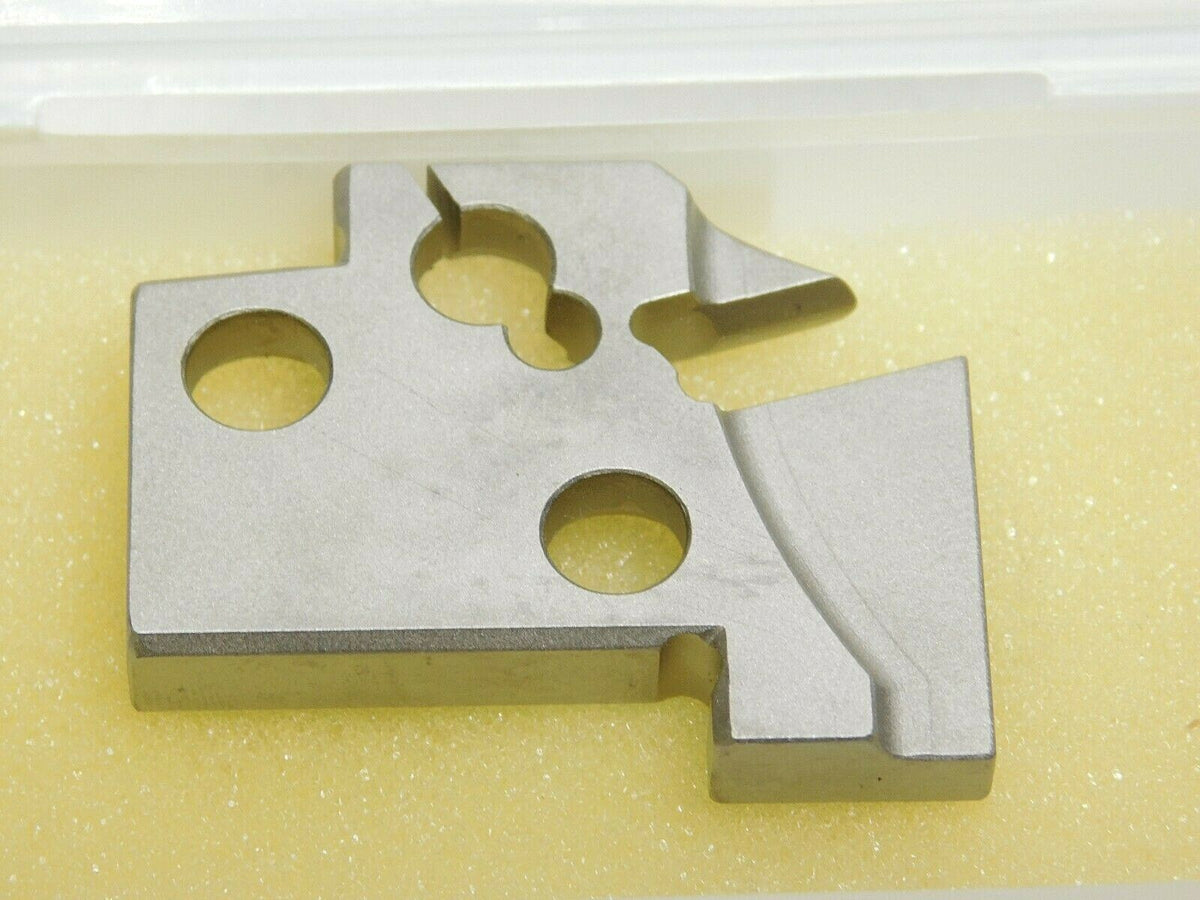

Walter Indexable Cutoff Blade MSS-E Single End RH MSS-E25R12-GX16-4 5009577

Single or Double End Single

Cutting Direction Right Hand

Blade Style MSS-E

Insert Style GX16-4..

Insert Width (Decimal Inch) 0.2360

Tool Block/Toolholder Style NCAE 25-1616 R/L-GX 16-4

Insert Holding Method Screw

Maximum Workpiece Diameter (Decimal Inch) 3.1100

Maximum Depth of Cut (Decimal Inch) 0.4720

Cutting Height (Decimal Inch) 1.0000

Insert Corner Radius (Decimal Inch) 0.0080

Complete Insert Compatibility GX16-4E600N050-UA4; GX16-4E600N050-UF4; GX16-4E600N05-GD3; GX16-4E600N05-GD6; GX16-4E600N05-UD6; GX16-4E600N05-UF4; GX16-4E8.30N; GX16-4S5.25N

Complete Tool Block/Toolholder Style Compatibility NCAE 25-1616 R/L-GX 16-4
