Toolholder Style A-DTFN
Series Walter Turn
Minimum Bore Diameter (Decimal Inch) 2.4020
Hand of Holder Left Hand
Overall Length (Decimal Inch) 14.0000
Shank Diameter (Decimal Inch) 2.0000
Insert Compatibility TN.. 2204..; TN.. 43..
Through Coolant Yes
Multi-Use Tool No
Insert Holding Method Clamp
Rake Negative
Center to Cutting Edge (Decimal Inch) 1.2810
Insert Thickness (Inch) 3/16
Insert Thickness (Decimal Inch) 0.1875
Insert Inscribed Circle (Inch) 1/2
Insert Inscribed Circle (mm) 12.70
Insert Inscribed Circle (Decimal Inch) 0.5000
Complete Insert Compatibility TNMA 432; TNMA 433; TNMA 433T02020; TNMA 434; TNMA 434T02020; TNMA220408; TNMA220412; TNMA220412T02020; TNMA220416; TNMA220416T02020; TNMG 220404-C5; TNMG 220408-C5; TNMG 220408-M2; TNMG 220408-MP3; TNMG 220408-MP5; TNMG 220408-NM5; TNMG 220408-NR4; TNMG
Toolholder Material Steel

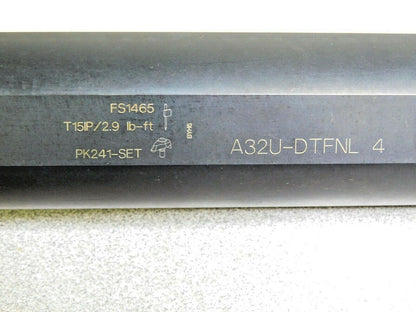

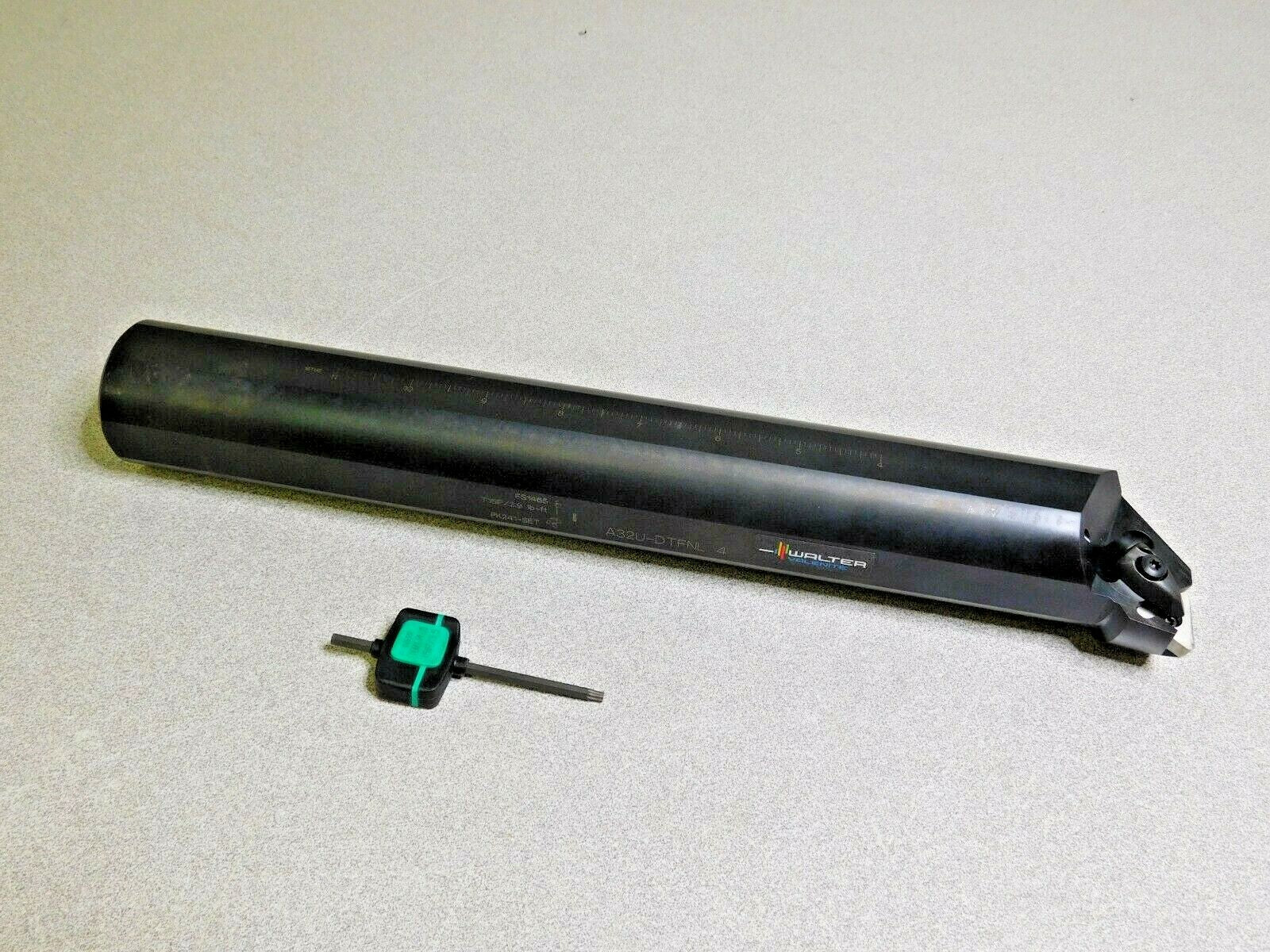

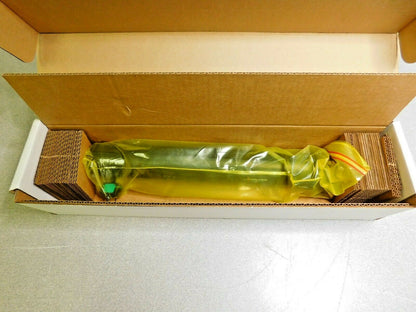

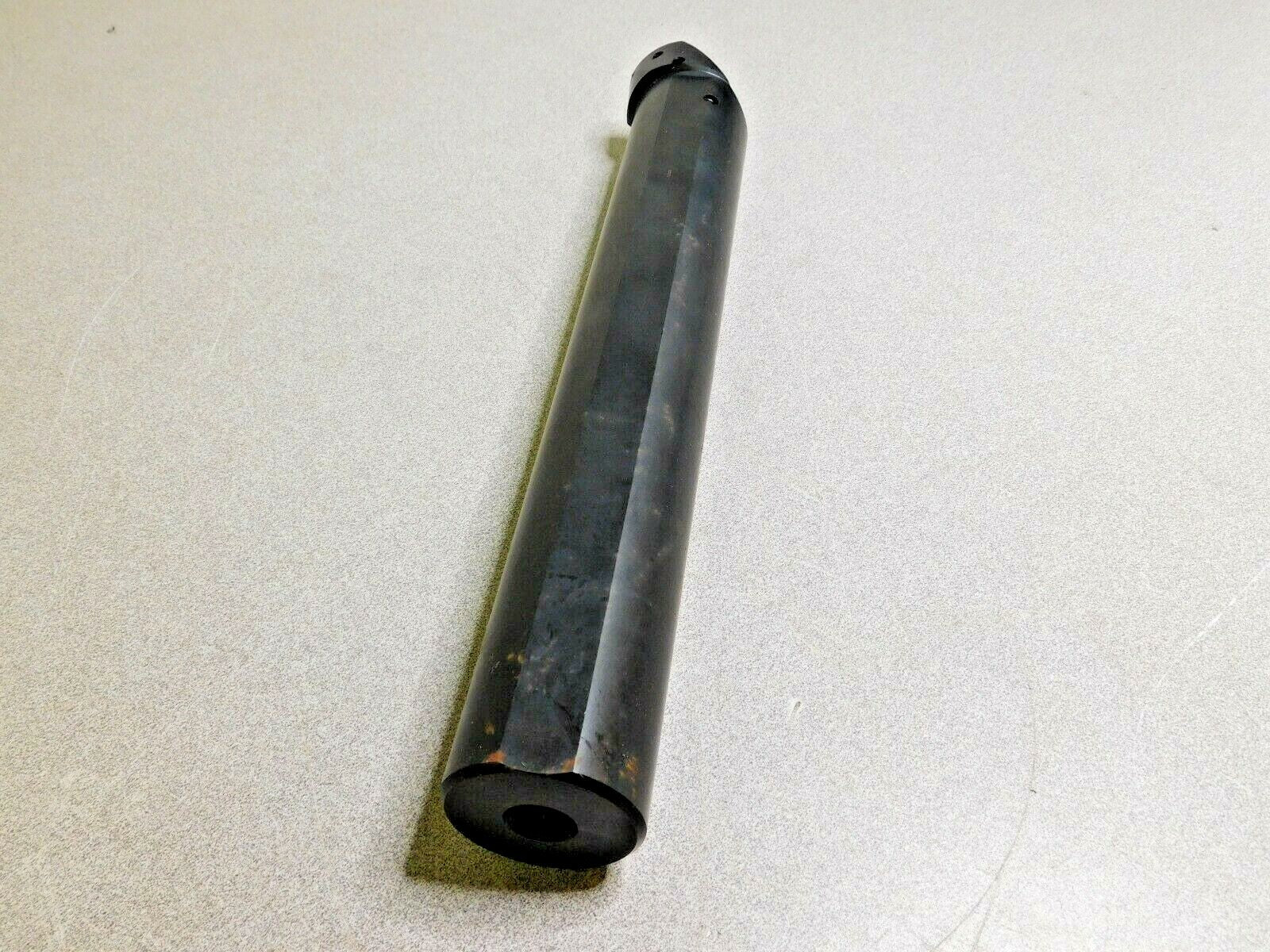

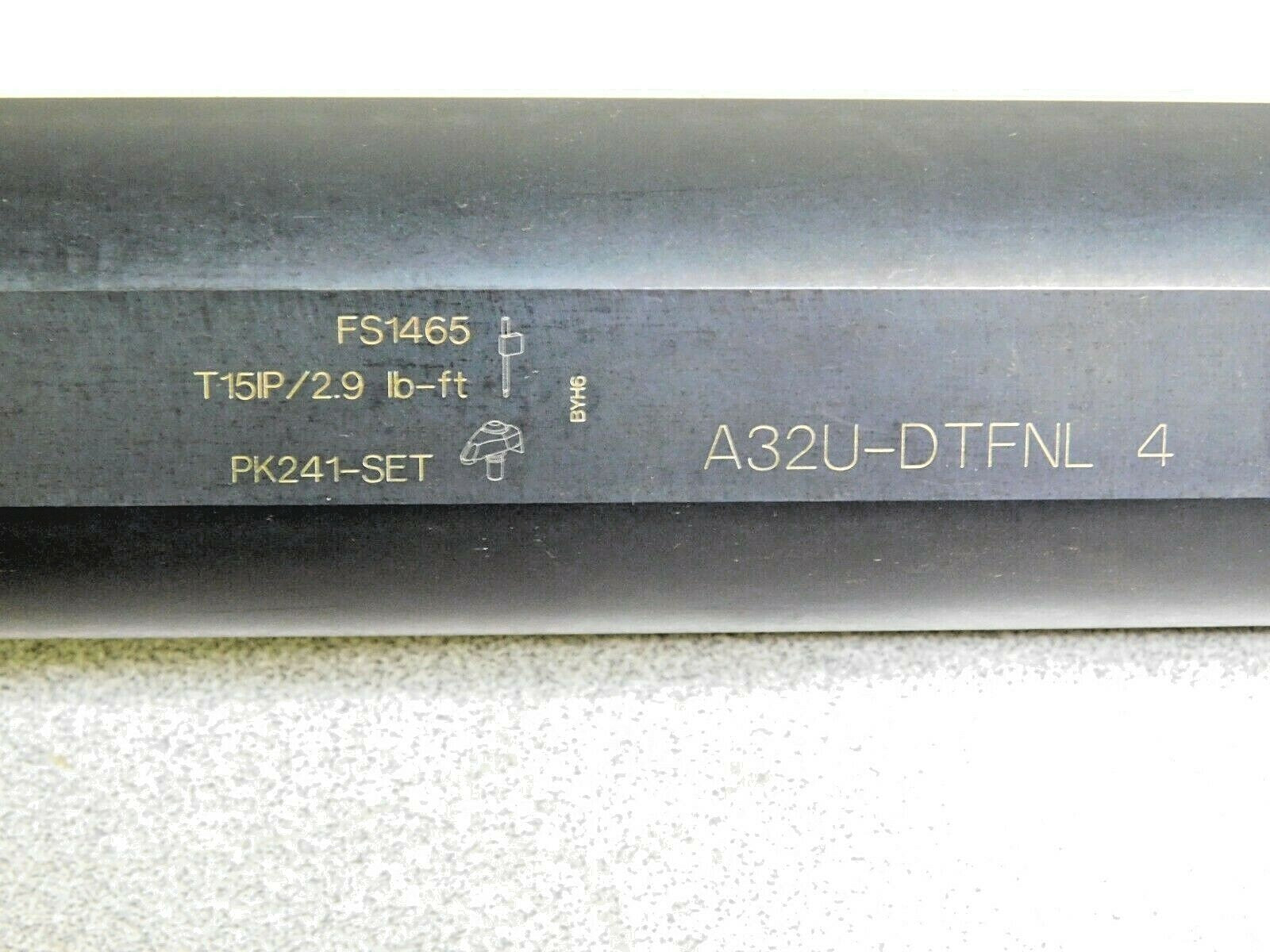

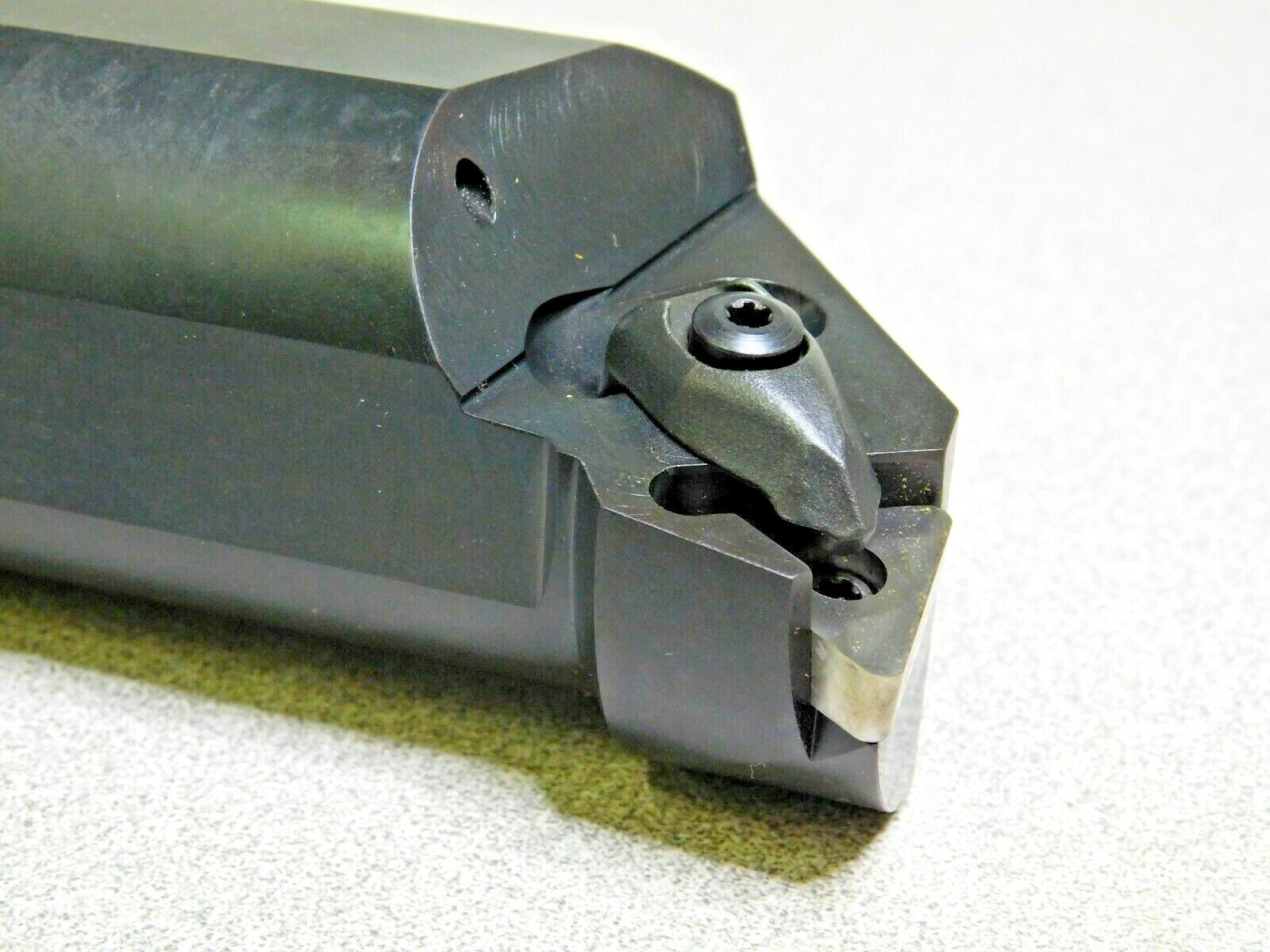

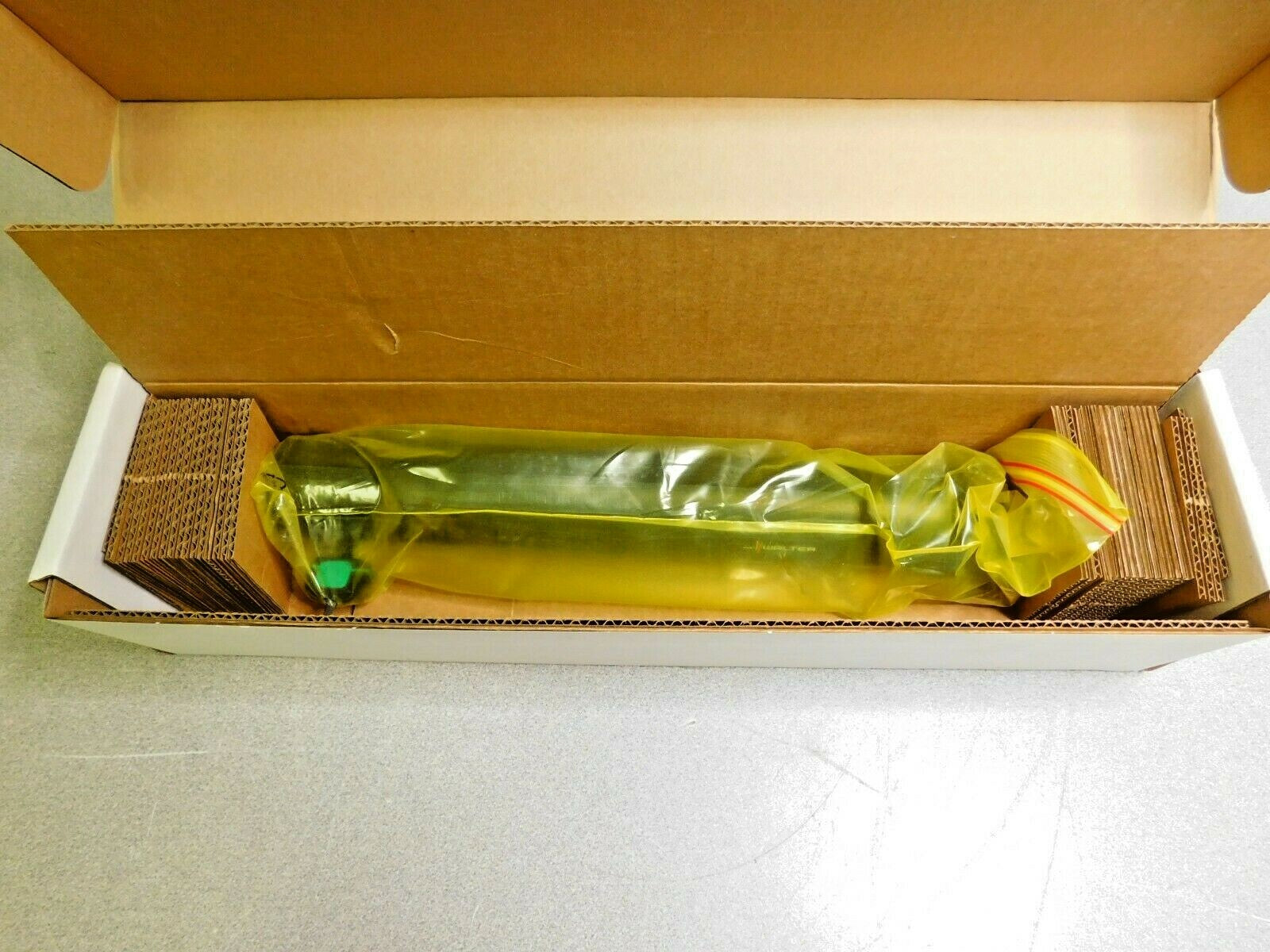

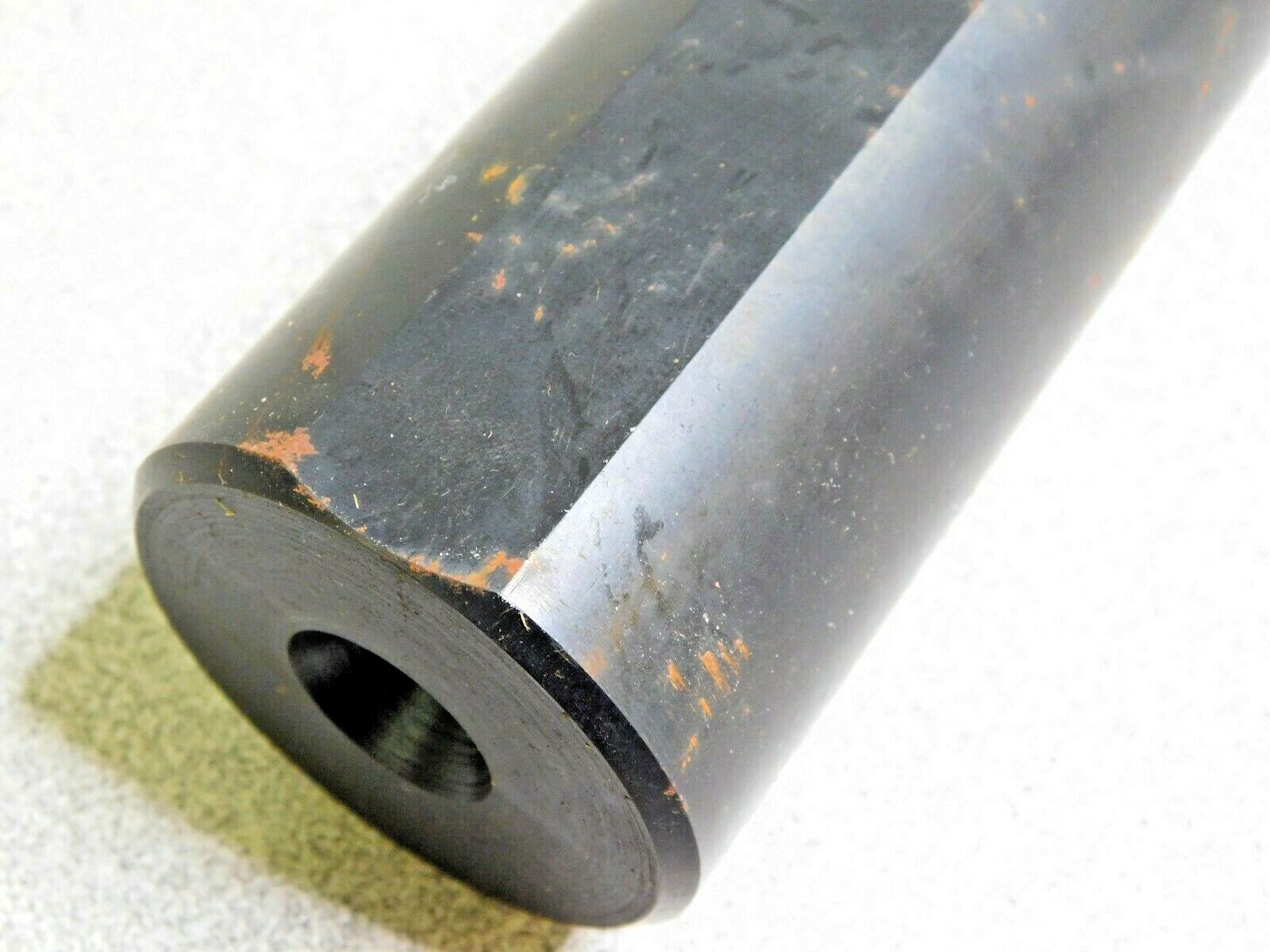

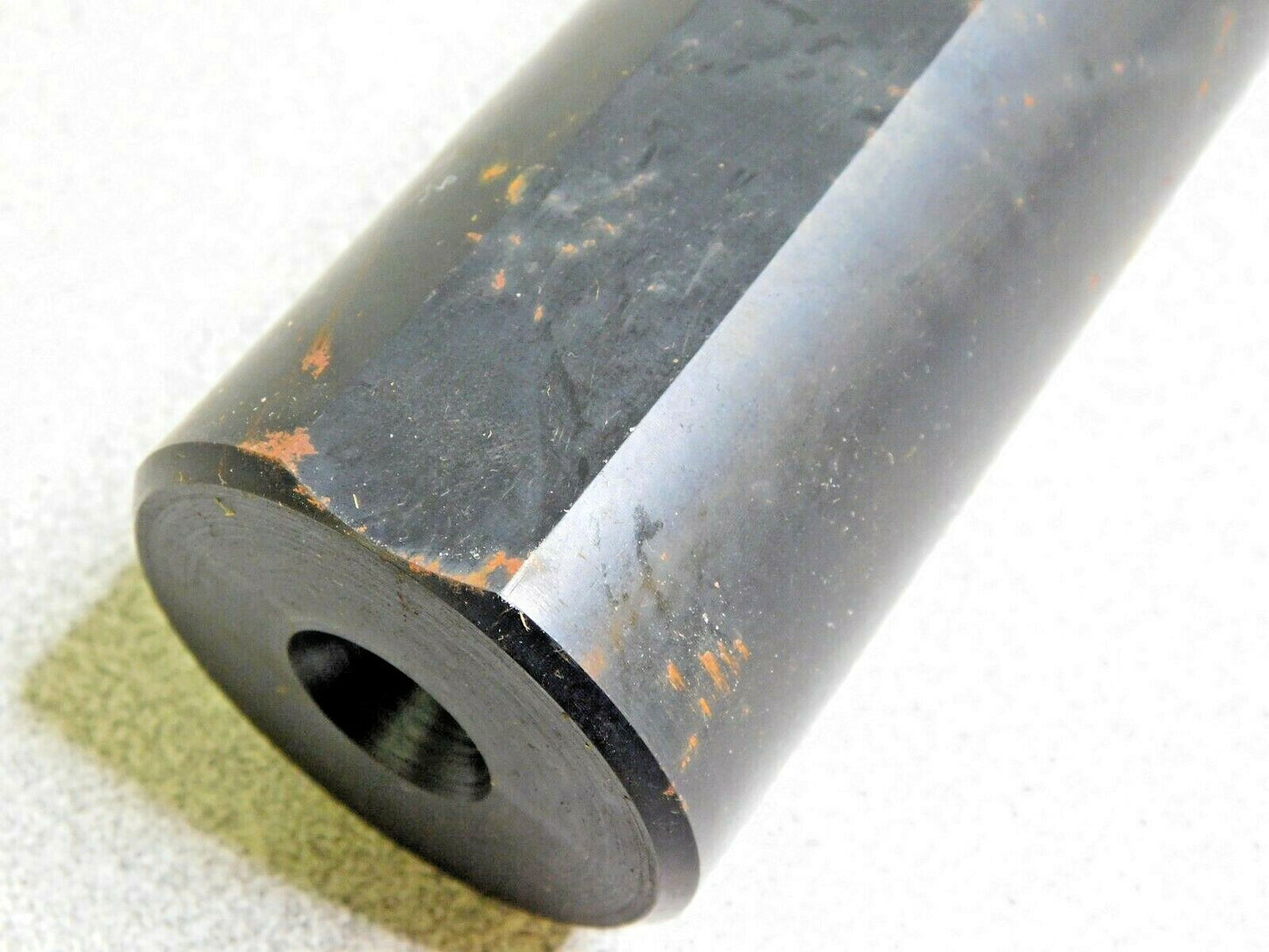

This listing is for One Indexable Boring Bar that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
