Walter F57T Grade WKP35S Milling Insert QTY 10 6766138
Walter F57T Grade WKP35S Milling Insert QTY 10 6766138
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Walter
MSRP: $120.00
Model: 6766138
Description:
Manufacturer's Grade WKP35S
Width (mm) 17.05
Width (Decimal Inch) 0.6710
Length (mm) 20.00
Length (Decimal Inch) 0.7870
Inscribed Circle (mm) 13.70
Inscribed Circle (Decimal Inch) 0.5390
Thickness (mm) 10.00
Thickness (Decimal Inch) 0.3940
Corner Radius (Decimal Inch) 0.0470
Corner Radius (mm) 1.20
Hole Diameter (mm) 5.50
Hole Diameter (Decimal Inch) 0.2170
Relief Angle 0.000
Coating Process CVD
Insert Hand Right Hand
Chipbreaker F57T
Maximum Depth of Cut (mm) 20.00
Maximum Depth of Cut (Decimal Inch) 0.7870

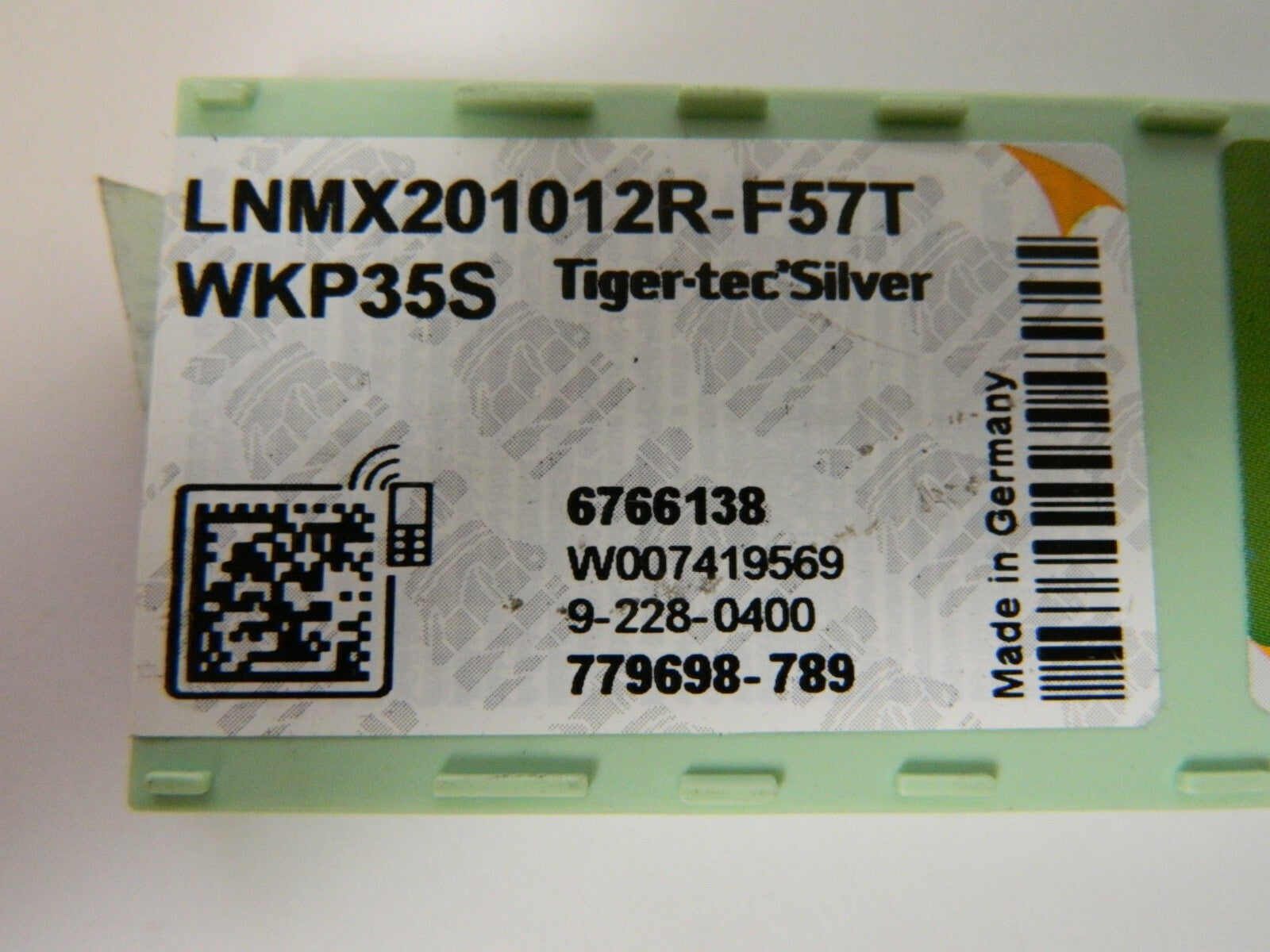

Manufacturers Catalog Number LNMX201012R-F57T WKP35S

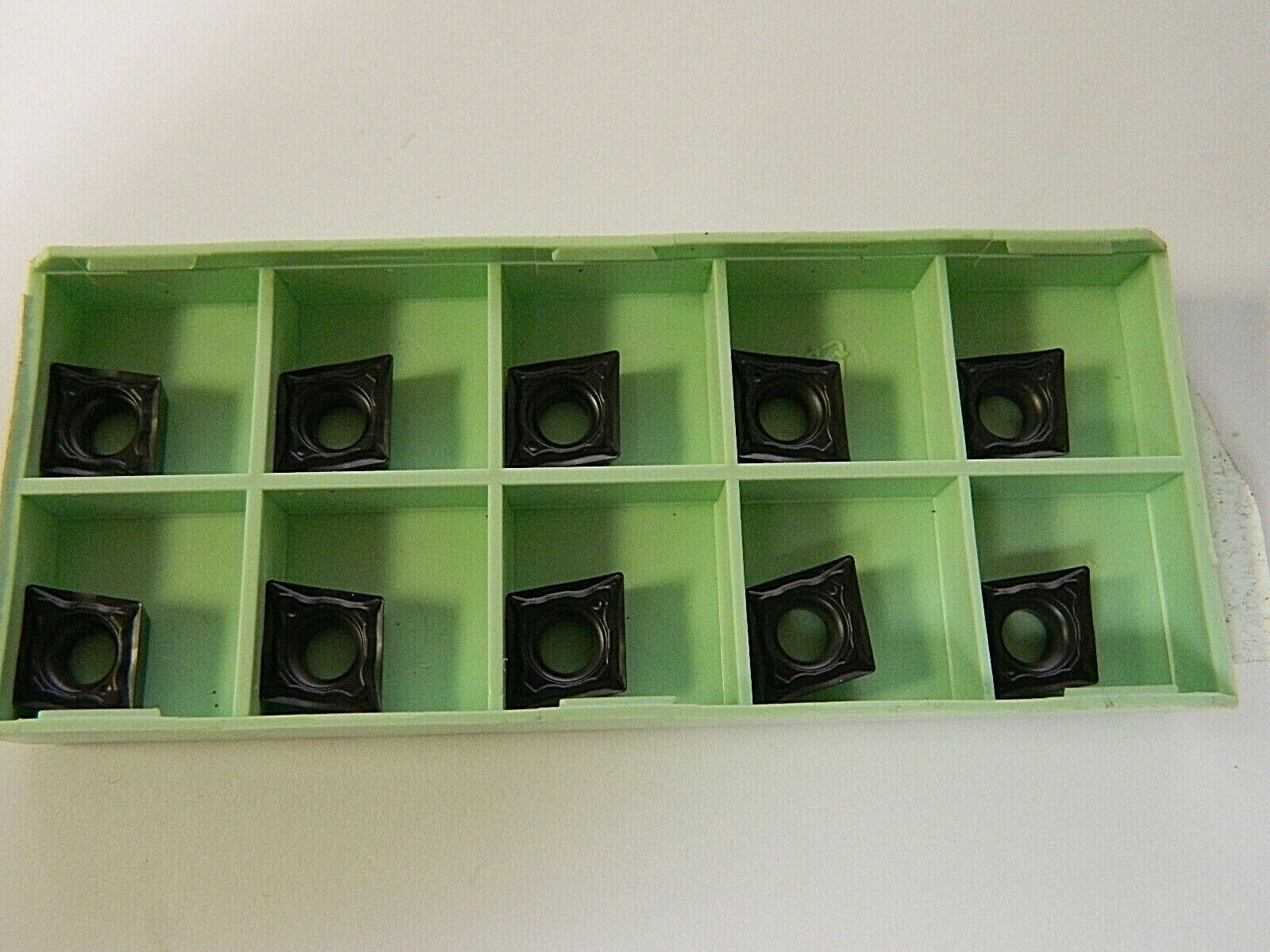

This listing is for One pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
