Walter F56 Grade WSM45X Milling Insert QTY 10 6841370
Walter F56 Grade WSM45X Milling Insert QTY 10 6841370
Regular price
$102.80 USD
Regular price
$210.00 USD
Sale price
$102.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $210.00
Model: 6841370
Description:
Manufacturer's Grade WSM45X
Width (mm) 7.25
Width (Decimal Inch) 0.2850
Length (mm) 11.30
Length (Decimal Inch) 0.4450
Inscribed Circle (mm) 7.25
Inscribed Circle (Decimal Inch) 0.2850
Thickness (mm) 3.97
Thickness (Decimal Inch) 0.1560
Corner Radius (Decimal Inch) 0.0310
Corner Radius (mm) 0.80
Hole Diameter (mm) 2.80
Hole Diameter (Decimal Inch) 0.1100
Relief Angle 15.000
Coating Process CVD
Insert Hand Right Hand
Chipbreaker F56
Maximum Depth of Cut (mm) 11.30
Maximum Depth of Cut (Decimal Inch) 0.4450

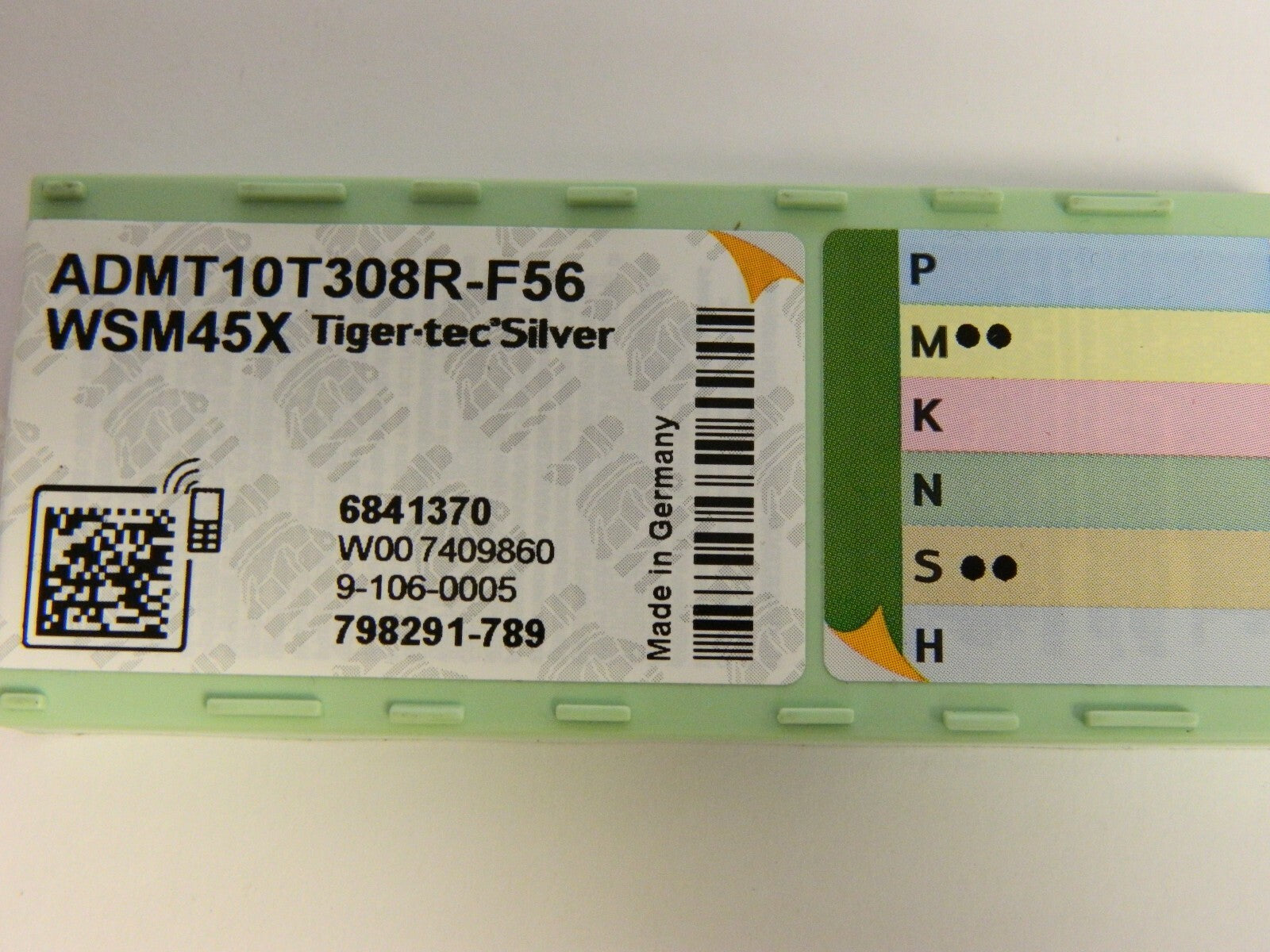

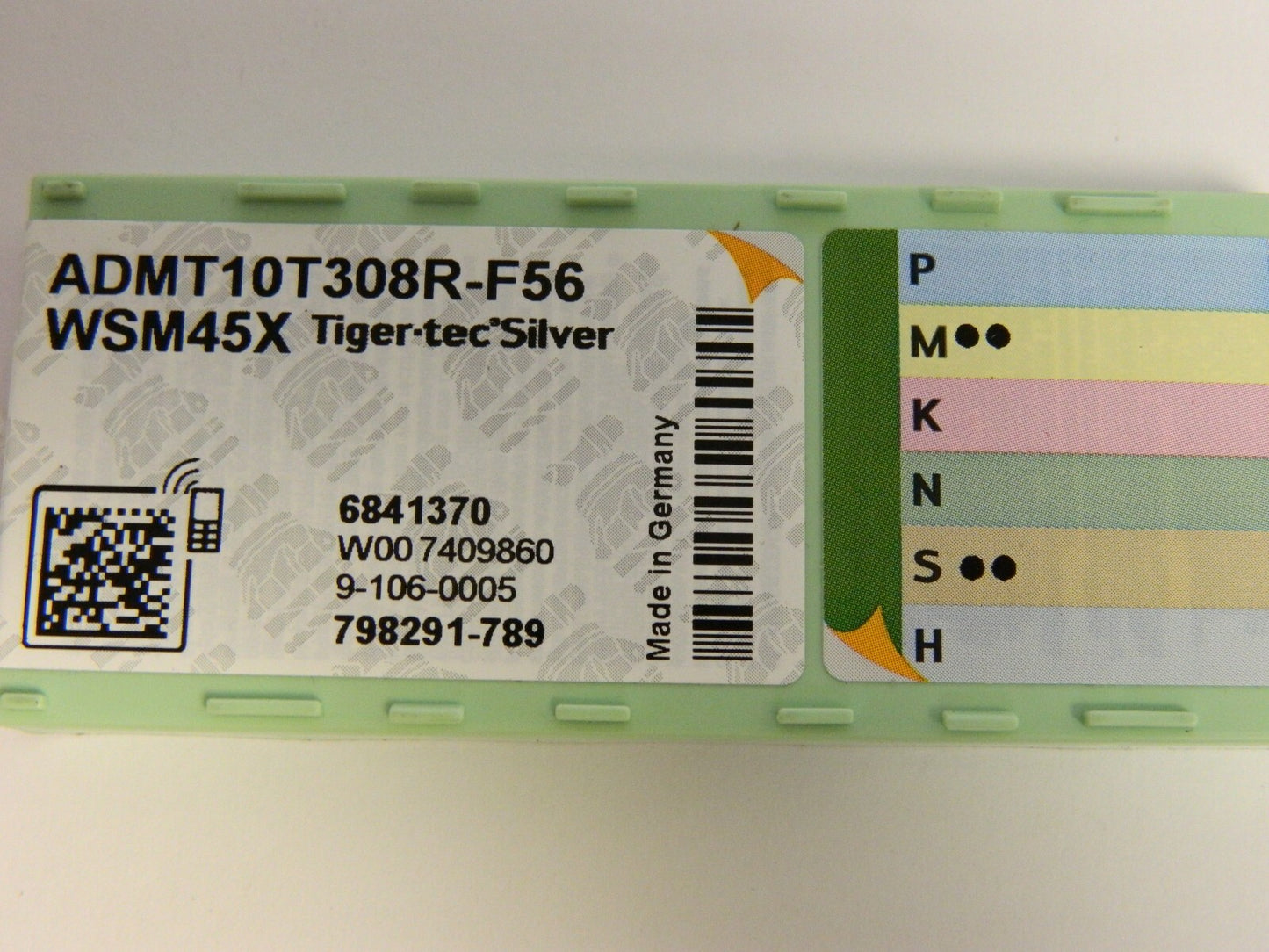

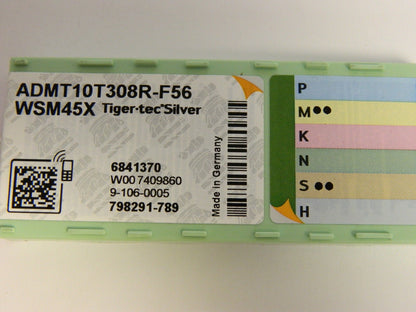

Manufacturers Catalog Number ADMT10T308R-F56 WSM45X
Corner Radius (mm) 0.80
Coating Process CVD
Chipbreaker F56
Inscribed Circle (mm) 7.25
Hole Diameter (mm) 2.80
Hole Diameter (Decimal Inch) 0.1100
Manufacturer's Grade WSM45X
Thickness (mm) 3.97
Thickness (Decimal Inch) 0.1560
Maximum Depth of Cut (mm) 11.30
Maximum Depth of Cut (Decimal Inch) 0.4450
Manufacturer's Grade WSM45X
Length (mm) 11.30
Length (Decimal Inch) 0.4450
Inscribed Circle (Decimal Inch) 0.2850
Hole Diameter (mm) 2.80
Hole Diameter (Decimal Inch) 0.1100
Coating Process CVD
Corner Radius (Decimal Inch) 0.0310
Relief Angle 15.000
Insert Hand Right Hand

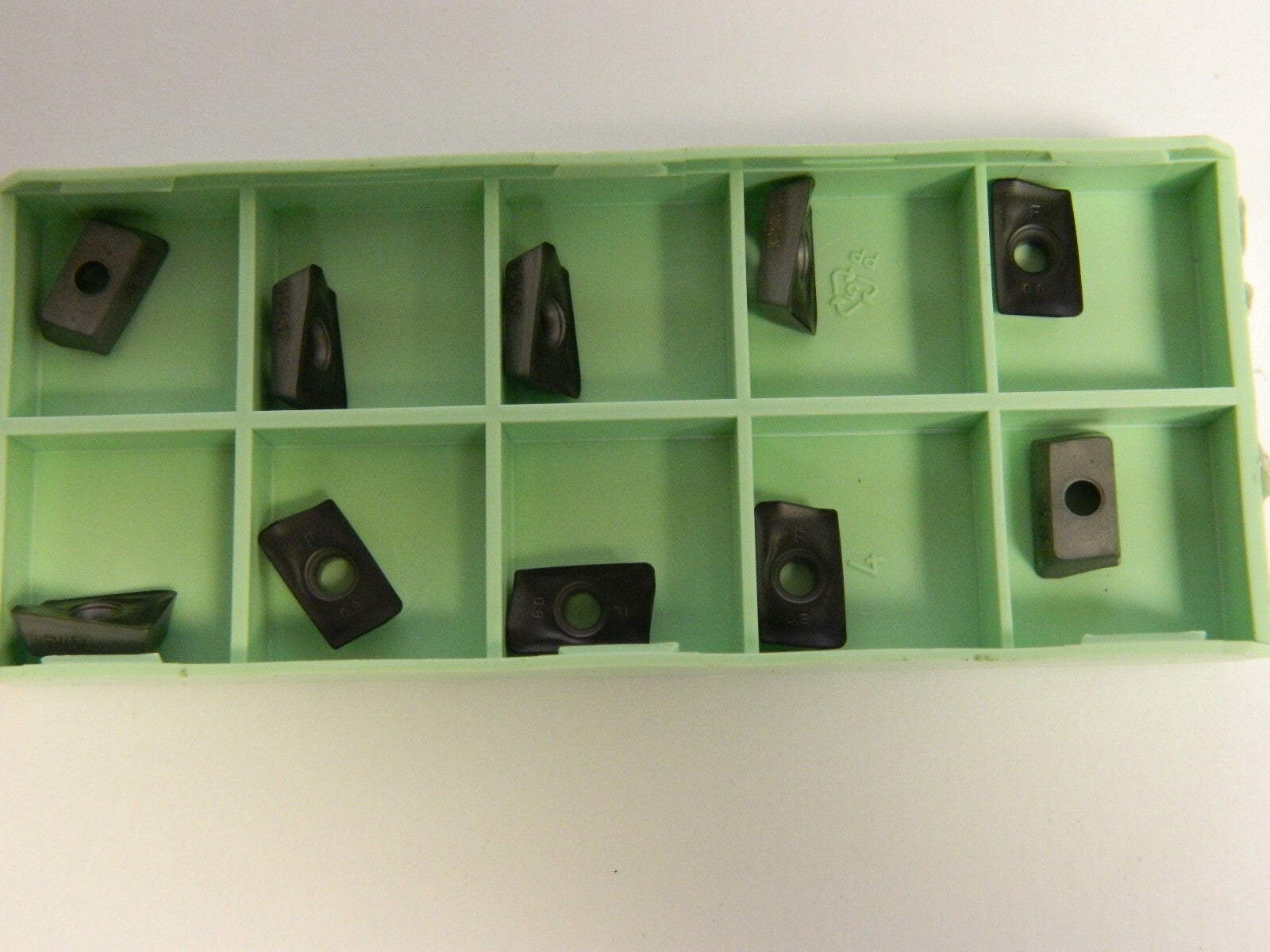

This listing is for One Pack of 10 per sale
that is in the picture as well as described. Please ask any questions prior to buying!
