Walter Carbide Turning Inserts SNMG644/190616-RP5 Grade WPP30S QTY 10 6150108
Walter Carbide Turning Inserts SNMG644/190616-RP5 Grade WPP30S QTY 10 6150108
Regular price
$102.80 USD
Regular price
$210.00 USD
Sale price
$102.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $210.00
Model: 6150108
Description:
Insert Style SNMG
Insert Size 644
Material Carbide
Length (mm) 19.05
Length (Decimal Inch) 0.7500
Inscribed Circle (Decimal Inch) 0.7500
Inscribed Circle (Inch) 3/4
Thickness (Inch) 1/4
Thickness (Decimal Inch) 0.2500
Corner Radius (Inch) 1/16
Corner Radius (Decimal Inch) 0.0625
Manufacturer's Grade WPP30S
Coating TiCN/Al2O3/TiN
Material Grade P30
Chip Breaker RP5

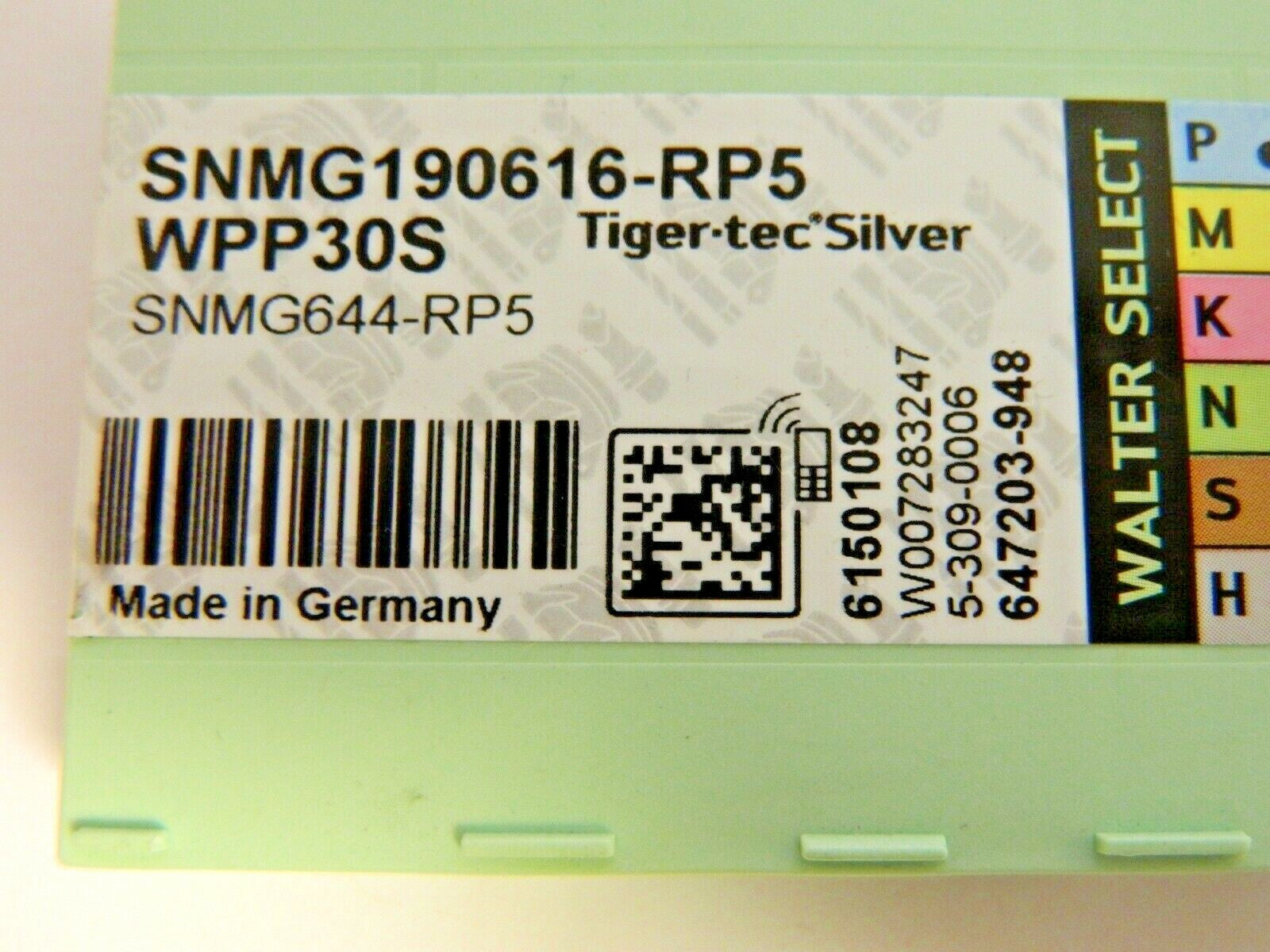

ISO Number SNMG190616-RP5
Rake Negative
Relief Angle 0
Coating Process CVD
Manufacturers Catalog Number SNMG644-RP5
Primary Workpiece Material P
Secondary Workpiece Material None
Included Angle 90
Series Tiger-tec
Maximum Depth of Cut (mm) 10.01
Maximum Depth of Cut (Decimal Inch) 0.3940
Insert Holding Method Pin & Clamp
Multi Use Application Turning
MultiUseTool Yes
Shape Square

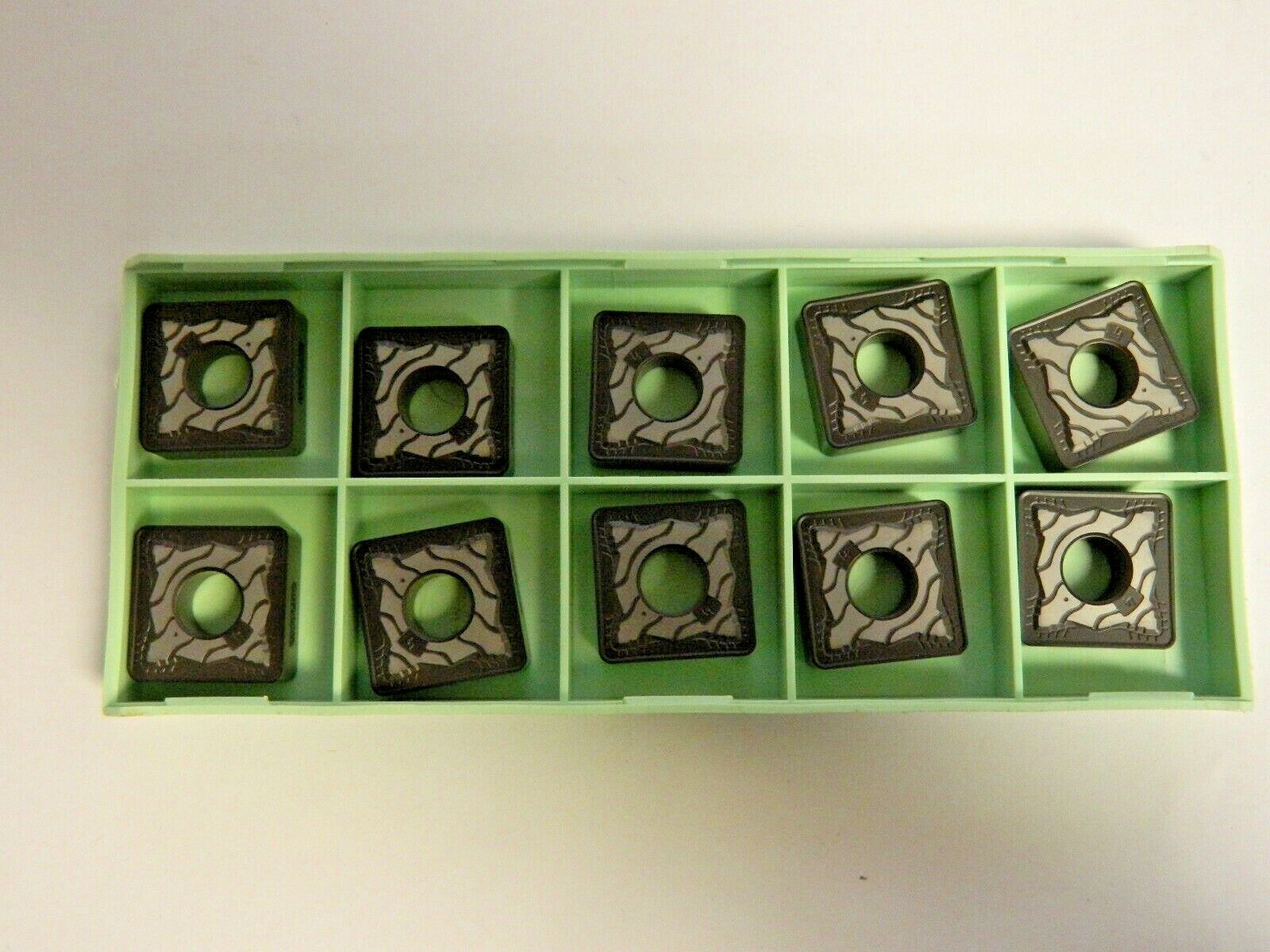

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
