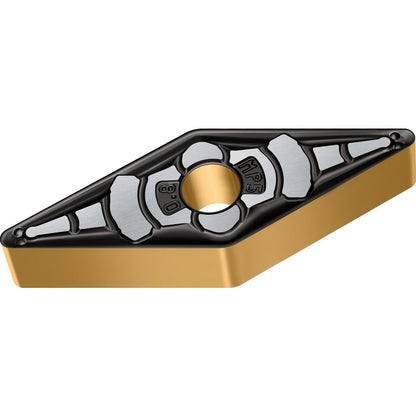

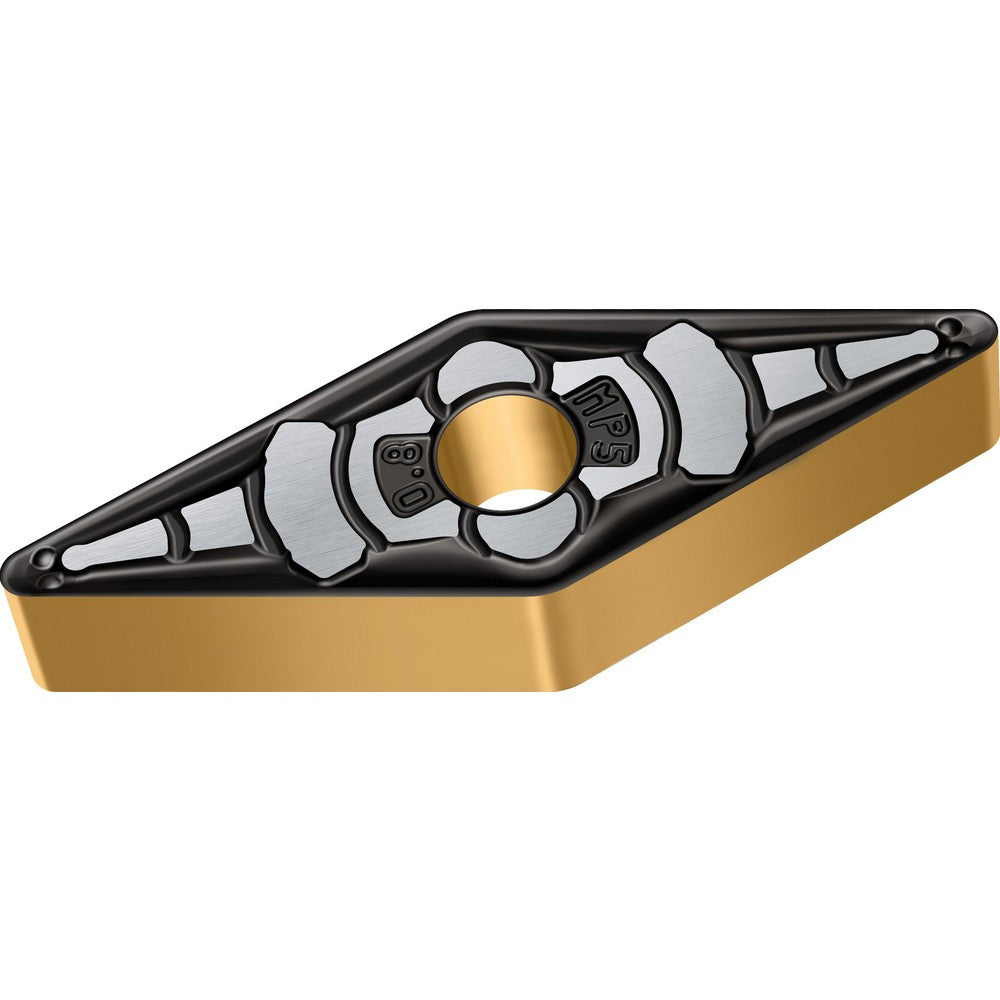

Walter Carbide Turning Inserts QTY10 VNMG432-MP5 WPP20G 6876597

Walter
Carbide Turning Inserts 10 pack

MSRP: $535

• Insert Style VNMG
• ANSI Size Code 432
• ISO Size Code 220408
• Insert Shape V - Diamond (Rhombic) 35-Deg
• Included Angle 35.00
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0315
• Insert Material Carbide
• Manufacturer Grade WPP20G
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0.000
• Wiper Edge No
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Series VNMG-MP5
• Chip Breaker Operation Medium Machining; Roughing
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code V
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (Decimal Inch) 0.8720
• ANSI Insert Code VNMG432
• ISO Insert Code VNMG220408
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 0.8720
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code VNMG220408-MP5 WPP20G
• Standards ISO; ANSI
• Manufacturers Catalog Number 8115979
• Material Grade K30; P20
• Proprietary Coating Designation Multilayer Coating
• Lead Angle 35.000
• Coating Classification CVD
• Chip Breaker MP5
• Rake Angle 15
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number VNMG432-MP5 WPP20G
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Back Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 432

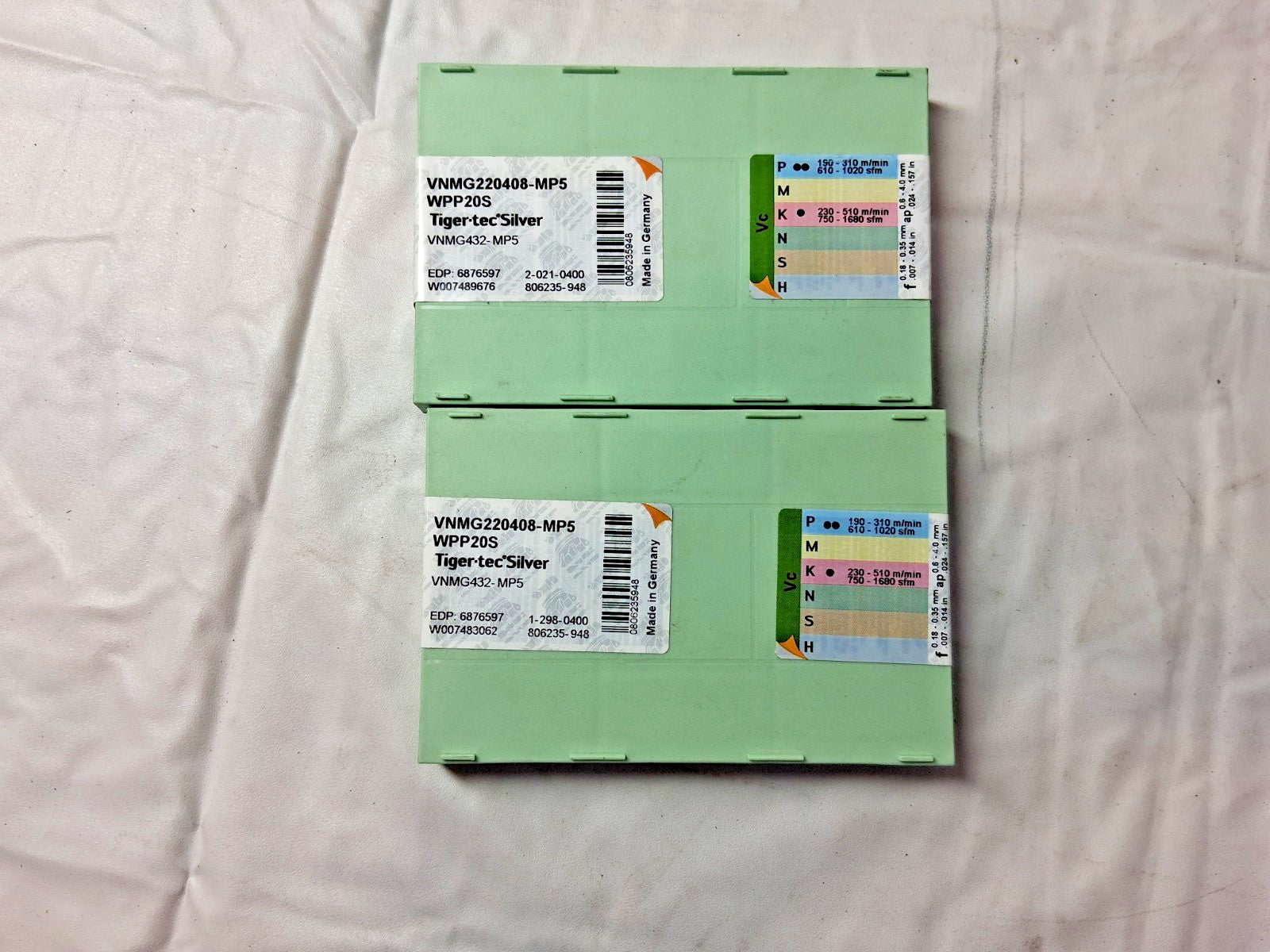

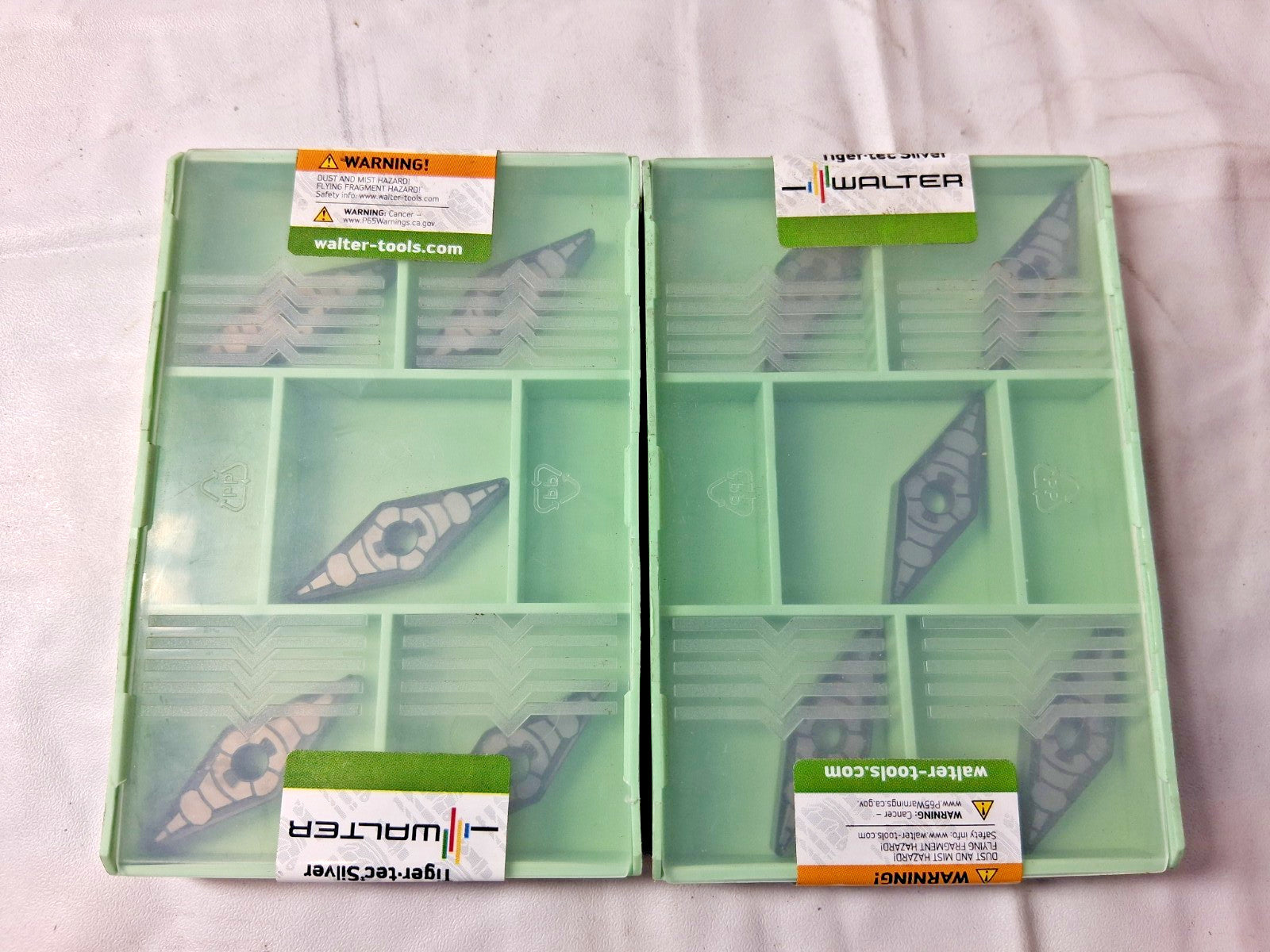

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
