Walter Carbide Turning Inserts QTY10 CNMG433-RP5 WPP30G 8115583

Walter
Carbide Turning Inserts 1 pack of 10

MSRP: $225

• Insert Style CNMG
• ANSI Size Code 433
• ISO Size Code 120412
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade WPP30G
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Series CNMG-RP5
• Chip Breaker Operation Medium Machining; Roughing
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (Decimal Inch) 0.5080
• ANSI Insert Code CNMG433
• ISO Insert Code CNMG120412
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Negative
• Insert Length (Decimal Inch) 0.5080
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel; Cast Iron
• Secondary Workpiece Material Code K; M
• Iso Code CNMG120412-RP5 WPP30G
• Standards ISO; ANSI
• Manufacturers Catalog Number 8115583
• Material Grade K40; M20; P30
• Proprietary Coating Designation Multilayer Coating
• Lead Angle 80
• Coating Classification CVD
• Chip Breaker RP5
• Rake Angle 17
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number CNMG433-RP5 WPP30G
• Width (Decimal Inch - 4 Decimals) 0.5080
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 433

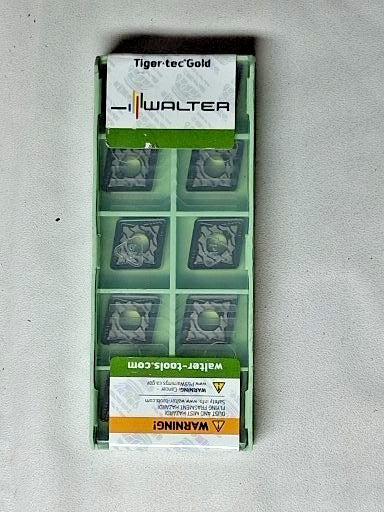

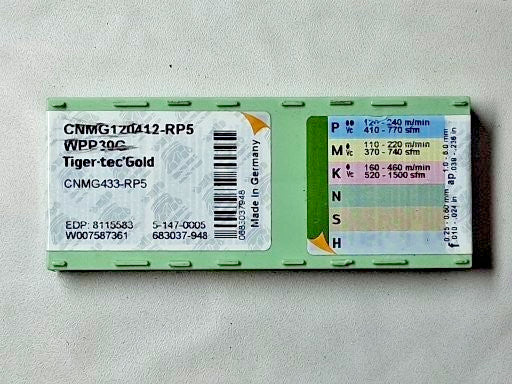

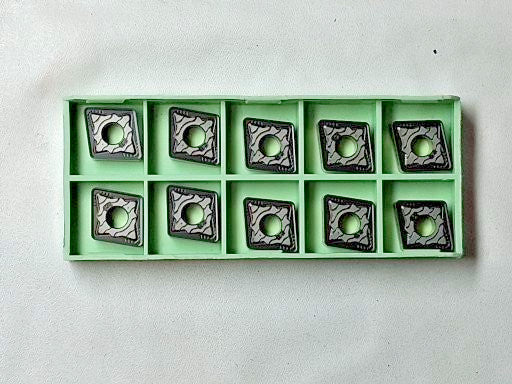

Please review photos, comes as shown.
