Walter Carbide Turning Inserts CNMG120412/CNMG433-NM5 Grade WAK20 Qty 10 5016664
Walter Carbide Turning Inserts CNMG120412/CNMG433-NM5 Grade WAK20 Qty 10 5016664
Regular price
$70.76 USD
Regular price
$150.00 USD
Sale price
$70.76 USD
Shipping calculated at checkout.
Walter
MSRP: $150
Model: 5016664
Description:
Insert Style CNMG
Insert Size 433
Material Carbide
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade WAK20
Coating TiCN/Al2O3/TiN
Material Grade C6
Chip Breaker NM5
Hole Diameter (mm) 5.13
Hole Diameter (Decimal Inch) 0.2020
Rake Positive
Rake Angle 7
Relief Angle 0
Primary Workpiece Material K
Secondary Workpiece Material P
Included Angle 80
Insert Holding Method Pin & Clamp
Shape Diamond
*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition. Please Refer to our Pictures and description. SOLD AS IS. If you have any questions, please contact us!

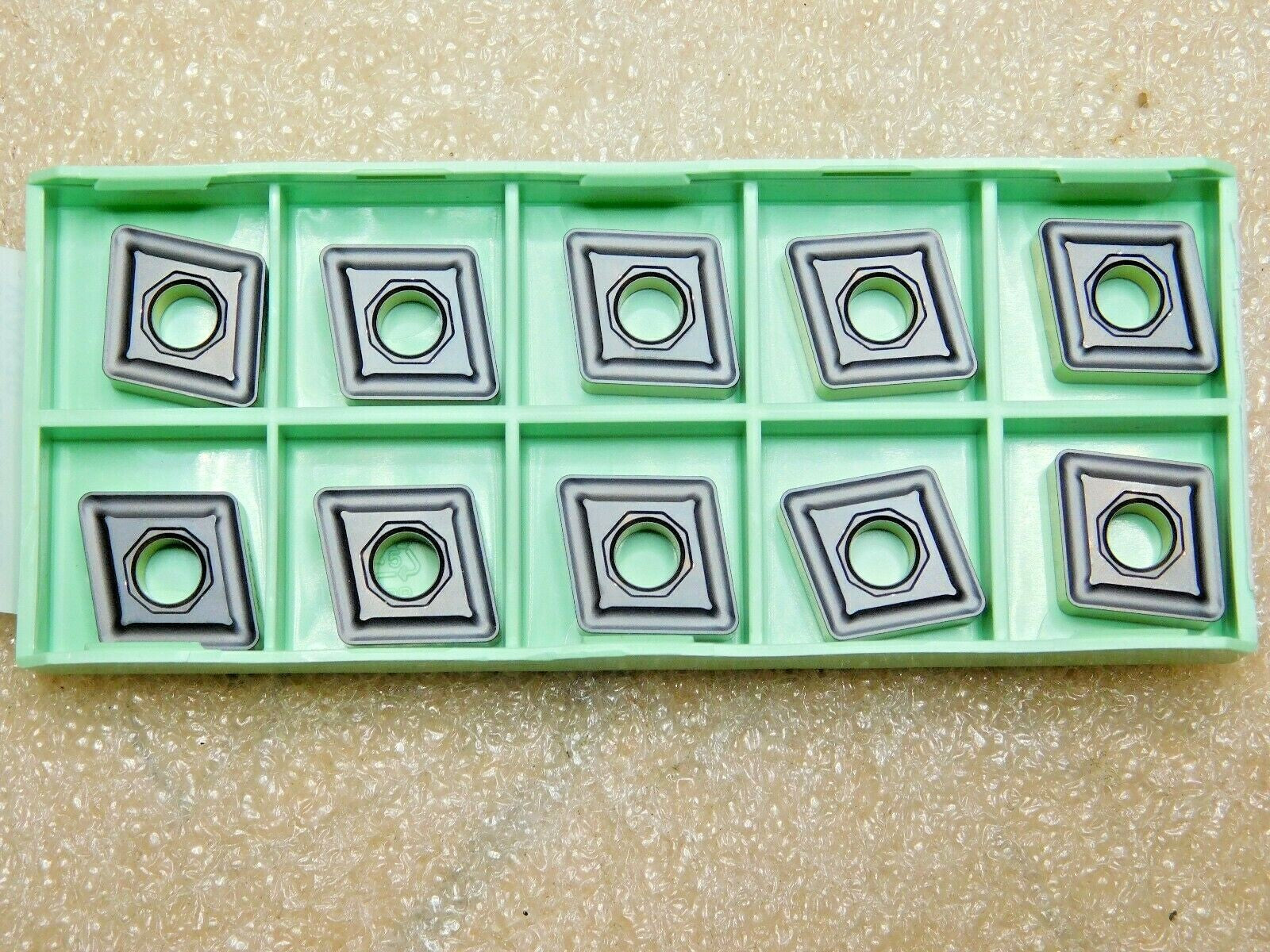

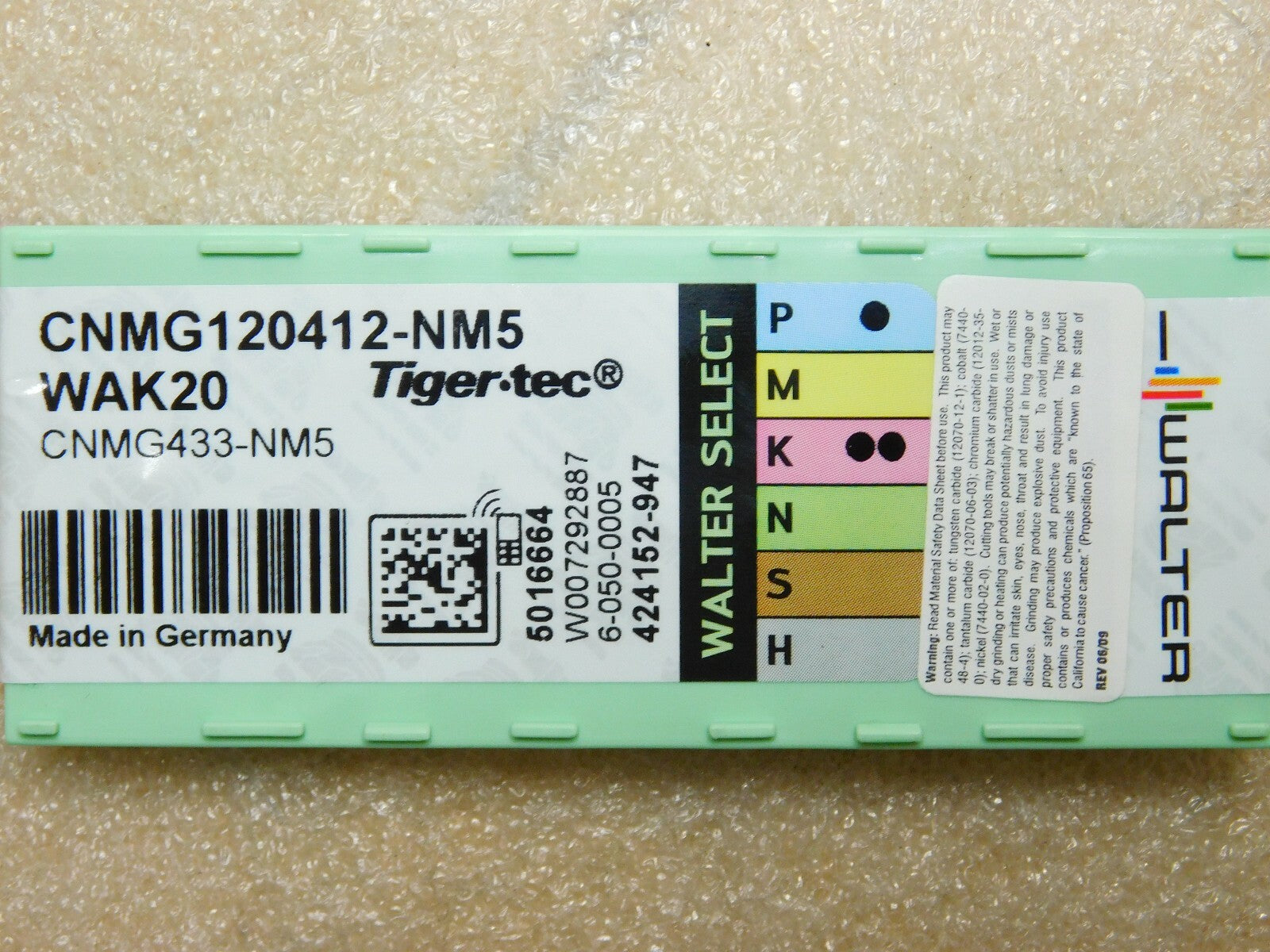

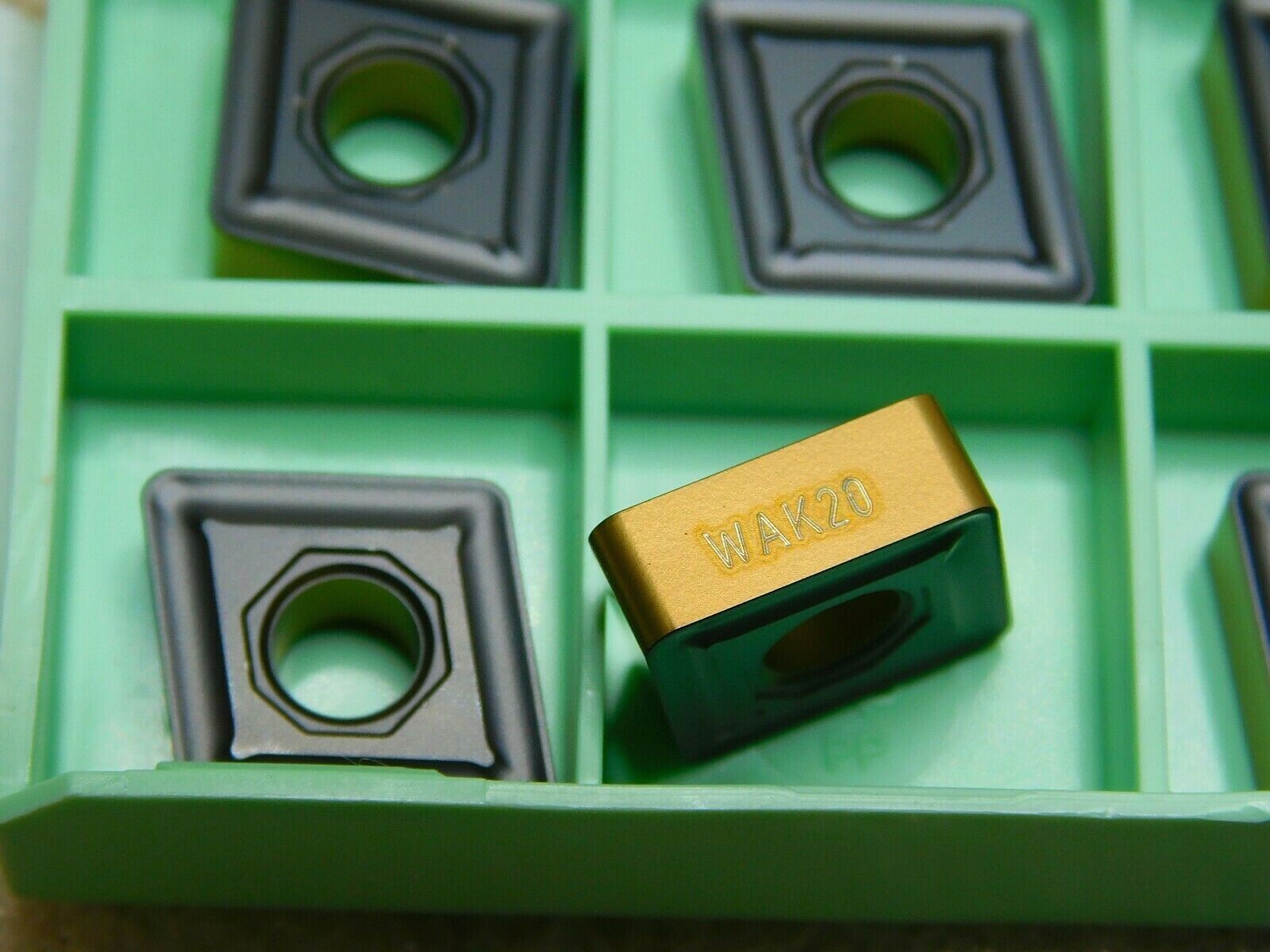

This listing is for One Pack of 10 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
