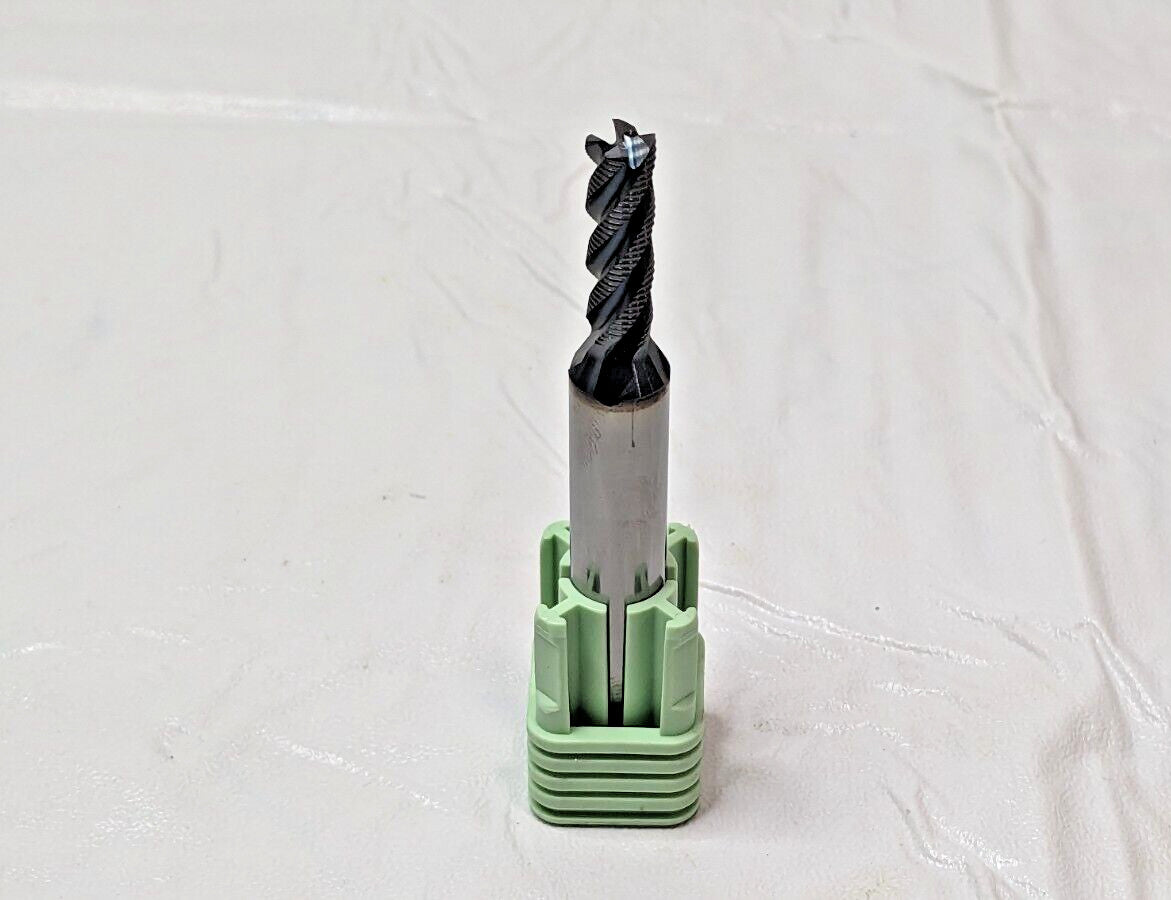

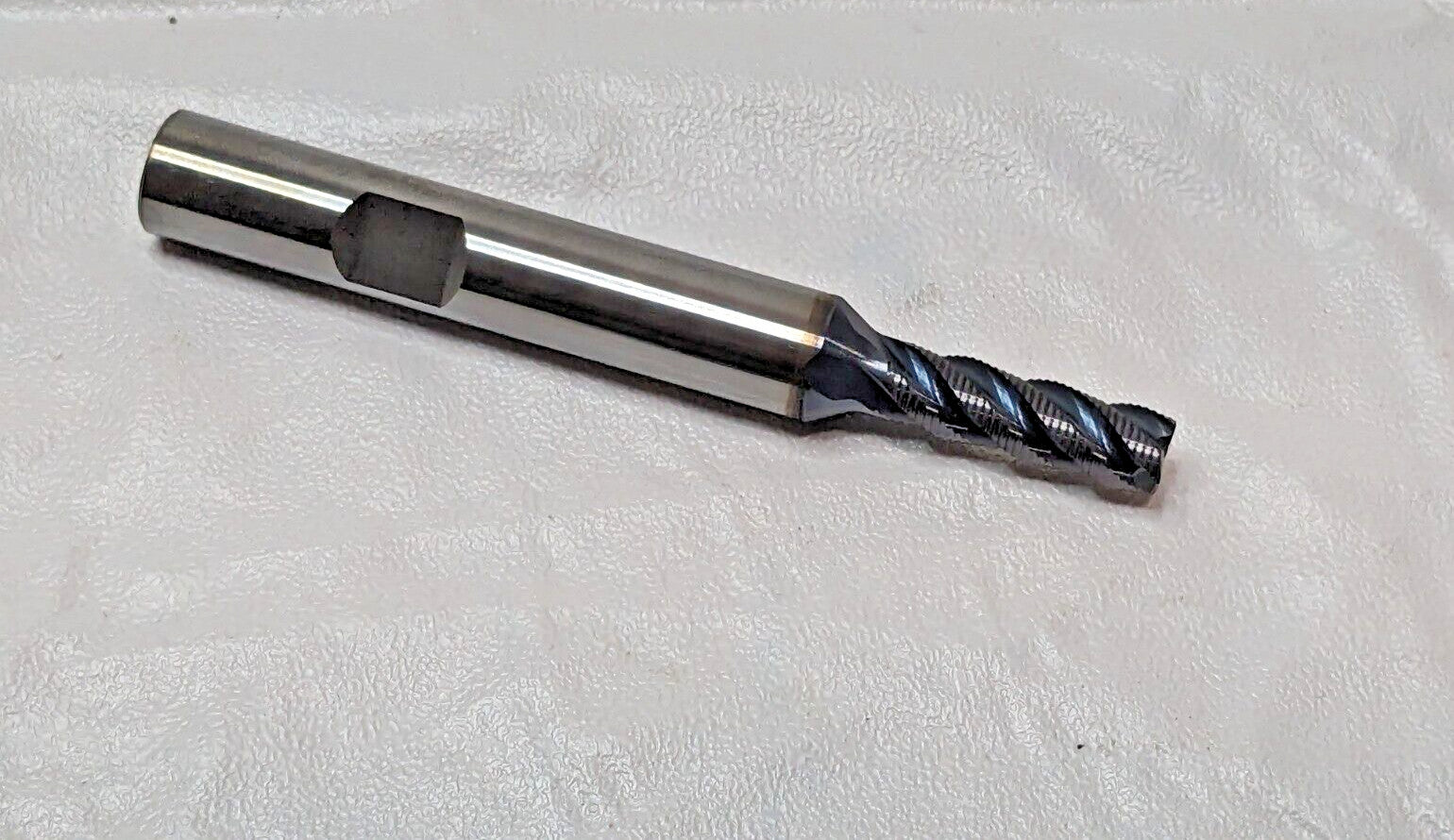

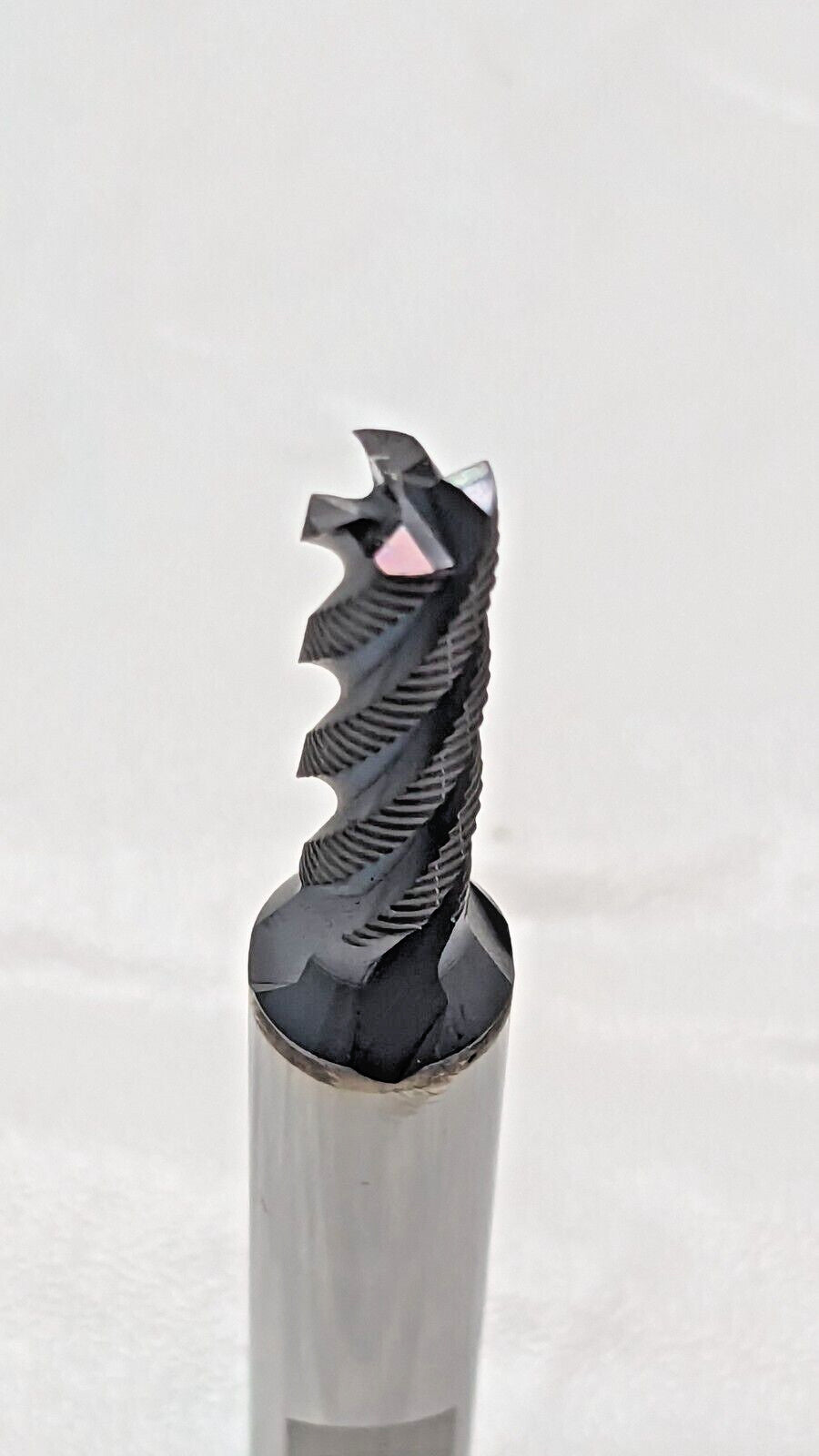

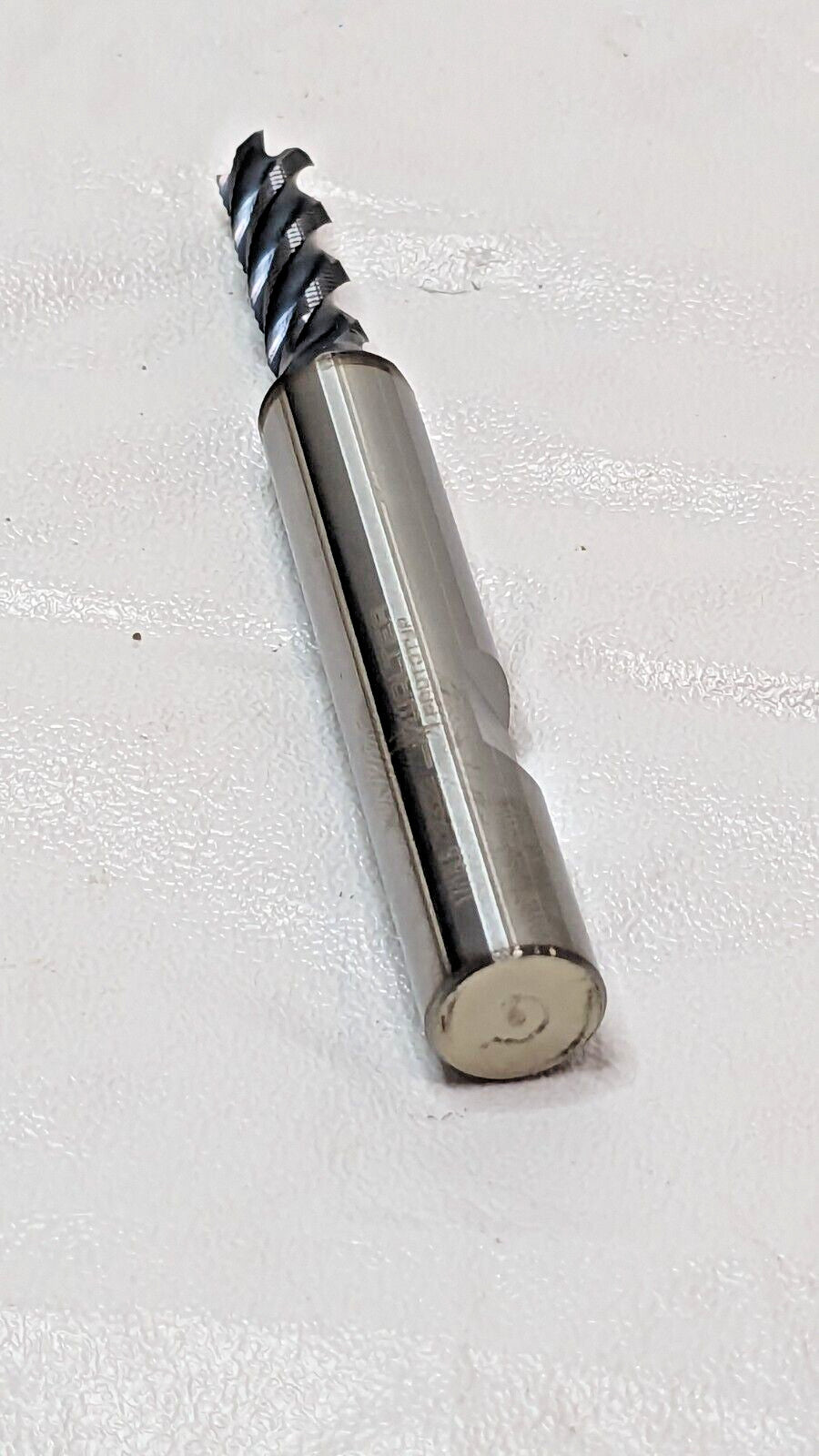

WALTER Carbide Shoulder/Slot Milling Cutter 0.25"D MC320.6.35W4DC-WK40TF 7528157

WALTER
Carbide Shoulder/Slot Milling Cutter

MSRP: $70

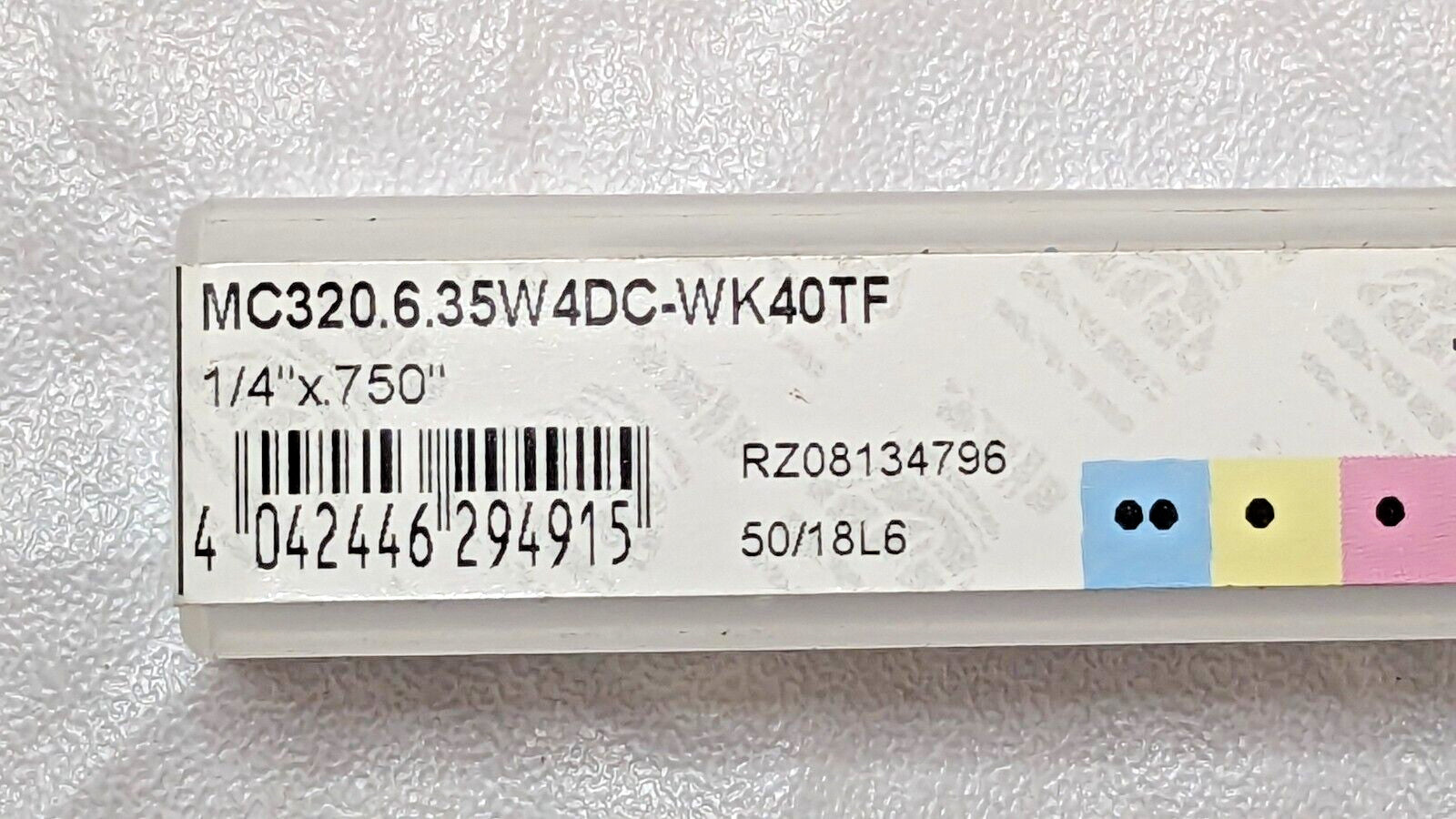

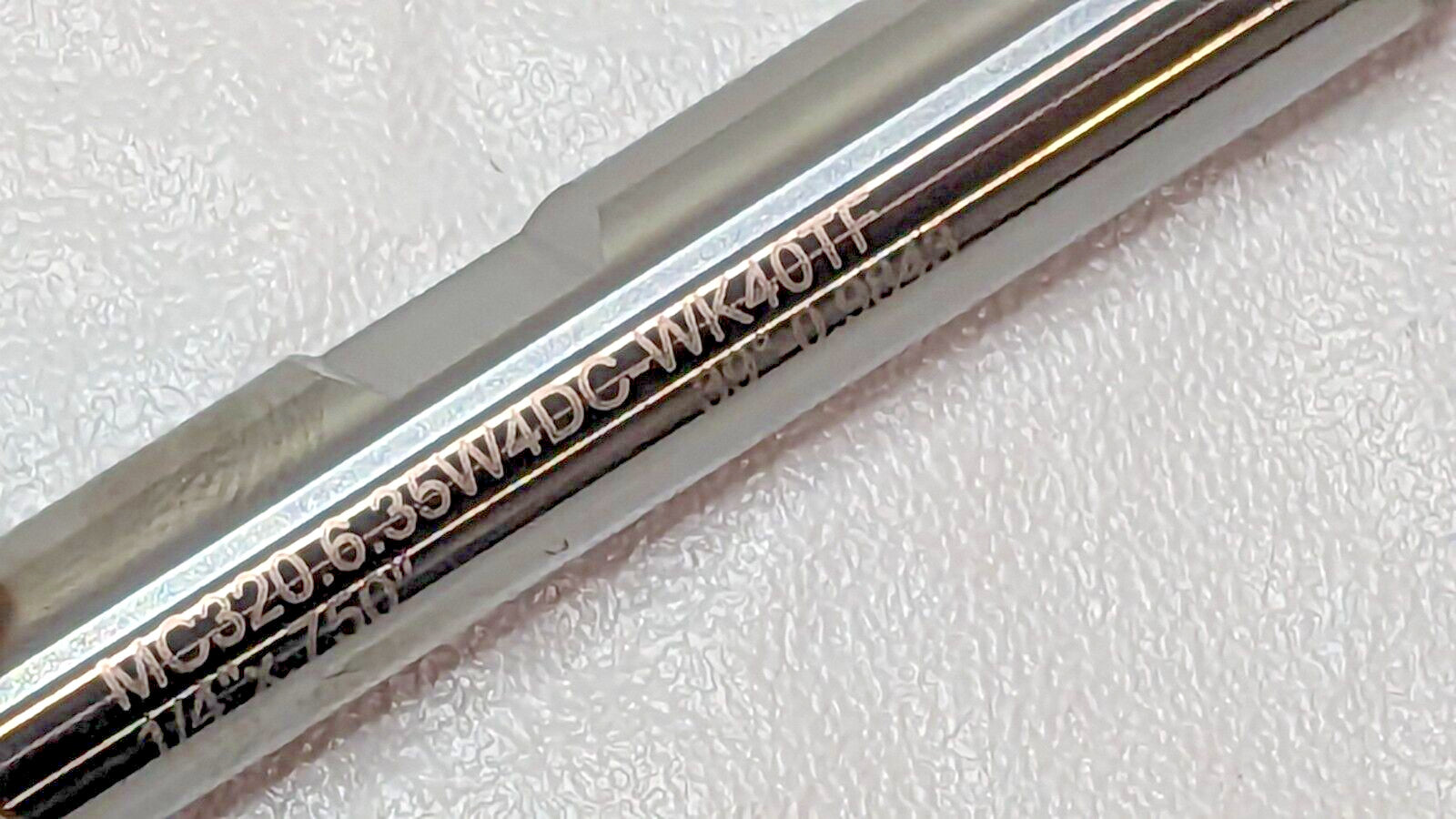

• Tool designation (Designation) MC320.6.35W4DC-WK40TF

• Cutting edge diameter (D c) 1/4" Inch_No_Let
• Cutting edge length (L c) 0,75 inch
• Useable length (l 3) 0,875 inch
• Neck diameter (d 2) 0,23 inch
• Overall length (l 1) 3 inch
• Functional length (l 4) 1,437 inch
• Shank diameter (d 1) 0,375 inch
• Number of Flutes 4
• Flute helix hand (F3): R
• Flute helix angle (F4): 40 °
• Corner radius (G1): 0,2 mm
• de manufacturer's designation (H3): WK40TF

• Body material code (H4): H
• Coating (H5): TiAlN
• Solid Carbide

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
