Walter Carbide Boring Inserts QTY10 6917342

Walter
Carbide Boring Inserts box of 10

MSRP: $165

• Insert Style: TCMT Insert Size Code: 1.21.20.5
• Insert Material: Carbide Material Grade: S20; P2; M20
• Manufacturer Grade: WSM21 Inscribed Circle (Decimal Inch): 0.1563
• Inscribed Circle (Inch): 5/32 Inscribed Circle (mm): 3.97
• Hole Diameter (Decimal Inch): 0.0850 Hole Diameter (mm): 2.15
• Insert Holding Method: Screw Insert Hand: Neutral
• Corner Radius (Inch): 1/128 Corner Radius (mm): 0.20
• Corner Radius (Decimal Inch): 0.0080 Relief Angle: 7.000
• Rake: Positive Chipbreaker: FM4
• Series: TCMT-FM4 Coating Process: PVD
• Included Angle: 60.00 Insert Shape: Triangle
• Number Of Cutting Edges: 3 Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code: P; S; M Iso Code: TCMT06T102-FM4 WSM21
• Standards: ISO; ANSI Rake Angle: 6.000
• Manufacturers Catalog Number: 6917342 Length (Decimal Inch - 4 Decimals): 0.2610
• Lead Angle: 60 Width (Decimal Inch - 4 Decimals): 0.2610
• Coating/Finish: TiAlN UNSPSC Code: 23242105
• Length (mm): 6.87 Maximum Depth of Cut (mm): 1.00
• Maximum Depth of Cut (Decimal Inch): 0.0394

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

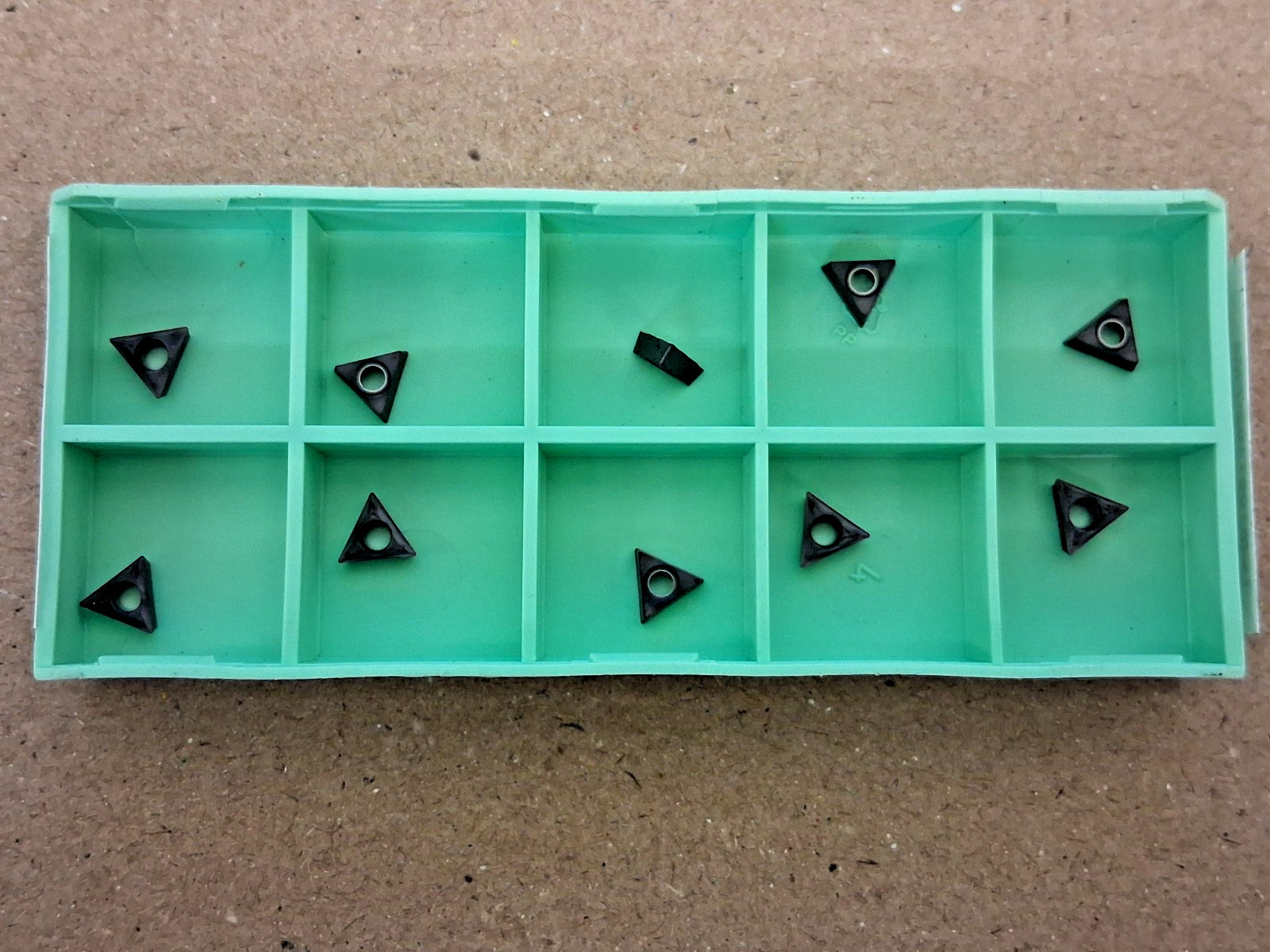

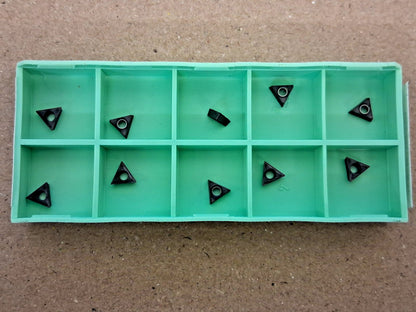

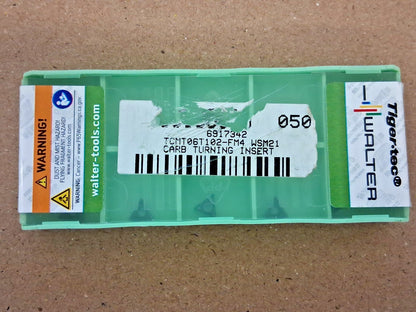

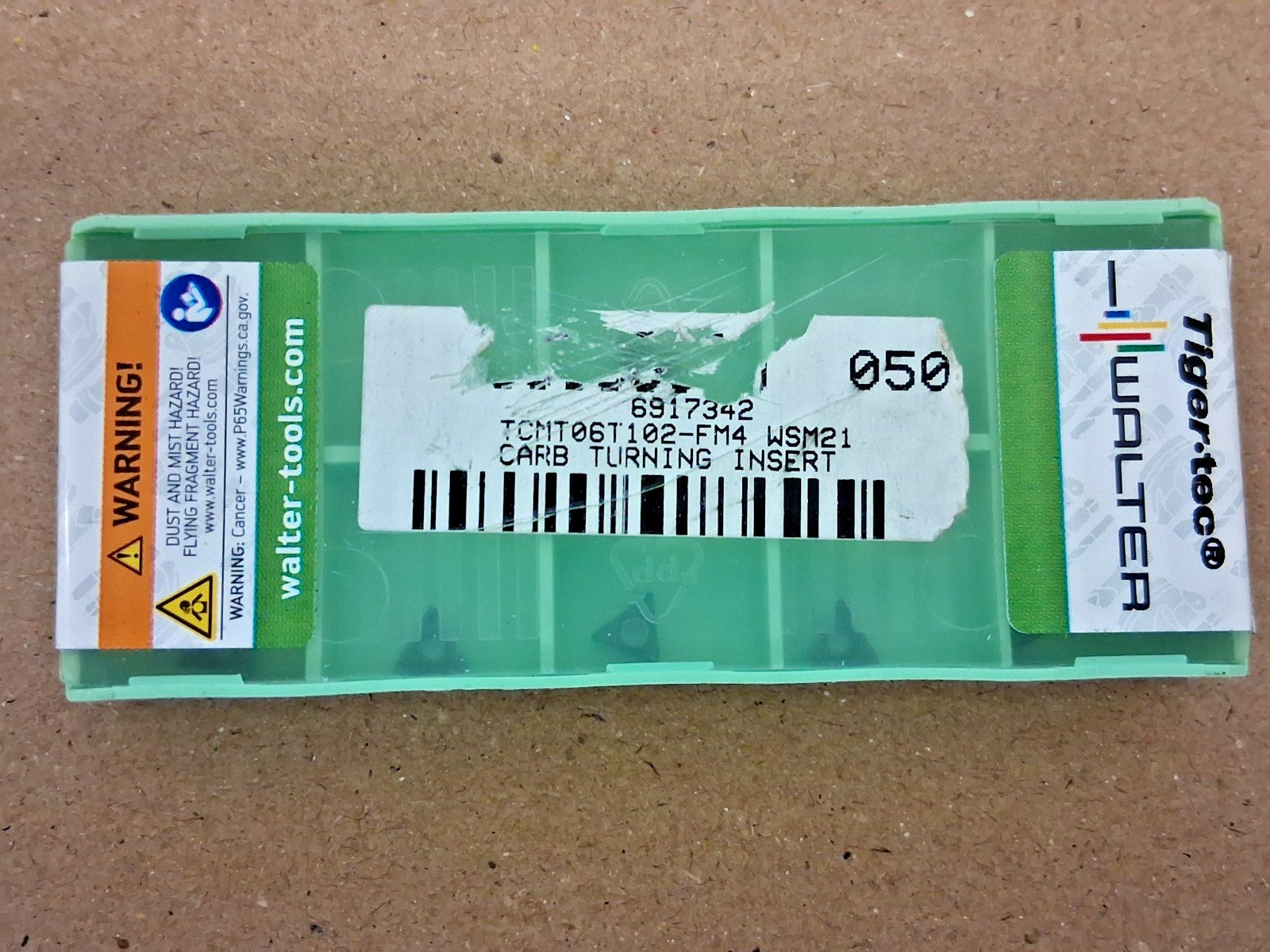

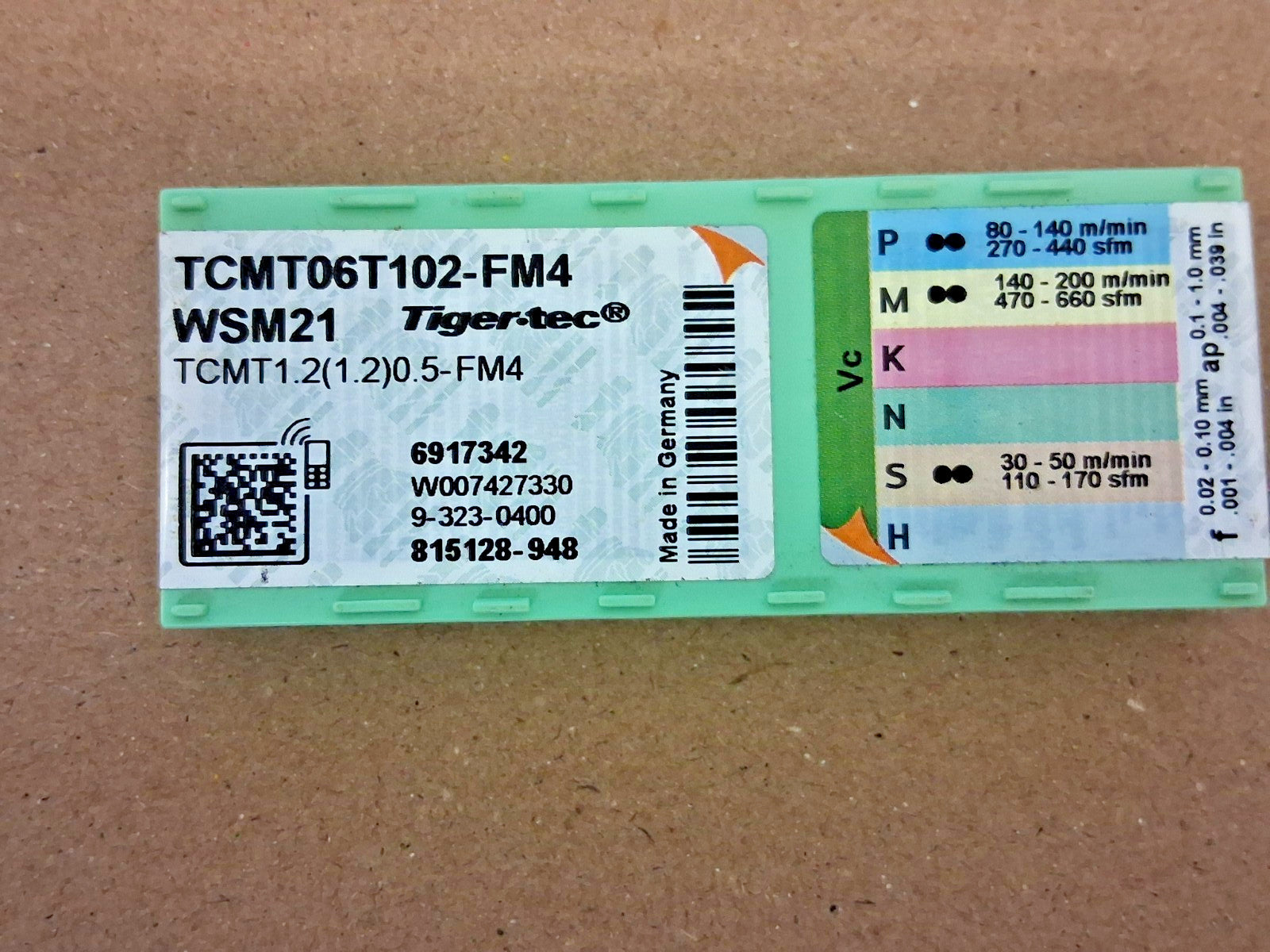

Please review photos, comes as shown.
