Walter
CARB MILLING INSERTS 1 pack of 10

MSRP: $250

• Item Square Milling Insert
• Insert Style SNGX
• Insert Shape Square
• Insert Material Carbide
• Non Ferrous (N) Compatibility No
• Stainless (M) Compatibility No
• Insert Application Medium
• Mounting Style Screw Held
• Inscribed Circle 1/2 in
• Rake Negative
• ANSI Number SNGX1205ZNN-F57 WKP25S
• Cast Iron (K) Compatibility Yes
• No. of Edges 8
• For Use With F2339 Ball Nose Mill
• Hardened (H) Compatibility No
• Coating CVD
• Super Alloy (S) Compatibility No
• Steel (P) Compatibility Yes
• Workpiece Compatibility Cast Iron (K), Steel (P)
• Cutting Direction Right Hand
• Chip-Breaker Yes
• Grade WKP25S
• ISO Number SNGX1205ZNN-F57 WKP25S
• Material - Machining Carbide
• Measurement System Metric
• Wiper Insert Yes
• Shape Square
• Chip-Breaker Style 16 Degrees Chipbreaker Groove
• ANSI Code SNGX1205ZNN-F57 WKP25S
• Number of Cutting Edges 4
• Included Angle 90 Degrees
• For Toolholder F2339.T14.016.Z02.11, F2339.T18.020.Z02.15, F2339.T22.025.Z02.20, F2339.T28.030.Z02.24, F2339.T28.032.Z02.25, F2339.T36.040.Z02.31, F2339.T45.050.Z02.40, F2339.W16.016.Z02.11, F2339.W20.020.Z02.15, F2339.W25.025.Z02.20, F2339.W32.030.Z02.24, F2339.W32.032.Z02.25, F2339.W40.040.Z02.31
• Coating Process CVD
• Manufacturer Grade WKP25S
• Insert Holding Type Screw Held
• Clearance Angle 0 Degrees
• Cutting Application Milling
• Primary Material Application ISO Code K, P
• Primary Material Application Cast Iron, Steel
• Finish - Machining TiCN+Al2O3+TiCN
• Chip-Breaker Code F57

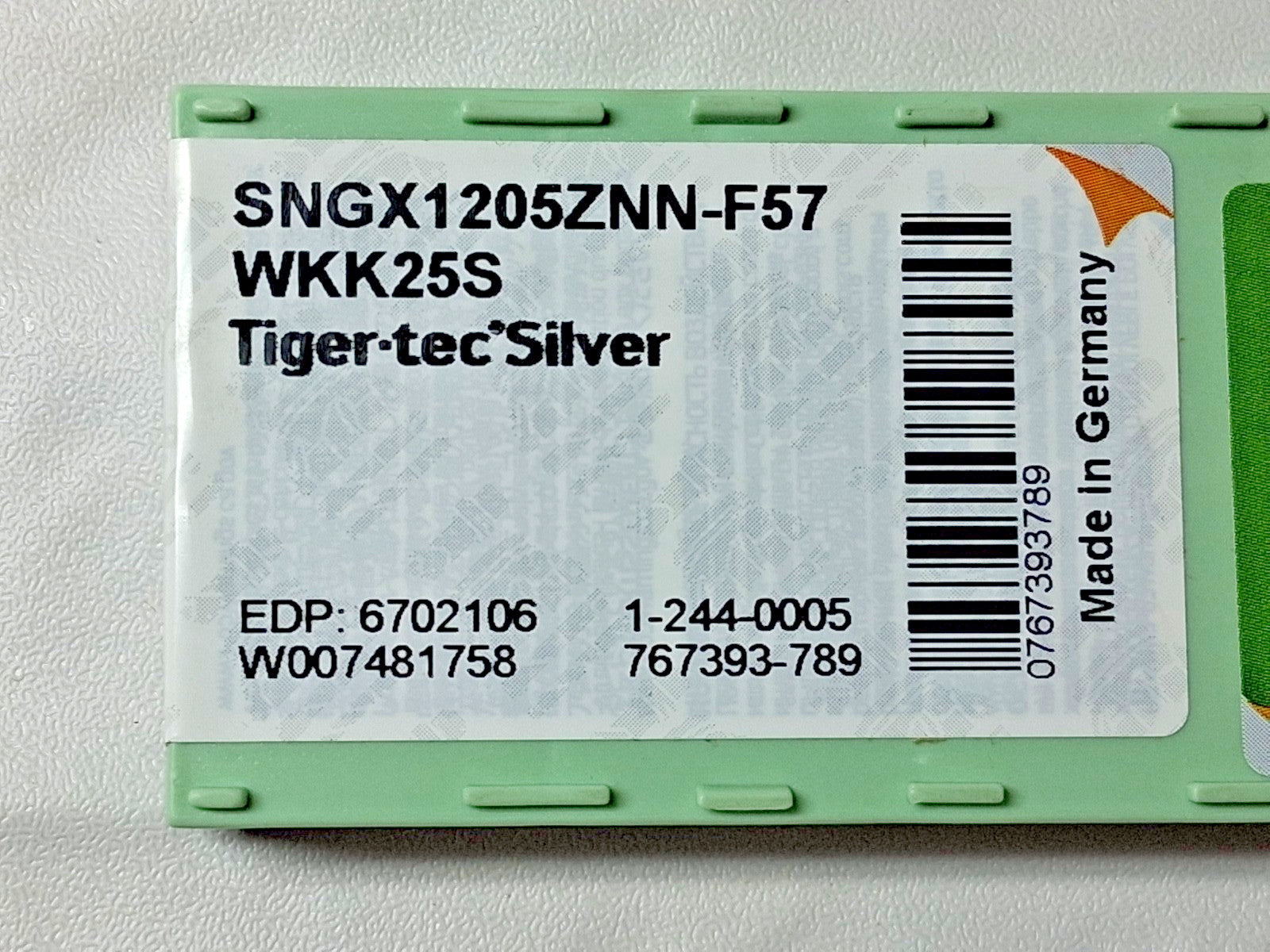

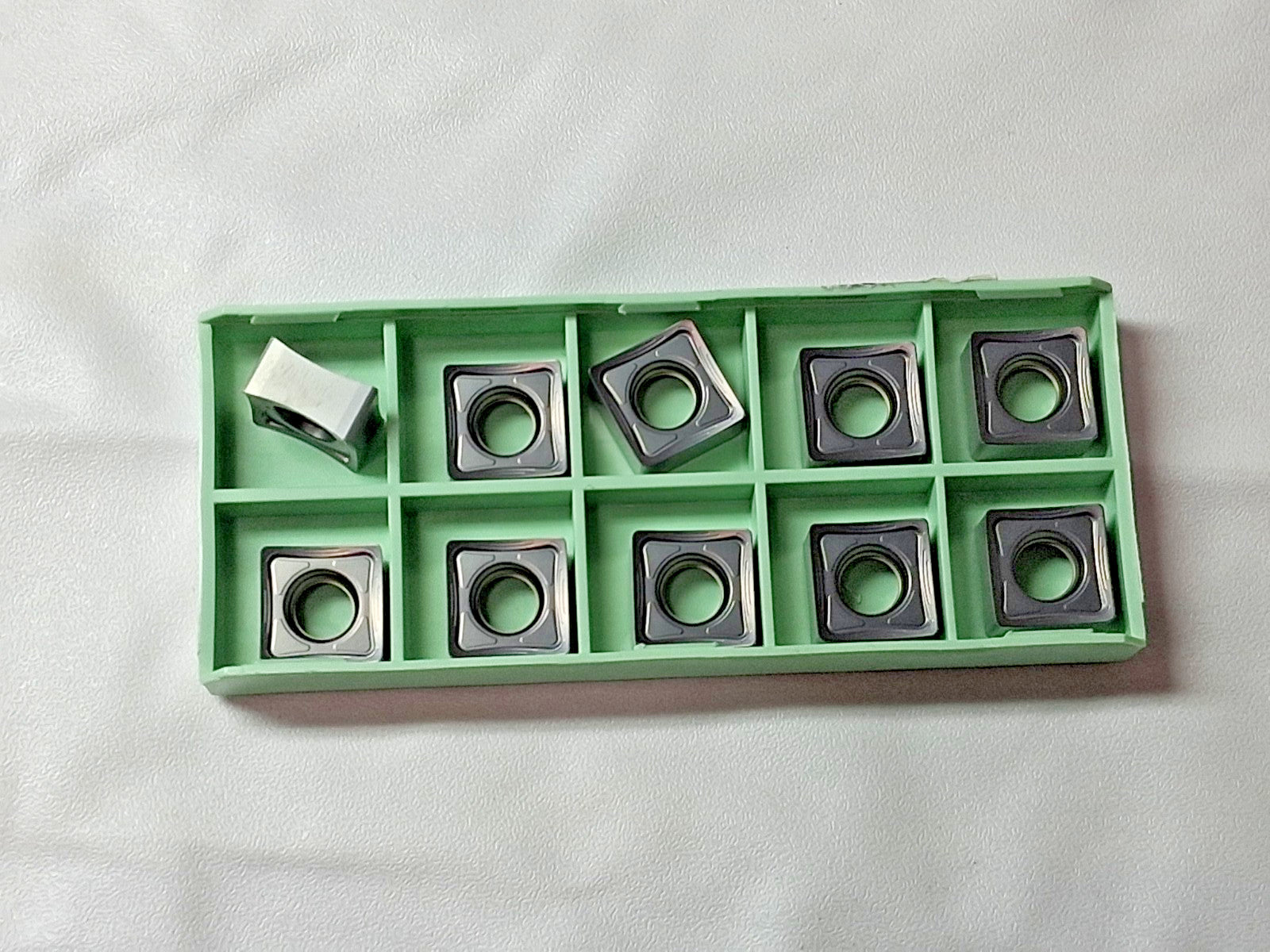

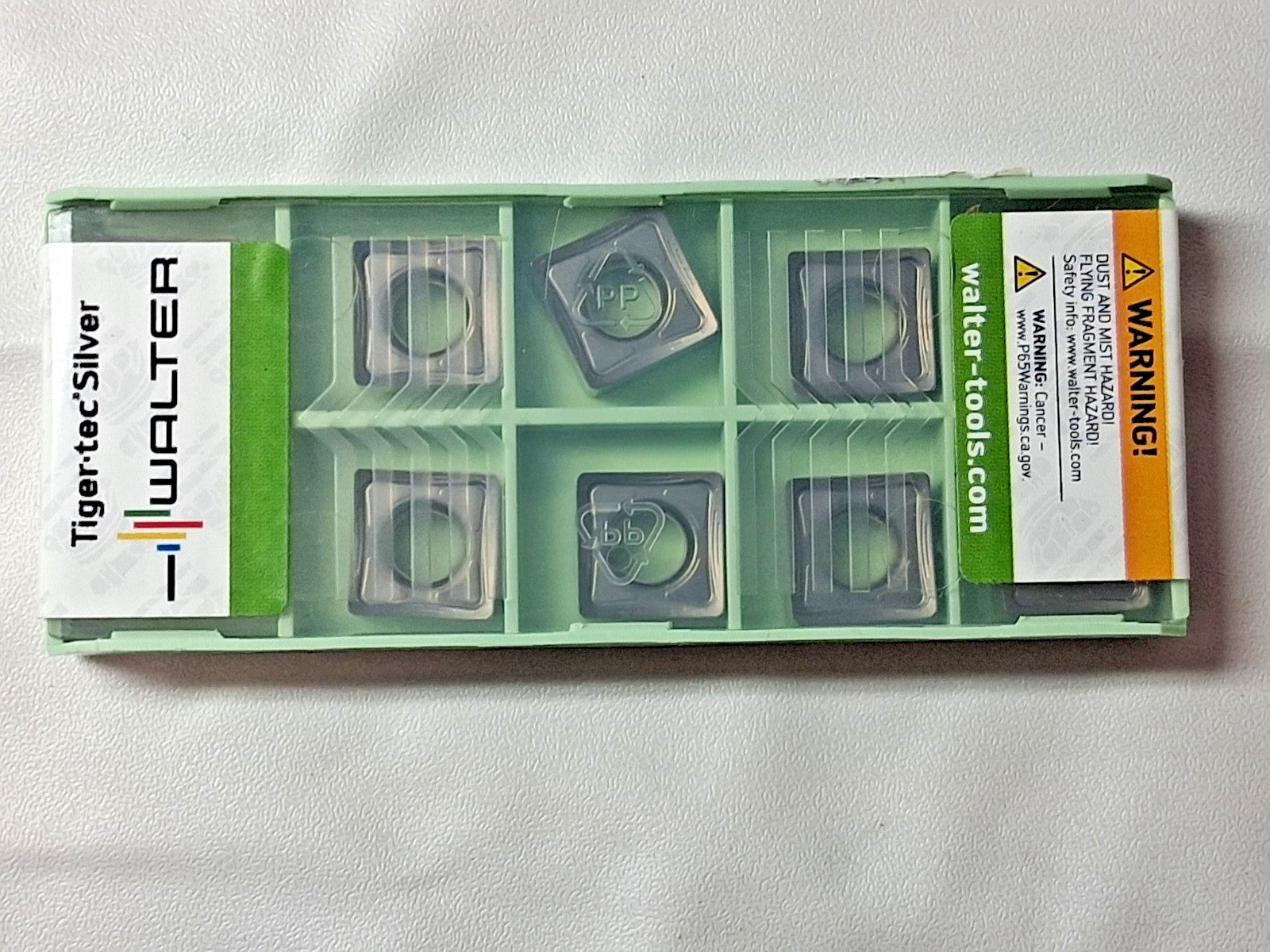

Please review photos, comes as shown.
