WALTER 10pc Turning Inserts: CNMM543HU3 WPP10G, Carbide 8138352

WALTER

 10pc Turning Inserts: CNMM543HU3 WPP10G, Carbide 8138352

MSRP: $300

• ANSI Insert Code CNMM543
• ISO Insert Code CNMM160612
• Relief Angle 0.000
• Insert Style CNMM
• Corner Radius (mm) 1.20
• Included Angle 80.00
• Manufacturer Grade WPP10G
• Coating/Finish TiCN+Al2O3+(TiN)
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness 6.35
• Series CNMM
• Inscribed Circle (mm) 15.88
• Insert Material Carbide
• Insert Shape Rhombic 80°
• Chip Breaker Operation Heavy Machining
• Grade Characteristics Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance
• Side Clearance Negative
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Mm) ( - 0 Decimals) 6.3500
• Maximum Depth of Cut (mm) 9.00
• Insert Holding Method Screw
• Clearance Code N
• Tolerance Code M
• Insert Length (mm) 16.12
• Manufacturers Catalog Number CNMM160612-HU3 WPP10G
• Chip Breaker HU3
• Width (mm - 2 Decimals) 15.88
• ANSI Size Code 543
• ISO Size Code 160612
• UNSPSC Code 23242105
• Insert Size Code 16
• Country of Origin Germany

(Description).

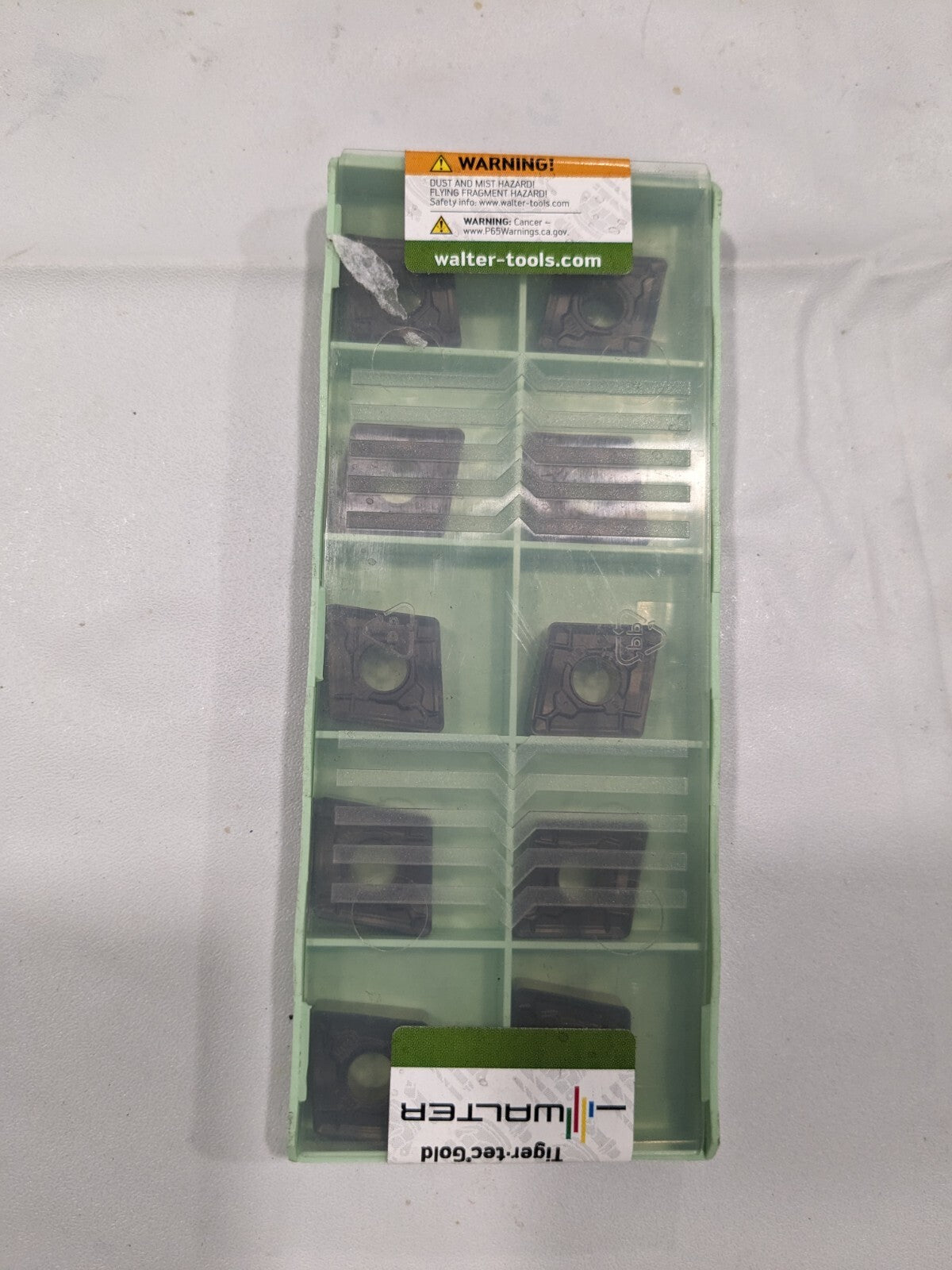

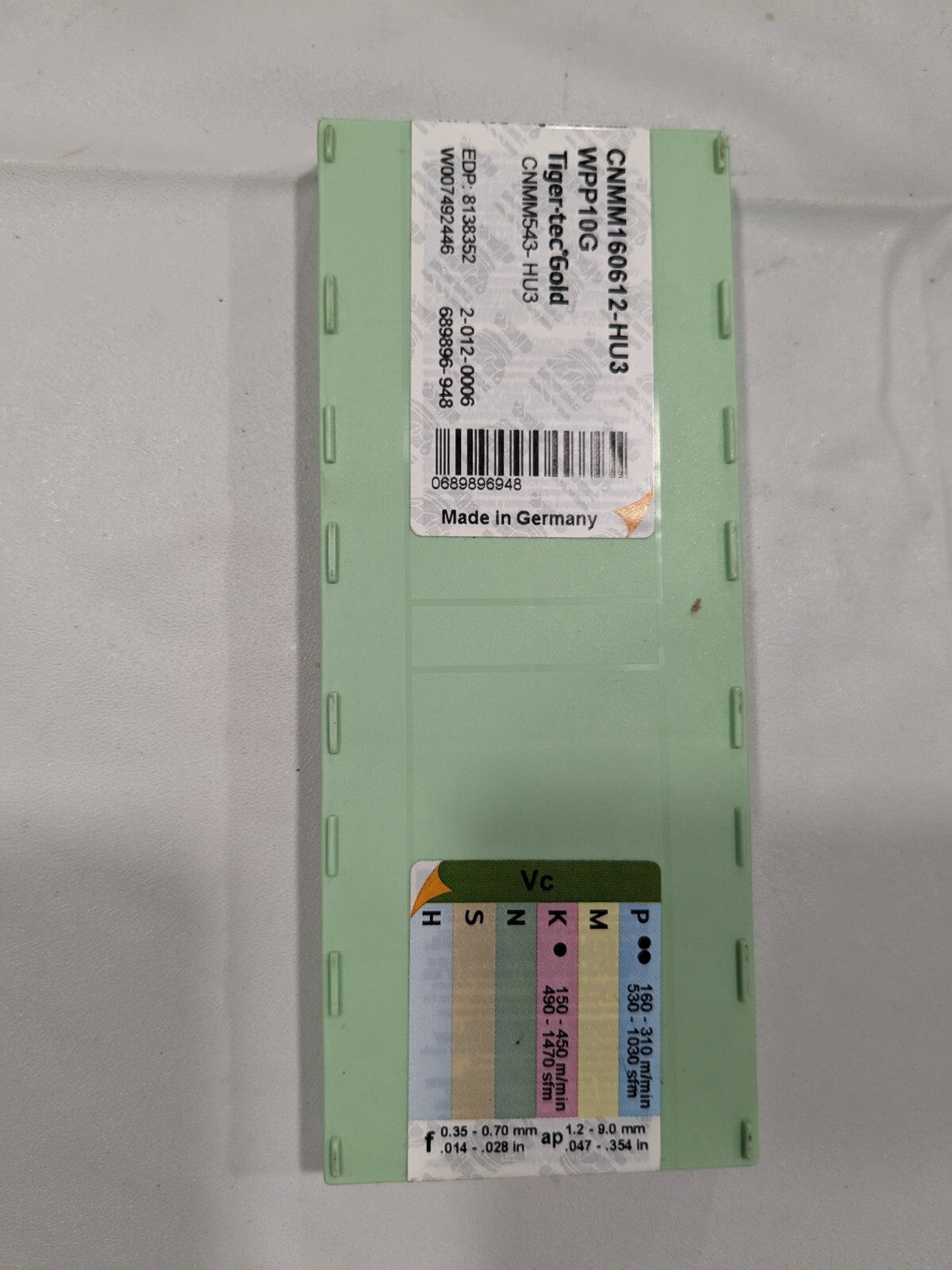

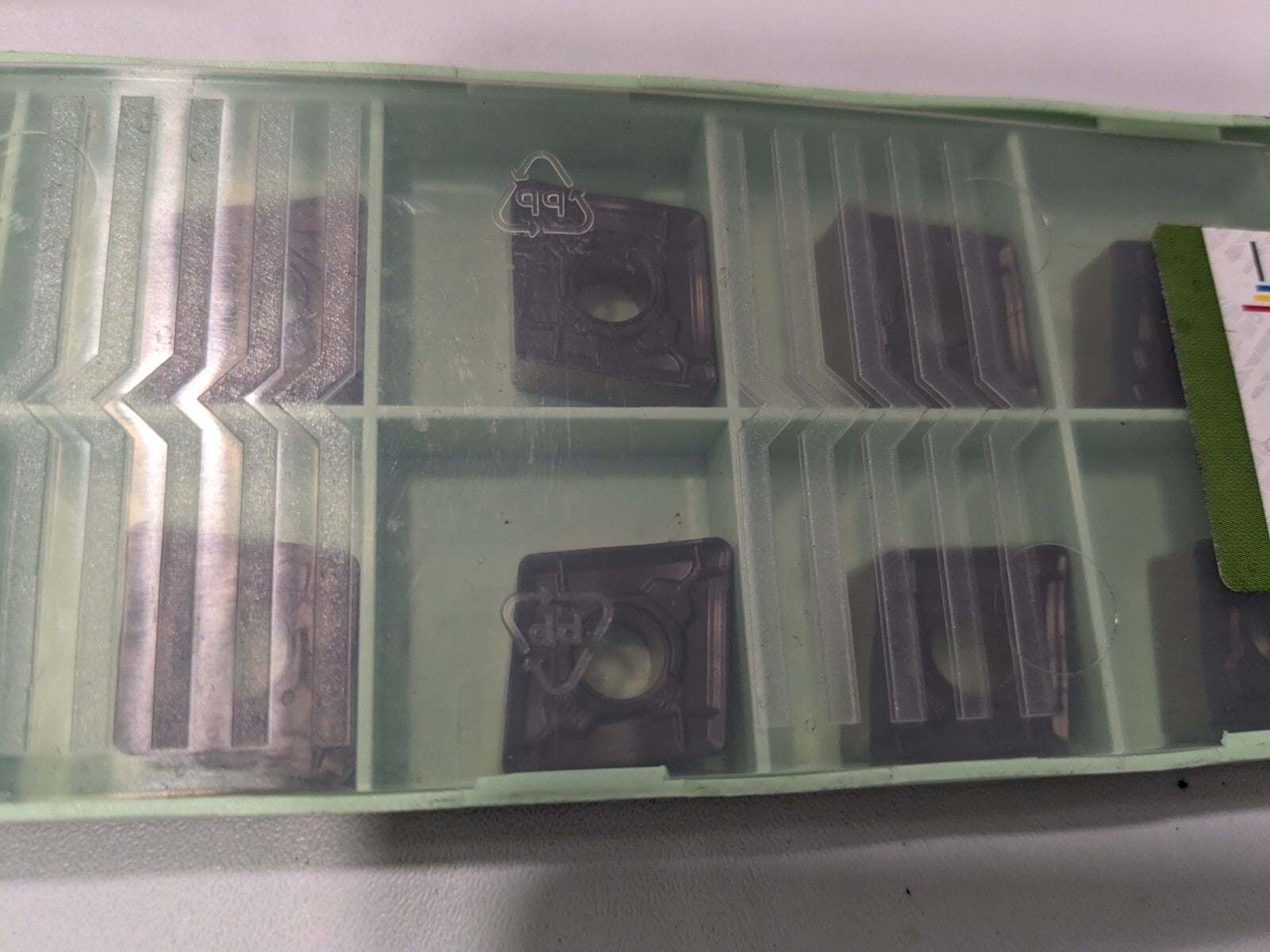

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
