Walter 0.4724" Indexable Grooving Toolholder G1111.2525R-4T12-052GX24 5936158
Walter 0.4724" Indexable Grooving Toolholder G1111.2525R-4T12-052GX24 5936158
Regular price
$88.51 USD
Regular price
$195.00 USD
Sale price
$88.51 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Walter
MSRP: $195
Model: 5936158
Description:
nternal or External External
Toolholder Type NonFace Grooving
Hand of Holder Right Hand
Maximum Depth of Cut (Decimal Inch) 0.4724
Maximum Depth of Cut (mm) 12.00
Minimum Groove Width (Decimal Inch) 0.1575
Minimum Groove Width (mm) 4.00
Maximum Groove Width (mm) 4.00
Maximum Groove Width (Decimal Inch) 0.1575
Overall Length (mm) 150.00
Overall Length (Decimal Inch) 5.9055
Toolholder Style G1111
Insert Compatibility GX24-3E4..; GX24-3F4..
Shank Height (mm) 25.00
Shank Height (Decimal Inch) 0.9843
Shank Width/Diameter (mm) 25.00
Shank Width/Diameter (Decimal Inch) 0.9843
Through Coolant Non Coolant Through
Multi-Use Tool Yes
Multi-Use Application Threading
Insert Holding Method Clamp
Back of Bar to Cutting Edge (mm) 26.10
Back of Bar to Cutting Edge (Decimal Inch) 1.0276
Head Length (mm) 40.00
Head Length (Decimal Inch) 1.5748
Full Radius Insert No
Shank Length (mm) 110.00
Shank Length (Decimal Inch) 4.3307
Complete Insert Compatibility GX24-3E400N02-CF5; GX24-3E400N030-CE4; GX24-3E400N03-CE4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N080-UF4; GX24-3E400N08-UF4; GX24-3E400N200-RD4

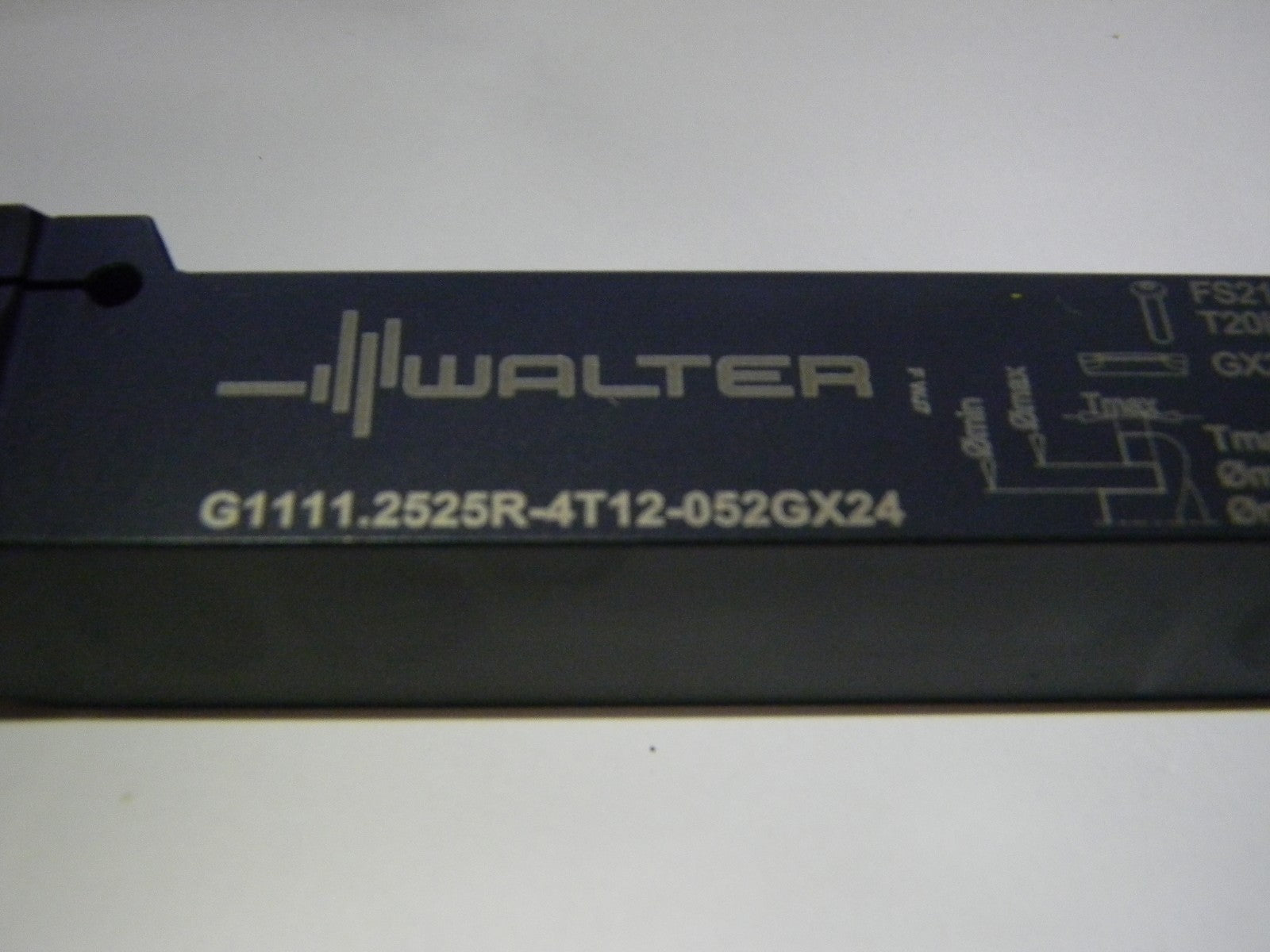

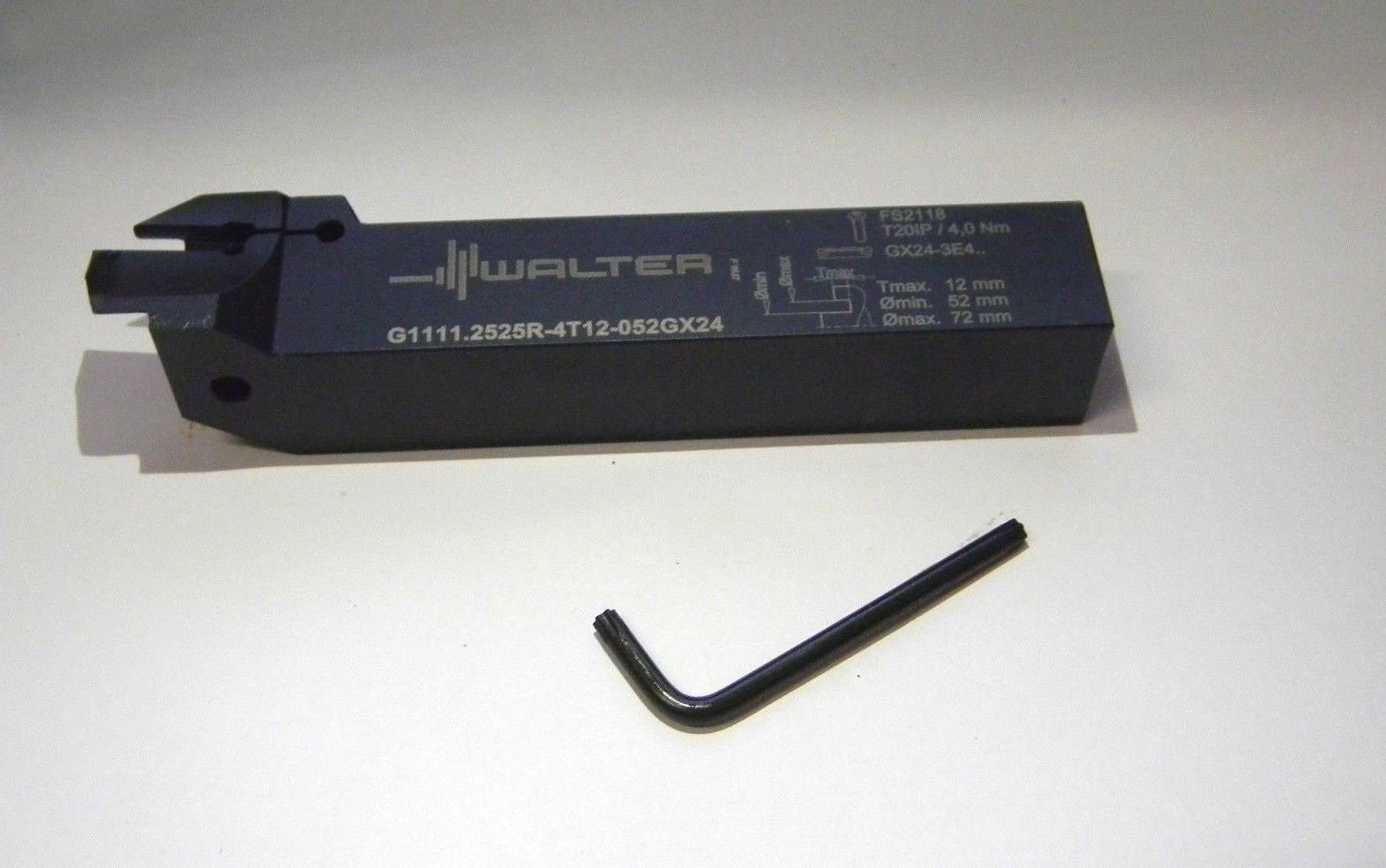

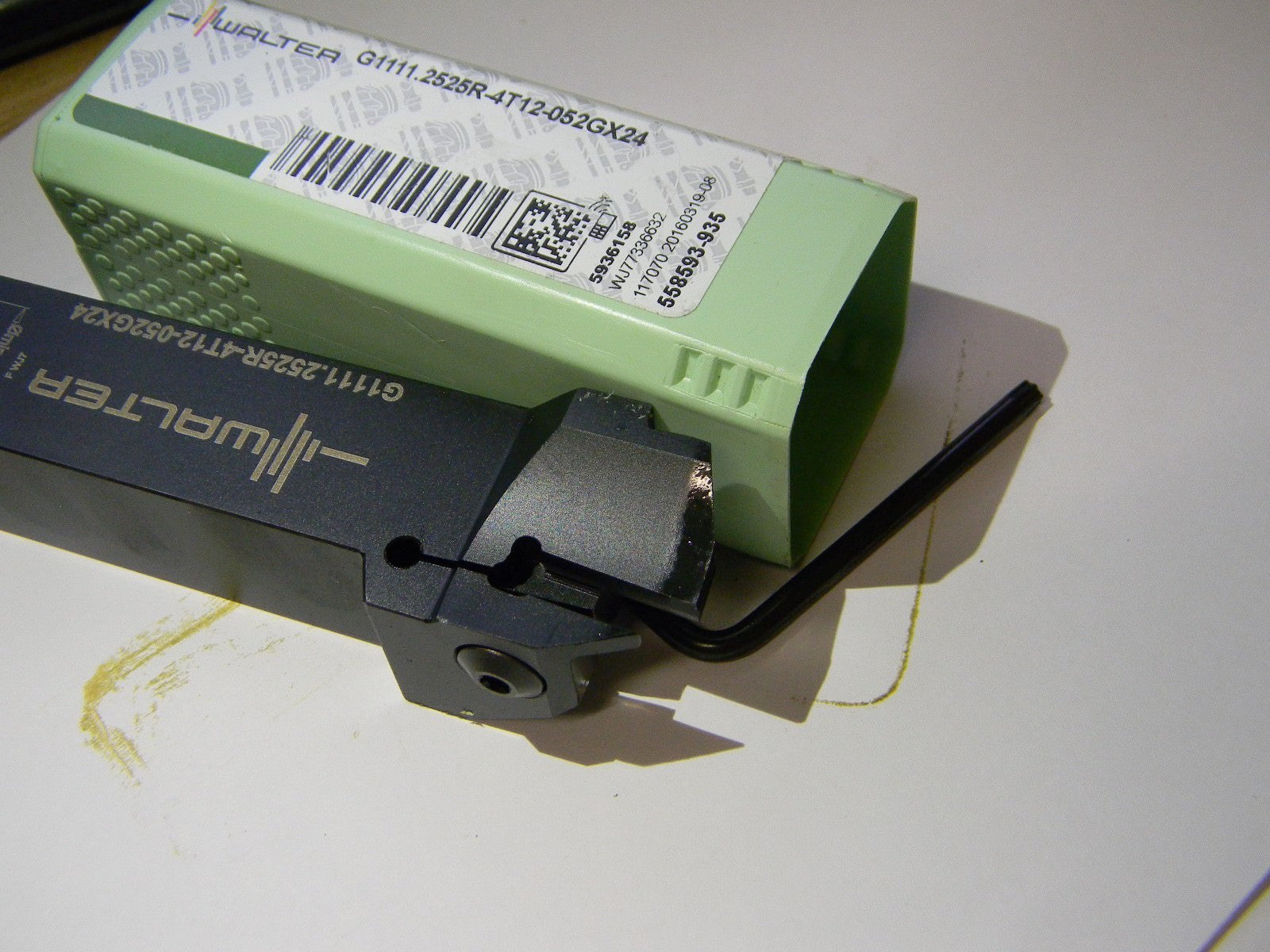

This listing is for One Indexable Grooving Toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Dina June 6 2018
DP3430
Cab Kasi Bin B11
