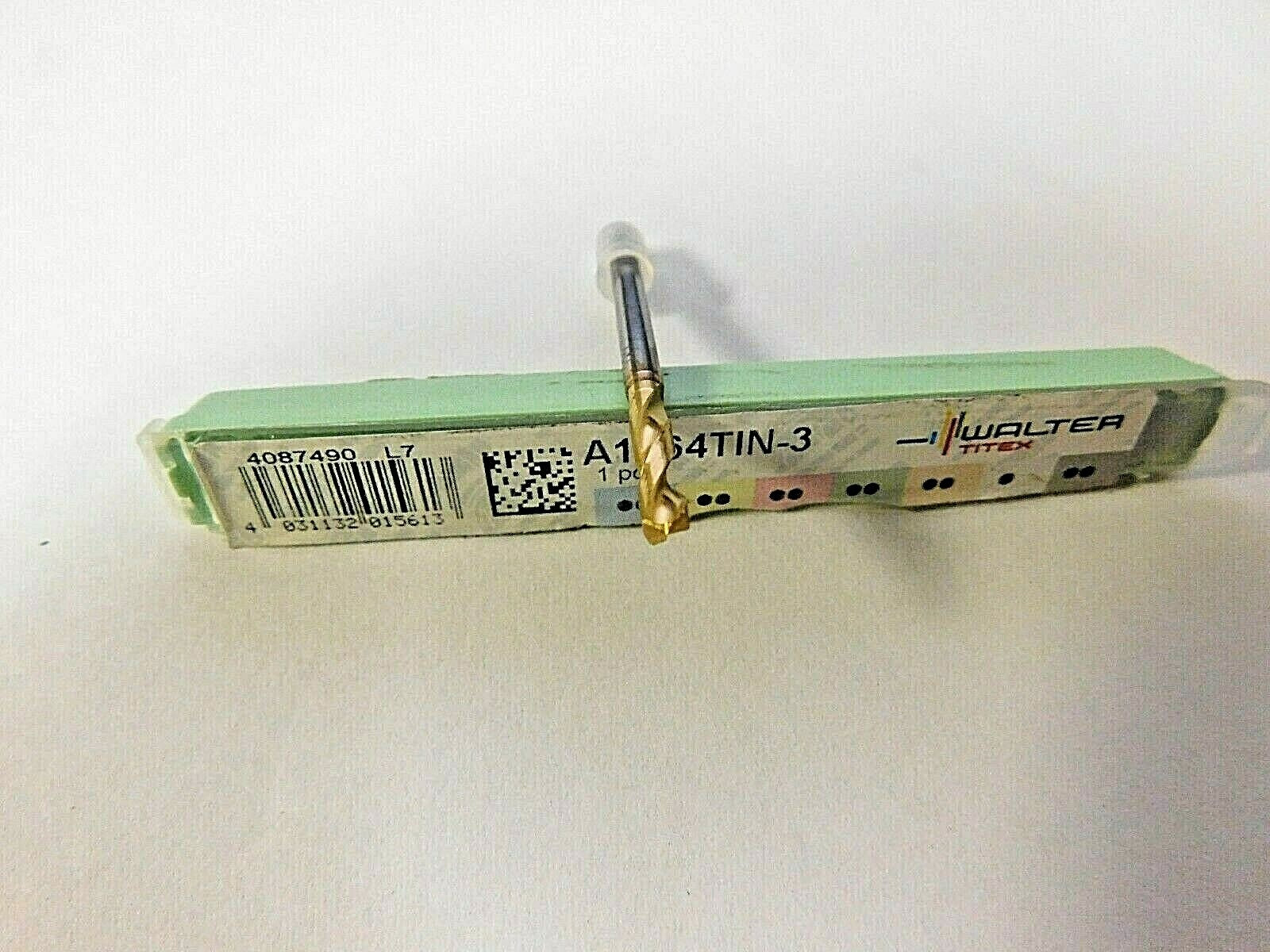

Walter 0.1181" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit 5057713
Walter 0.1181" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit 5057713
Regular price
$23.58 USD
Regular price
$50.00 USD
Sale price
$23.58 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Walter
MSRP: $50.00
Model: A1164TIN-3
Description:
Drill Bit Size (Decimal Inch) 0.1181
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Flute Length (Inch) 5/8
Overall Length (Inch) 1-13/16
Point Type Standard
Specification Designation DIN
Spiral Type Regular Spiral
Threaded Shank No
Number of Flutes 2
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) -0.010 to 0.000
Drill Bit Diameter Tolerance (Decimal Inch) -0.00039 to 0.00000
Specification Number DIN 6539
Web Thinning Web-Thinned
Material Grade K30F
Series/List A1164TIN
This listing is for One Jobber Drill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
