Valenite Carbide Inserts CNMG190612-R4 CNMG643-R4 Grade 5625 QTY 7 00352
Valenite Carbide Inserts CNMG190612-R4 CNMG643-R4 Grade 5625 QTY 7 00352
Regular price
$102.80 USD
Regular price
$210.00 USD
Sale price
$102.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Valenite
MSRP: $210.00
Model: 00352
Description:
Insert Style: CNMG
Insert Size: 643
Material: Carbide
Length (Decimal Inch) : 0.7620
Inscribed Circle (Decimal Inch) : 0.7500
Inscribed Circle (Inch) : 3/4
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Corner Radius (Inch) : 3/64
Corner Radius (Decimal Inch) : 0.0469
Manufacturer's Grade: VP5625
Coating: TiN/TiCN/Al2O3/TiC
Material Grade: C5
Chip Breaker: R4
Hole Diameter (Decimal Inch): 0.3150
Rake: Neutral
Rake Angle: 0 --
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: P
Included Angle: 80
Insert Hand: Neutral --
Insert Holding Method: Pin & Clamp
Shape: Diamond

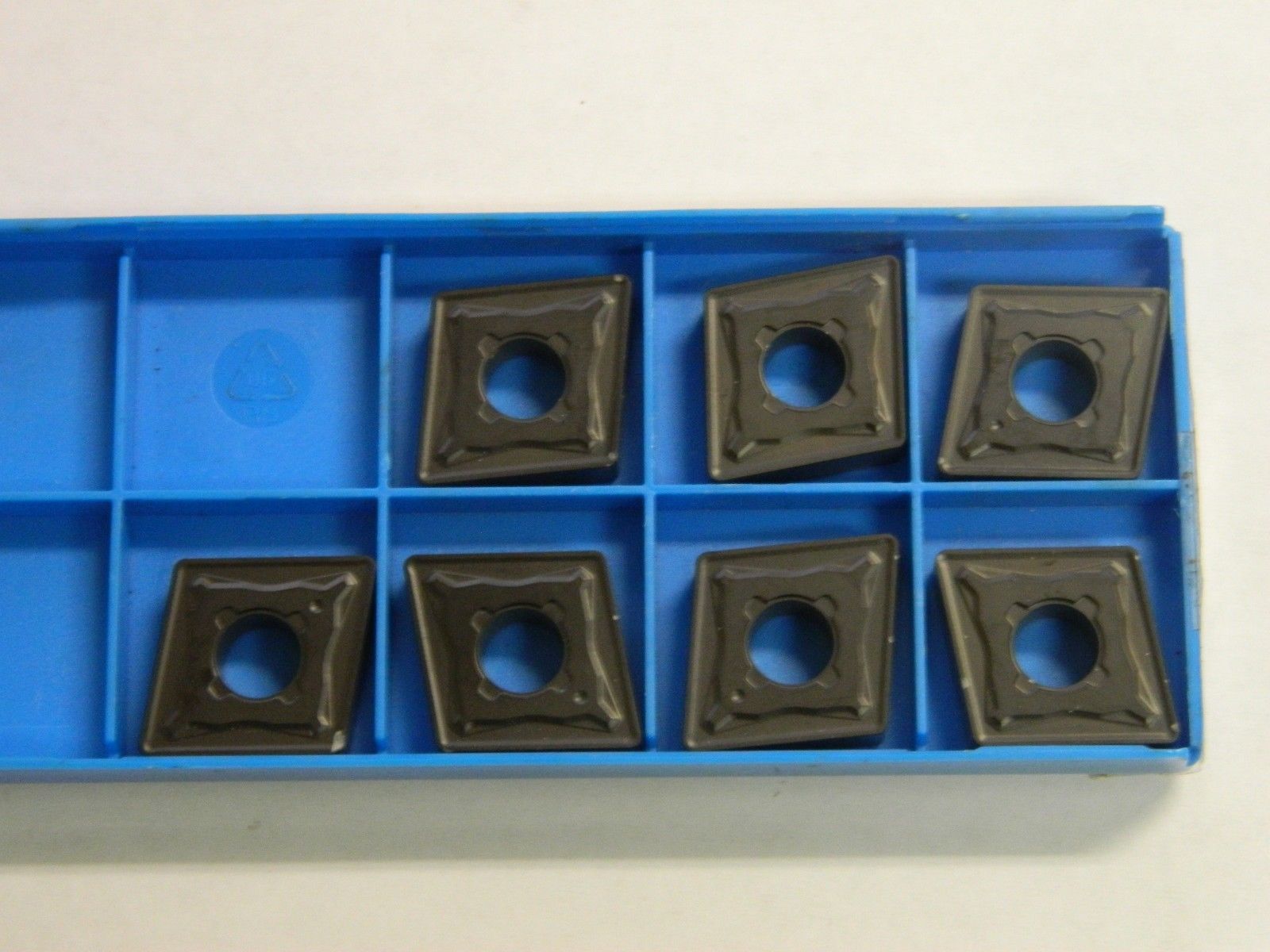

This listing is for One Pack of 7 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
