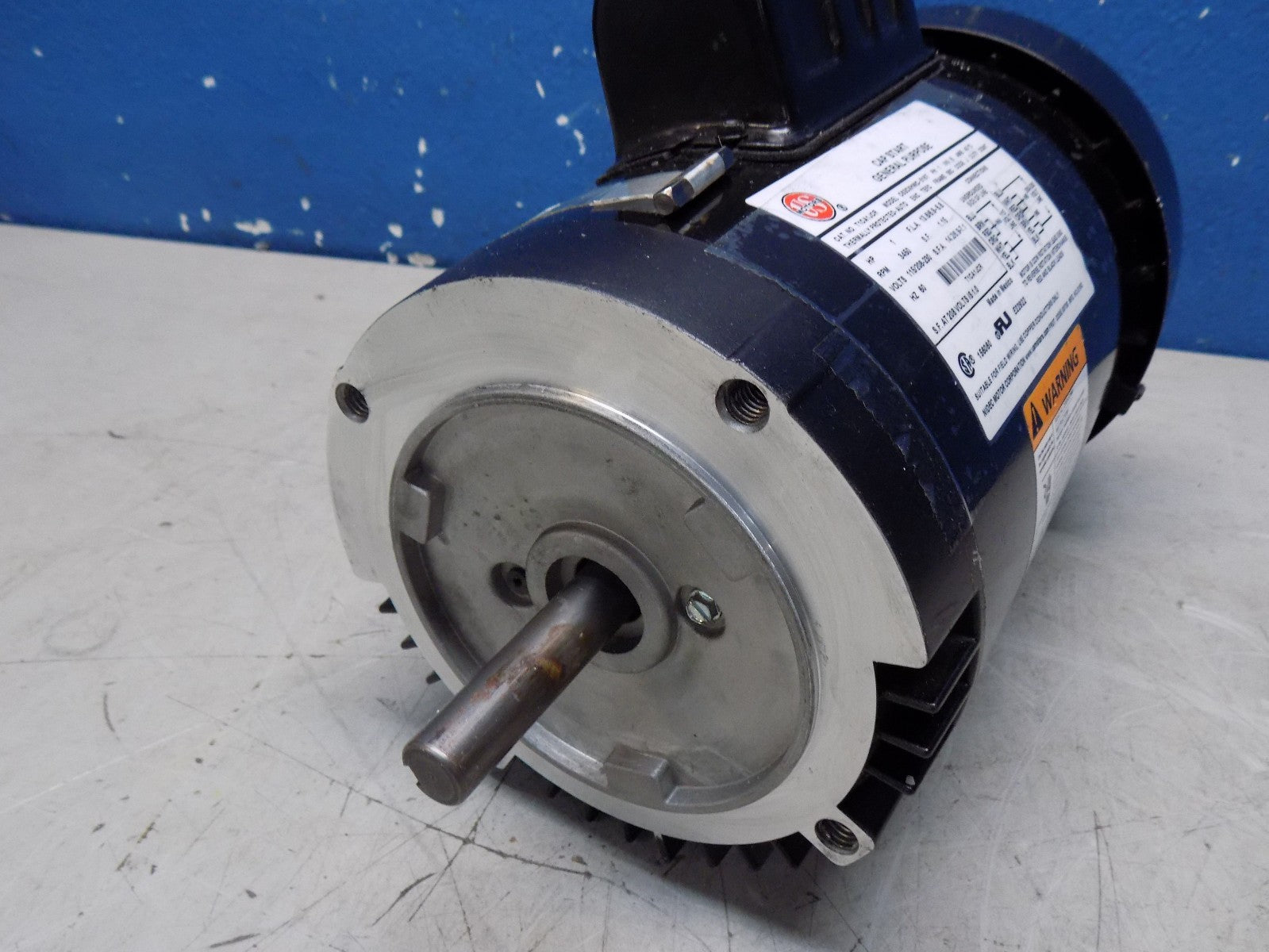

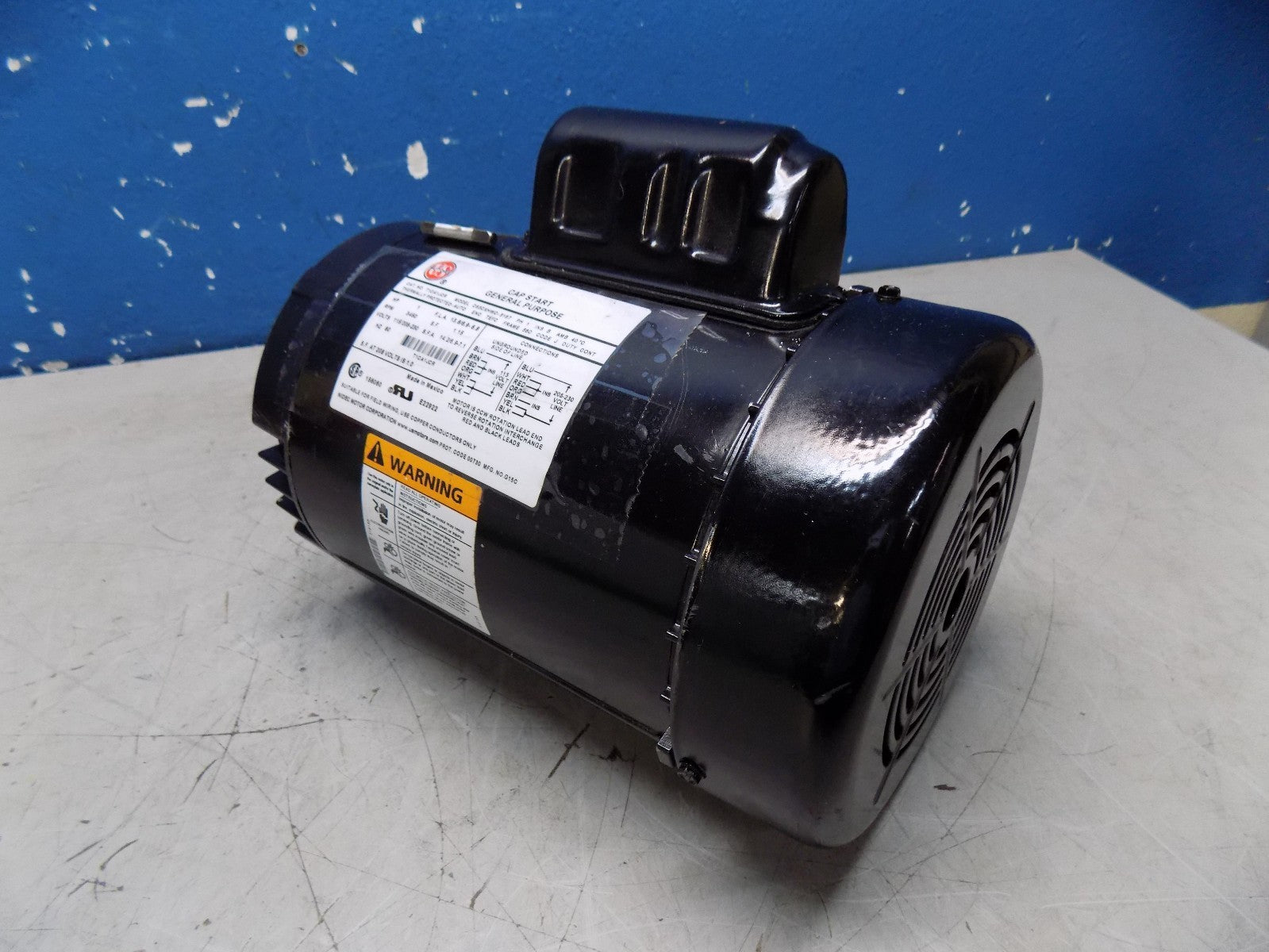

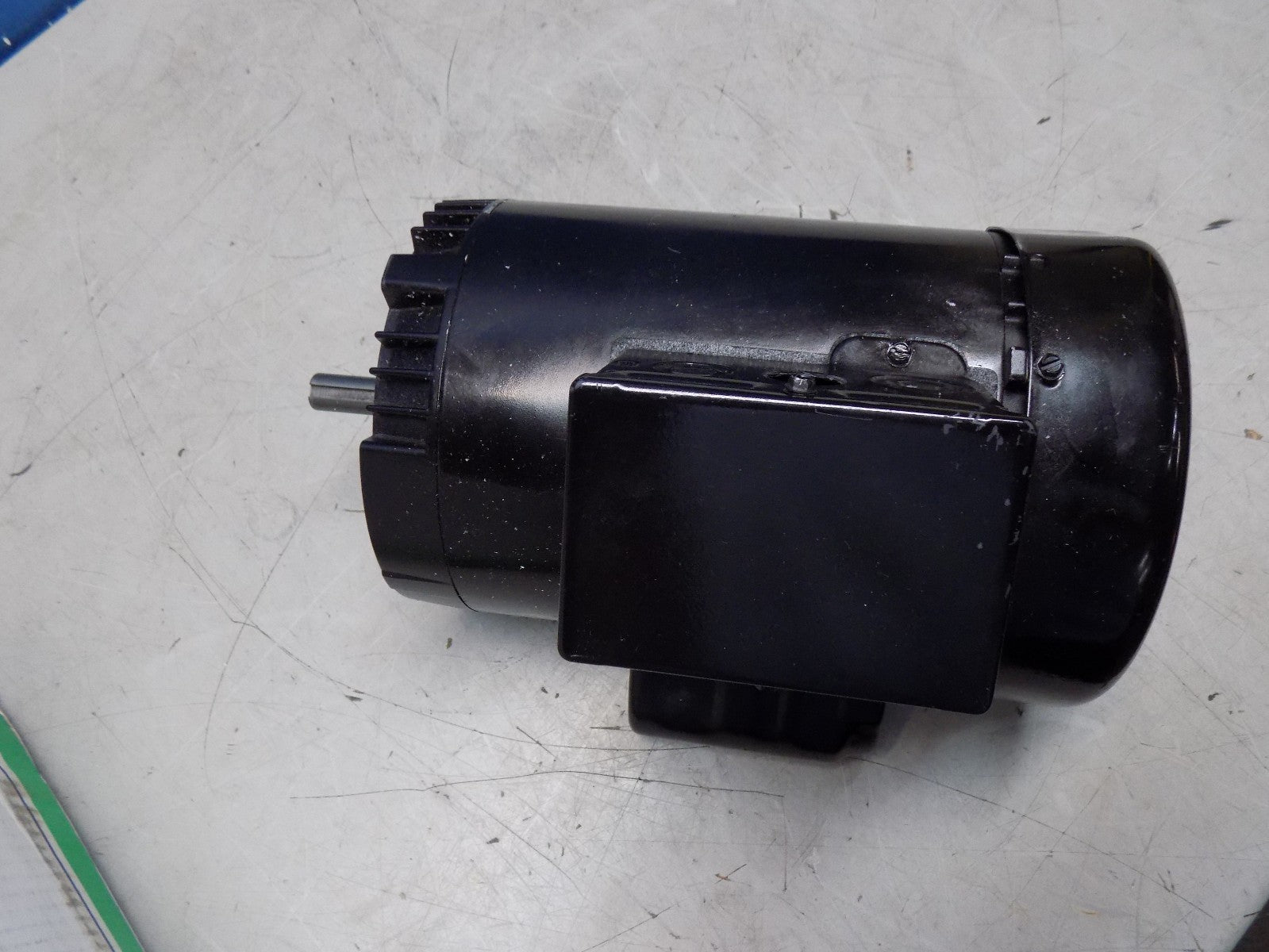

US Motors 1Hp General Purpose Motor 3,450RPM 1Spd 1Ph PARTS/REPAIR C63CXHWC-5167
US Motors 1Hp General Purpose Motor 3,450RPM 1Spd 1Ph PARTS/REPAIR C63CXHWC-5167
Regular price
$64.79 USD
Regular price
$140.00 USD
Sale price
$64.79 USD
Shipping calculated at checkout.
Couldn't load pickup availability
US motors
MSRP: $140.00
Model: C63CXHWC-5167
Description:
Motor Type: Single Phase Permanent Split Capacitor (PSC)
Type of Enclosure: TEFC
Horsepower: 1
Thermal Protection Rating: None
Name Plate RPMs: 3450
Voltage: 115/208-230
Frequency Hz: 60
Frame Size: 56C
Mount Type: C-Face
Number of Speeds: 1
Bearing Type: Ball
Applications: General Purpose
Full Load Amperage: 13.0/6.6-6.5
Insulation Class: B
Overall Length (Decimal Inch): 12.3000"
Shaft Diameter x Length (Inch): 5/8 x 2-1/16"
Full Load Efficiency Rating: 78.4
Service Factor Rating: 1.15
***Item was tested for power and blew a breaker. May have a connection issue. Unsure of the problem. Very minor shipping distress. Being sold AS/IS for parts/repair***
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
