US Motors 1/2 HP Single Phase PSC Motor 1,075 RPM, 115 Volt, 60 Hz DAMAGED 1924
US Motors 1/2 HP Single Phase PSC Motor 1,075 RPM, 115 Volt, 60 Hz DAMAGED 1924
Regular price
$115.70 USD
Regular price
$250.00 USD
Sale price
$115.70 USD
Shipping calculated at checkout.
Couldn't load pickup availability
US Motors
Single Phase PSC Motor
MSRP: $250.00
- Motor Type Single Phase Permanent Split Capacitor (PSC)
- Type of Enclosure TEAO
- Motor Design 1-Phase
- Horsepower 1/2
- Thermal Protection Rating Auto
- Enclosure Style TEAO
- Name Plate RPMs 1075
- Voltage 115; 115
- Nameplate Rpm 1075RPM
- Voltage 115
- Frequency Hz 60; 60 Hz
- Frequency 60 Hz
- Frame Size 48YZ
- Mount Type Yoke
- Number of Speeds 2
- Bearing Type Ball
- Number Of Phases 1
- Application HVAC
- Full Load Amperage 7.2
- Shaft Diameter X Length 5/8 x 2-1/2
- Full Load Efficiency Rating 68.70
- Service Factor Rating 1.0
- Applications HVAC; HVAC
- Insulation Class B
- Overall Length (Decimal Inch) 10.8000
- Shaft Diameter x Length 5/8 x 2-1/2
- Service Factor Rating 1.00
- Motor Rotation Reversible
- Phase 1
- PSC Code 6105
This item is listed as Parts/Repair due to the item being damaged during shipping. Item was not tested. DOES NOT come with warranty. SOLD AS IS.

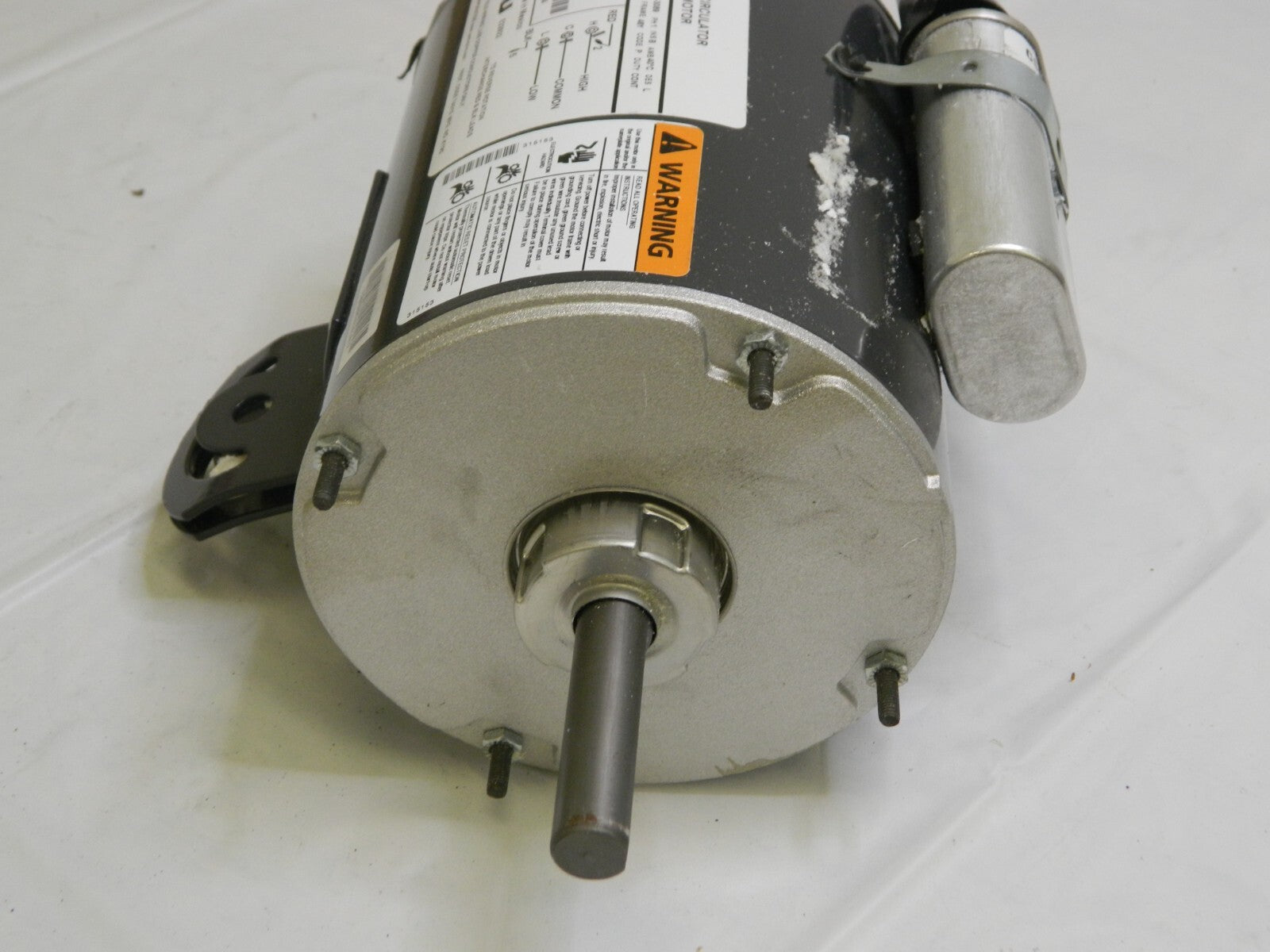

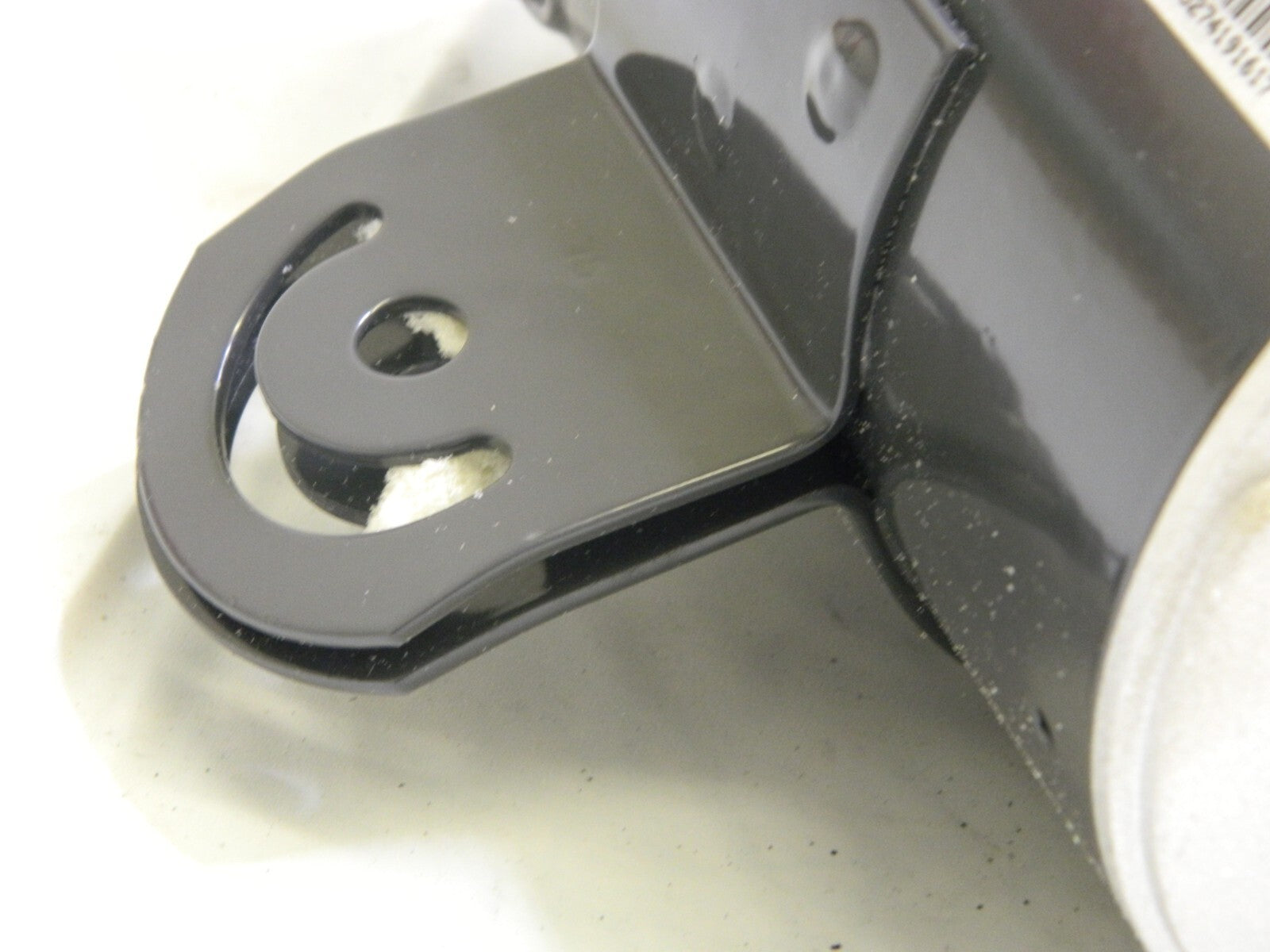

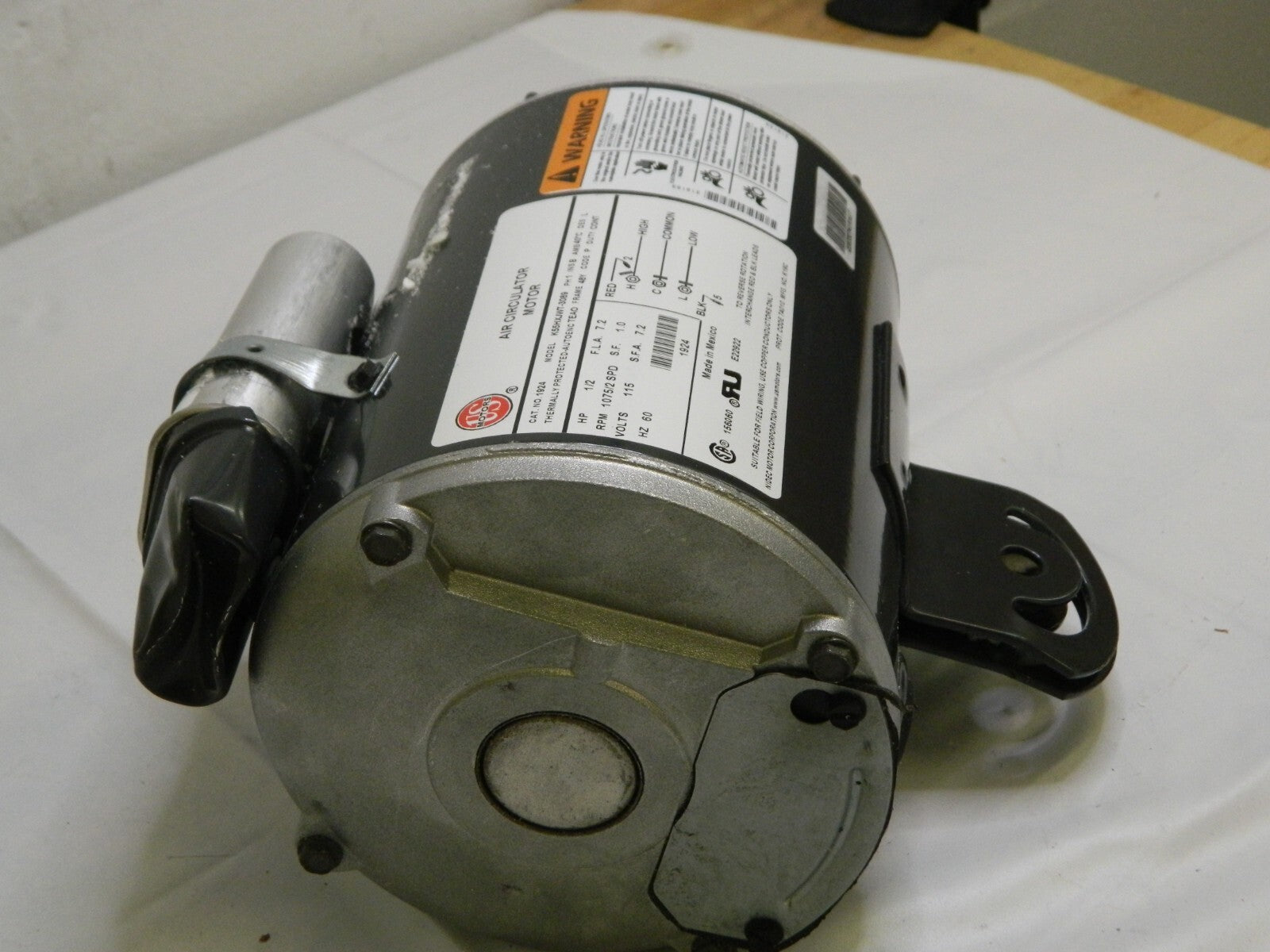

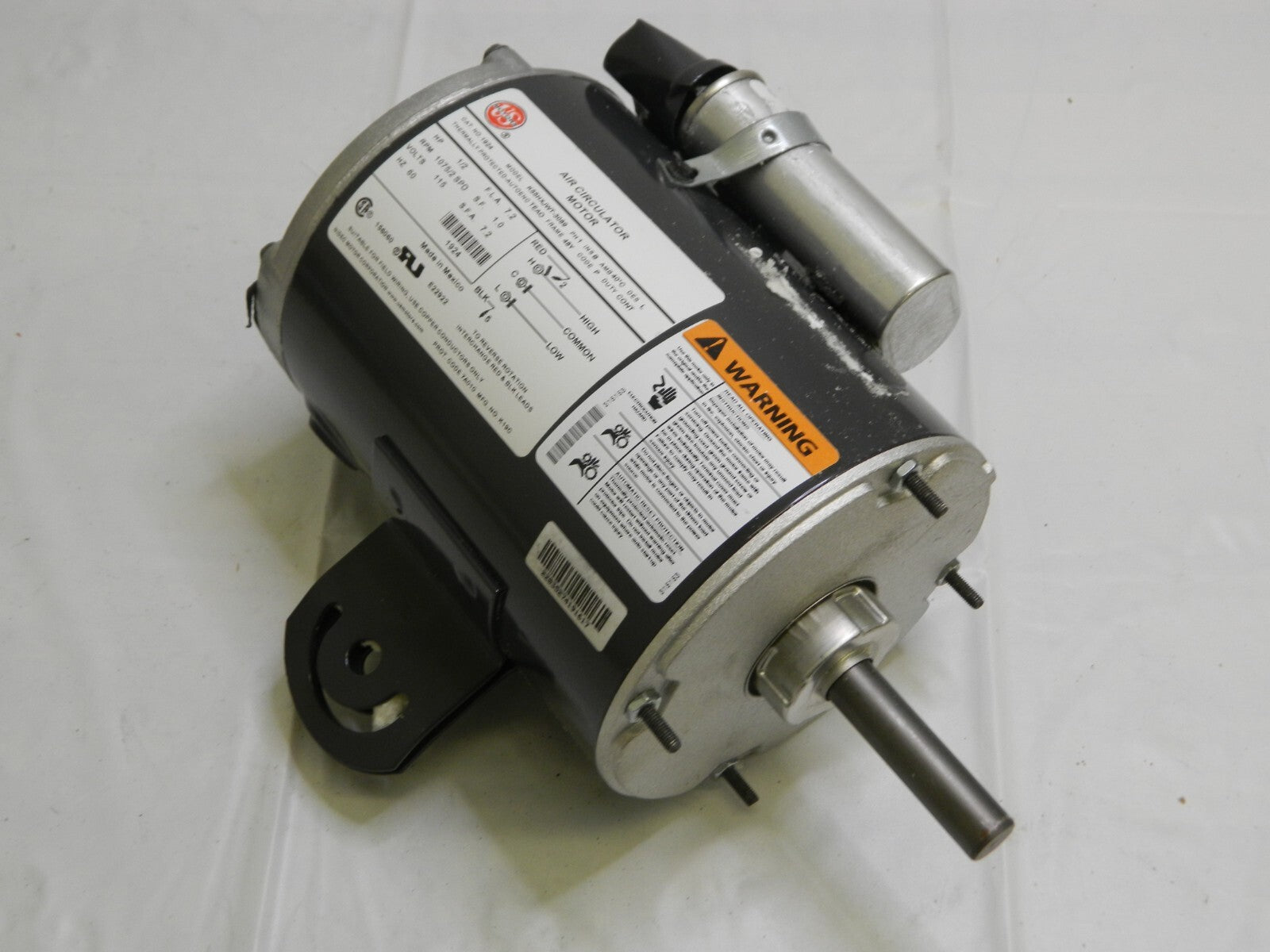

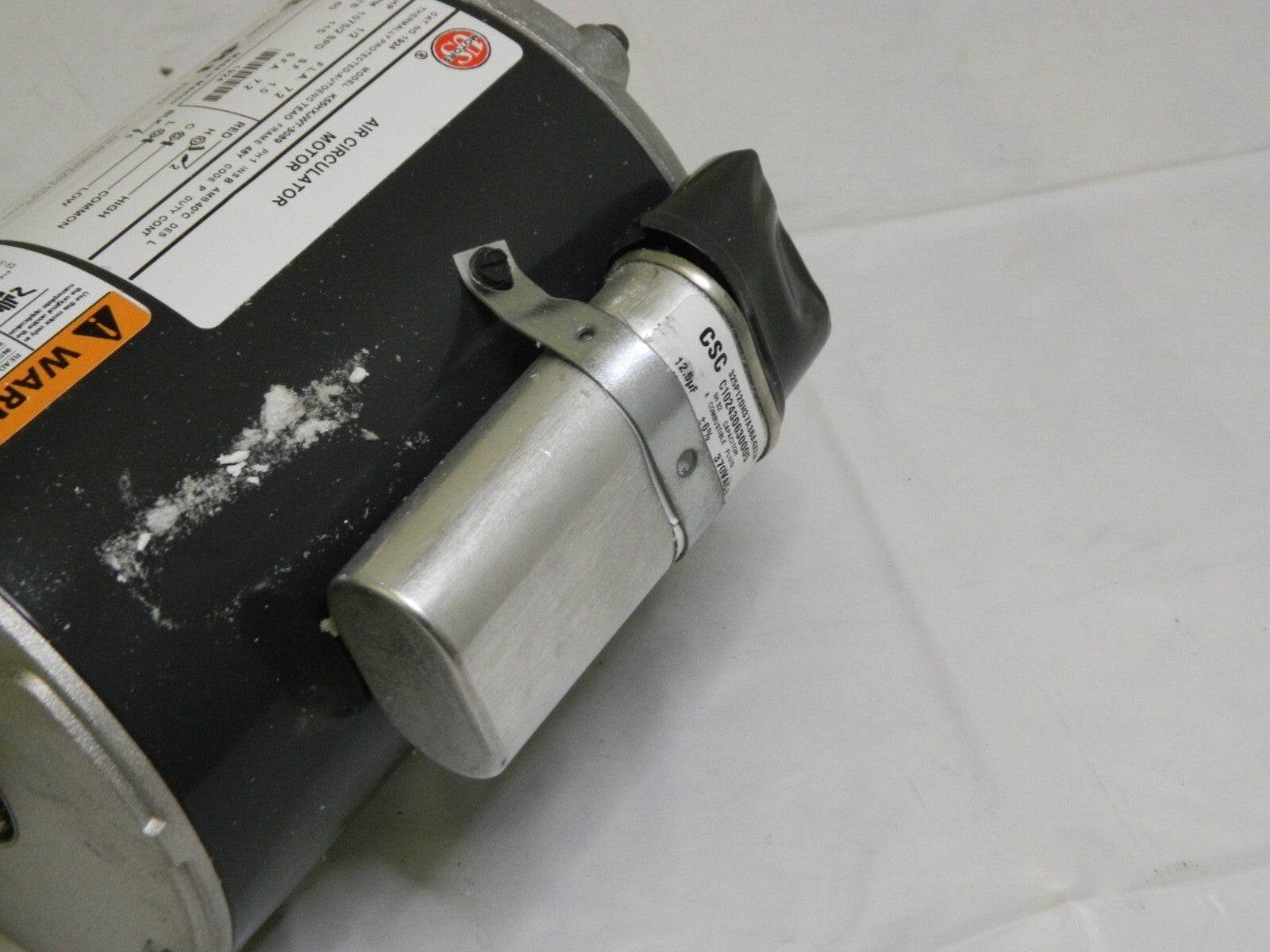

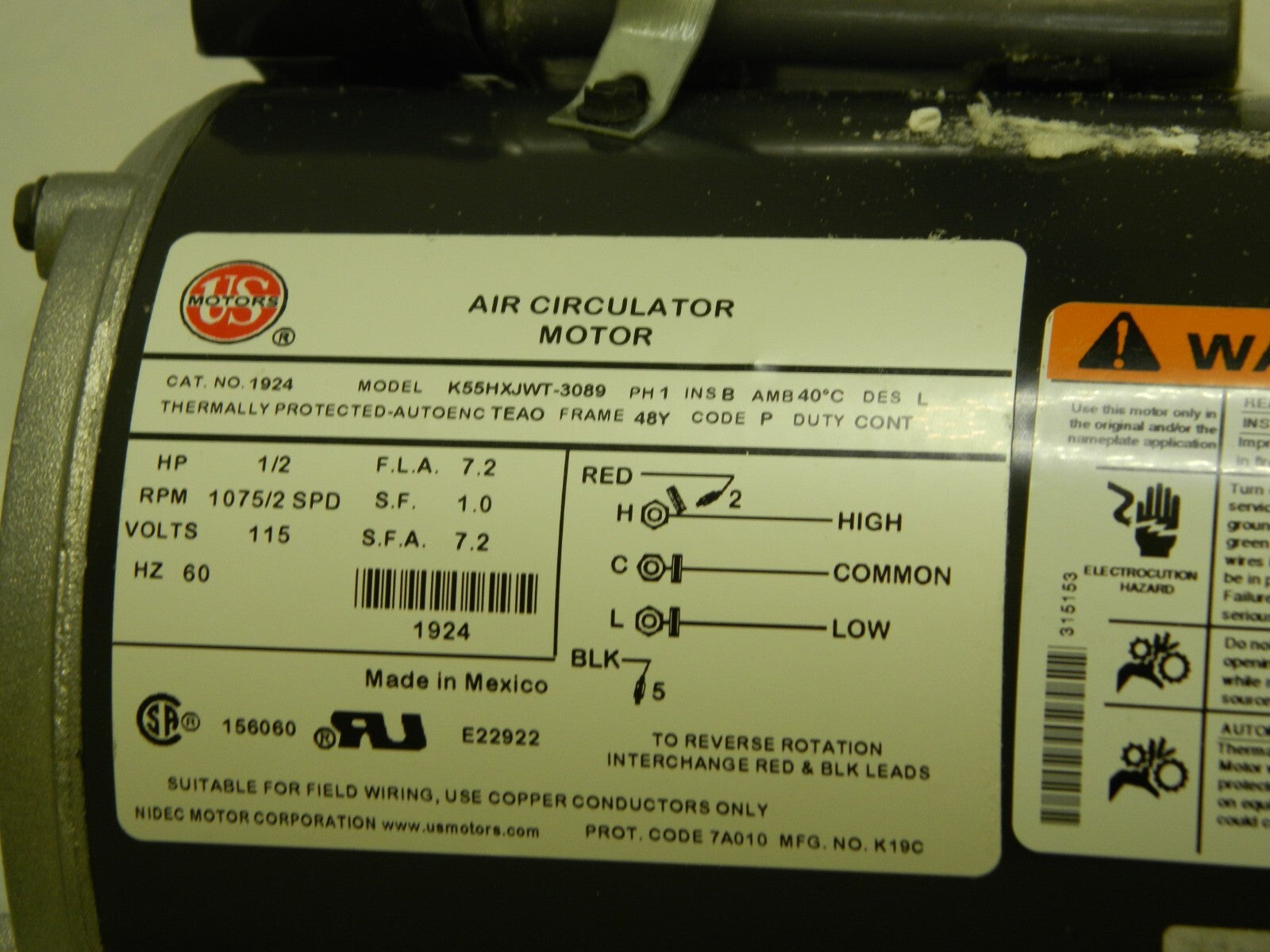

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
**PLEASE NOTE: Items weighing over 75 lbs will have an additional $15 surcharge on shipping cost, imposed by the shipping carrier**
