Ultra Dex
Indexable Boring Bar

MSRP: $425.00

• Item Indexable Boring Bar
• Shank Material Carbide
• Insert Shape 80 Degrees Diamond
• ANSI Code E08R SCLPR3
• Left/Right Hand Right Hand
• Mounting Style Screw Lock
• Rake Positive
• ANSI Number E08R SCLPR3
• Cutting Edge Type -5 Degrees
• Min. Bore 0.560"
• Lead Angle -5 Degrees
• For Use With CPMT 32.51
• Style Coolant-Thru
• Inscribed Circle 3/8"
• Type Turning
• Cutting Direction Right Hand
• Side Cutting Edge Angle -5 Degrees
• Center to Cutting Tip 0.3440 in
• Insert Clearance Angle 11 Degrees
• Insert Inscribed Circle 3/8 in
• Insert Holding Type Screw On
• Compatible Hardware MTS-35 Insert Screw, T-15 Key
• Cutting Application Boring
• Number of Coolant Holes 1
• Number of Inserts 1
• Coolant Fed Coolant Through
• Insert Style CPMT

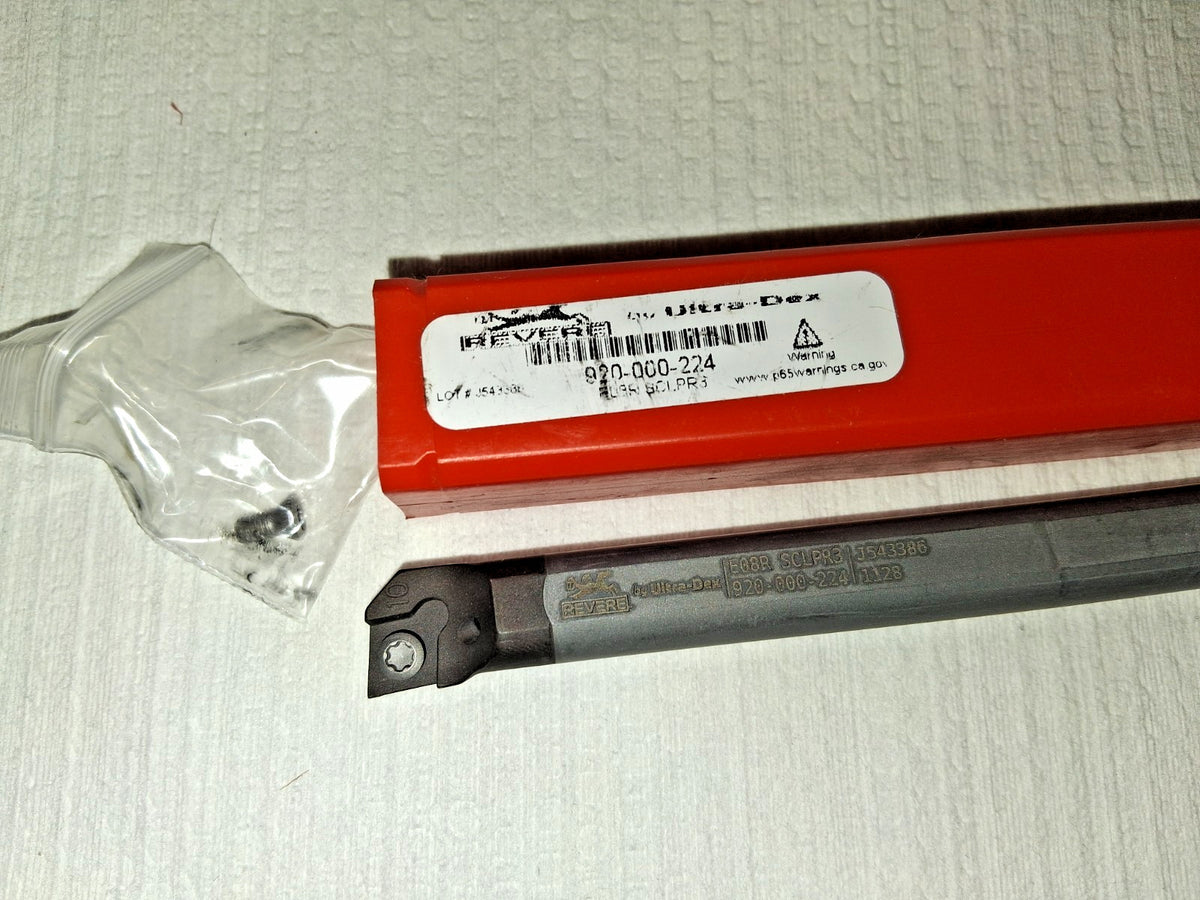

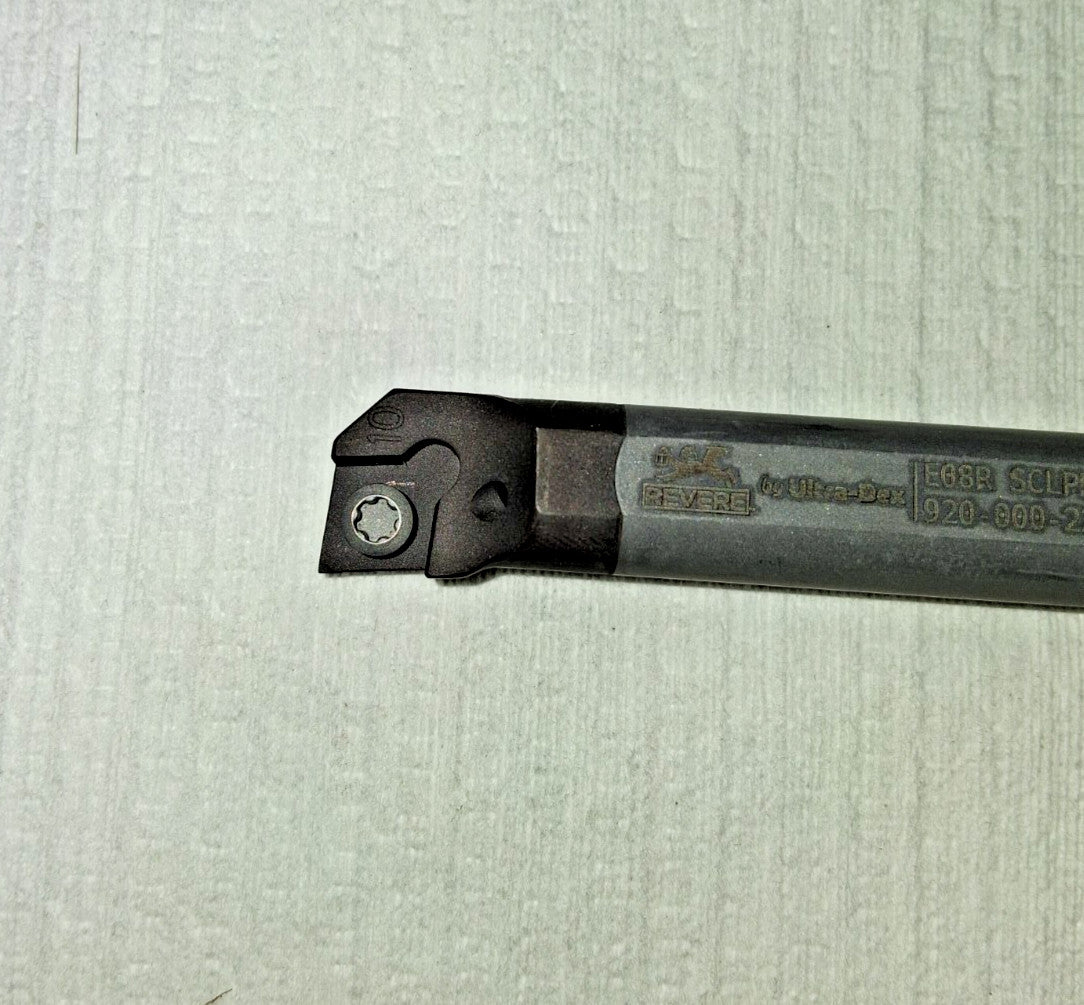

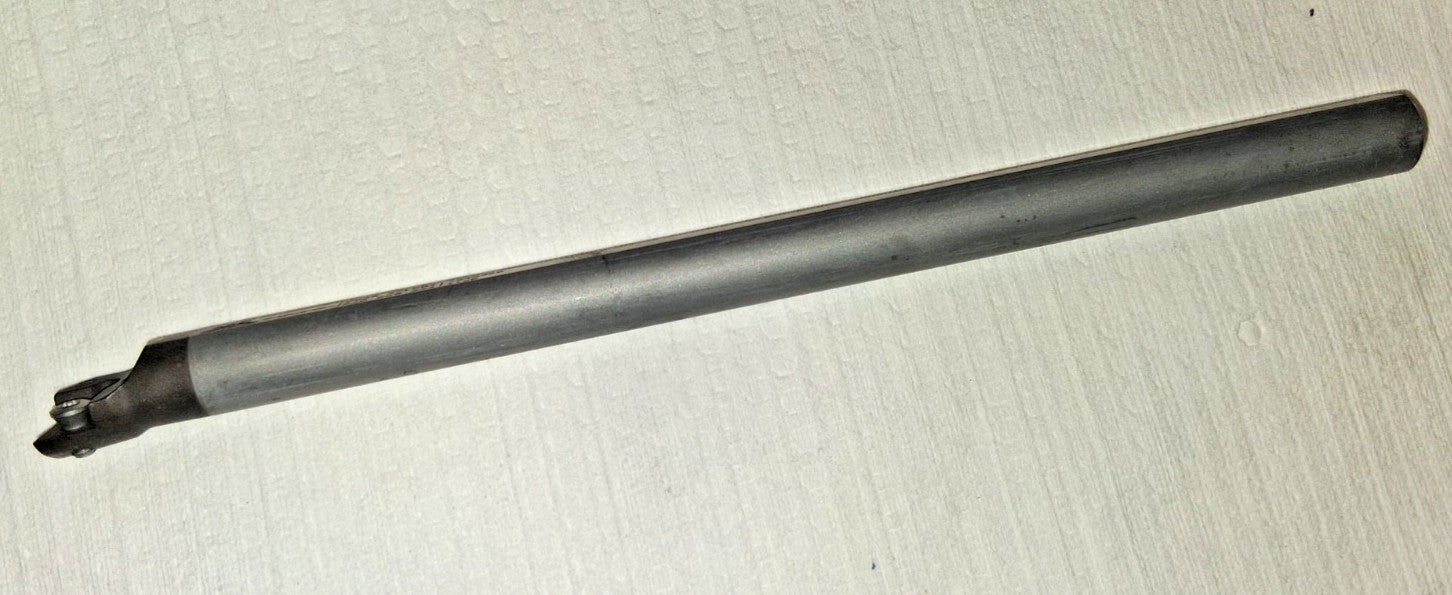

Please review photos, comes as shown.
