Turning Insert: VNMG331P TCN55, Solid Carbide 41871

MSRP: $170

• Insert Style VNMG
• Insert Size Code 331
• Insert Shape Diamond
• Included Angle 35
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade TCN55
• Coating/Finish Titanium Nitride
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Shape Code V
• Corner Radius (Inch) 1/64
• Hole Diameter (Mm) ( - 0 Decimals) 3.81
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series KENLOC
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6539
• Insert Length (mm) 16.61
• Primary Workpiece Material Code P; M
• Material Grade C5
• UNSPSC Code 23242105
• Chip Breaker G

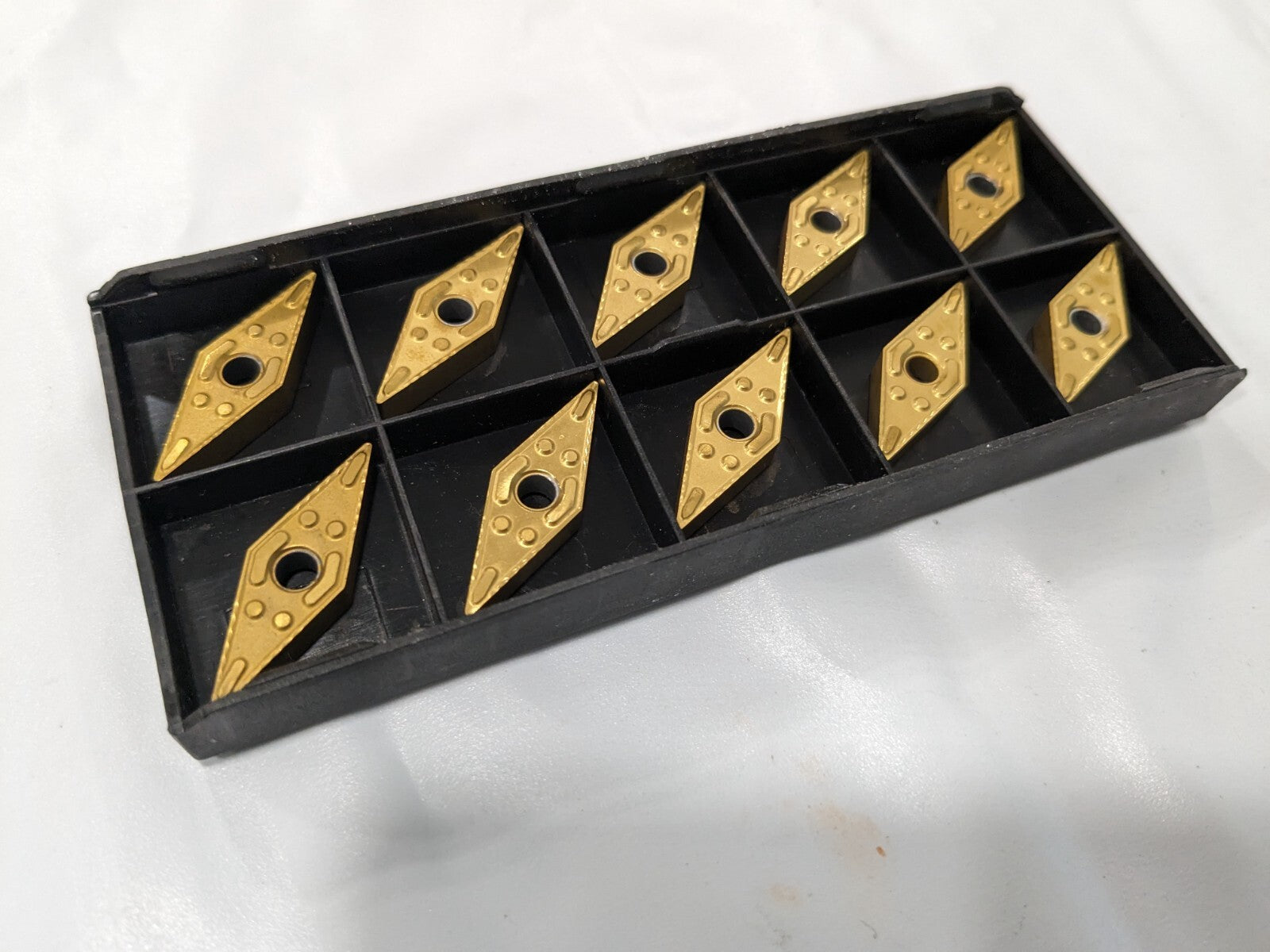

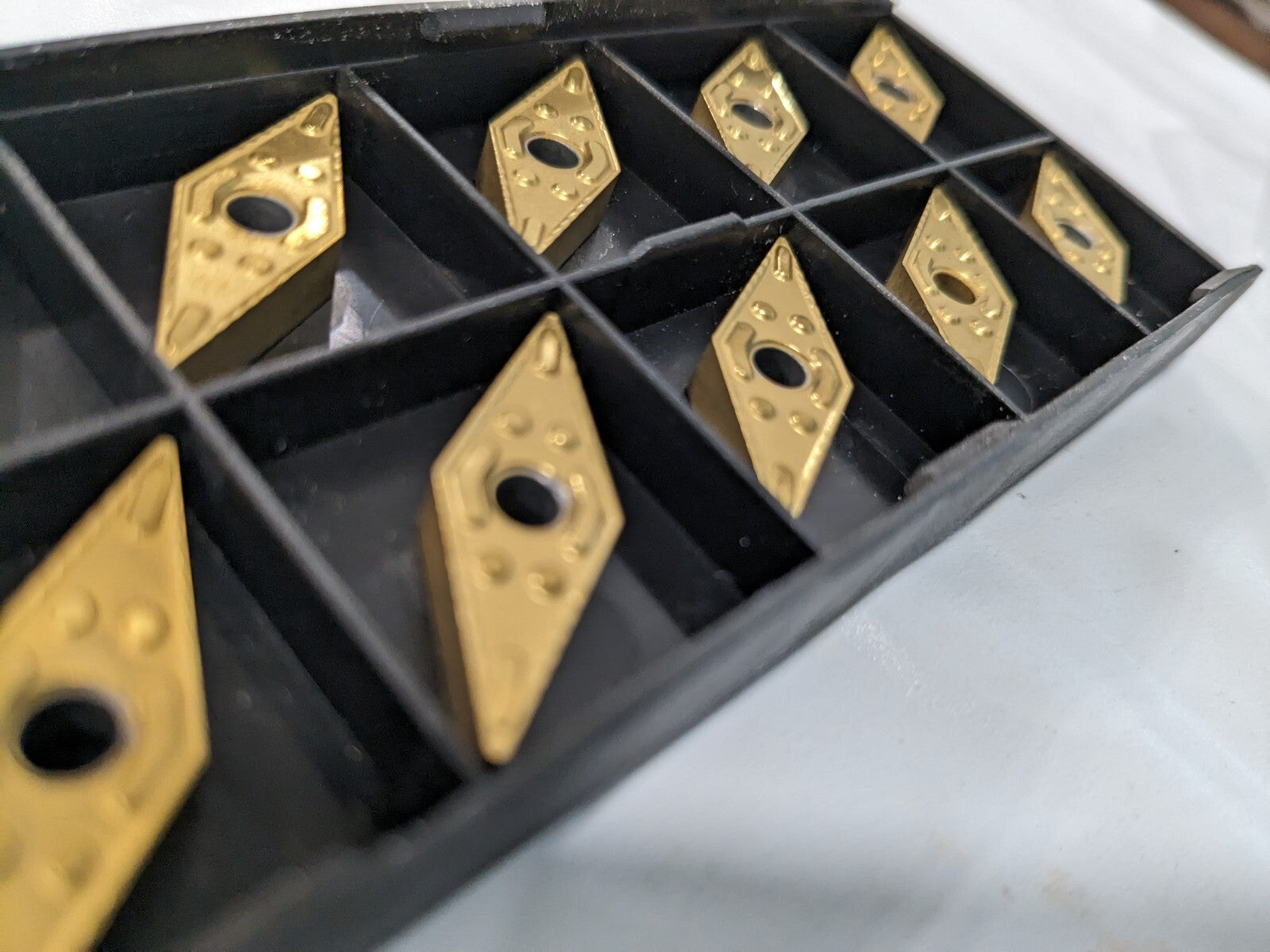

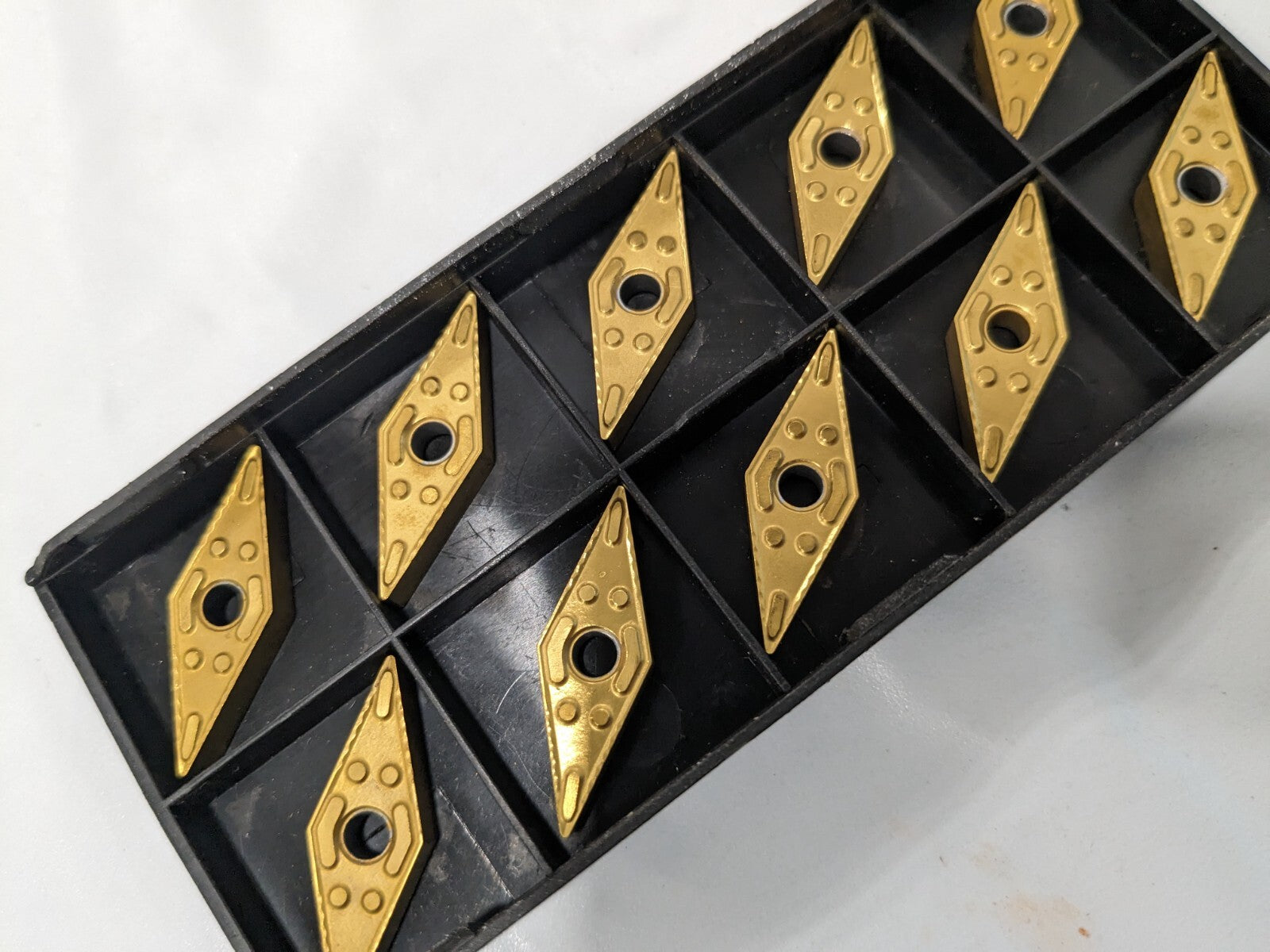

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
