TUNGALOY Turning Insert: VNMA331 T5125, Carbide 10pk 6850334

TUNGALOY Turning Insert: VNMA331 T5125, Carbide 10pk 6850334

MSRP: $200

• ANSI Insert Code VNMA331
• ISO Insert Code VNMA160404
• Relief Angle 0
• Insert Style VNMA
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0157
• Included Angle 35
• Manufacturer Grade T5125
• Coating/Finish TiCN; TiN; Al2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series VNM/GA
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Insert Material Carbide
• Insert Shape V - Diamond (Rhombic) 35-Deg
• Chip Breaker Operation Finishing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code V
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (Decimal Inch) 0.0787
• Insert Holding Method Pin; Clamp
• Width (Inch) 3/8
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.3080
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Iso Code VNMA331
• Standards ISO; ANSI
• Manufacturers Catalog Number 6850334
• Material Grade K30; K15
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed
• Industry Standard Number VNMA 331
• Width (Decimal Inch - 4 Decimals) 0.3750
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• ANSI Size Code 331
• ISO Size Code 160404
• UNSPSC Code 23242105
• Insert Size Code 331

(Description).

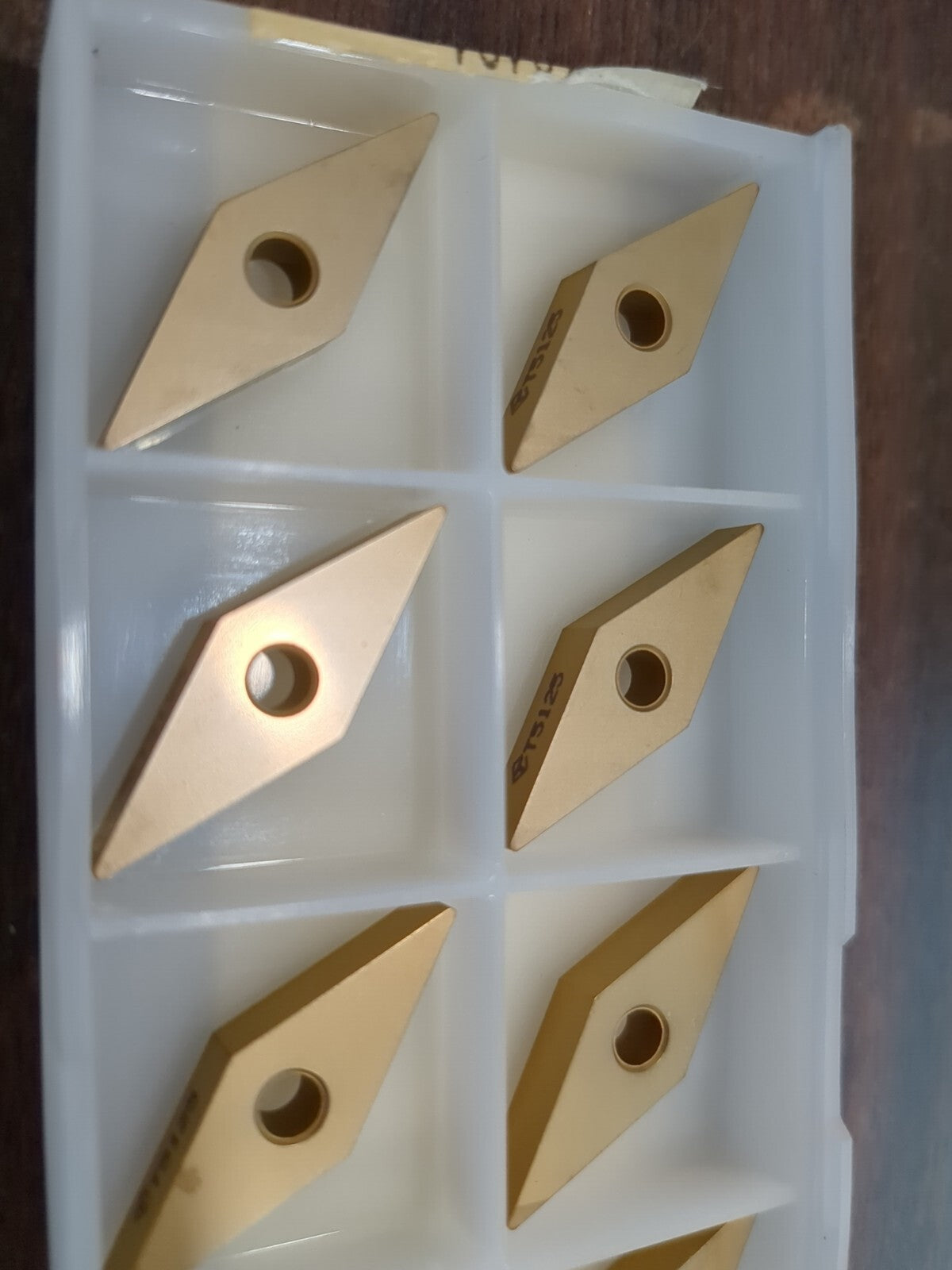

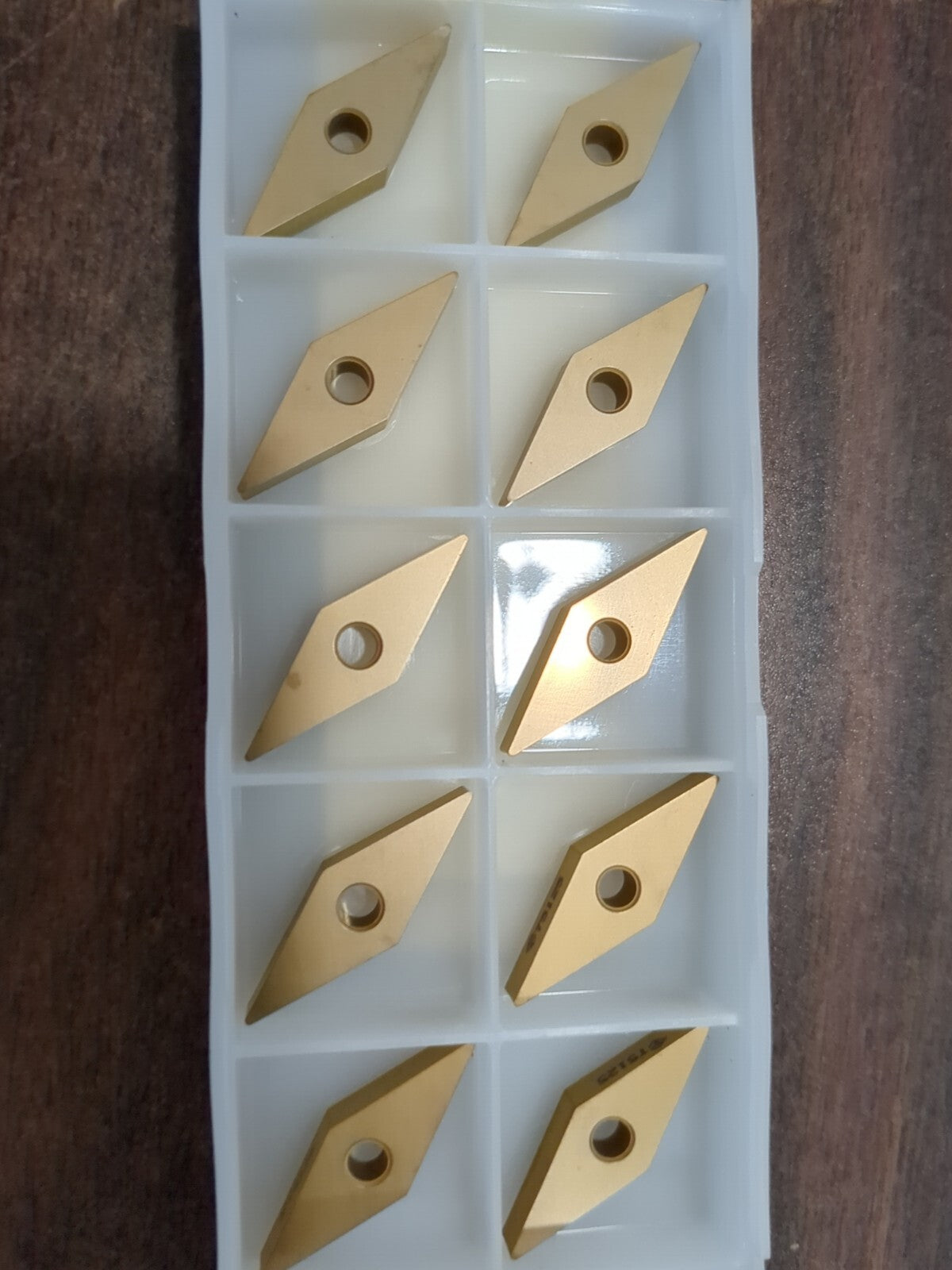

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
