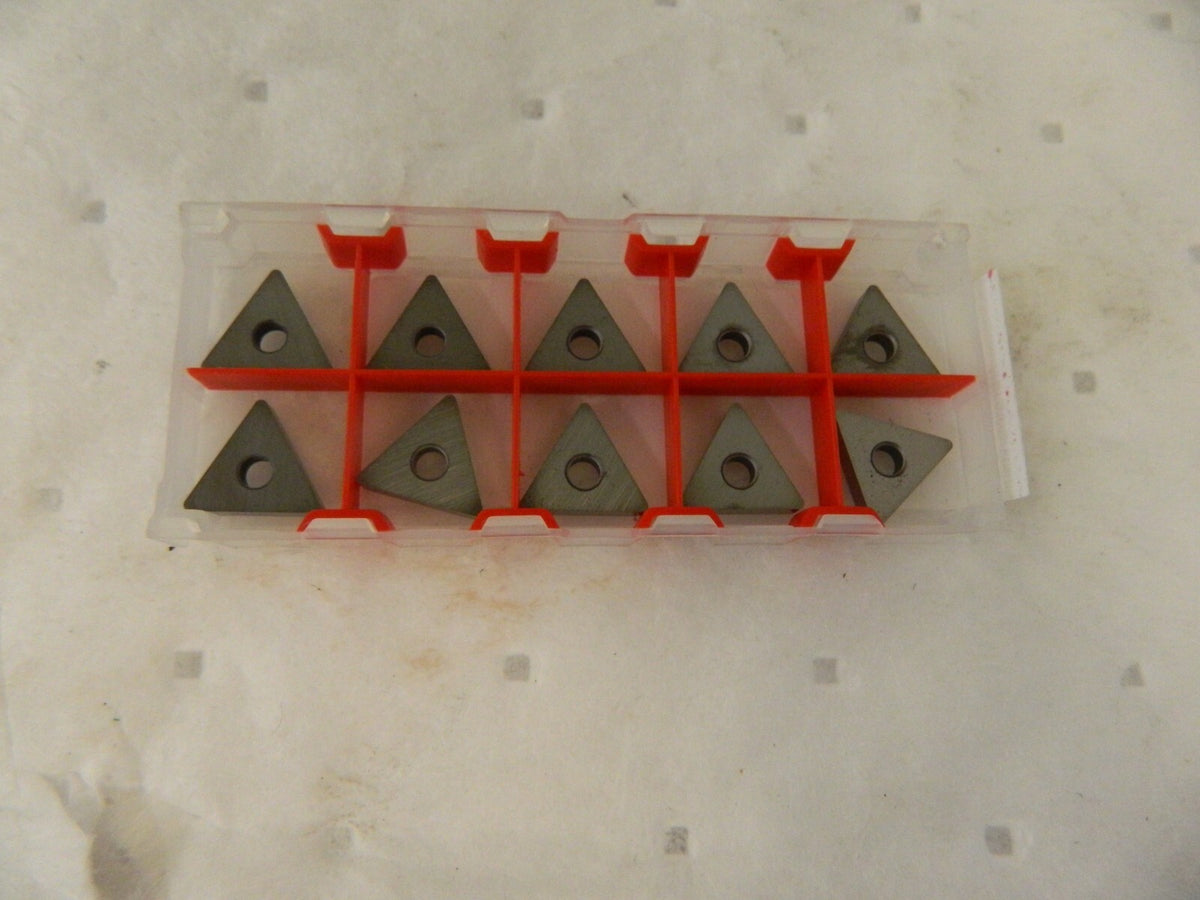

TUNGALOY Turning Insert: TNGA322 TH10, Solid Carbide 6808079

 TUNGALOY

 Turning Insert: TNGA322 TH10, Solid Carbide 6808079
MSRP: $160

• Insert Style TNGA
• Insert Size Code 322
• Insert Shape Triangle
• Coating/Finish Bright/Uncoated
• Manufacturer Grade TH10
• Corner Radius (Decimal Inch) 0.0310
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (Decimal Inch) 0.0787
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Holding Method Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 1/8
• Insert Thickness (Decimal Inch) 0.1250
• Included Angle 60.0
• Relief Angle 0
• Series TNGA
• Coating Process Uncoated
• Rake Negative
• Wiper Edge No
• Number Of Cutting Edges 6
• Primary Workpiece Material Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium
• Primary Workpiece Material Code S; H; K; N
• Ansi Code TNGA322TH10
• Iso Code TNGA160308 TH10
• Chip Breaker FT

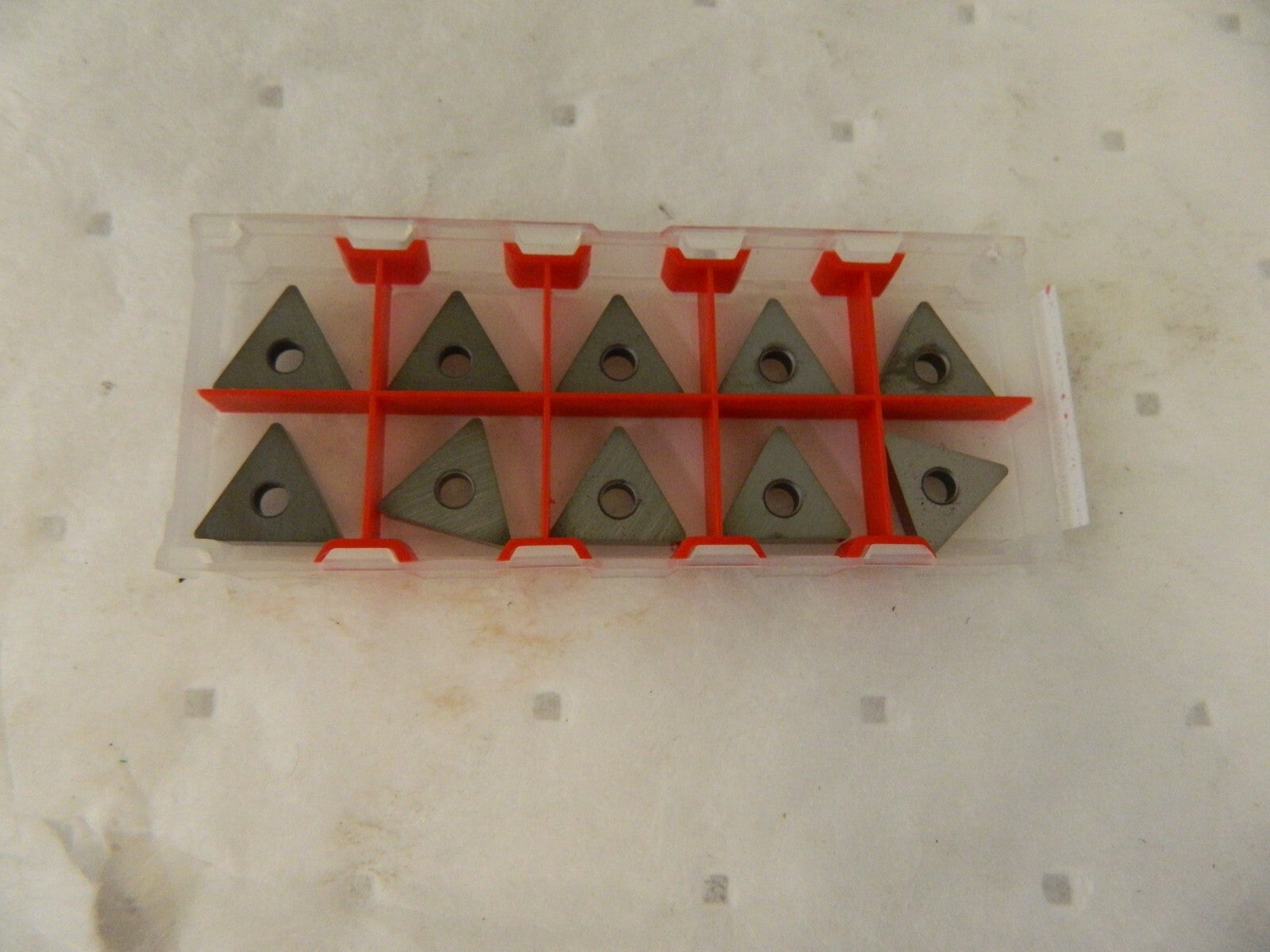

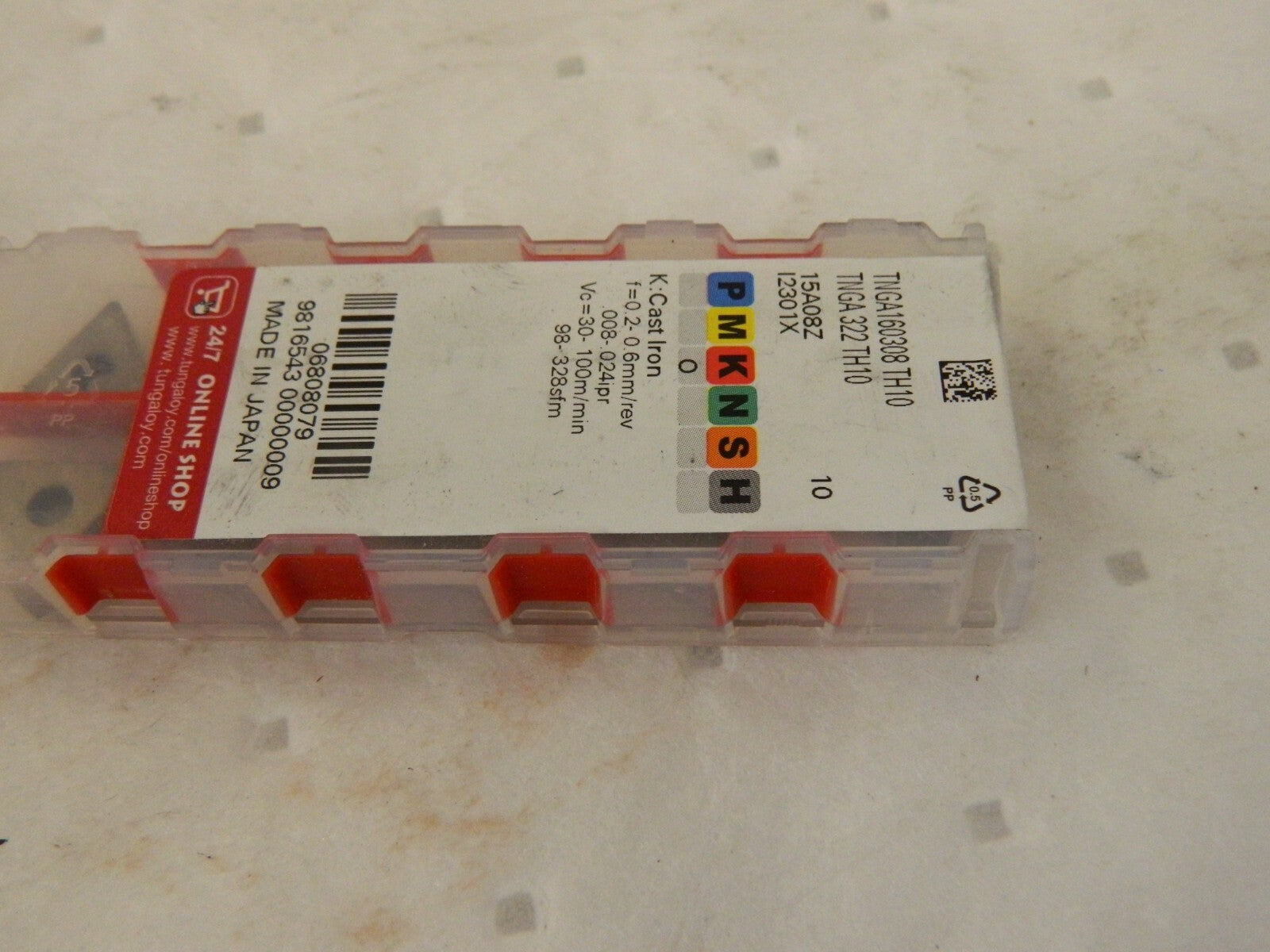

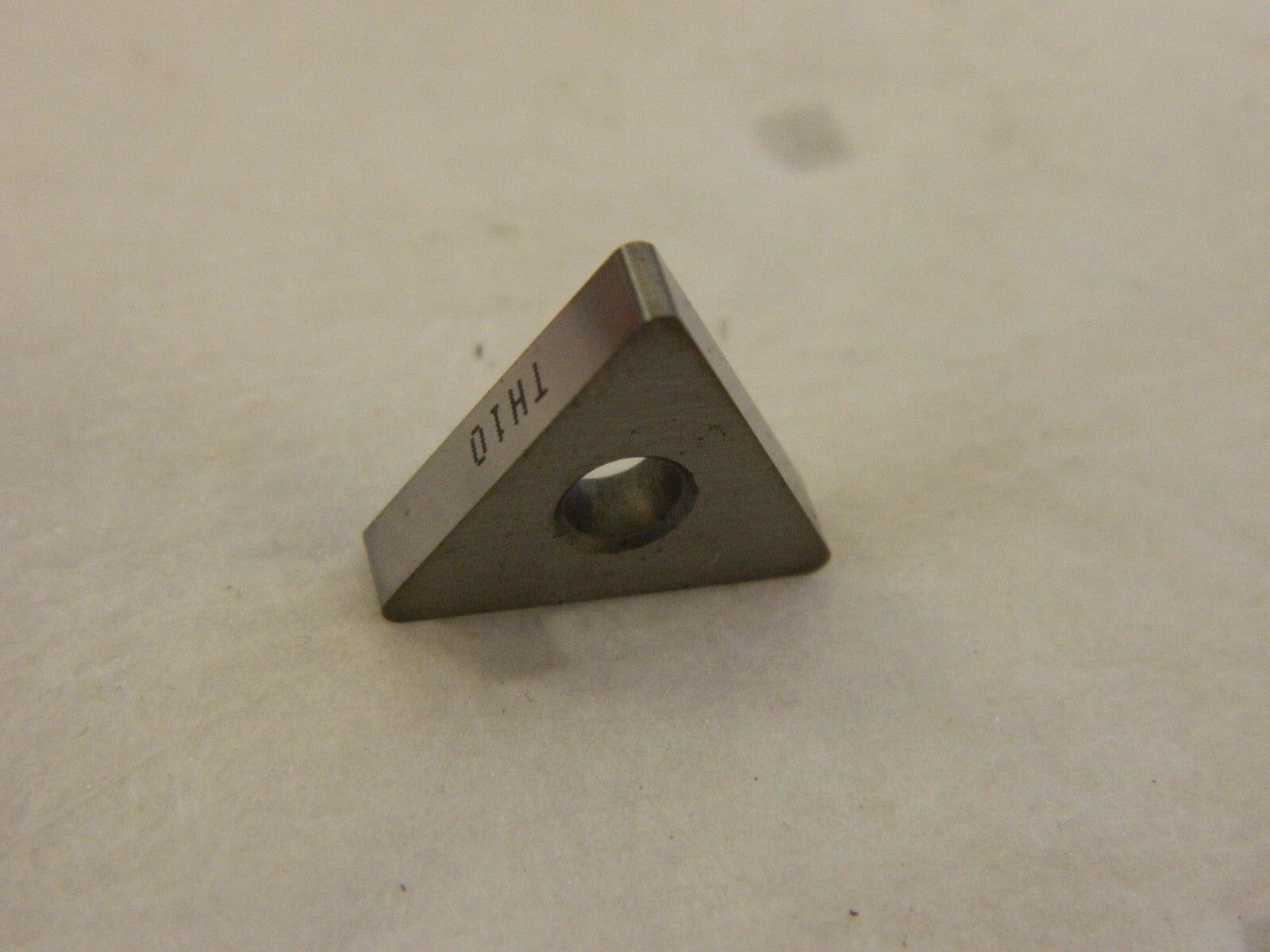

Please review photos, comes as shown.
