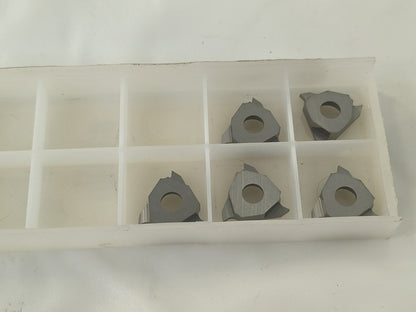

TUNGALOY Grooving Insert 5pc: JTGR3125F TH10, Solid Carbide 6804993

TUNGALOY

Grooving Insert 5pc: JTGR3125F TH10, Solid Carbide 6804993
MSRP: $70

• Insert Style JTGR
• Insert Size Code 3125F
• Cutting Width (Decimal Inch) 0.0492
• Cutting Width (mm) 1.25
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.0827
• Maximum Depth of Cut (mm) 2.10
• Insert Material Solid Carbide
• Manufacturer Grade TH10
• Full Radius No
• Corner Radius (Decimal Inch) 0.0020
• Corner Radius (mm) 0.05
• Insert Holding Method Screw
• Insert Size 3125
• Material Grade C3; C2
• Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000
• Maximum Depth Of Cut Range (mm) 2.00 to 3.00
• Lead Angle 2
• Multi-use Tool No
• Series J
• Primary Workpiece Material Superalloy; Titanium
• Primary Workpiece Material Code S; K; N
• Secondary Workpiece Material Steel
• Secondary Workpiece Material Code P
• Iso Code ISO 13399
• Standards ISO 13399
• UNSPSC Code 23242105
• Thickness (Inch) 1/8
• Chip Breaker F
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (mm) 9.53
• Overall Width (mm) 3.18
• Coating/Finish Bright/Uncoated

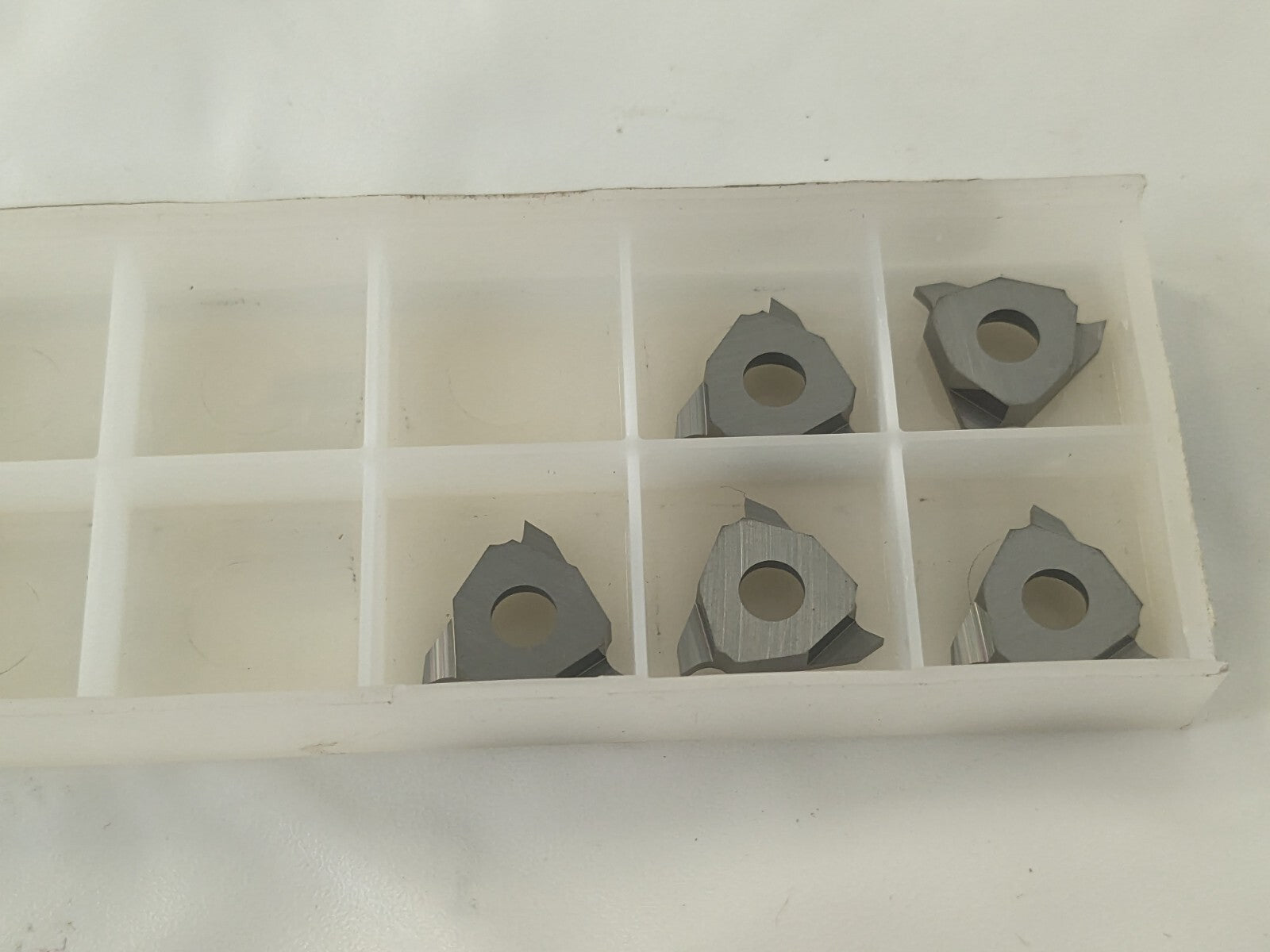

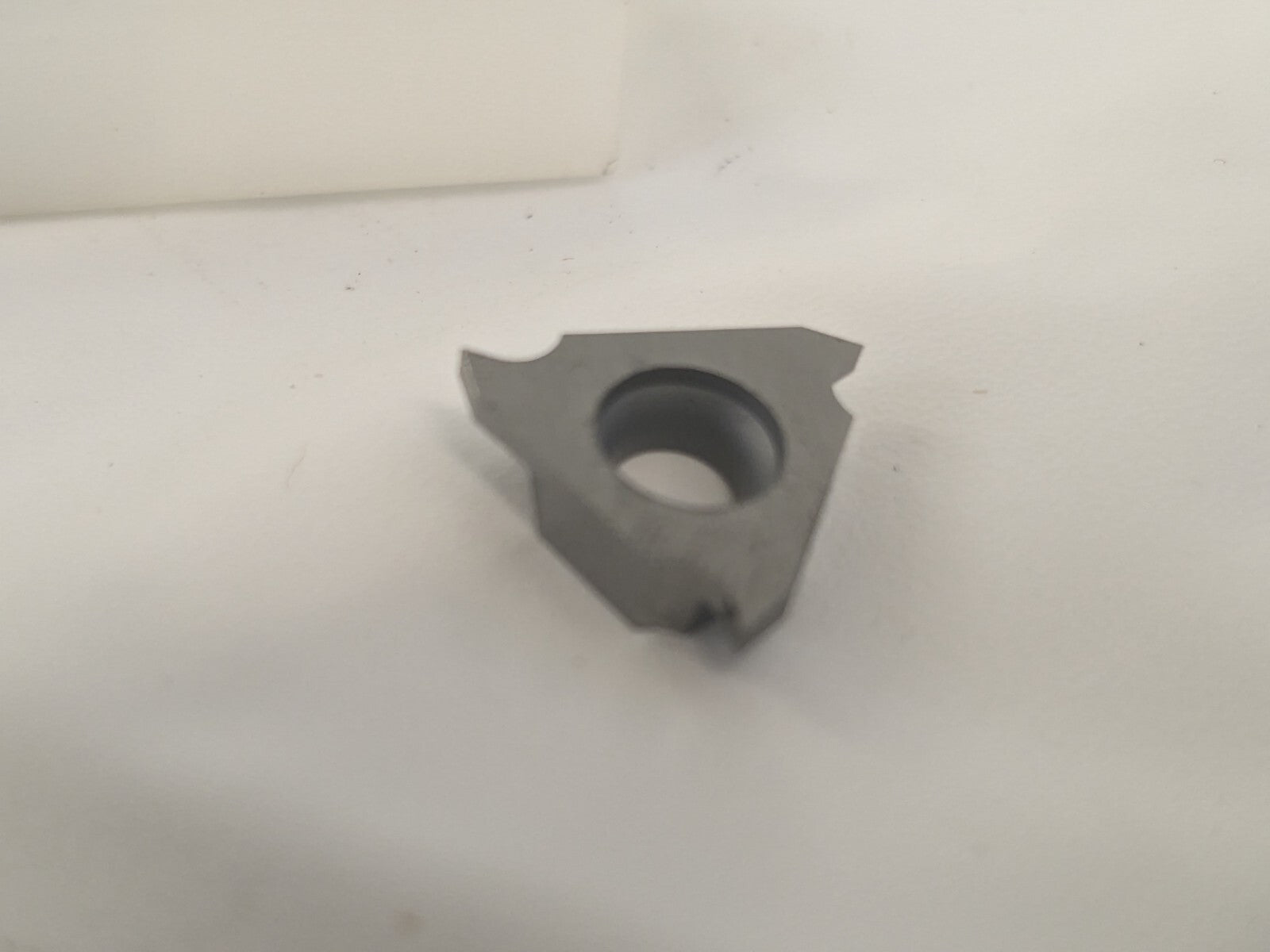

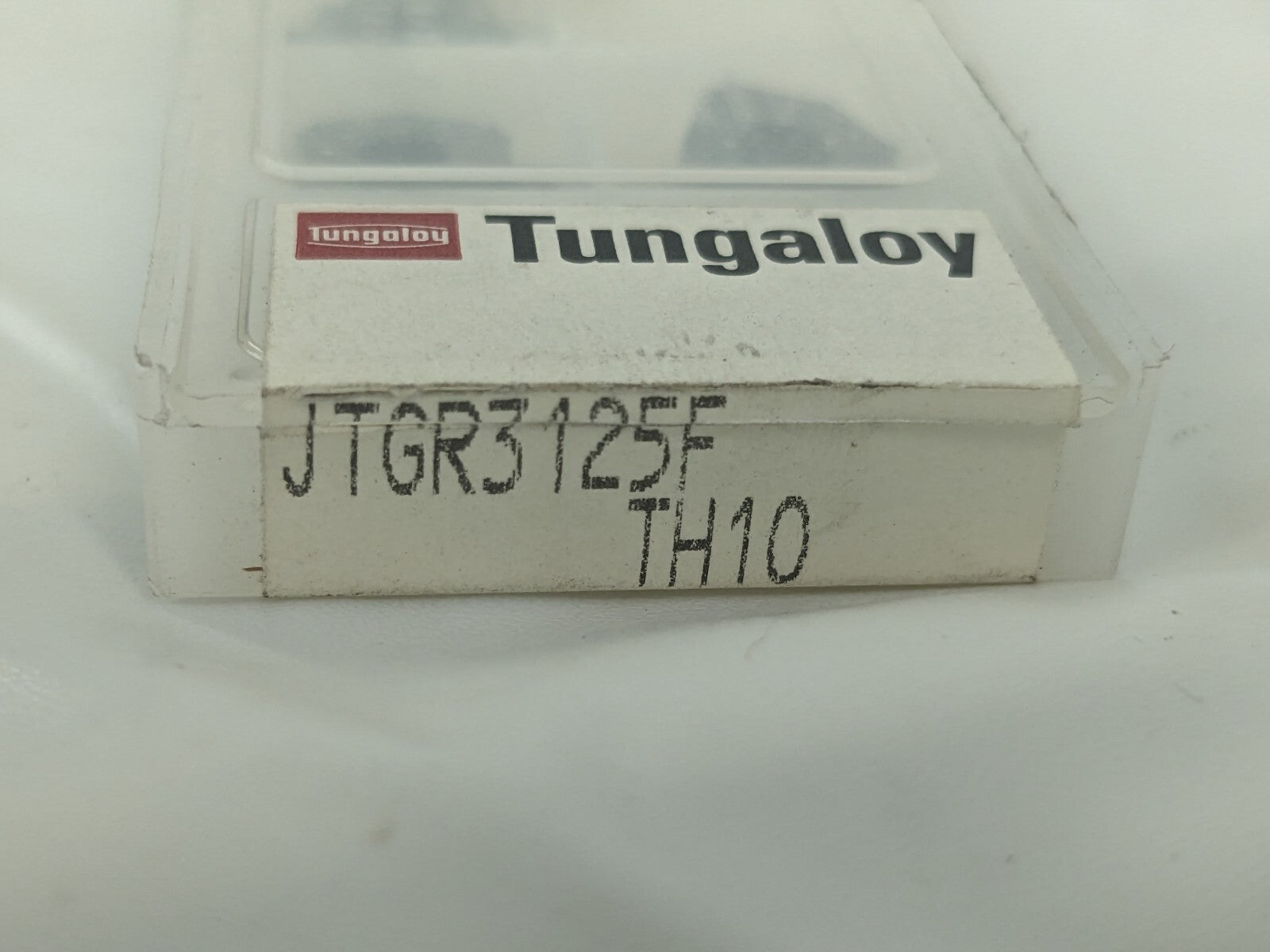

Please review photos, comes as shown.
