Tungaloy Carbide Turning Inserts TNMG434 Grade T5105 QTY 10 6853031

MSRP: $80.00

Description:

Insert Style: TNMG
Insert Size: 434
Material: Carbide
Inscribed Circle (mm): 12.70
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Thickness (Inch): 3/16
Thickness (Decimal Inch): 0.1875
Corner Radius (Inch): 1/16
Corner Radius (Decimal Inch): 0.0625
Manufacturer's Grade: T5105
Coating: TiCN/Al2O3
Material Grade: C5
Hole Diameter (Decimal Inch): 0.2030
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: K
Included Angle: 60
Insert Holding Method: Pin & Clamp
Shape: Triangle

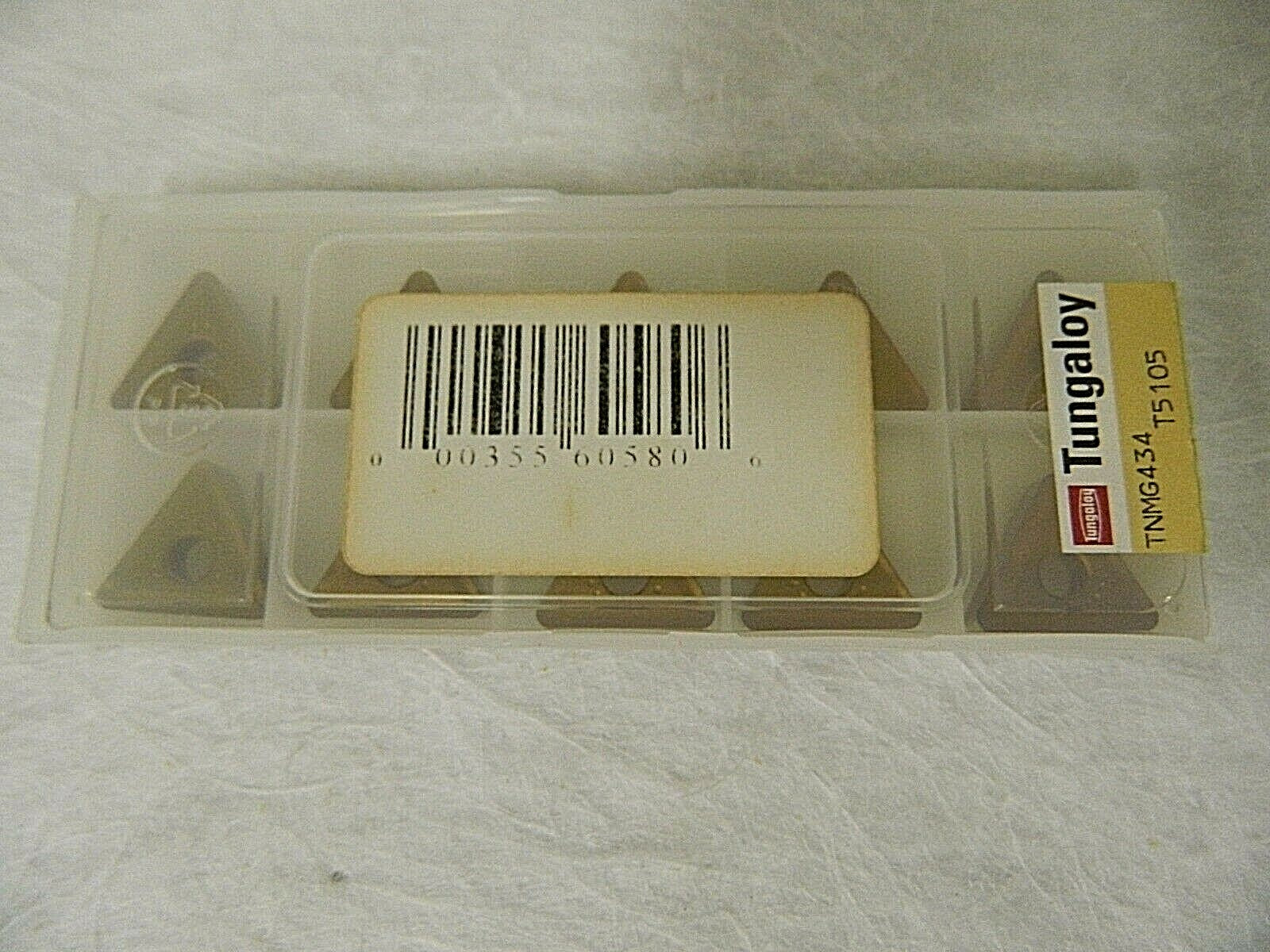

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!

Florida customer's are required to pay a 7% sales tax.
