Tungaloy Carbide Turning Inserts CNMG433TM AH120 Qty 10 6802195

Tungaloy
Carbide Turning Inserts

MSRP: $175

• Insert Style: CNMG
• ISO Size Code: 120412
• ANSI Size Code: 433
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0472
• Insert Material: Carbide
• Manufacturer Grade: AH120
• Coating/Finish: TiAlN
• Relief Angle: 0
• Wiper Edge: No
• Insert Thickness (Decimal Inch): 0.1875
• Insert Thickness (Inch): 3/16
• Insert Hand: Neutral
• Series: CNMG-TM
• Grade Characteristics: Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Chip Breaker Operation: Medium Machining; Roughing
• Number Of Cutting Edges: 4
• Side Clearance: Negative
• Insert Shape Code: C
• Hole Diameter (Decimal Inch): 0.2030
• Maximum Depth of Cut (Decimal Inch): 0.1969
• ISO Insert Code: CNMG120412
• ANSI Insert Code: CNMG433
• Insert Holding Method: Pin; Clamp
• Width (Inch): 1/2
• Clearance Code: N
• Tolerance Code: M
• Coating Process: PVD
• Length Range (Decimal Inch): 0.5000 - 0.6000
• Rake: Negative
• Insert Length (Decimal Inch): 0.5080
• Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code: P; S; K; M
• Iso Code: CNMG 433 TM
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 6802195
• Material Grade: M15; M25; P25; S10; P15; S25; K30; K15
• Coating Classification: PVD
• Chip Breaker: TM Rake Angle: -6
• Cutting Edge Style: Sharp
• Industry Standard Number: CNMG 433 TM
• Width (Decimal Inch - 4 Decimals): 0.5000
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105
• Insert Size Code: 433

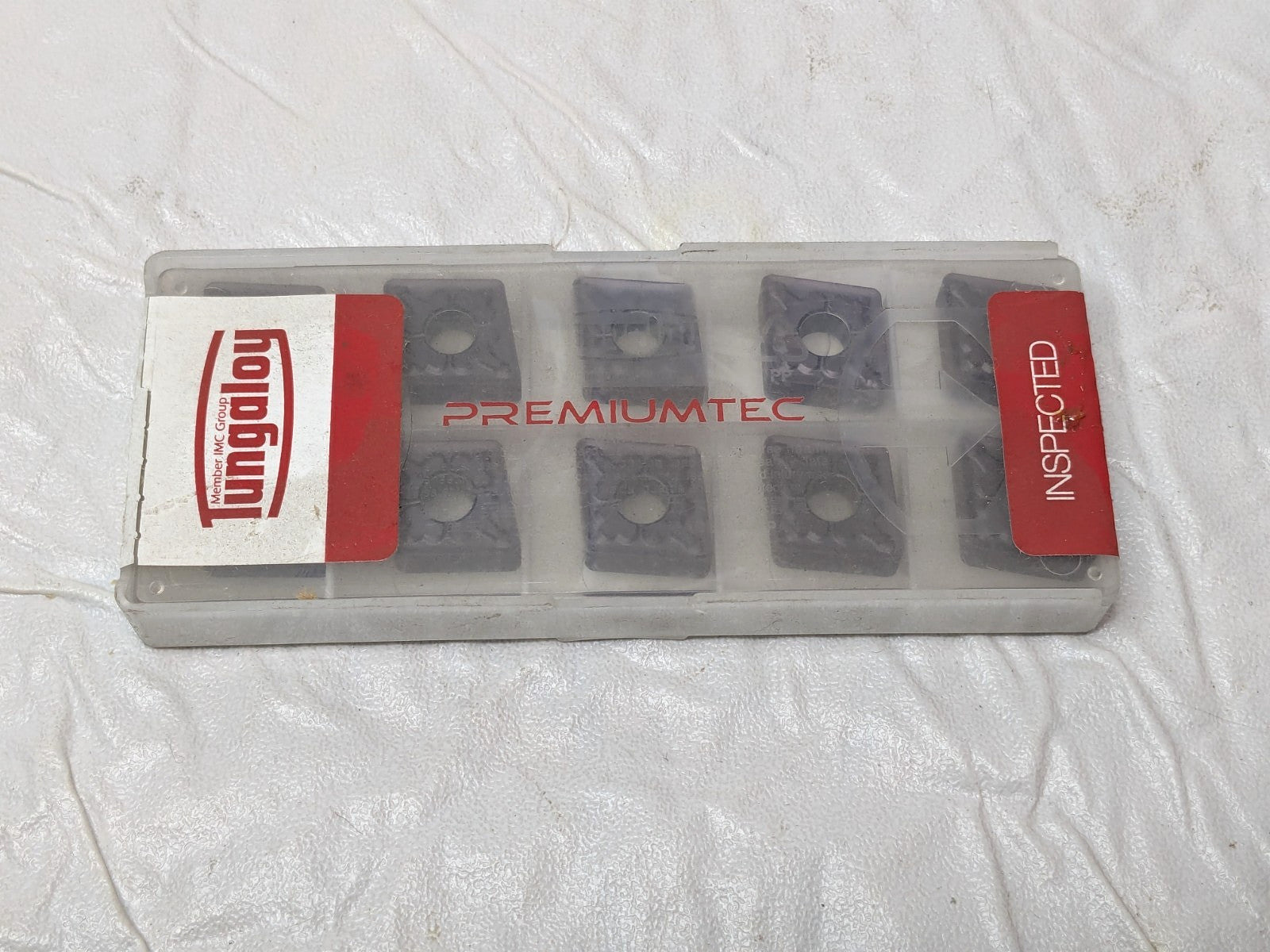

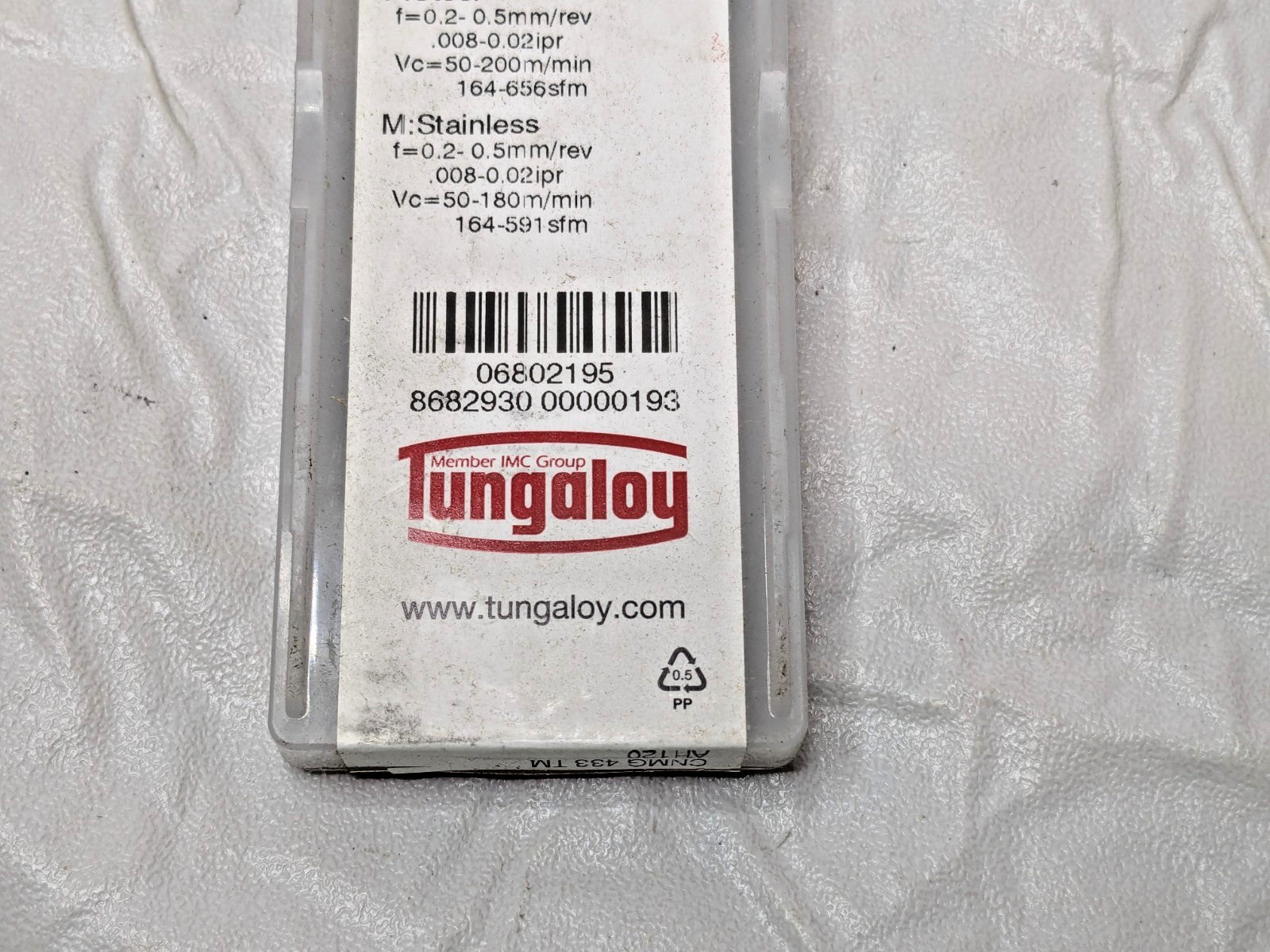

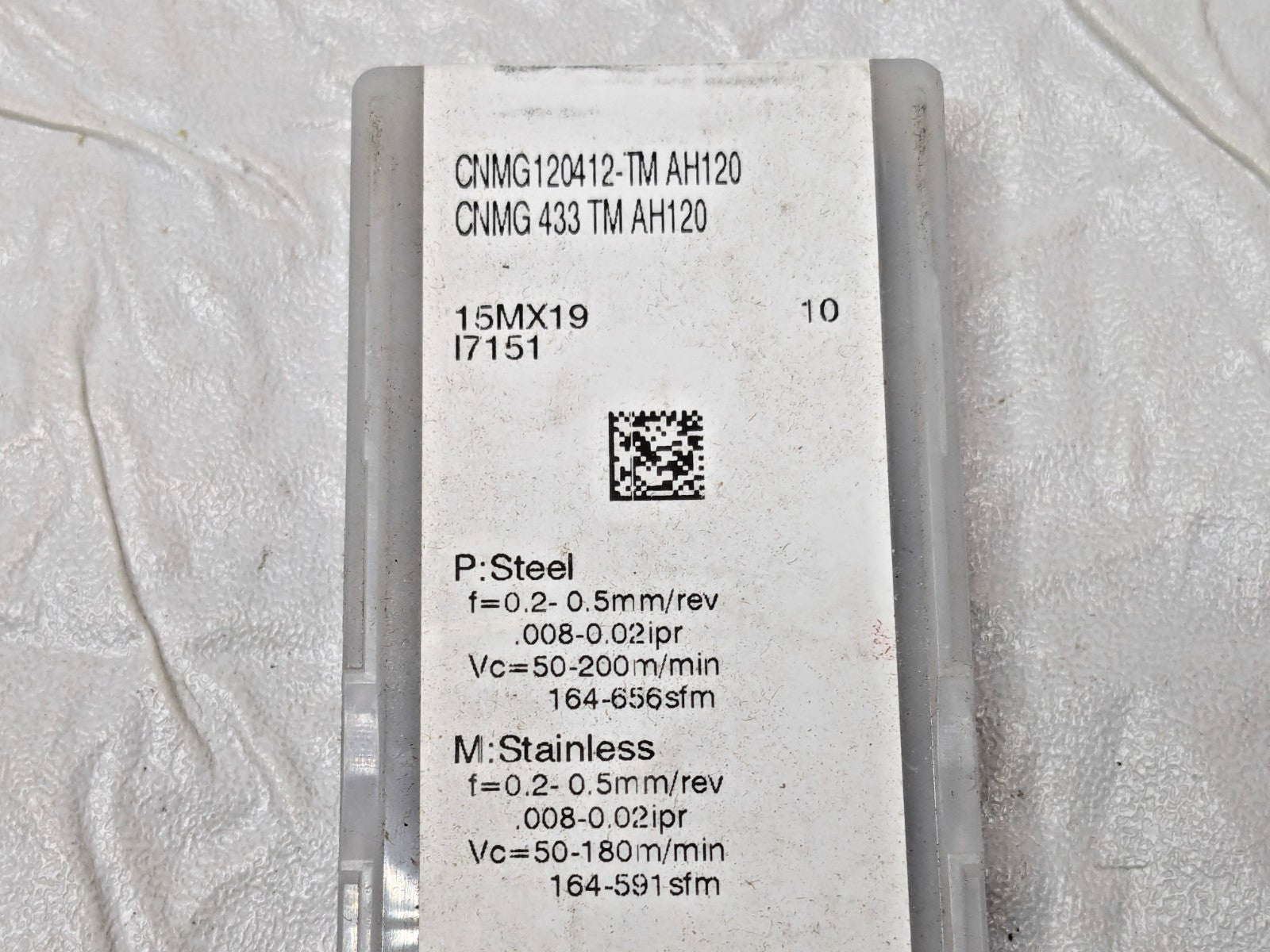

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
