Tungaloy Carbide Turning Inserts CNMG 432 Qty 5 6811624

Tungaloy
1 Pack of 5 Carbide Turning Inserts

MSRP: $90

• Insert Style: CNMG
• ANSI Size Code: 432
• ISO Size Code: 120408
• ISO Size Code: 120408
• Included Angle: 80.00 Insert Shape: C - Diamond (Rhombic) 80-Deg
• Inscribed Circle (Inch): 1/2
• Included Angle: 80.00
• Corner Radius (Decimal Inch): 0.0315
• Inscribed Circle (Decimal Inch): 0.5000
• Manufacturer Grade: AH120
• Inscribed Circle (Inch): 1/2
• Relief Angle: 0.000
• Corner Radius (Inch): 1/32
• Insert Thickness (Inch): 3/16
• Corner Radius (Decimal Inch): 0.0315
• Insert Hand: Neutral
• Insert Material: Carbide
• Chip Breaker Operation: Heavy Machining; Medium Machining; Roughing
• Manufacturer Grade: AH120
• Side Clearance: Negative
• Coating/Finish: TiAlN
• Insert Shape Code: C
• Relief Angle: 0.000
• Maximum Depth of Cut (Decimal Inch): 0.2362
• Wiper Edge: No
• ISO Insert Code: CNMG120408
• Insert Thickness (Inch): 3/16
• Width (Inch): 1/2
• Insert Thickness (Decimal Inch): 0.1875
• Tolerance Code: M
• Insert Hand: Neutral
• Length Range (Decimal Inch): 0.5000 - 0.6000
• Series: CNMG-TH
• Insert Length (Decimal Inch): 0.5080
• Chip Breaker Operation: Heavy Machining; Medium Machining; Roughing
• Primary Workpiece Material Code: P; S; K; M
• Grade Characteristics: Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Standards: ISO; ANSI Side
• Clearance: Negative
• Material Grade: M15; M25; P25; S10; P15; S25; K30; K15
• Number Of Cutting Edges: 4
• Chip Breaker: TH
• Insert Shape Code: C
• Cutting Edge Style: Honed; Chamfered
• Hole Diameter (Decimal Inch): 0.2030
• Width (Decimal Inch - 4 Decimals): 0.5000
• Maximum Depth of Cut (Decimal Inch): 0.2362
• Full Radius: No
• ANSI Insert Code: CNMG432
• UNSPSC Code: 23242105
• ISO Insert Code: CNMG120408
• Country of Origin: Japan
• Insert Holding Method: Pin; Clamp

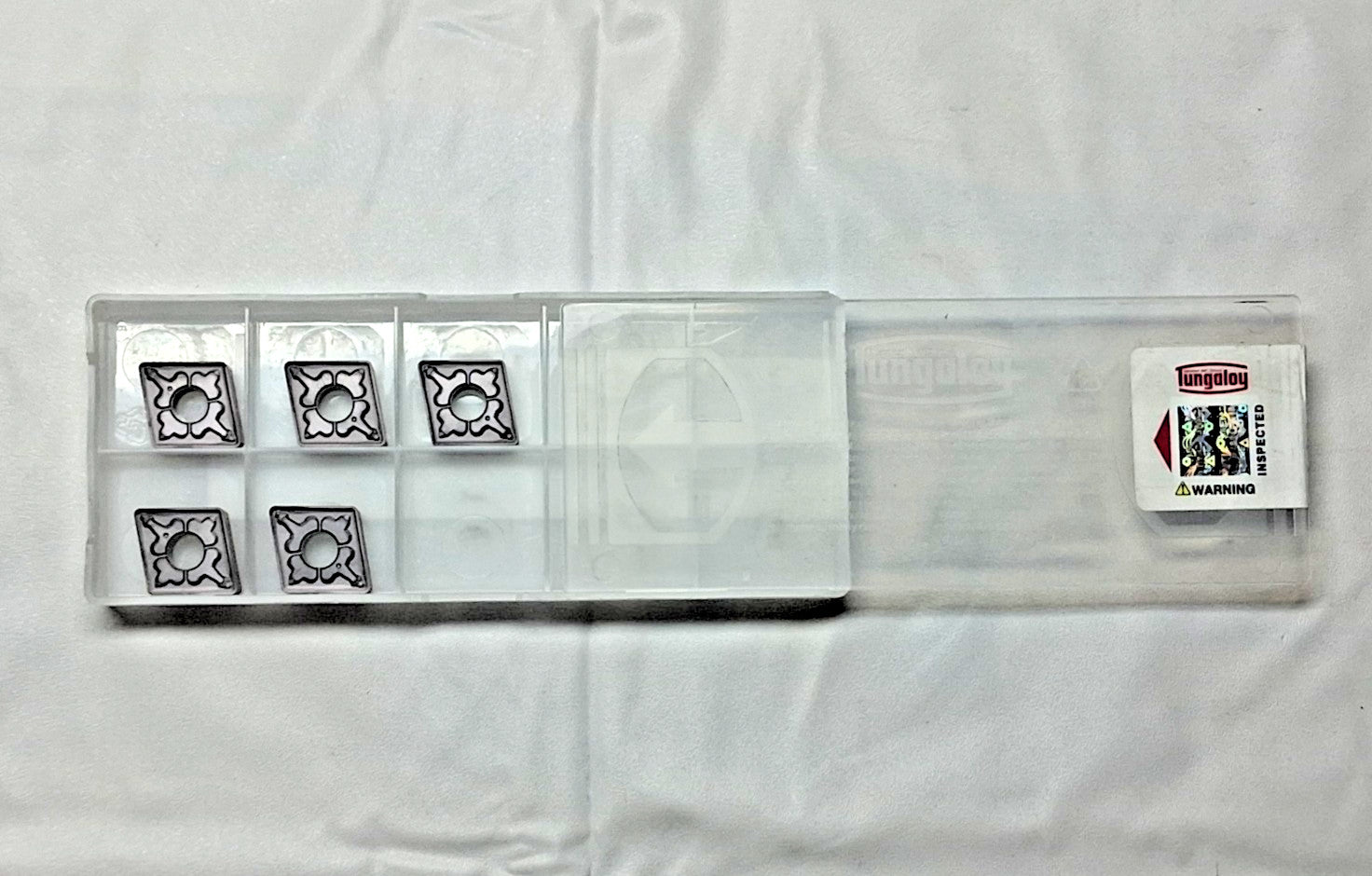

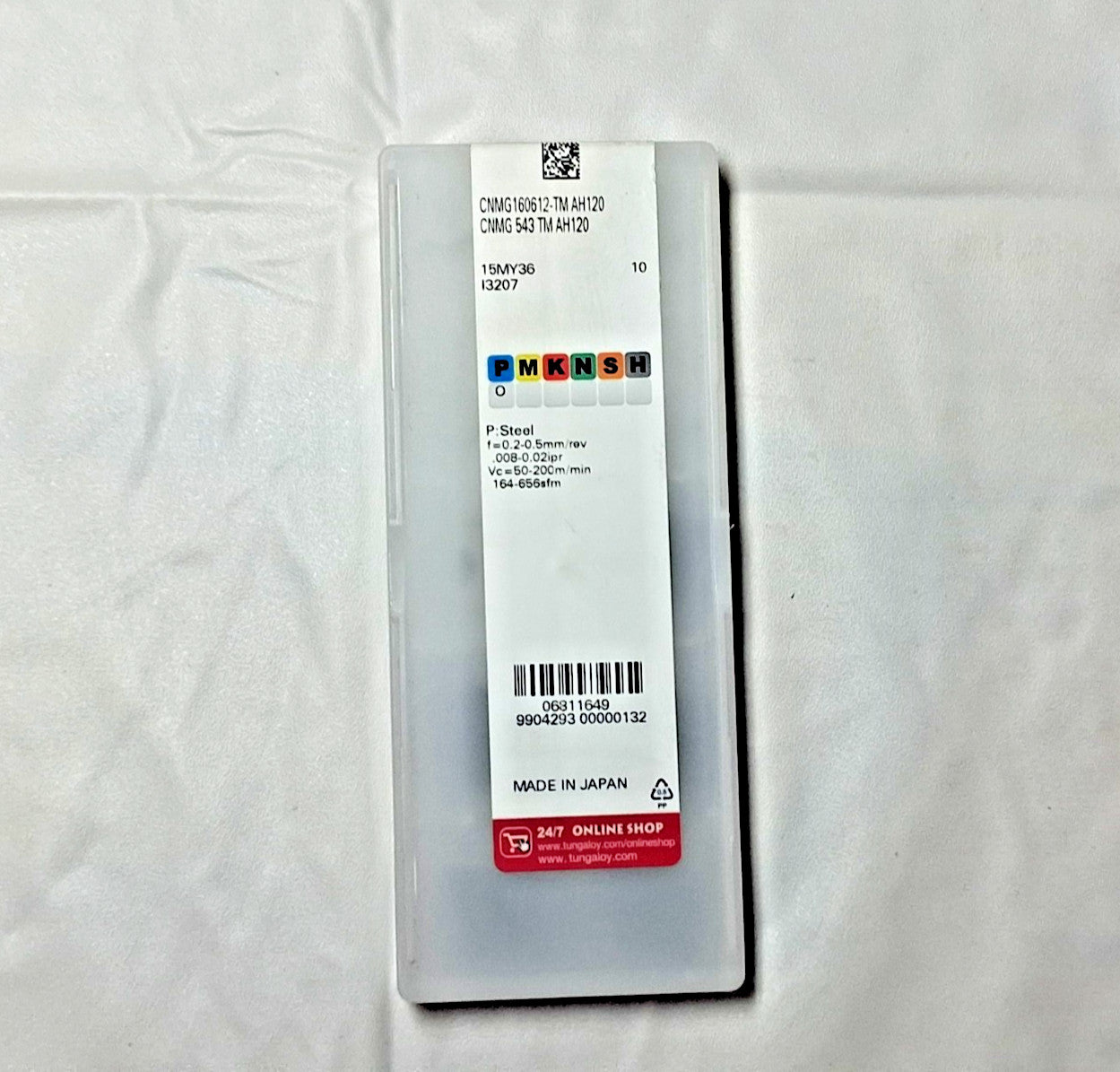

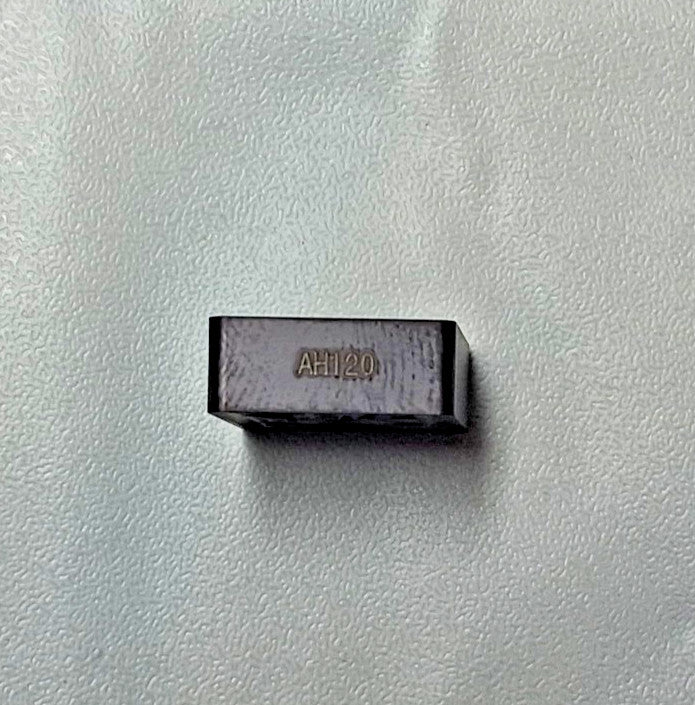

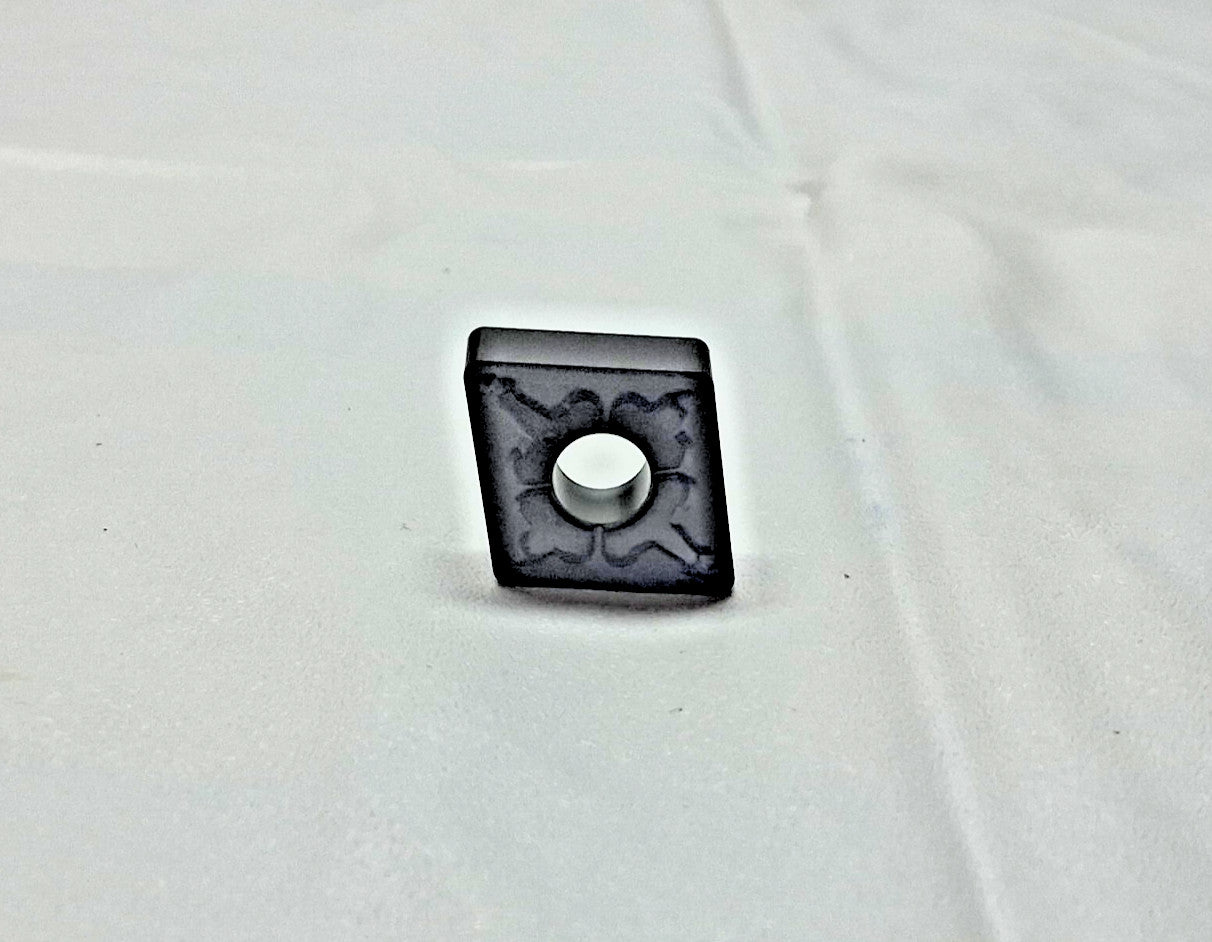

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
