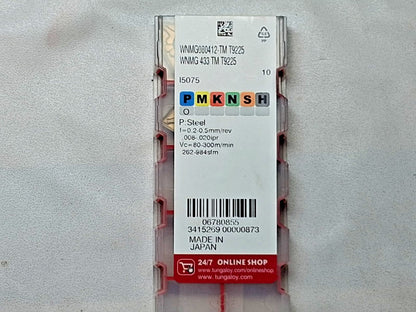

Tungaloy Carbide Turning Inserts QTY5 WNMG 433 TM T9225 6780855

Tungaloy
1 Pack of 5 Carbide Turning InsertS


MSRP: $95

• Insert Style WNMG
• ANSI Size Code 433
• ISO Size Code 080412
• Insert Shape W - Trigon 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0472
• Insert Material Carbide
• Manufacturer Grade T9225
• Coating/Finish Titanium; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Series WNMG-TM
• Chip Breaker Operation Medium Machining; Roughing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 6
• Insert Shape Code W
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (Decimal Inch) 0.1969
• ANSI Insert Code WNMG433
• ISO Insert Code WNMG080412
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6860
• Primary Workpiece Material Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M
• Iso Code WNMG 433 TM
• Standards ISO; ANSI
• Manufacturers Catalog Number 6780855
• Material Grade P25; P15
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker TM
• Rake Angle -6
• Cutting Edge Style Sharp
• Industry Standard Number WNMG 433 TM
• Width (Decimal Inch - 4 Decimals) 0.6860
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 433

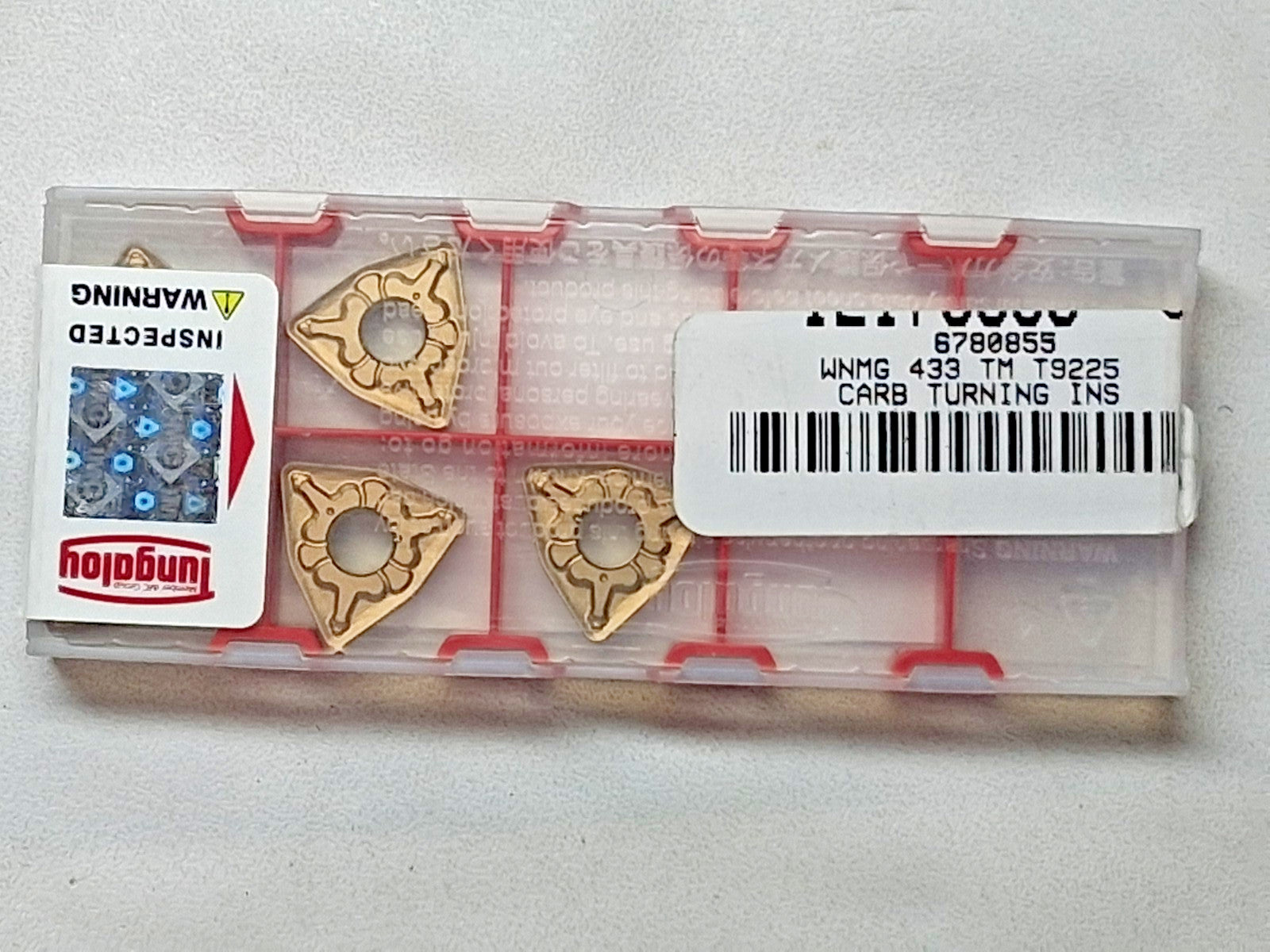

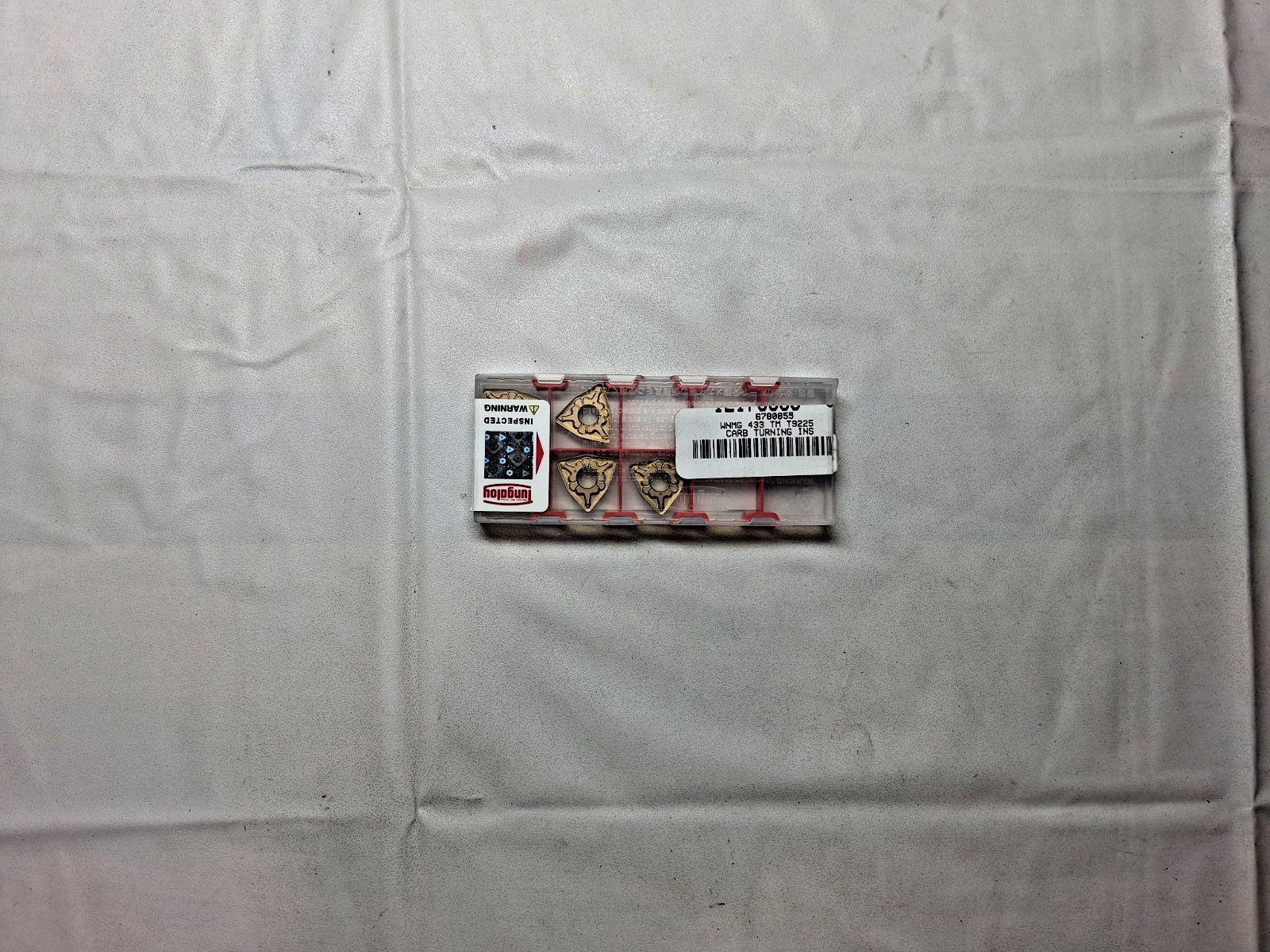

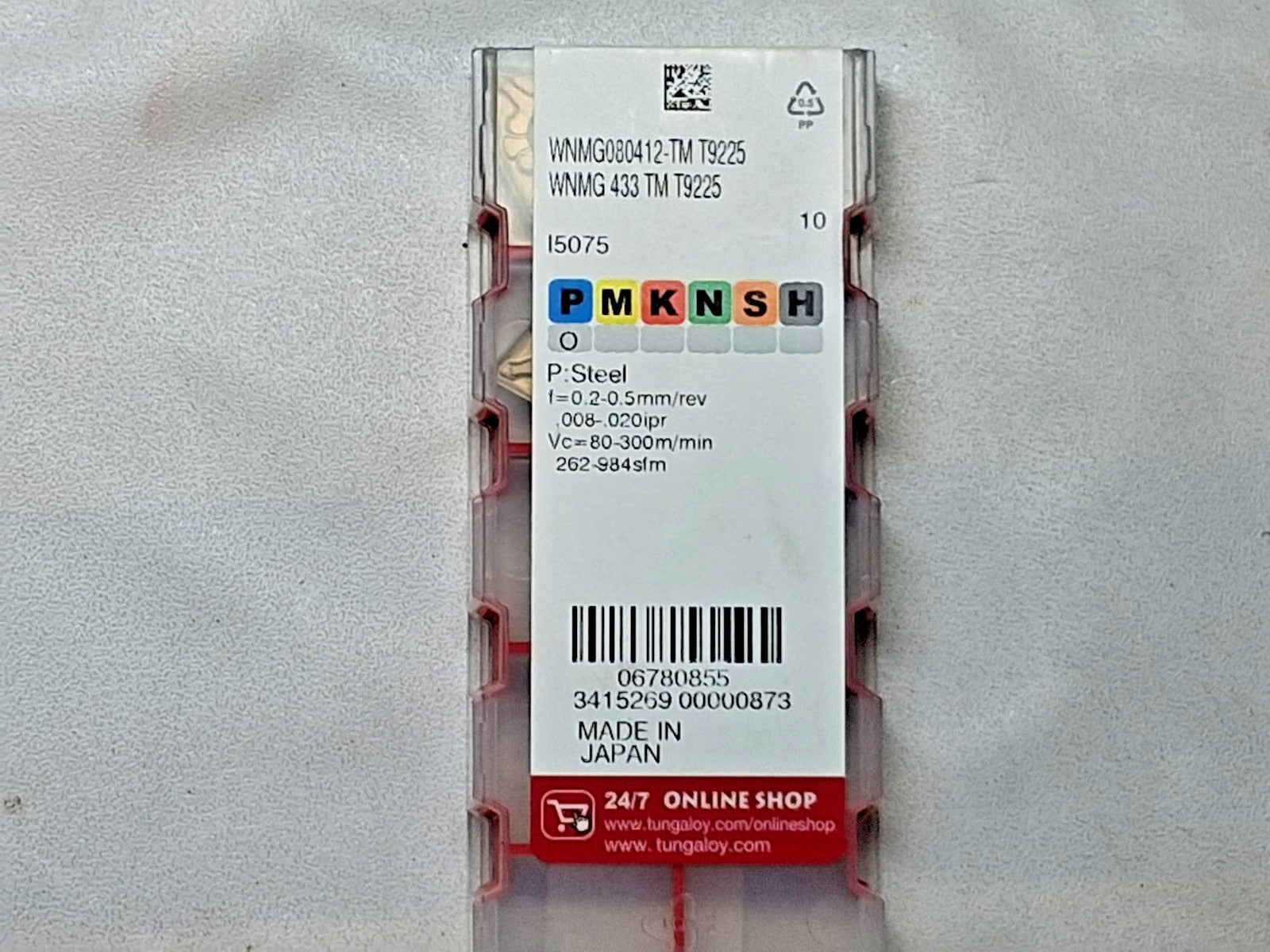

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
